NFA-RS10 Series

1U Network Firewall Appliance Pentium/ I3/ I5/ I7, 6 x LAN, 2 x SFP

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.


Key Features


NFA-RS10 Series Intel® Celeron®/Pentium®/Core™ I3 I5 I7 BGA Processor and Intel® B75 Chipset with 1 set BYPASS

NFA-RS10 Series Rich I/O: Console, 2 x USB2.0, 6 x LAN, 2 x SFP, VGA, Power switch, ATX power socket

NFA-RS10 Series Single/Dual SODIMMs DDR3/DDR3L, up to 8/16GB Memory

NFA-RS10 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

NFA-RS10 Series Chassis Form: Standard 1U Cabinet Type




Key Functions


NFA-RS10 Series The actual test traffic exceeds 1000m/s

NFA-RS10 Series 3855U/G2020 WAN-LAN Throughput: through 1 gigabit nic/optical port from lan to wan forwarding speed is 800Mbps to 1Gbps
I3/I5/I7 WAN-LAN Throughput: through 1 gigabit nic/optical port from lan to wan forwarding speed is 1Gbps





Specifications




Mechanical

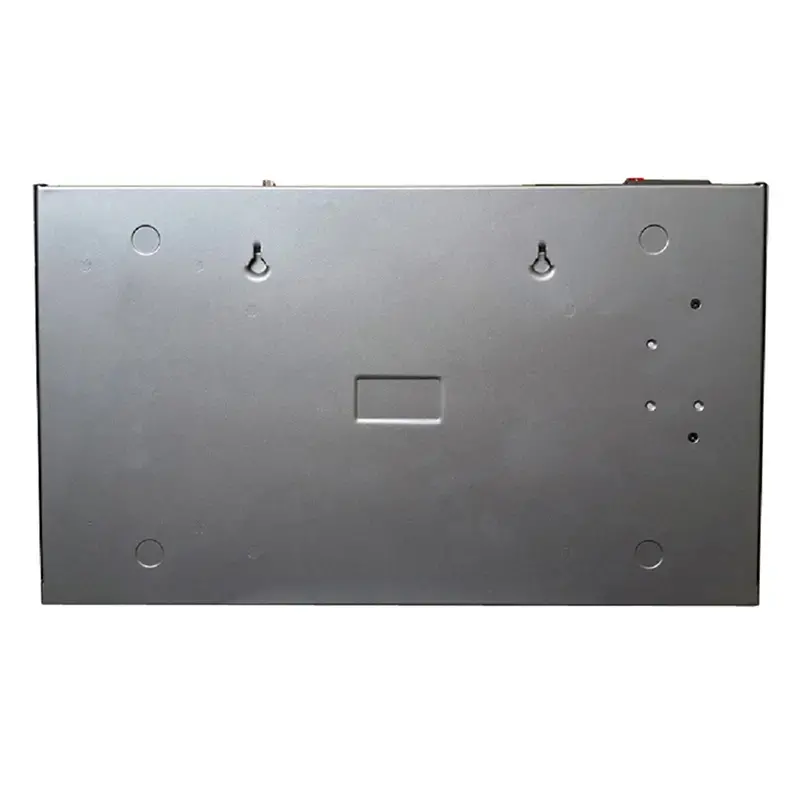

Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 430 x 270 x 50mm
Weight 6.5Kgs
Installation Method Desktop type/rack mounting

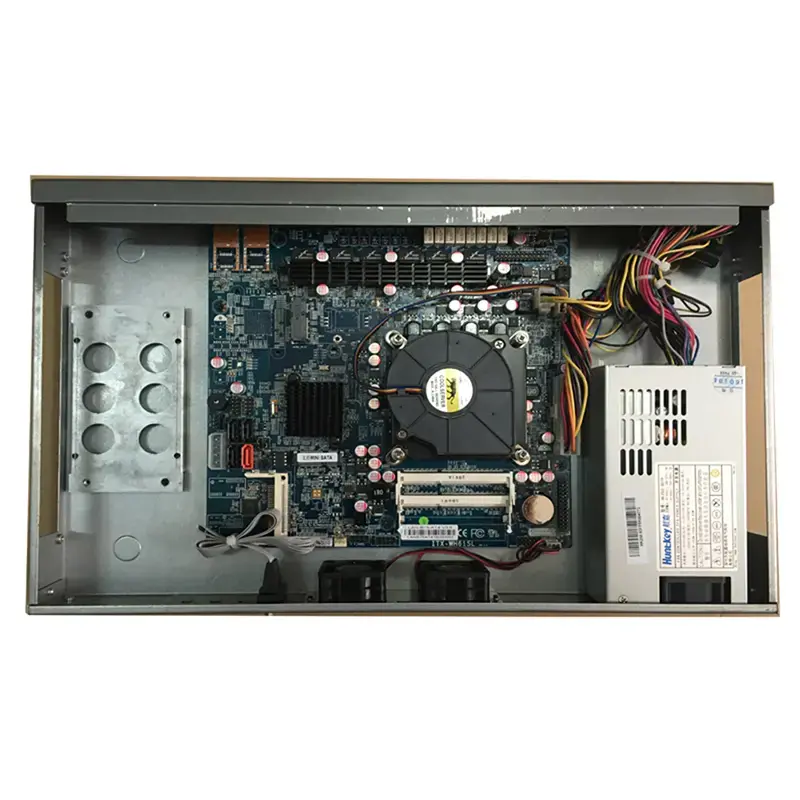

Motherboard

CPU Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz)
Intel® Pentium® Processor G2020 or its similar replacement CPUs, ship any of them (3M Cache, 2.90 GHz)
Intel® Core™ i3-3220 Processor or its similar replacement CPUs, ship any of them (3M Cache, 3.30 GHz)
Intel® Core™ i5-3470 Processor or its similar replacement CPUs, ship any of them (6M Cache, up to 3.60 GHz)
Intel® Core™ i7-3770 Processor or its similar replacement CPUs, ship any of them (8M Cache, up to 3.90 GHz)
Chipset Intel SOC/ B75 with 1 set Bypass
Network Card 6 x Intel 82574L gigabit lan, 2 x Gigabit Intel® I-350 Optical Ports
Intel® AES New Instructions According to CPU
Memory 1 x SO-DIMM DDR3/DDR3L
2 x SO-DIMM DDR3 1333/1600, up to 16GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA


I/O Interfaces

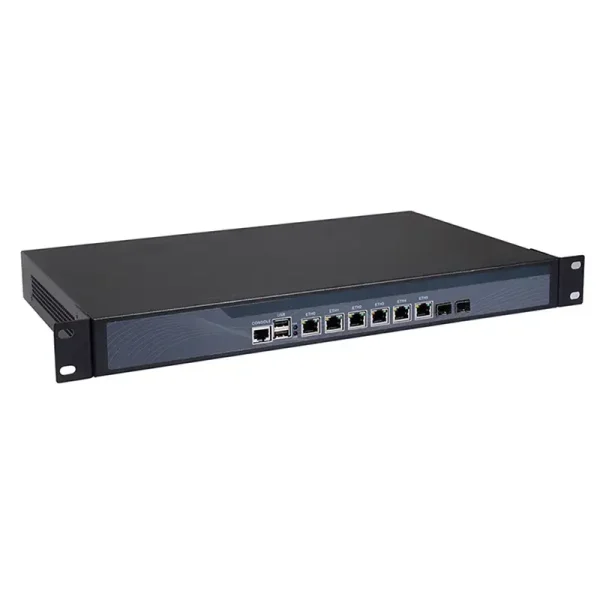

Front Panel 1 x Console
2 x USB2.0
6 x LAN
2 x SFP

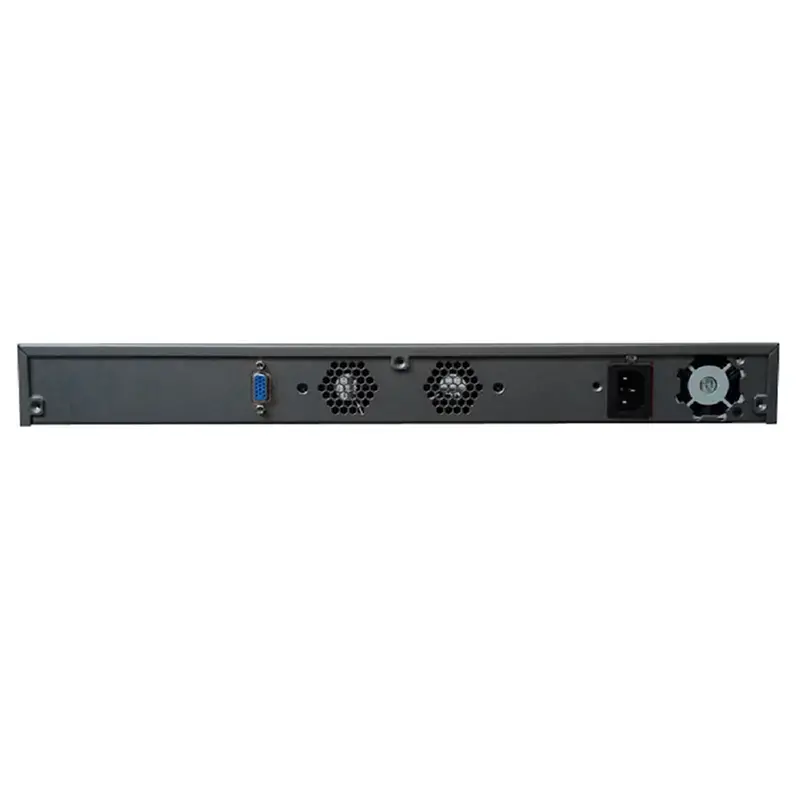

Rear Panel 1 x VGA
1 x Power switch
1 x ATX power socket


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Smart fan
Power Supply 50W 12V 4.2A, 110-240V 50/60Hz
150W 100-240V 50/60Hz
Packing List RS10 firewall appliance, rack ears, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NFA-RS10 Series





* Ordering Information *




Model



Processor



Chipset



Intel® AES New Instructions



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



SFP



USB



Power

RS10-3855U 3855U SOC Yes Intel® HD Graphics 510 1.60 GHz 15 W VGA 1 x SO-DIMM DDR3/DDR3L 1 x 2.5 inch/1 x M-SATA 6 2 2 50 W
RS10-G2020 G2020 B75 with 1 set Bypass No Intel® HD Graphics 2.90 GHz 55 W VGA 2 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 2 150 W
RS10-3220 I3 3220 B75 with 1 set Bypass No Intel® HD Graphics 2500 3.30 GHz 55 W VGA 2 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 2 150 W
RS10-3470 I5 3470 B75 with 1 set Bypass Yes Intel® HD Graphics 2500 3.20~3.60 GHz 77 W VGA 2 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 2 150 W
RS10-3770 I7 3770 B75 with 1 set Bypass Yes Intel® HD Graphics 4000 3.40~3.90 GHz 77 W VGA 2 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 2 150 W



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, rack mounting type etc

Optional Accessories:

Memory: 2G/4G/8G/16G DDR3/DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc

FEATURED PRODUCTS

industrial computer with 2 x com rs232
fanless industrial ipc pc with j1900

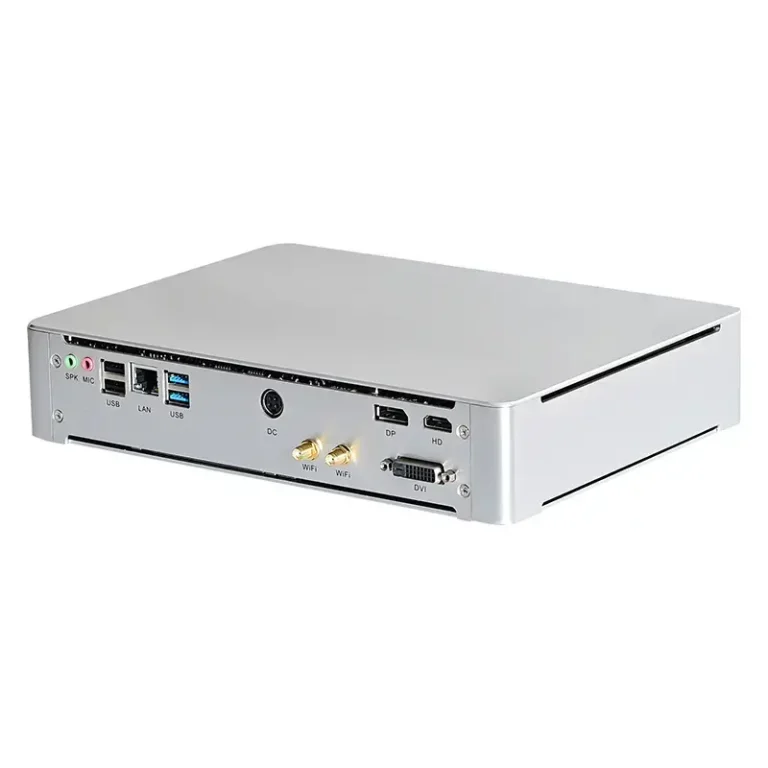

mini pc core i5

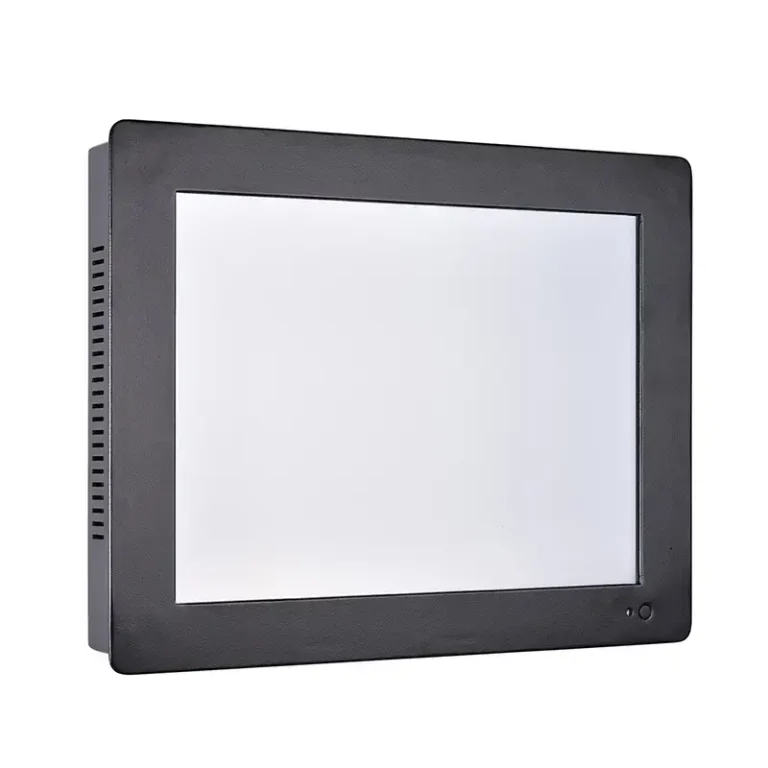

industrial touch panel pc automation pc
