GMC-BM23 Series

Gaming Mini PC with 7-10th Gen Intel Core I5 I7 I9, GeForce GTX Graphics

For product pricing, customization, or other inquiries:

Share to:






Overview


Small body, big energy. It is the stronger and smoother performance gaming mini pc. Master the power of the core, multi-threaded processing and multi-tasking, easy to deal with office design, audio and video, online shopping, games, etc. 4K audio and video, cinema quality. With GeForce GTX 3G/4G/6G graphics. Unlock high-effect picture quality and be on the scene. Picture quality and special effects field of view are indispensable. DDR5 video memory ensures that 1080P picture quality is not turned on. Multi-capture anti-aliasing is still smooth. Feel the immersive and stunning picture quality. Every game is a blockbuster movie.


Key Features


GMC-BM23 Series Intel® 7th Gen Intel® Core™ i5/i7/i9 BGA Processor and Intel® HM370 Chipset

GMC-BM23 Series Rich I/O: DVI, DP, HDMI, Optical, 6 x USB 3.0, 2 x USB 2.0, Type C for USB, 2 x LAN, Spk, Mic

GMC-BM23 Series Dual SODIMM for up to 32GB/64GB DDR4 Memory

GMC-BM23 Series Rich Storage: M.2 2280 SATA/NVME SSD, 2.5 Inch SSD/HDD

GMC-BM23 Series Embedded Expansion: M.2 PCIe for WiFi




Key Functions


GMC-BM23 Series Support diskless boot

GMC-BM23 Series Support Restore AC Power Loss

GMC-BM23 Series Support 3-channel display out(DP, HDM and DVI) for simultaneous display or synchronous different display

GMC-BM23 Series Support up to 8K output, 4K DP1.4, HDMI2.0 and DVI-D





Specifications


Mechanical
Material Aluminum alloy
Colour Black
Size 270 x 240 x 65mm
Weight 2.5Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional
Motherboard
CPU Intel® Core™ i5-7300HQ Processor (6M Cache, up to 3.50 GHz)
Intel® Core™ i7-7820HK/7820HQ Processor (8M Cache, up to 3.90 GHz)
Intel® Core™ i7-10870H Processor (16M Cache, up to 5.00 GHz)
Intel® Core™ i9-9880H Processor (16M Cache, up to 4.80 GHz)
Chipset HM370
Network Card I5-7300HQ/i7-7820HK/7820HQ: 2 x Intel RTL 8168/8111/8112 gigabit lan
I7-10870H/i9-9880H: 2 x Intel i219-v gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 32GB/64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x M.2 2280 (SATA/NVME)
Expand 1 x M.2 PCIE WiFi slot
I/O Interfaces

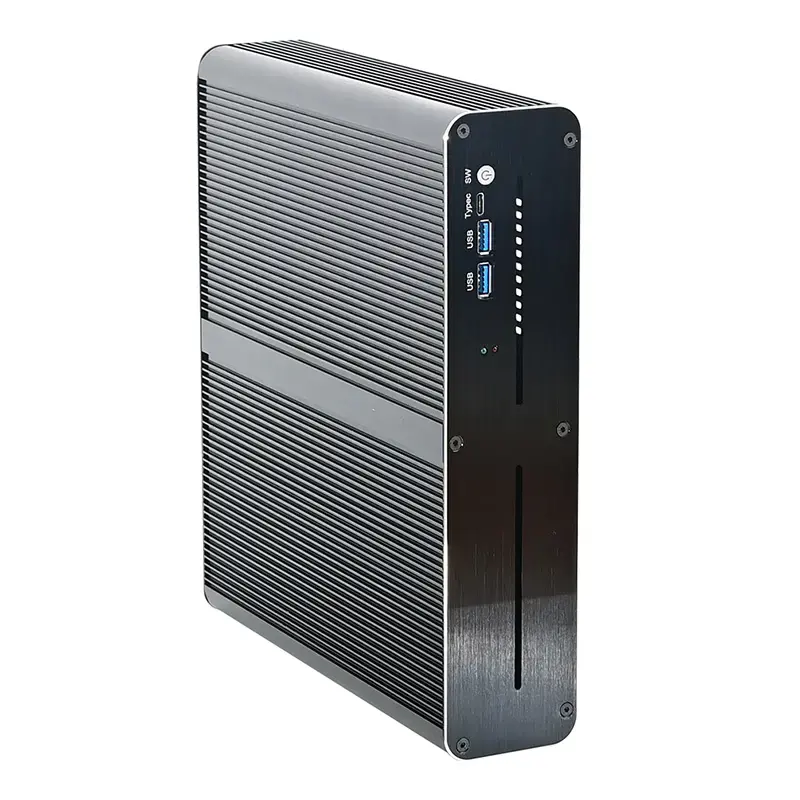

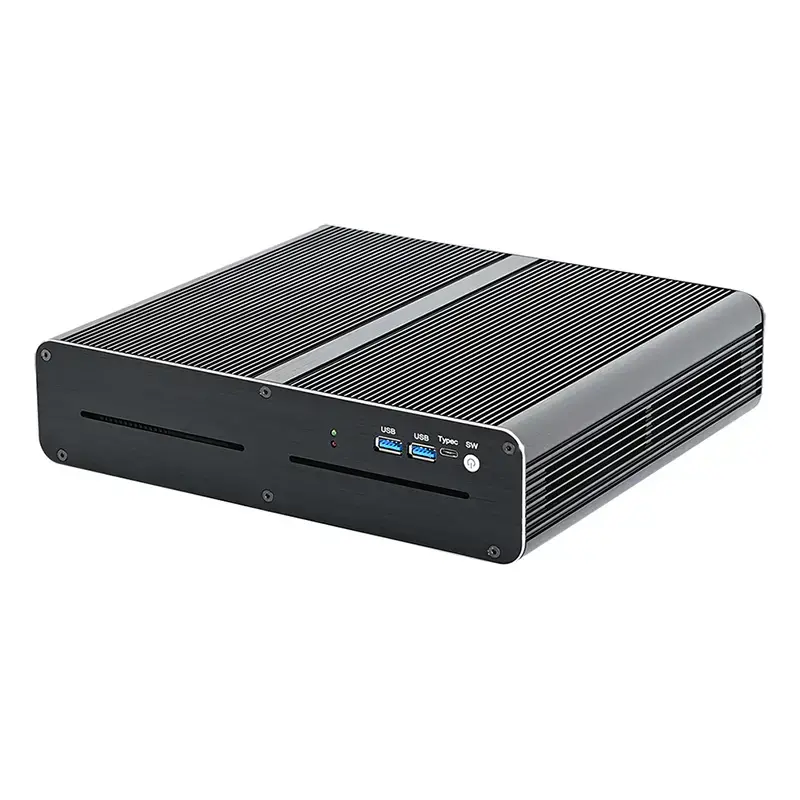

Front Panel 1 x Power button
1 x Type C
2 x USB3.0

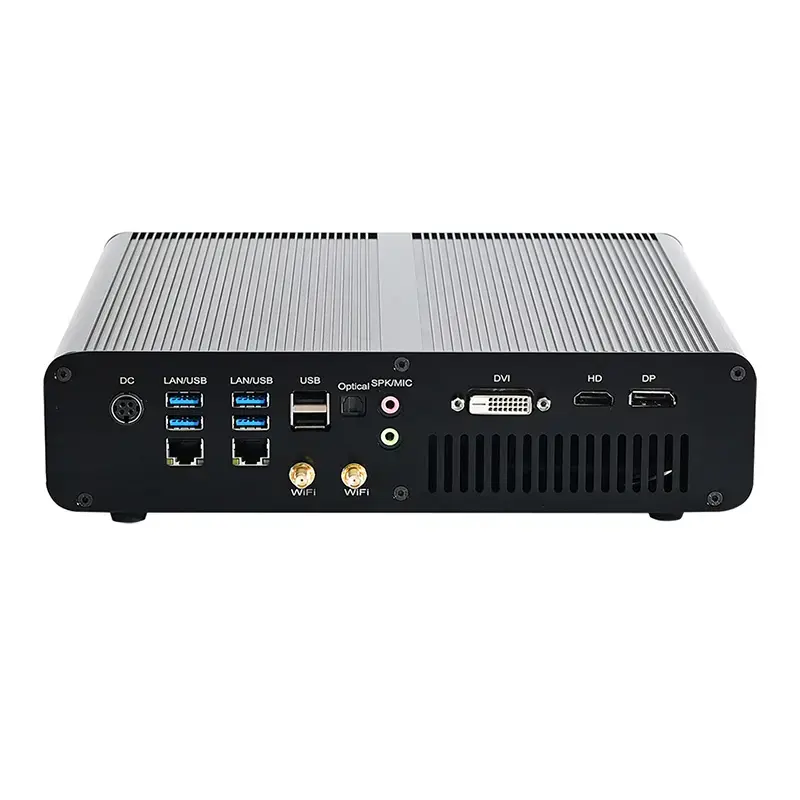

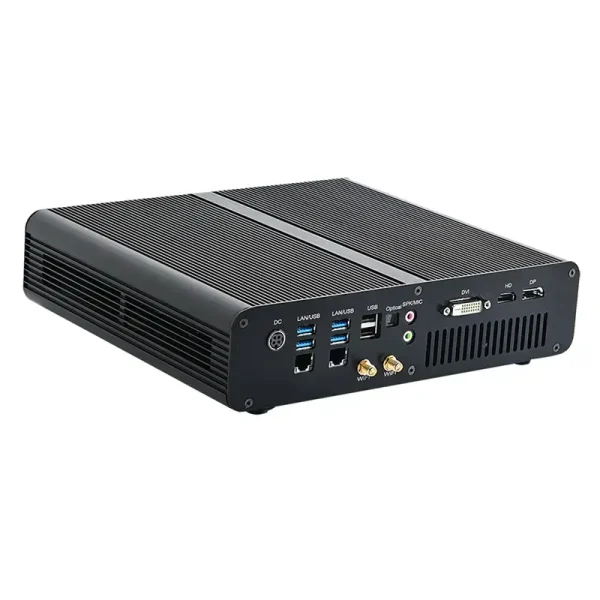

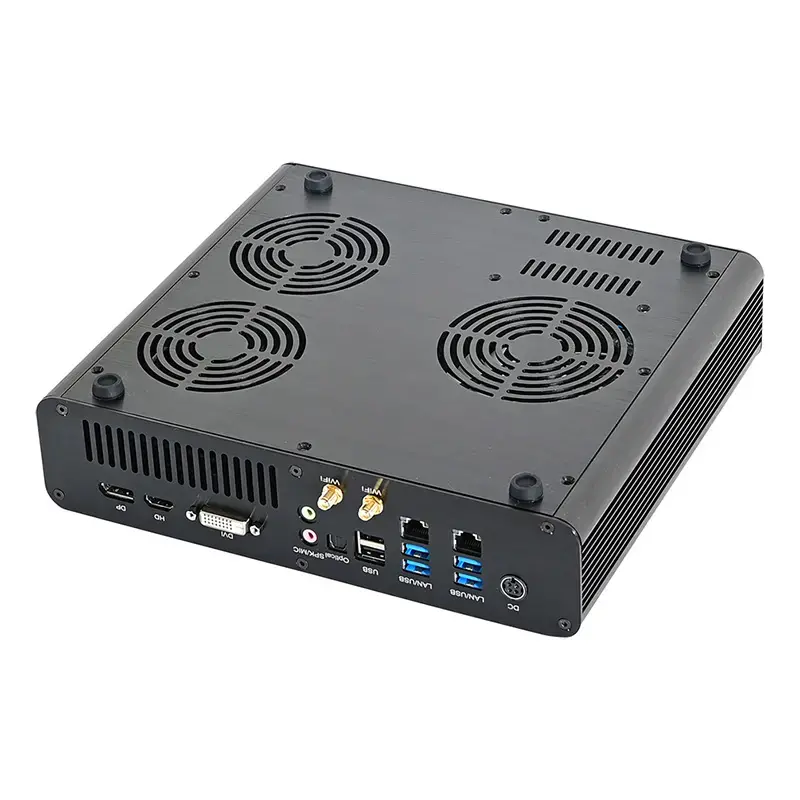

Rear Panel 1 x DC_in
4 x USB3.0
2 x Lan
2 x USB2.0
1 x Optical
1 x Audio
1 x DVI
1 x HDMI
1 x DP
2 x WiFi antennas
Software Support
Bios AMI bios
System Support Windows 10, linux ubuntu etc
General
Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 19V/7.1A-9.47A
Packing List BM23 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card
Environment
Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE, FCC, ROHS



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM23-7300HQ I5 7300HQ GeForce GTX 1050Ti 4G 2.5~3.5 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 32GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x RTL8168/8111/8112 8 19V/7.1A
BM23-7820HK I7 7820HK 7820HQ GeForce GTX 1050Ti 4G 2.9~3.9 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 32GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x RTL8168/8111/8112 8 19V/7.1A
BM23a-7820HK I7 7820HK 7820HQ 7700HQ GeForce GTX 1650 4G 2.9~3.9 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 32GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x RTL8168/8111/8112 8 19V/7.1A
BM23b-7820HK I7 7820HK 7820HQ 7700HQ GeForce GTX 1060 3G 2.9~3.9 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 32GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x RTL8168/8111/8112 8 19V/7.1A
BM23f-10870H I7 10870H GeForce GTX 1060 3G 2.2~5.0 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x I219-V 8 19V/9.47A
BM23f-9880H I9 9880H GeForce GTX 1060 3G 2.3~4.8 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x I219-V 8 19V/9.47A
BM23g-10870H I7 10870H GeForce GTX 1650 4G 2.2~5.0 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x I219-V 8 19V/9.47A
BM23g-9880H I9 9880H GeForce GTX 1650 4G 2.3~4.8 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x I219-V 8 19V/9.47A
BM23k-10870H I7 10870H GeForce GTX 1060 6G 2.2~5.0 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x I219-V 8 19V/9.47A
BM23k-9880H I9 9880H GeForce GTX 1060 6G 2.3~4.8 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x I219-V 8 19V/9.47A
BM23m-10870H I7 10870H GeForce GTX 1660 6G 2.2~5.0 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x I219-V 8 19V/9.47A
BM23m-9880H I9 9880H GeForce GTX 1660 6G 2.3~4.8 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 x I219-V 8 19V/9.47A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 4G/8G/16G/32G/64G DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 7.1A/9.47 adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
