IEC-IM04 Series

Industrial PC 4-5th Gen, Celeron, 2 x HDMI/LAN, 6 COM, SIM 4G

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective industrial mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving. Applicable to a wide range of industrial applications: 7 x 24 hours of stable work, strong computing power, and can better meet industrial needs. Not afraid of various harsh environments: dustproof, shockproof, good corrosion resistance, strong anti-interference, wide temperature design. Suitable for industrial automation, medical care, logistics and transportation, electronic education etc.


Key Features


IEC-IM04 Series Intel® Celeron® and Core™ Gen 4-5th I3 I5 I7 BGA Processor and Intel® SOC Chipset

IEC-IM04 Series Rich I/O: 2 x HDMI, 4 x USB3.0, 4 x USB2.0, 6 x COM RS232, 2 x RJ45, DC, Mic, SPK

IEC-IM04 Series Single SODIMM for up to 8GB Memory

IEC-IM04 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

IEC-IM04 Series Embedded Expansion: PCIe for WiFi/4G, SIM Slot Optional for Customization




Key Functions


IEC-IM04 Series Support first-class temperature control ensures 24h/7 days without shutting down

IEC-IM04 Series Support 12V green and environmentally friendly, only 15W to 25W power for daily use

IEC-IM04 Series Support restore AC power loss/LAN PXE boot

IEC-IM04 Series Support WOL on windows 7

IEC-IM04 Series Support dual screen (2 x HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 175 x 210 x 45mm
Weight 2.5Kgs

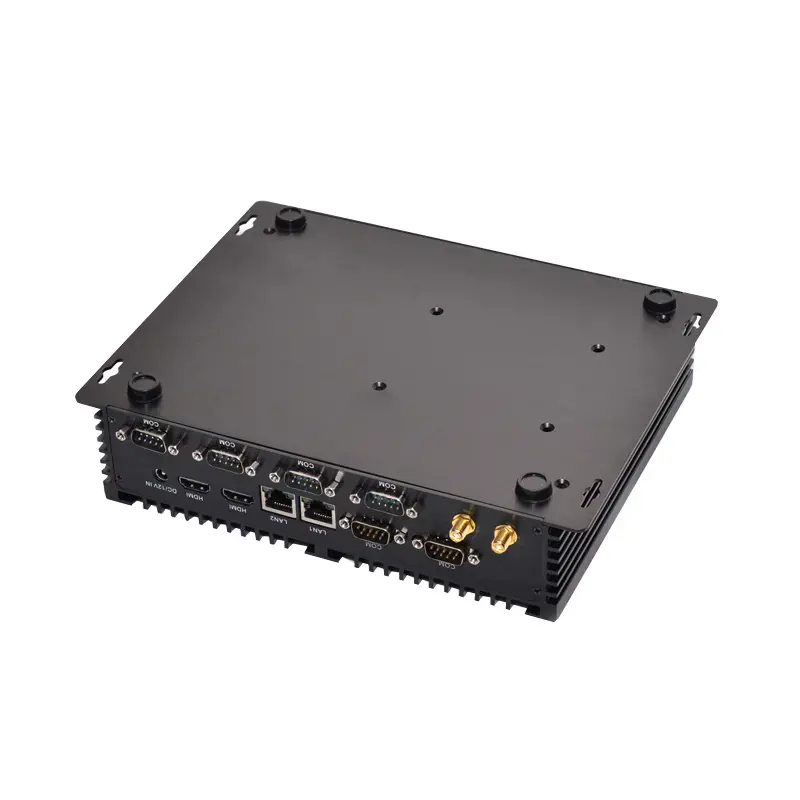

Insallation Method With mounting ears
Wall-mounted, embedded, desktop

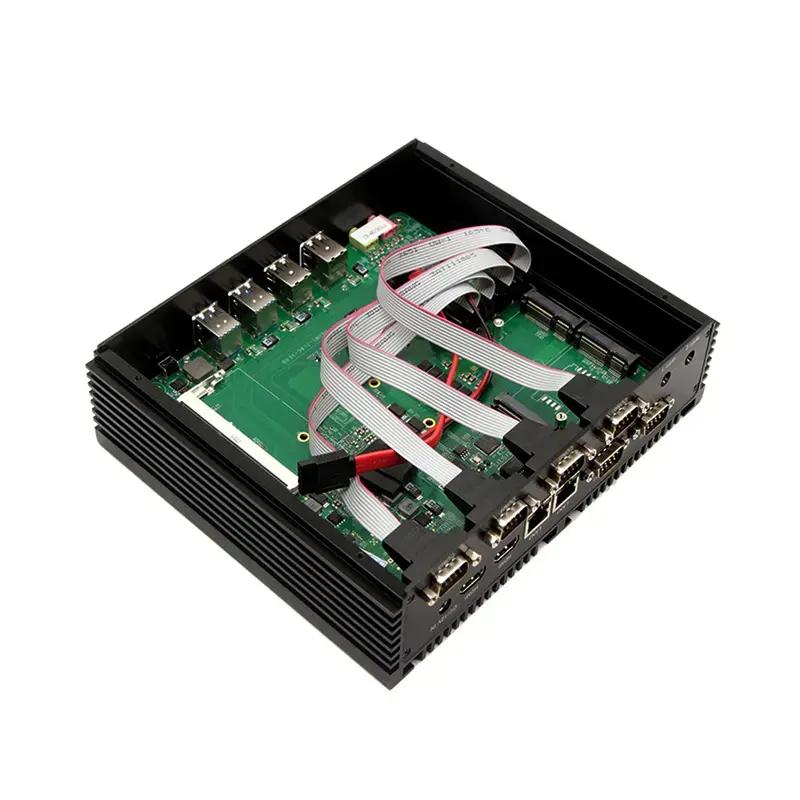

Motherboard

CPU Intel® Celeron® Processor 2955U (2M Cache, 1.40 GHz)
Intel® Core™ i3-4005U Processor (3M Cache, 1.70 GHz)
Intel® Core™ i3-5005U Processor (3M Cache, 2.00 GHz)
Intel® Core™ i5-4200U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i5-5287U Processor (3M Cache, up to 3.30 GHz)
Intel® Core™ i7-I7 4500U Processor (4M Cache, up to 3.30 GHz)
Intel® Core™ i7-5500U Processor (4M Cache, up to 3.00 GHz)
Chipset SOC
Network Card 2 x Intel 82574L 10/100/1000 gigabit ethernet nics
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot


I/O Interfaces

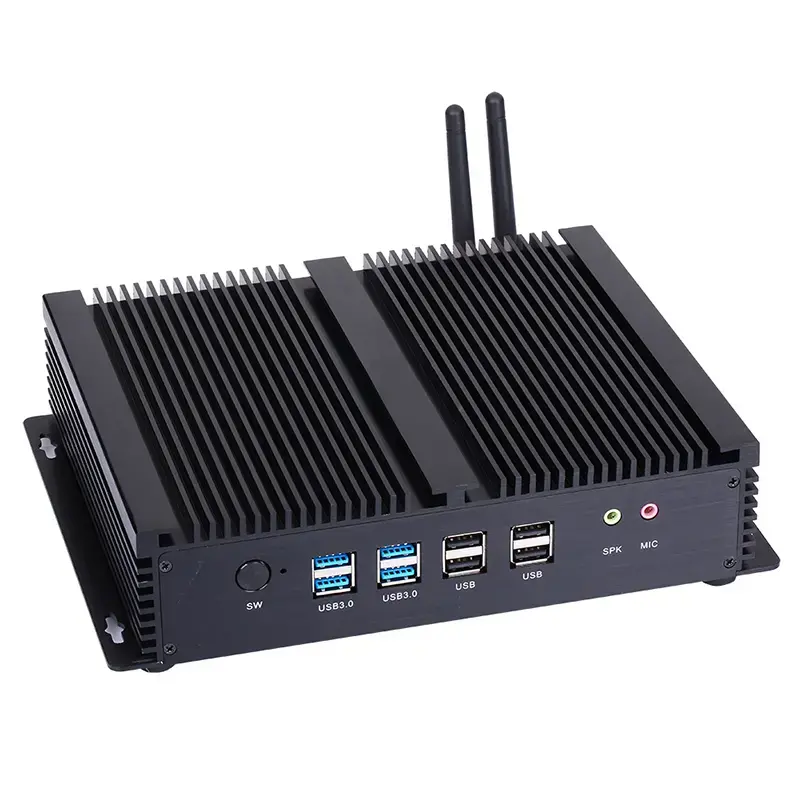

Front Panel 1 x Power button
4 x USB3.0
4 x USB2.0
1 x Audio

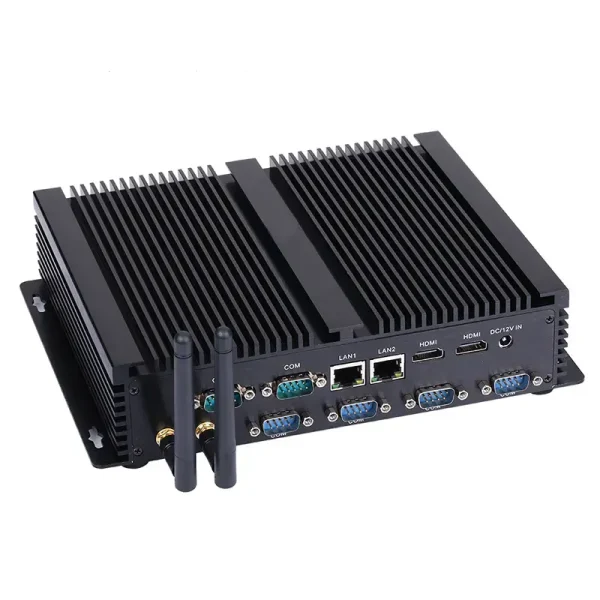

Rear Panel 1 x DC_in
2 x HDMI
2 x Lan
6 x COM RS232
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A-5A
Packing List IM04 industrial pc, power supply, power cord, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification IEC-IM04 Series





* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



COM



Power

IM04-2955U 2955U Intel® HD Graphics 1.4 GHz 15 W 2 x HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 8 6 12V/3A
IM04-4005U I3 4005U Intel® HD Graphics 4400 1.70 GHz 15 W 2 x HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 8 6 12V/3A
IM04-5005U I3 5005U Intel® HD Graphics 5500 2.00 GHz 15 W 2 x HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 8 6 12V/3A
IM04-4200U I5 4200U Intel® HD Graphics 4400 1.60~2.60 GHz 15 W 2 x HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 8 6 12V/5A
IM04-5287U I5 5287U Intel® Iris® Graphics 6100 2.90~3.30 GHz 28 W 2 x HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 8 6 12V/5A
IM04-4500U I7 4500U Intel® HD Graphics 5000 1.7~3.3 GHz 15 W 2 x HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 8 6 12V/5A
IM04-5500U I7 5500U Intel® HD Graphics 5500 2.4~3.0 GHz 15 W 2 x HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 8 6 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, wall-mounted, embedded type etc

Optional Accessories:

Memory: 2G/4G/8G/ DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A/5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
