NUC-BM22 Series

NUC Mini PC 4K with Intel Core I3 6157U, DP 1.2, HDMI 1.4, Type C

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the high-efficiency mini PC. Compact, space-saving, smart silent fan, low power consumption and energy saving. Processing video clips, rendering special effects, modeling and synthesis, etc. more efficient.


Key Features


NUC-BM22 Series Intel® Core™ i3-6157U BGA Processor and Intel® SOC Chipset

NUC-BM22 Series Rich I/O: DP, HDMI, 3 x USB 3.0, 2 x USB 2.0, Type C for USB, LAN, Spk, Mic

NUC-BM22 Series Single SODIMM for up to 8GB DDR3L Memory

NUC-BM22 Series Rich Storage: M.2 2280 SATA/NVME SSD

NUC-BM22 Series Embedded Expansion: M.2 PCIe for WiFi




Key Functions


NUC-BM22 Series Support diskless boot

NUC-BM22 Series Support Restore AC Power Loss

NUC-BM22 Series Support dual screen (DP and HDMI) for simultaneous display or synchronous different display

NUC-BM22 Series Support HDMI 1.4 4K: 4096×2304@30Hz and DP 1.2 4K: 4096×2304@60Hz





Specifications




Mechanical

Material Aluminum alloy
Colour Silver
Size 150 x 120 x 35mm
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting

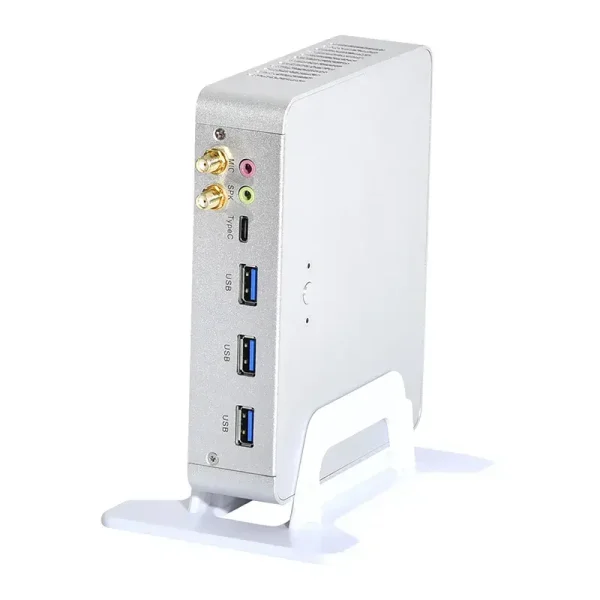

With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Core™ i3-6157U Processor (3M Cache, 2.40 GHz)
Chipset SOC
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SODIMM DDR3L-1600, up to 8GB RAM
Storage 1 x M.2 2280 (SATA/NVME) SSD
Expand 1 x M.2 PCIE WiFi slot


I/O Interfaces

Up Panel 1 x Power button

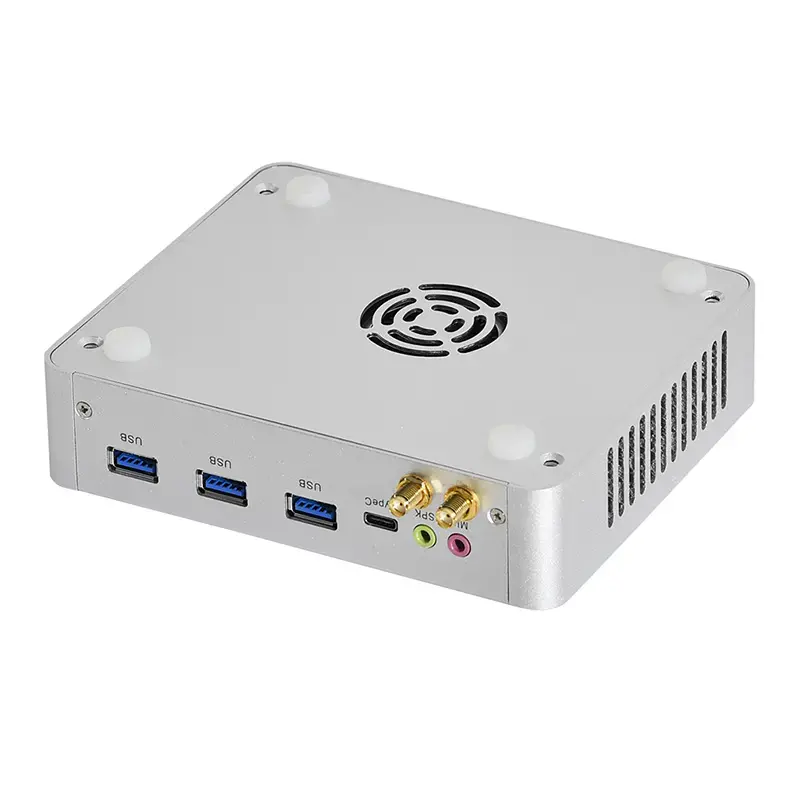

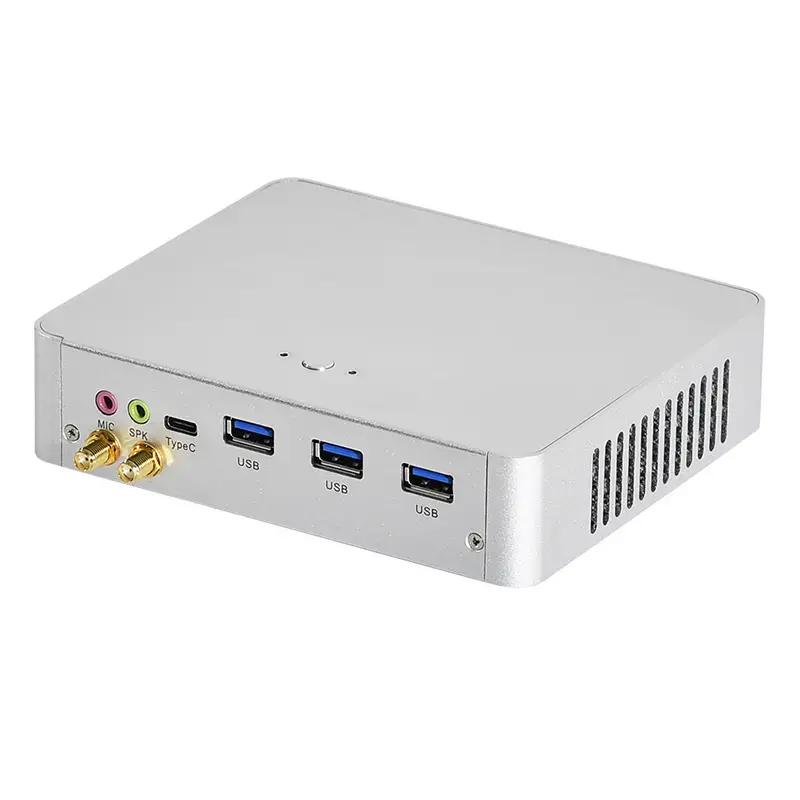

Front Panel 1 x Audio
1 x Type C
3 x USB3.0
2 x WiFi antennas

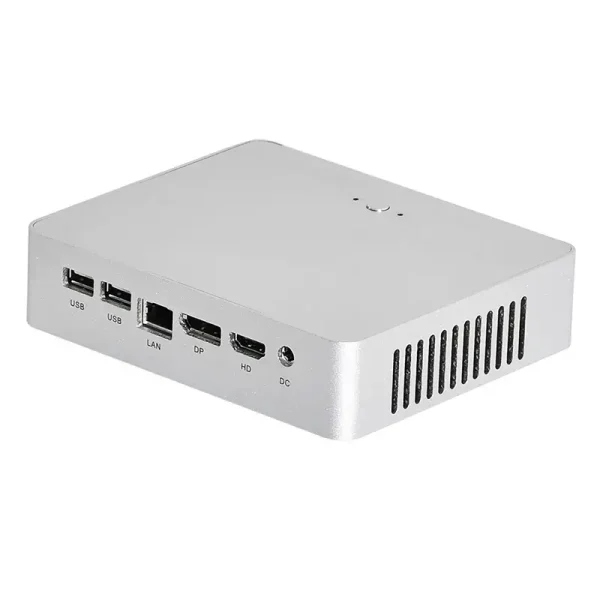

Rear Panel 1 x DC_in
1 x HDMI
1 x DP
1 x Lan
2 x USB2.0


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

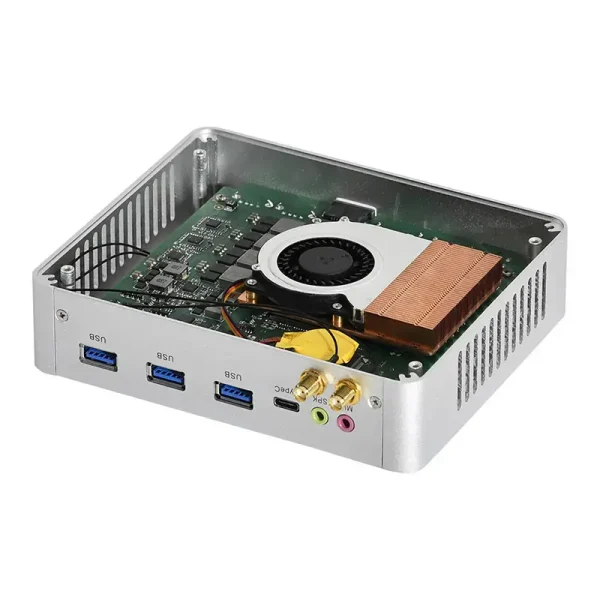

Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A
Packing List BM22 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NUC-BM22 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM22-6157U I3 6157U Intel® Iris® Graphics 550 2.4 GHz 28 W DP/HDMI 1 x SO-DIMM DDR3L 1 x M.2 2280 (SATA/NVME) 1 5 12V/3A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 2G/4G/8G/ DDR3L RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard




FEATURED PRODUCTS

firewall router with intel quad core j1900

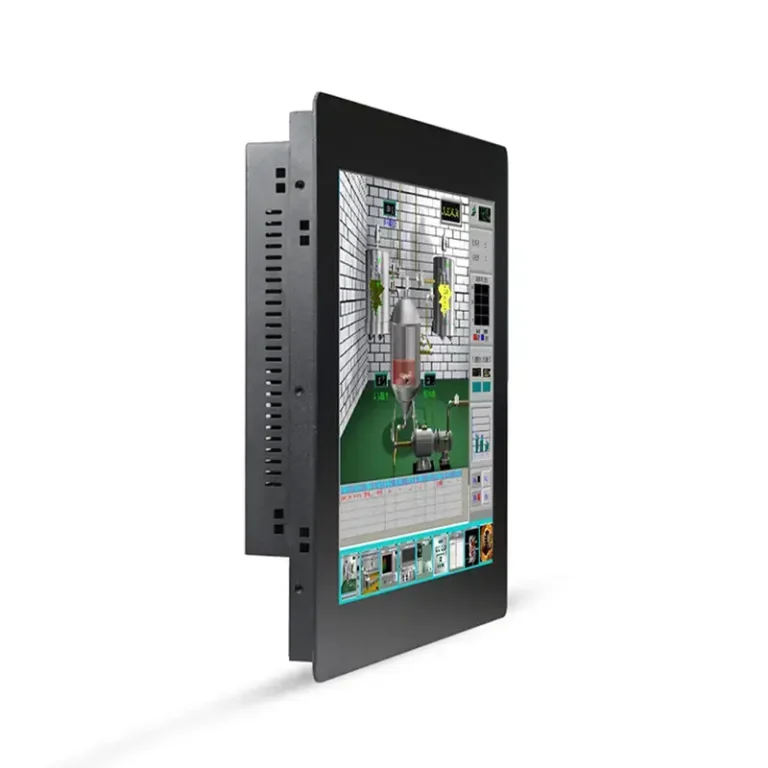

desktop computer all in one touch screen with 19 inch

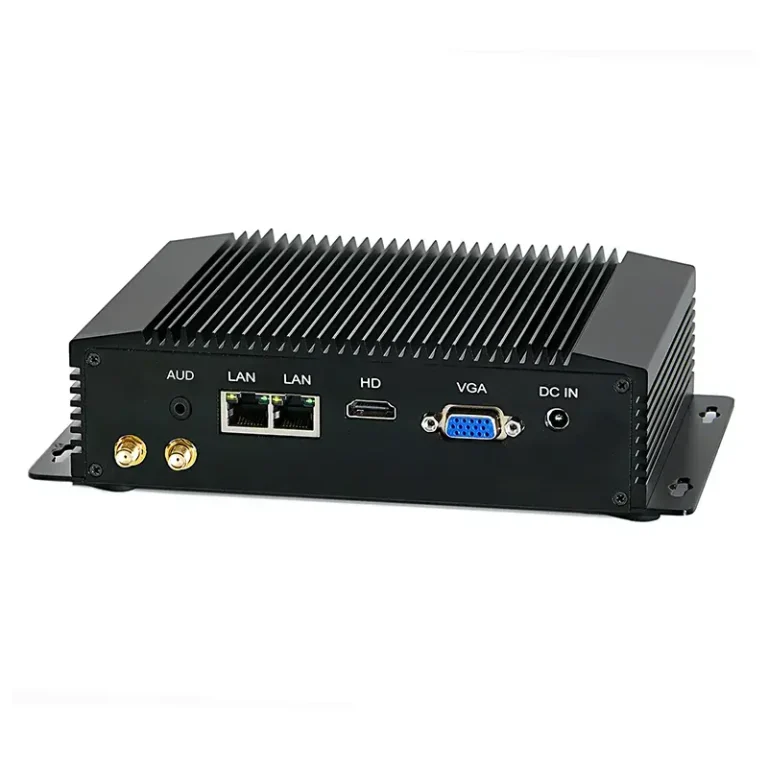

home firewall appliance with 6 x lan, 2 sfp
