IEC-IM03 Series

Embedded Industrial PC with 4-10th Gen I3 I5 I7, Celeron, 2 COM

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective industrial mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving. Applicable to a wide range of industrial applications: 7 x 24 hours of stable work, strong computing power, and can better meet industrial needs. Not afraid of various harsh environments: dustproof, shockproof, good corrosion resistance, strong anti-interference, wide temperature design. Suitable for industrial automation, medical care, logistics and transportation, electronic education etc.


Key Features


IEC-IM03 Series Intel® Celeron® and Core™ Gen 4-10th I3 I5 I7 BGA Processor and Intel® SOC Chipset

IEC-IM03 Series Rich I/O: DC, HDMI, VGA, LAN, USB 2.0 x 3, USB 3.0 x 4, MIC, SPK, 2 x COM RS232

IEC-IM03 Series Dual SODIMMs for up to 16GB/64GB DDR3L/DDR4 Memory

IEC-IM03 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

IEC-IM03 Series Embedded Expansion: Mini PCIe for WiFi




Key Functions


IEC-IM03 Series Support first-class temperature control ensures 24h/7 days without shutting down

IEC-IM03 Series Support 12V green and environmentally friendly, only 15W to 25W power for daily use

IEC-IM03 Series Support restore AC power loss/LAN PXE boot

IEC-IM03 Series Support WOL on windows 7

IEC-IM03 Series Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 234 x 150 x 43mm
Weight 2.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop


Motherboard

CPU Intel® Celeron® Processor 1007U (2M Cache, 1.50 GHz)
Intel® Celeron® Processor 2955U (2M Cache, 1.40 GHz)
Intel® Core™ i3-4005U Processor (3M Cache, 1.70 GHz)
Intel® Core™ i3-5005U Processor (3M Cache, 2.00 GHz)
Intel® Core™ i3-6006U Processor (3M Cache, 2.00 GHz)
Intel® Core™ i3-6157U Processor (3M Cache, 2.40 GHz)
Intel® Core™ i3-7020U Processor (3M Cache, 2.30 GHz)
Intel® Core™ i3-7167U Processor (3M Cache, 2.80 GHz)
Intel® Core™ i3-8145U Processor (4M Cache, up to 3.90 GHz)
Intel® Core™ i5-4200U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i5-5250U Processor (3M Cache, up to 2.70 GHz)
Intel® Core™ i5-7200U Processor (3M Cache, up to 3.10 GHz)
Intel® Core™ i5-8250U Processor (6M Cache, up to 3.40 GHz)
Intel® Core™ i7-8550U Processor (8M Cache, up to 4.00 GHz)
Intel® Core™ i7-10510U Processor (8M Cache, up to 4.90 GHz)
Chipset SOC
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SO-DIMM DDR3L 1333/1600, up to 16GB RAM
2 x SO-DIMM DDR4, up to 64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME)
Expand 1 x Mini PCIE WiFi slot


I/O Interfaces

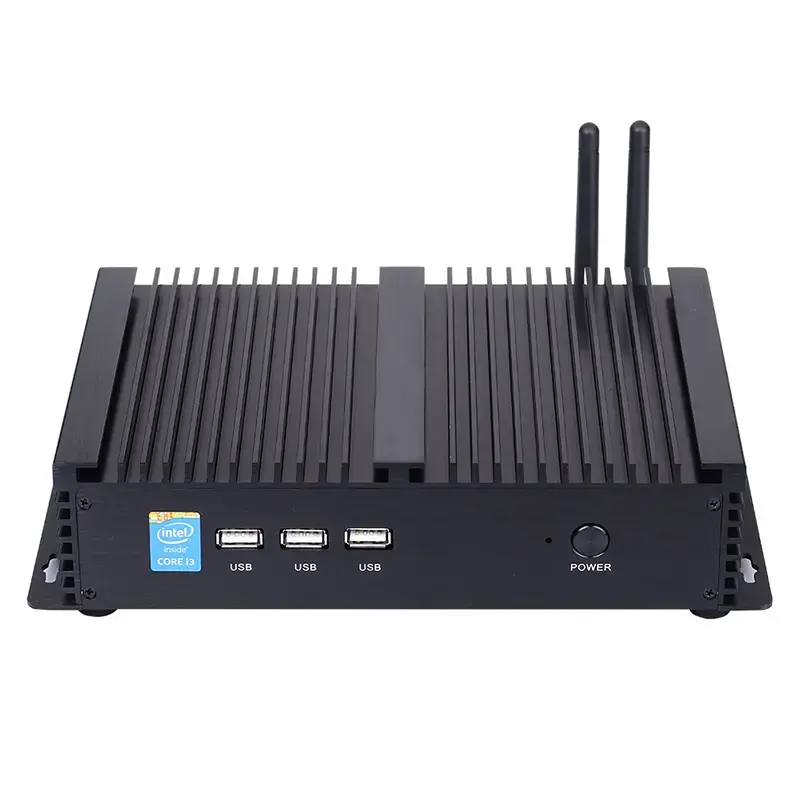

Front Panel 1 x Power button
4 x USB2.0/ 3 x USB2.0

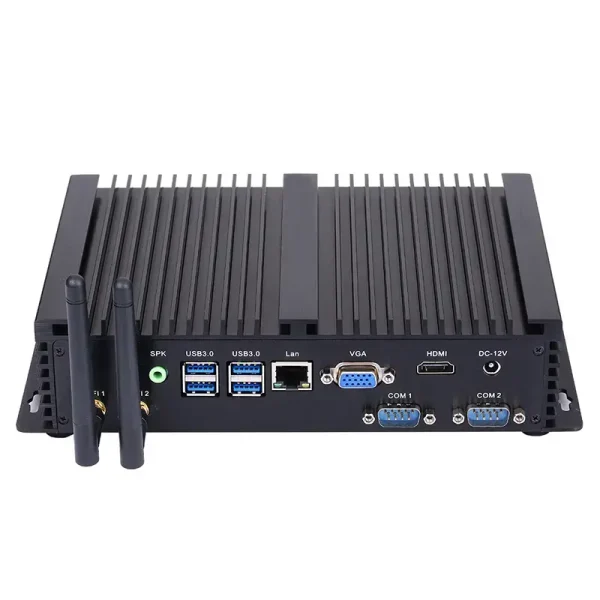

Rear Panel 1 x DC_in
1 x HDMI
1 x VGA
1 x Lan
4 x USB3.0
1 x Audio
2 x WiFi antennas
2 x COM RS232


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A-5A/ 19V/5A
Packing List IM03 industrial pc, power supply, power cord, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification IEC-IM03 Series





* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



COM



Power

IM03-1007U 1007U Intel® HD Graphics 1.5 GHz 17 W VGA/HDMI 2 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 7 2 12V/3A
IM03-2955U 2955U Intel® HD Graphics 1.4 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 7 2 12V/3A
IM03-4005U I3 4005U Intel® HD Graphics 4400 1.70 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 8 2 12V/3A
IM03-5005U I3 5005U Intel® HD Graphics 5500 2.00 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 8 2 12V/3A
IM03-6006U I3 6006U Intel® HD Graphics 520 2.00 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 8 2 12V/3A
IM03-6157U I3 6157U Intel® Iris® Graphics 550 2.40 GHz 28 W VGA/HDMI 2 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 8 2 12V/3A
IM03-7020U I3 7020U Intel® HD Graphics 620 2.30 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 1 8 2 12V/3A
IM03-7167U I3 7167U Intel® Iris® Plus Graphics 650 2.80 GHz 28 W VGA/HDMI 2 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 8 2 12V/3A
IM03-8145U I3 8145U Intel® UHD Graphics 2.10~3.90 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 2 12V/3A
IM03-4200U I5 4200U Intel® HD Graphics 4400 1.60~2.60 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 8 2 12V/5A
IM03-5250U I5 5200U Intel® HD Graphics 5500 2.20~2.70 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 8 2 12V/5A
IM03-7200U I5 7200U Intel® HD Graphics 620 2.50~3.10 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 8 2 12V/5A
IM03-8250U I5 8250U Intel® UHD Graphics 620 1.60~3.40 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 2 12V/5A
IM03-8550U I7 8550U Intel® UHD Graphics 620 1.80~4.00 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 2 12V/5A
IM03-10510U I7 10510U Intel® UHD Graphics 1.80~4.90 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 2 19V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, wall-mounted, embedded type etc

Optional Accessories:

Memory: 2G/4G/8G/16GB DDR3L RAM type or 4G/8G/16GB/32GB/64GB DDR4 RAM

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A/5A-19V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
