IEC-IM02 Series

Fanless Industrial PC with Celeron and 3th Gen I5, 4 COM, 2 LAN, XP

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective industrial mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving. Applicable to a wide range of industrial applications: 7 x 24 hours of stable work, strong computing power, and can better meet industrial needs. Not afraid of various harsh environments: dustproof, shockproof, good corrosion resistance, strong anti-interference, wide temperature design.


Key Features


IEC-IM02 Series Intel® Celeron® Celeron® 1007U/1037U Core™ I5 3317U BGA Processor and Intel® SOC Chipset

IEC-IM02 Series Rich I/O: 2 x LAN, 4 x COM, 4 x USB 3.0, 4 x USB2.0, VGA, HDMI, Spk, Mic

IEC-IM02 Series Single SODIMM for up to 8GB DDR3L Memory

IEC-IM02 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

IEC-IM02 Series Embedded Expansion: Mini PCIe for WiFi




Key Functions


IEC-IM02 Series Support windows XP

IEC-IM02 Series Support first-class temperature control ensures 24h/7 days without shutting down

IEC-IM02 Series Support 12V green and environmentally friendly, only 15W to 25W power for daily use

IEC-IM02 Series Support restore AC power loss/LAN PXE boot

IEC-IM02 Series Support WOL on windows 7

IEC-IM02 Series Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 210 x 150 x 45mm
Weight 2.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop


Motherboard

CPU Intel® Celeron® Processor 1007U (2M Cache, 1.50 GHz)
Intel® Celeron® Processor 1037U (2M Cache, 1.80 GHz)
Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz)
Chipset SOC
Network Card 2 x Intel 82574L 10/100/1000 gigabit ethernet nics
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SODIMM DDR3/L 1333/1600, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot

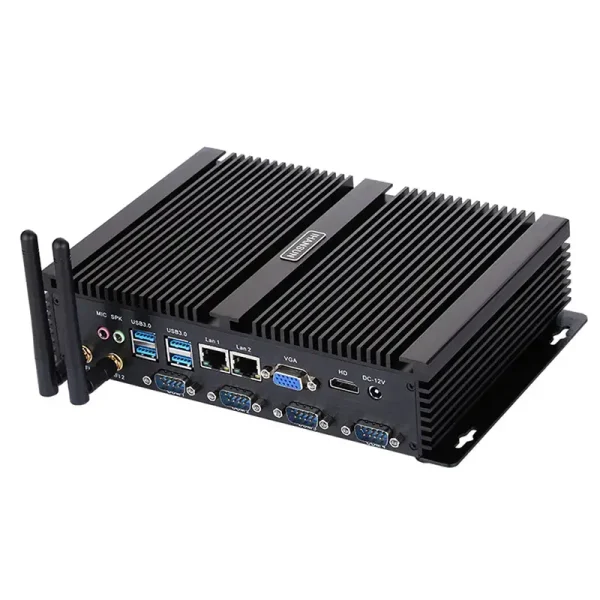

I/O Interfaces

Front Panel 1 x Power button
4 x USB2.0
Rear Panel 1 x DC_in
1 x HDMI
1 x VGA
2 x Lan
4 x USB3.0
1 x Audio
2 x WiFi antennas
4 x COM RS232


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A-5A
Packing List IM02 industrial pc, power supply, power cord, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification IEC-IM02 Series



IEC-IM02 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



COM



Power

IM02-1007U 1007U Intel® HD Graphics 1.5 GHz 17 W VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 8 4 12V/3A
IM02-1037U 1037U Intel® HD Graphics 1.8 GHz 17 W DP/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 8 4 12V/3A
IM02-3317U I5 3317U Intel® HD Graphics 4000 1.7~2.6 GHz 17 W DP/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 8 4 12V/5A



* Supplemental Information *

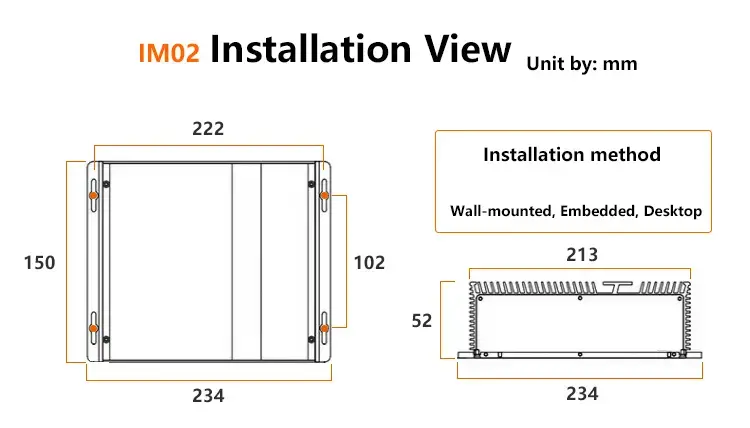

Installation Method:  Support multiple fixing methods such as desktop type, wall-mounted, embedded type etc

Optional Accessories:

Memory: 2G/4G/8G/ DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A/5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard

FEATURED PRODUCTS

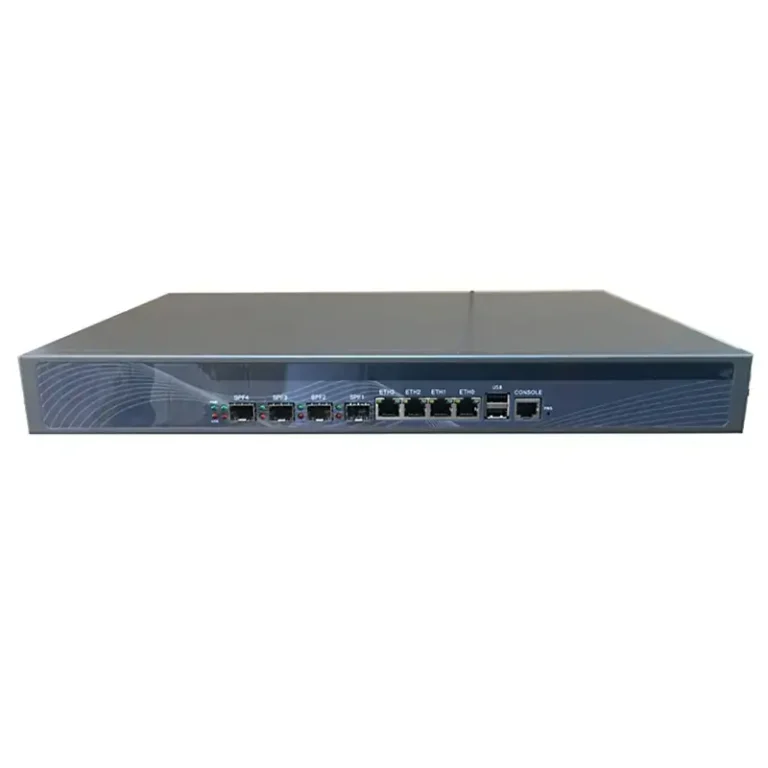

mikrotik routeros firewall appliance with 4 x lan, 4 x sfp, 2 x sfp+
