NUC-BM21b Series

NUC Mini PC with 7th-10th Intel Core I5 I7 I9, DP, HDMI, Type C

For product pricing, customization, or other inquiries:

Share to:






Overview


Small body, big energy. It is the stronger and smoother performance NUC mini pc. Master the power of the core, multi-threaded processing and multi-tasking, easy to deal with office design, audio and video, online shopping, games, etc. 4K audio and video, cinema quality.


Key Features


NUC-BM21b Series Intel® 7-10th Gen Intel® Core™ i5/i7 BGA Processor and Intel® HM370 Chipset

NUC-BM21b Series Rich I/O: DP, HDMI, 6 x USB 3.0, Type C for USB, LAN, Spk, Mic

NUC-BM21b Series Dual SODIMM for up to 32/64GB DDR4 Memory

NUC-BM21b Series Rich Storage: M.2 2280 SATA/NVME SSD, M.2 2280 NVME SSD

NUC-BM21b Series Embedded Expansion: PCIe for WiFi




Key Functions


NUC-BM21b Series Support diskless boot

NUC-BM21b Series Support Restore AC Power Loss

NUC-BM21b Series Support dual screen (DP and HDMI) for simultaneous display or synchronous different display

NUC-BM21b Series Support DP 1.2 4K: 4096×2304@60Hz and HDMI 1.4 4K: 4096×2304@30Hz





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 160 x 150 x 57mm
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Core™ i5-7300HQ Processor (6M Cache, up to 3.50 GHz)
Intel® Core™ i7-7820HK/7820HQ Processor (8M Cache, up to 3.90 GHz)
Intel® Core™ i5-8300H Processor (8M Cache, up to 4.00 GHz)
Intel® Core™ i7-8750H Processor (9M Cache, up to 4.10 GHz)
Intel® Core™ i9-9880H Processor (16M Cache, up to 4.80 GHz)
Intel® Core™ i7-10870H Processor (16M Cache, up to 5.00 GHz)
Chipset HM370
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 32GB/64GB RAM
Storage 1 x M.2 2280 (SATA/NVME), 1 x M.2 2280 (NVME)
Expand 1 x M.2 PCIE WiFi slot


I/O Interfaces

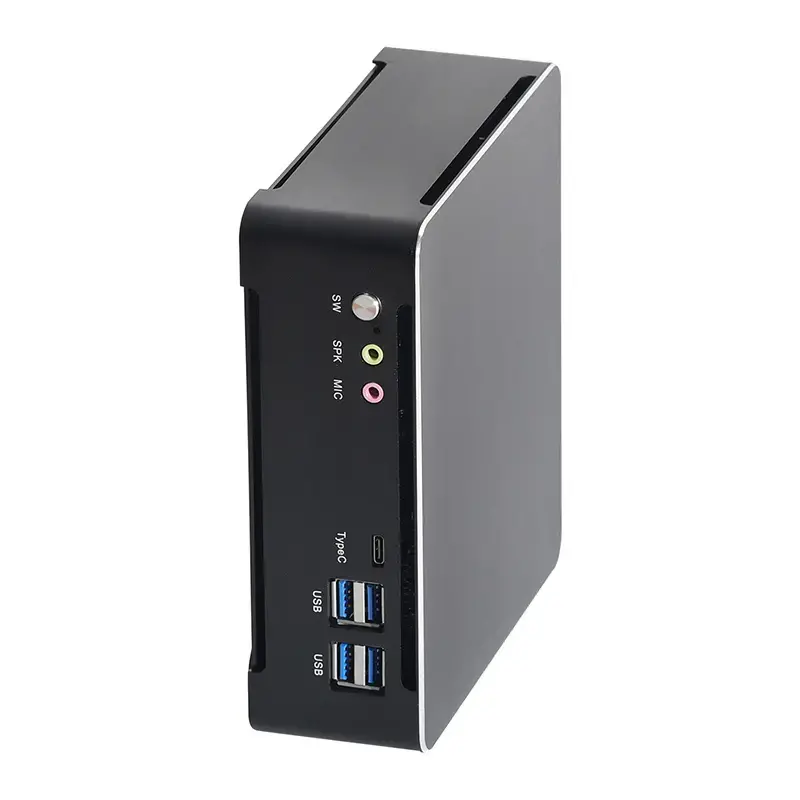

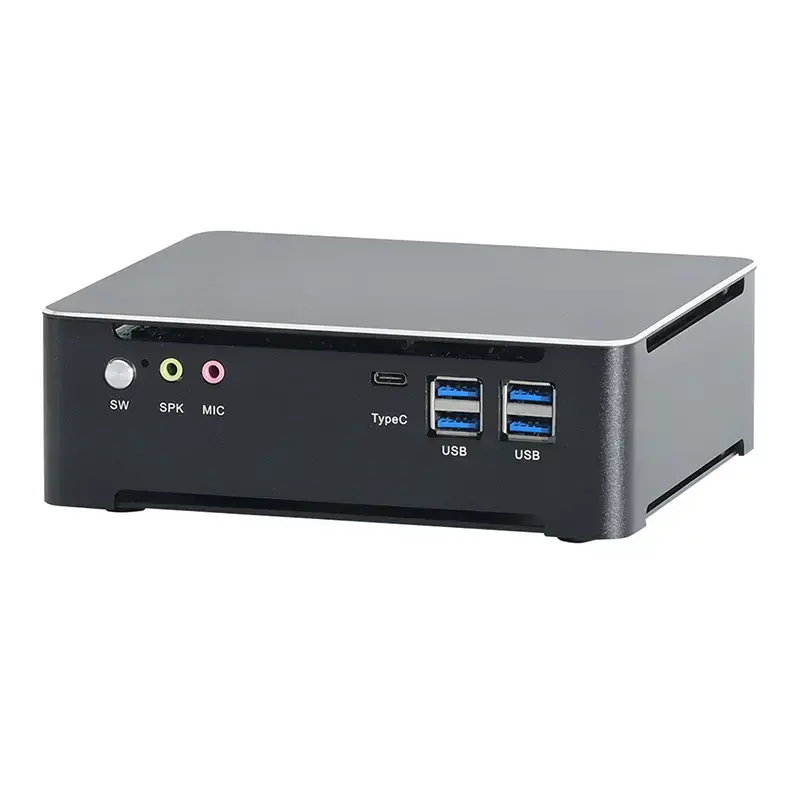

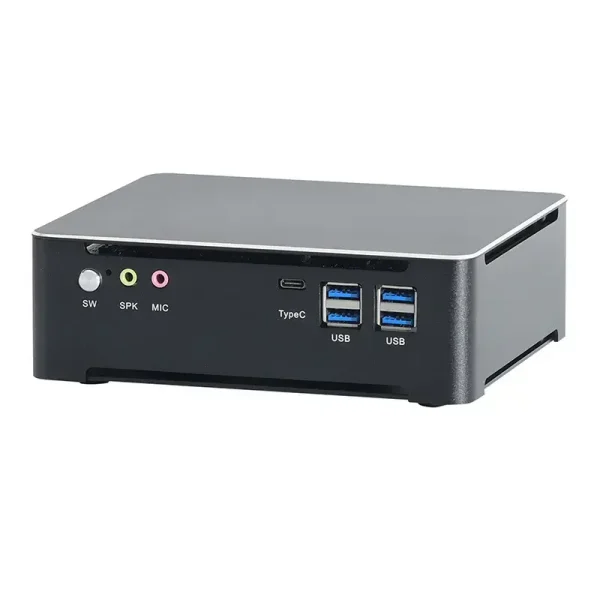

Front Panel 1 x Power button
1 x Audio
1 x Type C
4 x USB3.0

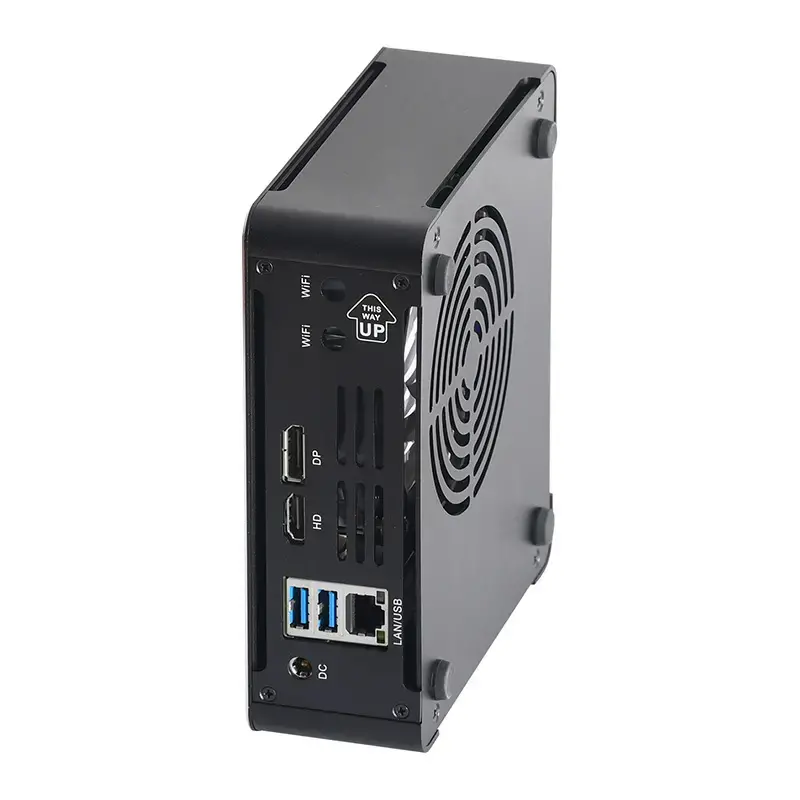

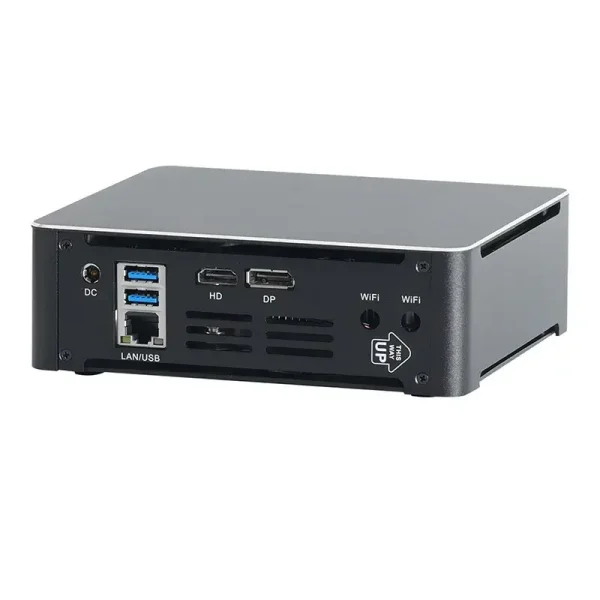

Rear Panel 1 x DC_in
2 x USB3.0
1 x Lan
1 x HDMI
1 x DP
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

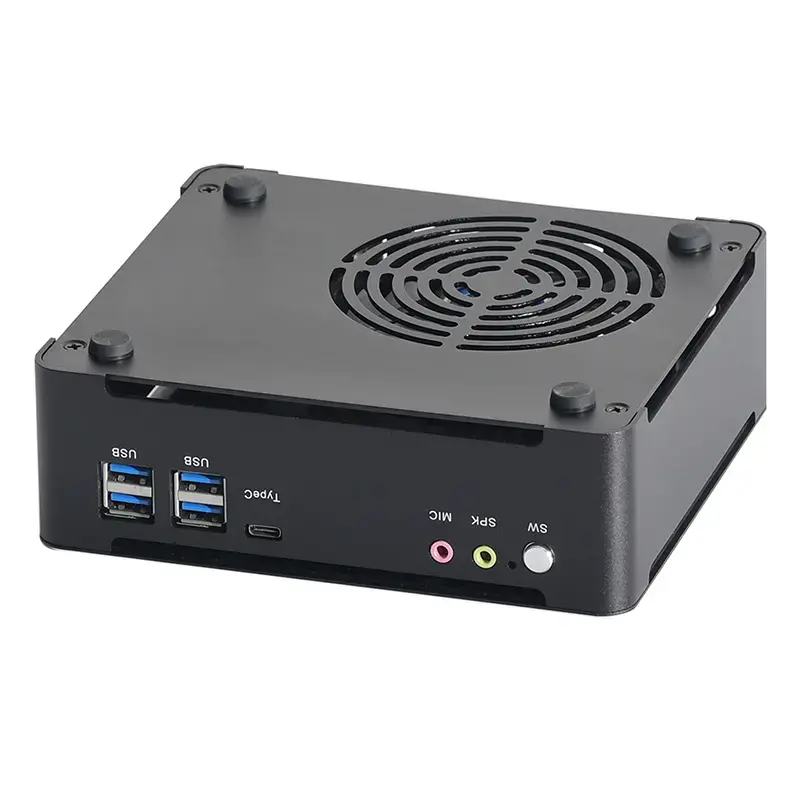

Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 12V/7A-10A
Packing List BM21 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NUC-BM21b Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM21b-7300HQ I5 7300HQ Intel® HD Graphics 630 2.5~3.5 GHz 45 W DP/HDMI 2 x SO-DIMM DDR4, up to 32GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/7A
BM21b-8300H I5 8300H Intel® UHD Graphics 630 2.3~4.0 GHz 45 W DP/HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/10A
BM21b-7820HK I7 7820HK 7820HQ Intel® HD Graphics 630 2.9~3.9 GHz 45 W DP/HDMI 2 x SO-DIMM DDR4, up to 32GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/7A
BM21b-8750H I7 8750H Intel® UHD Graphics 630 2.2~4.1 GHz 45 W DP/HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/10A
BM21b-10870H I7 10870H Intel® UHD Graphics 2.2~5.0 GHz 45 W DP/HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/10A
BM21b-9880H I9 9880H  Intel® UHD Graphics 630 2.3~4.8 GHz 45 W DP/HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/10A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 4G/8G/16G/32G/64G DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 7A/10A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
