GMC-BM24 Series

Gaming Mini PC with Intel Core I7 7820HK, GeForce GTX 4G Graphics

For product pricing, customization, or other inquiries:

Share to:






Overview


Small body, big energy. It is the stronger and smoother performance gaming mini pc. Master the power of the core, multi-threaded processing and multi-tasking, easy to deal with office design, audio and video, online shopping, games, etc. 4K audio and video, cinema quality. With GeForce GTX 3G/4G graphics. Unlock high-effect picture quality and be on the scene. Picture quality and special effects field of view are indispensable. DDR5 video memory ensures that 1080P picture quality is not turned on. Multi-capture anti-aliasing is still smooth. Feel the immersive and stunning picture quality. Every game is a blockbuster movie.


Key Features


GMC-BM24 Series Intel® 7th Gen Intel® Core™ i7 BGA Processor and Intel® HM370 Chipset

GMC-BM24 Series Rich I/O: DVI, DP, HDMI, Optical, 6 x USB 3.0, 2 x USB 2.0, Type C for USB, 2 x LAN, Spk, Mic

GMC-BM24 Series Dual SODIMM for up to 32GB DDR4 Memory

GMC-BM24 Series Rich Storage: M.2 2280 SATA/NVME SSD, 2.5 Inch SSD/HDD

GMC-BM24 Series Embedded Expansion: M.2 PCIe for WiFi




Key Functions


GMC-BM24 Series Support diskless boot

GMC-BM24 Series Support Restore AC Power Loss

GMC-BM24 Series Support 3-channel display out(DP, HDM and DVI) for simultaneous display or synchronous different display

GMC-BM24 Series Support up to 8K output, 4K DP1.4, HDMI2.0 and DVI-D





Specifications




Mechanical

Material Aluminum alloy
Colour Silver
Size 240 x 240 x 52mm
Weight 2.5Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Core™ i7-7820HK/7820HQ Processor (8M Cache, up to 3.90 GHz)
Chipset HM370
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 32GB/64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x M.2 2280 (SATA/NVME)
Expand 1 x M.2 PCIE WiFi slot


I/O Interfaces

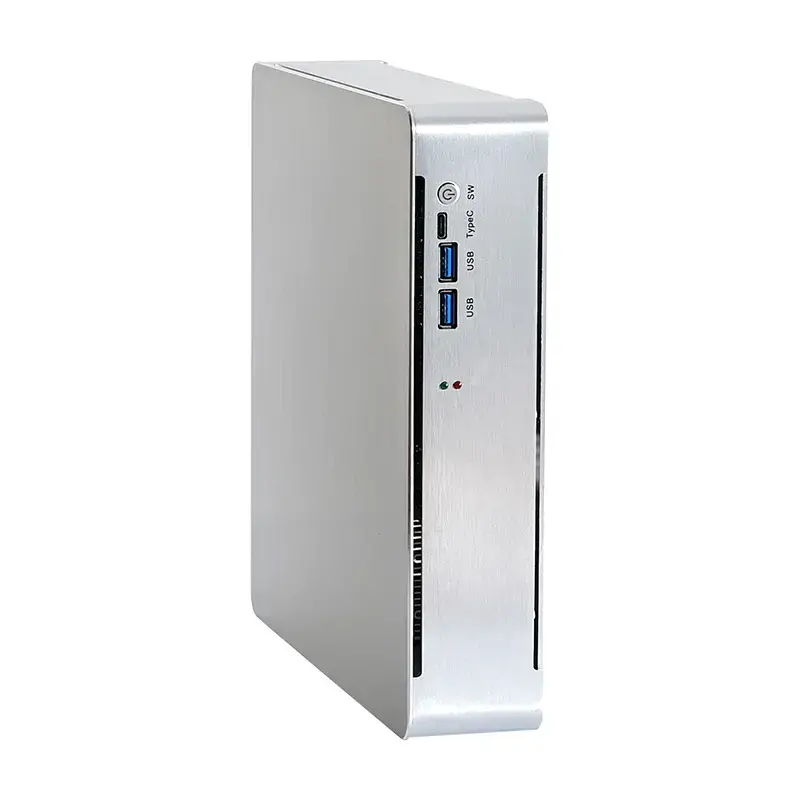

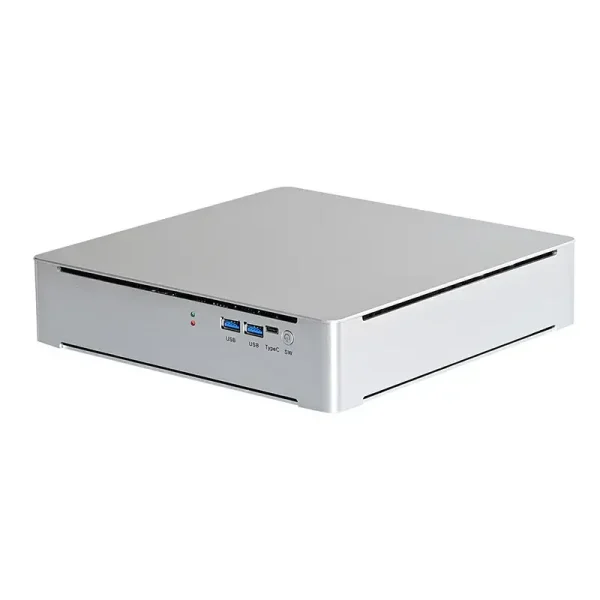

Front Panel 1 x Power button
1 x Type C
2 x USB3.0
Rear Panel 1 x DC_in
4 x USB3.0
2 x Lan
2 x USB2.0
1 x Optical
1 x Audio
1 x HDMI
1 x DP
1 x DVI
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

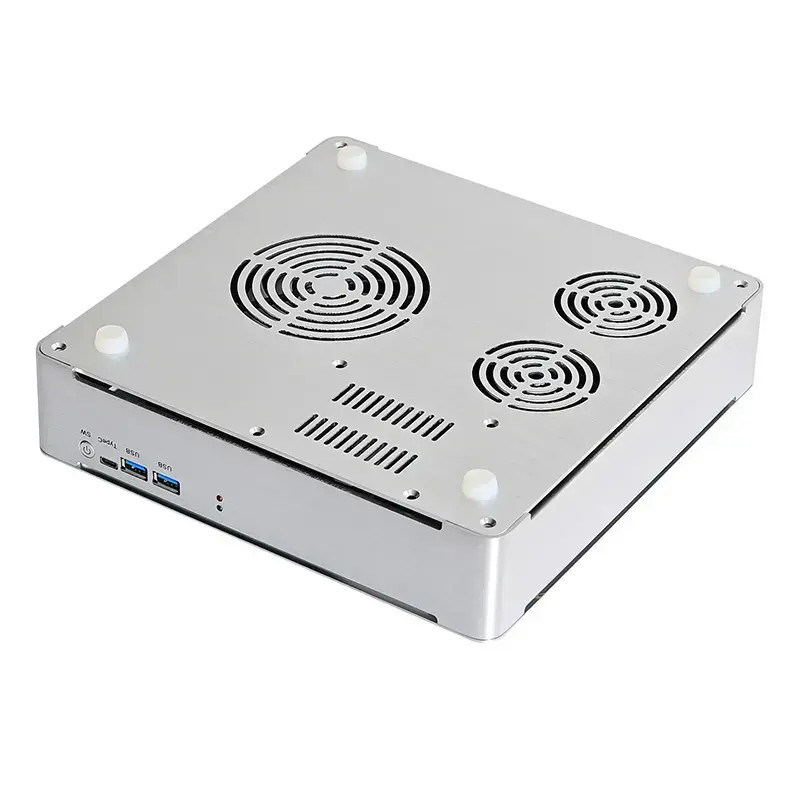

Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 19V/7.1A
Packing List BM24 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification GMC-BM24 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM24-7820HK I7 7820HK 7820HQ GeForce GTX 1650 4G 2.9~3.9 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 32GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 2 8 19V/7.1A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 4G/8G/16G/32G/64G DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 19V 7.1A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
