FMC-BM07 Series

Fanless Mini PC with 7th 8th Gen Intel Core I3 8145U/ I5 8265U

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the high-efficiency mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving. Processing video clips, rendering special effects, modeling and synthesis, etc. more efficient.


Key Features


FMC-BM07 Series Intel® 7- 8th Gen Intel® Core™ i3 i5 i7 BGA Processor and Intel® SOC Chipset

FMC-BM07 Series Rich I/O: VGA, HDMI, 4*USB 3.0, 4*USB2.0, LAN, SPK, MIC

FMC-BM07 Series Dual SODIMMs for up to 64GB DDR4 Memory

FMC-BM07 Series Rich Storage: mSATA SSD, M.2 2280 SATA/NVME SSD, 2.5 Inch SSD/HDD

FMC-BM07 Series Embedded Expansion: Mini PCIe for WiFi




Key Functions


FMC-BM07 Series Support diskless boot

FMC-BM07 Series Support Restore AC Power Loss

FMC-BM07 Series Support dual screen (DP and HDMI) for simultaneous display or synchronous different display

FMC-BM07 Series Support HDMI 1.4 4K: 4096×2304@24Hz





Specifications




Mechanical

Material Aluminum alloy
Colour Silver
Size 200 x 175 x 45mm
Weight 2.5Kgs
Insallation Method Desktop type/vesa mounting

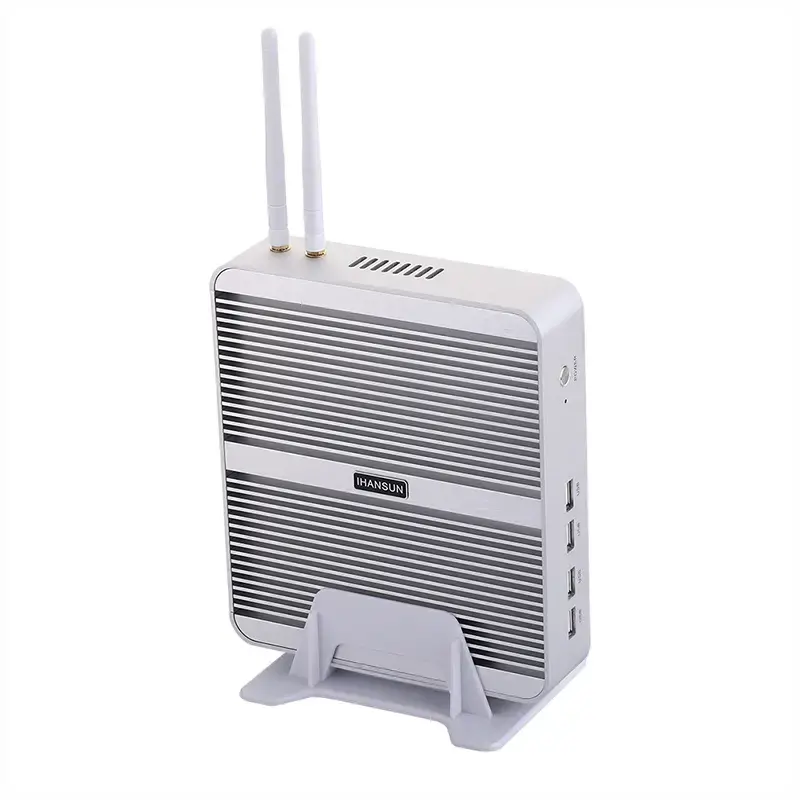

With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Core™ i3-8145U Processor (4M Cache, up to 3.90 GHz)
Intel® Core™ i5-8250U Processor (6M Cache, up to 3.40 GHz)
Intel® Core™ i5-7200U Processor (3M Cache, up to 3.10 GHz)
Chipset SOC
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME)
Expand 1 x Mini PCIE WiFi slot


I/O Interfaces

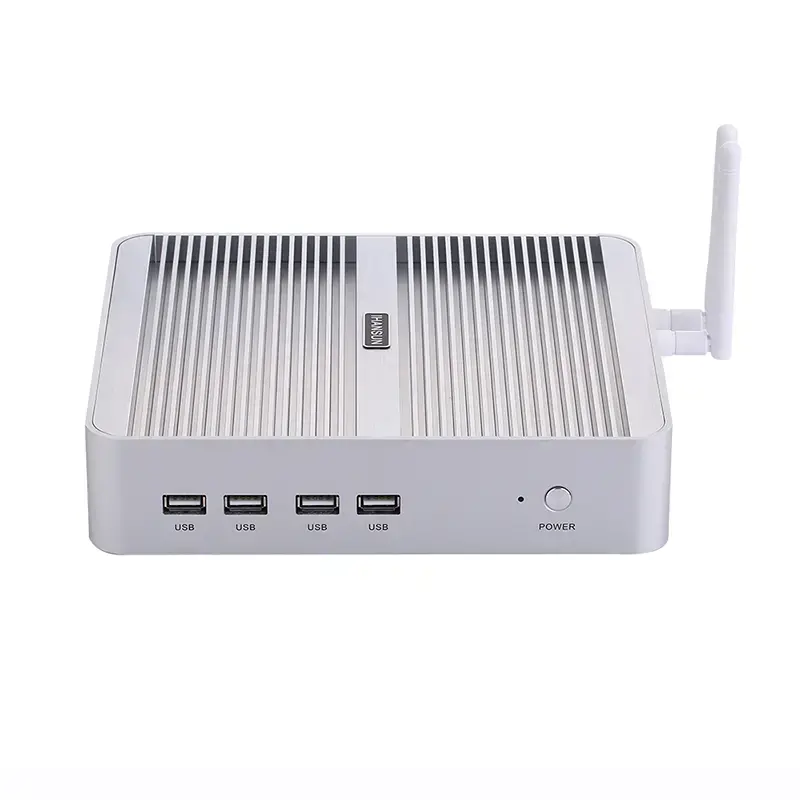

Front Panel 1 x Power button
4 x USB2.0

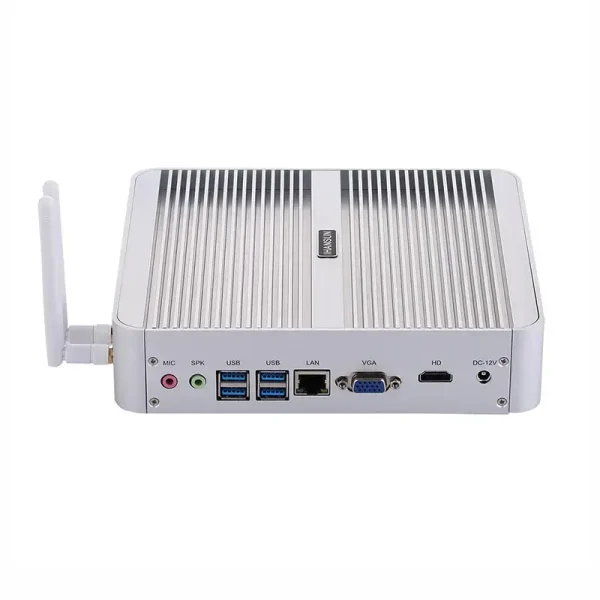

Rear Panel 1 x DC_in
1 x HDMI
1 x VGA
1 x Lan
4 x USB3.0
1 x Audio
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/5A
Packing List BM07 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification FMC-BM07 Series






* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM07-8145U I3 8145U Intel® UHD Graphics 2.1~3.9 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A
BM07-8250U I5 8250U Intel® UHD Graphics 620 1.6~3.4 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A
BM07-7200U I5 7200U Intel® HD Graphics 620 2.5~3.1 GHz 15 W VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 4G/8G/16G/32G/64G DDR4 RAM type

Storage: 128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A/5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
