NFA-RS38 Series

Network Firewall Appliance Pentium/ I3/ I5/ I7, 8 x LAN, 2 x SFP

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.


Key Features


NFA-RS38 Series Intel® Celeron®/Pentium®/ Gen 2-8th Core™ i3/i5/i7 BGA Processor and Intel® SOC Chipset

NFA-RS38 Series Console, 2 x USB2.0/3.0, 6 x LAN, VGA, Power switch, ATX power socket

NFA-RS38 Series Single/Dual SODIMMs

NFA-RS38 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

NFA-RS38 Series Chassis Form: Standard 1U Cabinet Type




Key Functions


NFA-RS38 Series The actual test traffic exceeds 1000m/s

NFA-RS38 Series WAN-LAN Throughput: through 1 gigabit nic/optical port from lan to wan forwarding speed is 1Gbps





Specifications




Mechanical

Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 430 x 300 x 50mm
Weight 8Kgs
Installation Method Desktop type/rack mounting


Motherboard

CPU Intel® Pentium® Processor 4405U (2M Cache, 2.10 GHz)
Intel® Pentium® Gold Processor 4415U (2M Cache, 2.30 GHz)
Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz)
Intel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz)
Intel® Core™ i5-6200U Processor (3M Cache, up to 2.80 GHz)
Intel® Core™ i5-7200U Processor (3M Cache, up to 3.10 GHz)
Intel® Core™ i7-6500U Processor (4M Cache, up to 3.10 GHz)
Chipset Intel SOC
Network Card 8 x Intel I-211 gigabit lan, 2 x SFP ports (model: Gigabit Intel® I-350 Ethernet)
Intel® AES New Instructions According to CPU
Memory 2 x SO-DIMM DDR4, up to 32GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA


I/O Interfaces

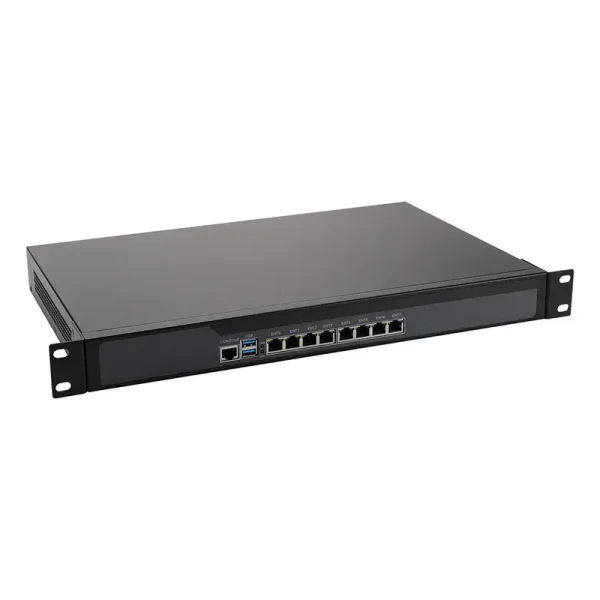

Front Panel 1 x Console
2 x USB2.0
8 x LAN
2 x SFP

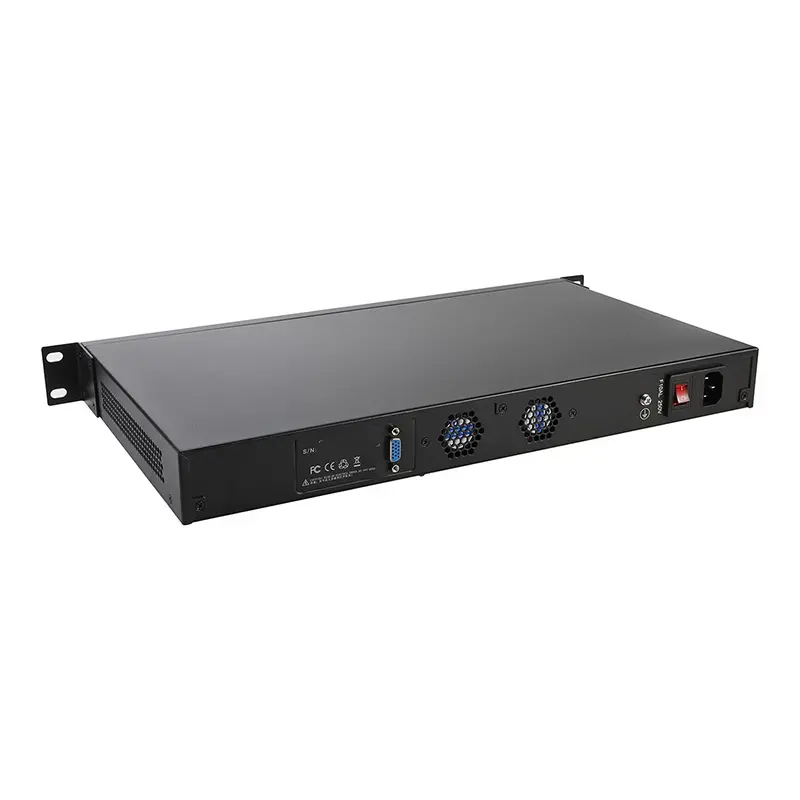

Rear Panel 1 x VGA
1 x Power switch
1 x ATX power socket


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Smart fan
Power Supply 50W 12V 4.2A, 110-240V 50/60Hz
100W 100V-240V 50Hz/60Hz
Packing List RS38 firewall appliance, rack ears, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NFA-RS38 Series





* Ordering Information *




Model



Processor



Intel® AES New Instructions



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



SFP



USB



Power

RS38-4405U  4405U Yes Intel® HD Graphics 510 2.10 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 8 2 2 50W
RS38-4415U 4415U Yes Intel® HD Graphics 610 2.30 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 8 2 2 50W
RS38-6100U I3 6100U Yes Intel® HD Graphics 520 2.30 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 8 2 2 100W
RS38-7100U I3 7100U Yes Intel® HD Graphics 620 2.40 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 8 2 2 100W
RS38-6200U I5 6200U Yes Intel® HD Graphics 520 2.30~2.80 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 8 2 2 100W
RS38-7200U I5 7200U Yes Intel® HD Graphics 620 2.50~3.10 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 8 2 2 100W
RS38-6500U I7 6500U Yes Intel® HD Graphics 520 2.50~3.10 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 8 2 2 100W



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, rack mounting type etc

Optional Accessories:

Memory: 2G/4G DDR3 RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc
