FNR-RC01 Series

Firewall Appliance Router PC with Intel Quad Core J1900, 4 x LAN

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance router pc. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


FNR-RC01 Series Intel® Celeron™ J1900 BGA Processor and Intel® SOC Chipset

FNR-RC01 Series Rich I/O: 4 x LAN, DC-in, Power Button, USB3.0, USB2.0, HDMI, VGA, RST

FNR-RC01 Series Single SODIMM for up to 8GB DDR3L Memory

FNR-RC01 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

FNR-RC01 Series Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot




Key Functions


FNR-RC01 Series Support Restore AC Power Loss





Specifications




Mechanical

Material Aluminum alloy
Colour Black

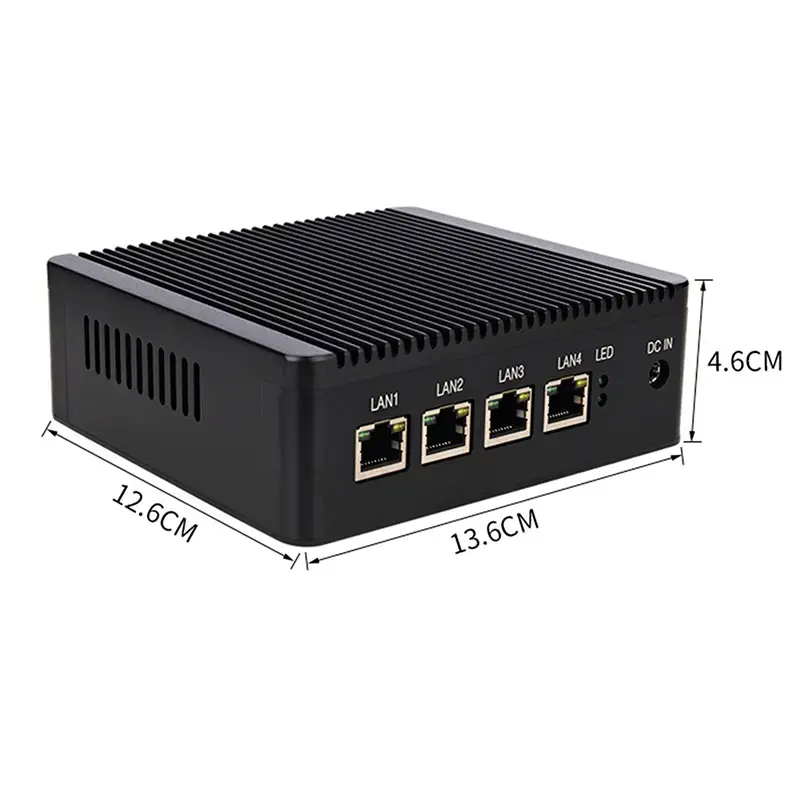

Size 12.5 x 13.5 x 4.5cm
Weight 1.5Kgs
Installation Method Desktop type/vesa mounting
vesa mount as the optional


Motherboard

CPU Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipset Intel SOC
Network Card 4 x Intel I211 gigabit lan
Intel® AES New Instructions No
Memory 1 x SO-DIMM DDR3L 1333, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot, 1 x SIM Slot


I/O Interfaces

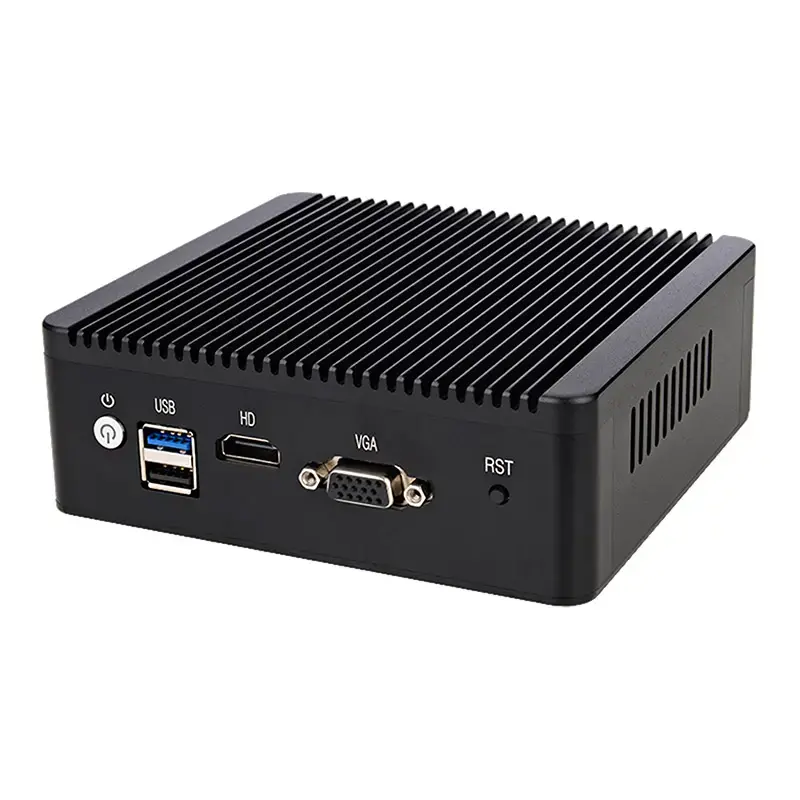

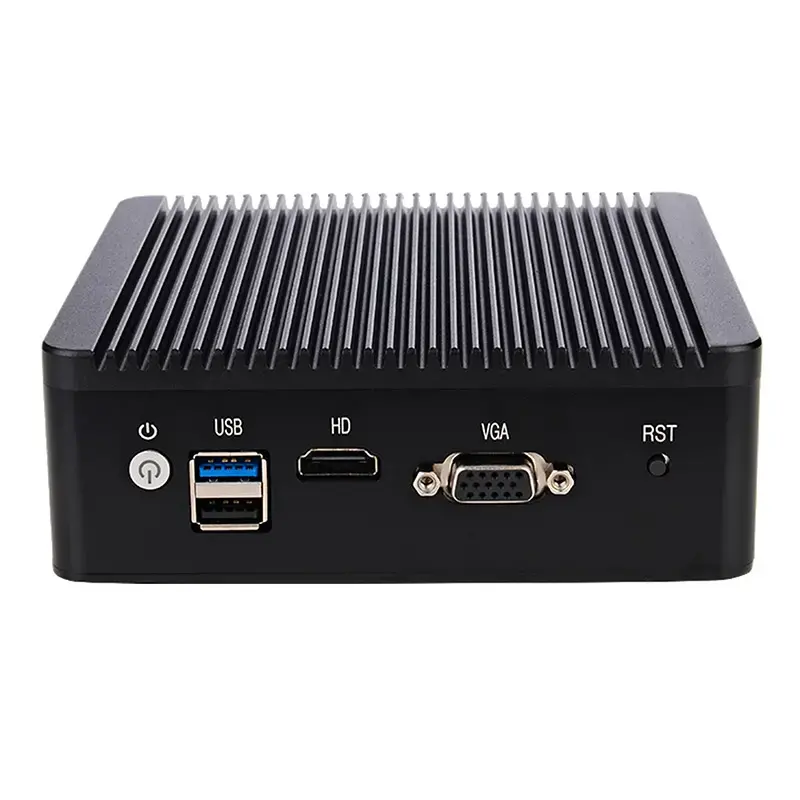

Front Panel 1 x Power button
1 x USB3.0
1 x USB2.0
1 x HDMI
1 x VGA
1 x RST

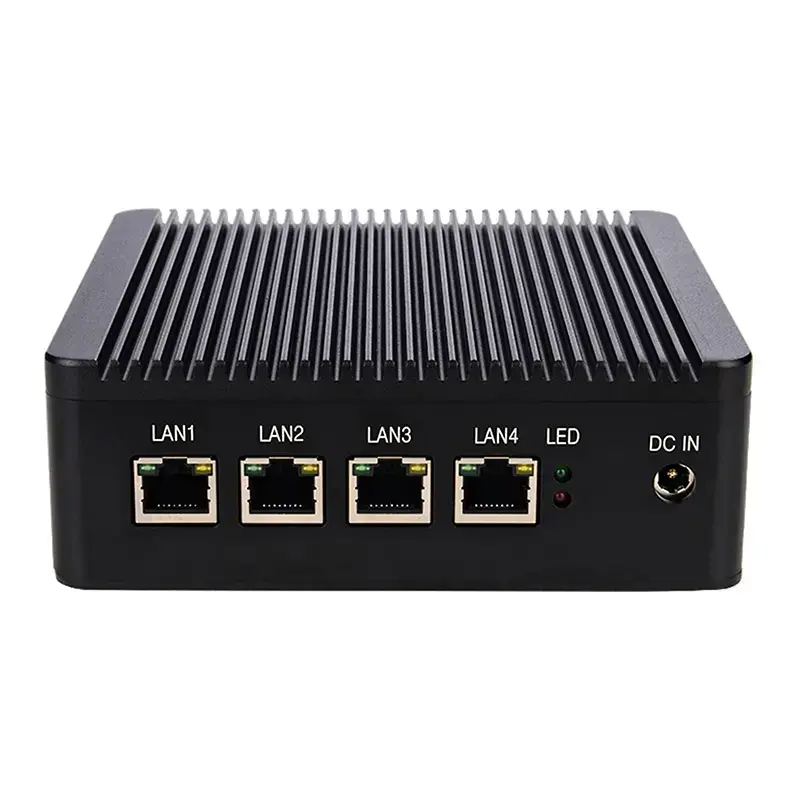

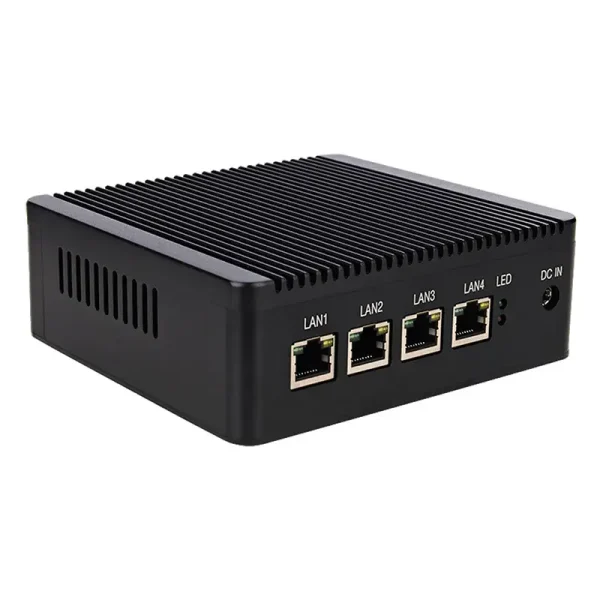

Rear Panel 1 x DC_in
4 x LAN


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 3A
Packing List RC01 firewall appliance, power supply, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification FNR-RC01 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

RC01-J1900 J1900 Intel® HD Graphics 2.00~2.42 GHz 10 W VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 4 2 12V/3A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 2G/4G/8G DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc
