IP65-PW22 Series

Overview

It is the cost-effective 17 inch SXGA LCD industrial panel computer. It is available to choose the intel celeron or core processor. The compact embedded system can provide high-performance computing. High durability design, front panel protection grade IP65, complete die-casting shell, multiple optional touch screen, supports 2 to 3 serial ports, 4 USB ports and 1 gigabit ethernet port to meet various industrial applications.

Key Features

Intel® Celeron J1800/ J1900/ Core™ i5/ i7 BGA Processor

Rich I/O: Power switch, 2-3 x COM, Audio, 2-3 x USB2.0, 1-2 x USB3.0, VGA, HDMI

Single SODIMM for up to 8GB DDR3L Memory

Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot onboard

Key Functions

Support diskless boot

Support automatic boot after power failure

Support wake on Lan

Support watchdog for 256-level

Support 4G network module with sim slot onboard

Specifications

Mechanical
Front Panel Protection	IP65 standard
Front Panel Material	Aluminum alloy
Colour	Black

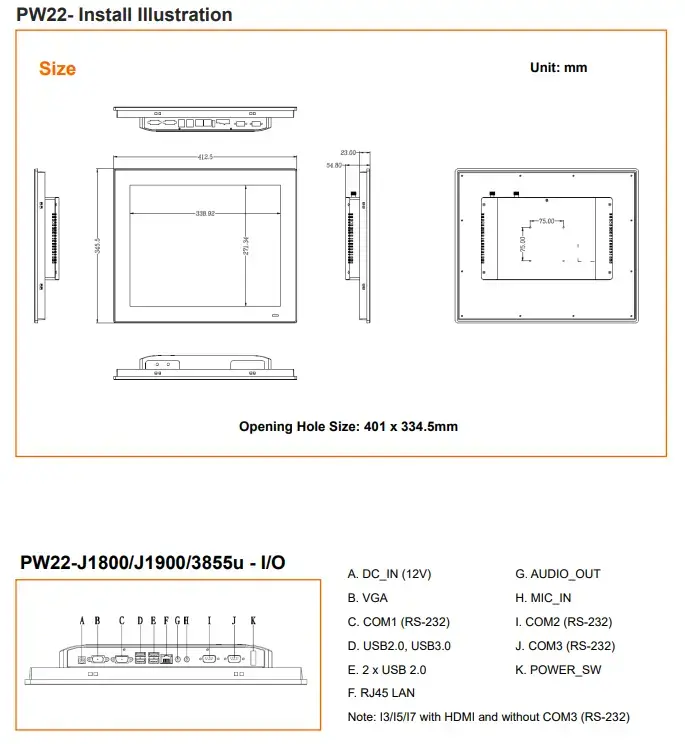

Opening Hole Size	401 x 334.5mm (L x W)
Size	412.5 x 345.5 x 54.8mm
Weight	7.6Kgs

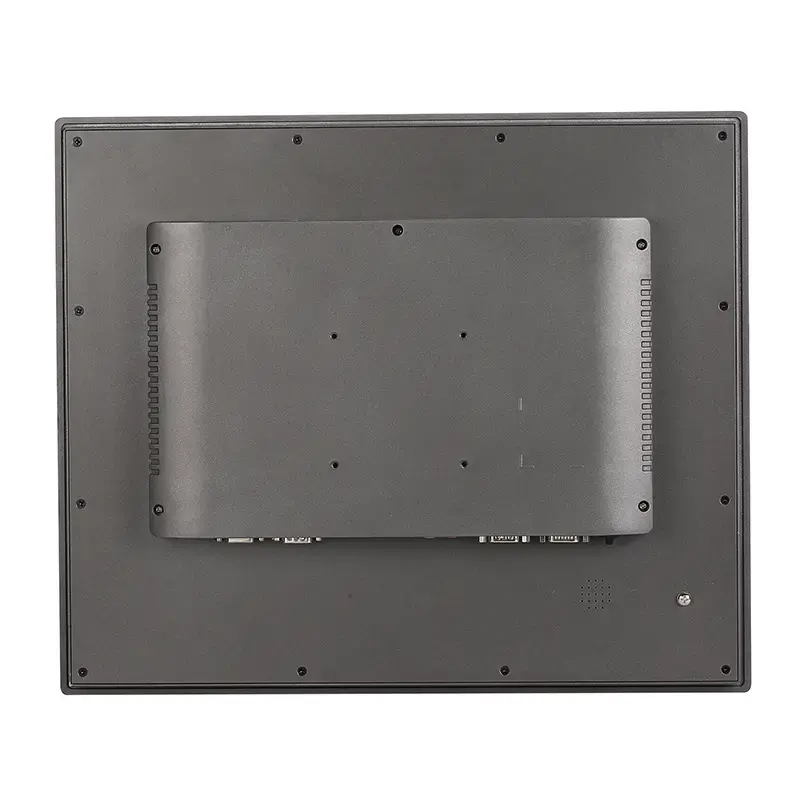

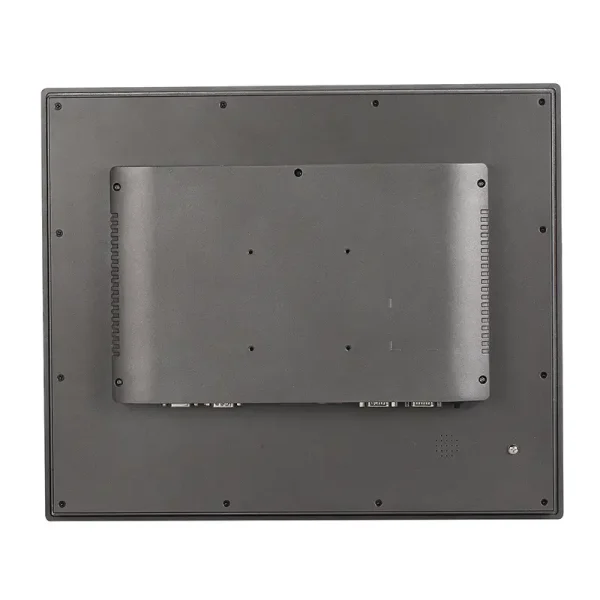

Installation Method	Standard VESA screw hole (75 x 75 or 100 x 100mm) for flexible installation, vesa mount for optional Embedded (recommended)/wall-mounted/desktop/cantilevered etc
LCD Display

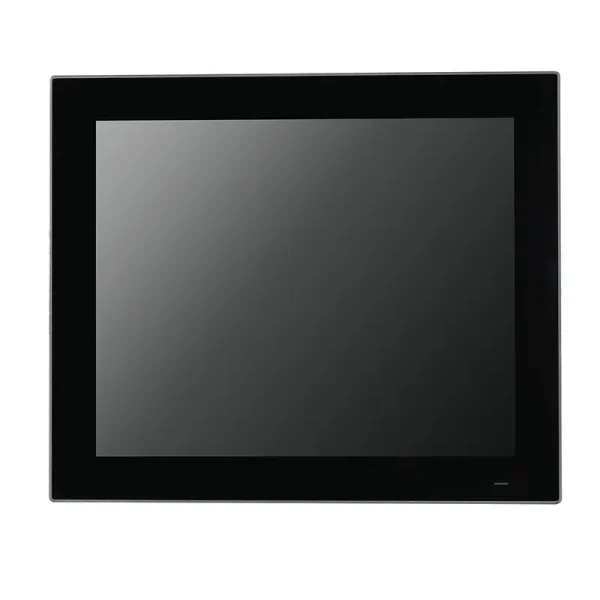

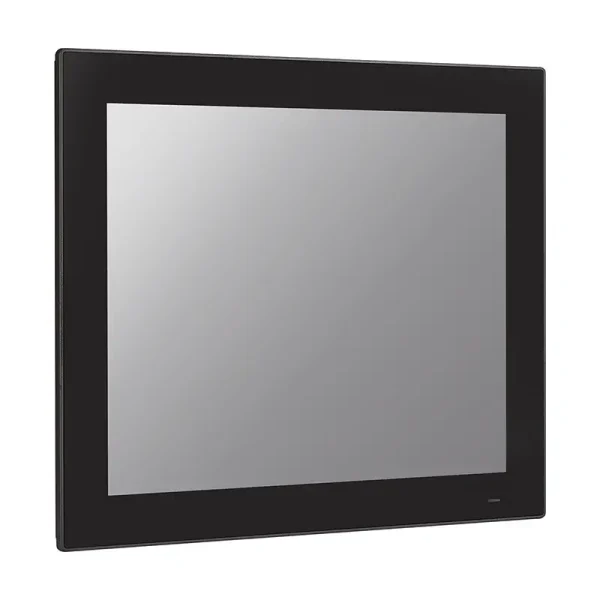

Display Type	Industrial grade 17 inch TFT SXGA LCD (LED backlight)
Resolution	1024 x 768
Perspective	80 (left), 80 (right), 80 (up), 80 (down)
Lumens (cd/m2)	400
Contrast	800
Backlight Life	30,000 hours (min.)
Touch Screen
Touch Type	Optional for 10-point projected capacitive touch screen/resistive touch screen/no touch screen
Transmittance	86±5% at 550 nm wavelength
Controller	USB interface
Durability (Number of Touches)	Capacitive touch screen 200 million times/resistive touch screen≥35 million times
Motherboard
CPU	Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz) Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz) Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz) Intel® Core™ i7-3537U Processor (4M Cache, up to 3.10 GHz) 4th/6th Gen I5/I7 optional
Chipset	Intel SOC
Watchdog Timer	255 levels
Network Card	1 x Realtek 8111E gigabit lan
WiFi and Bluetooth	N/A, optional to add
Memory	1 x SO-DIMM DDR3L, up to 8GB RAM
Storage	1 x 2.5 inch hard disk bay/1 x mSATA
Expand	1 x Mini PCIE for WiFi/4G, with sim slot
I/O Interfaces

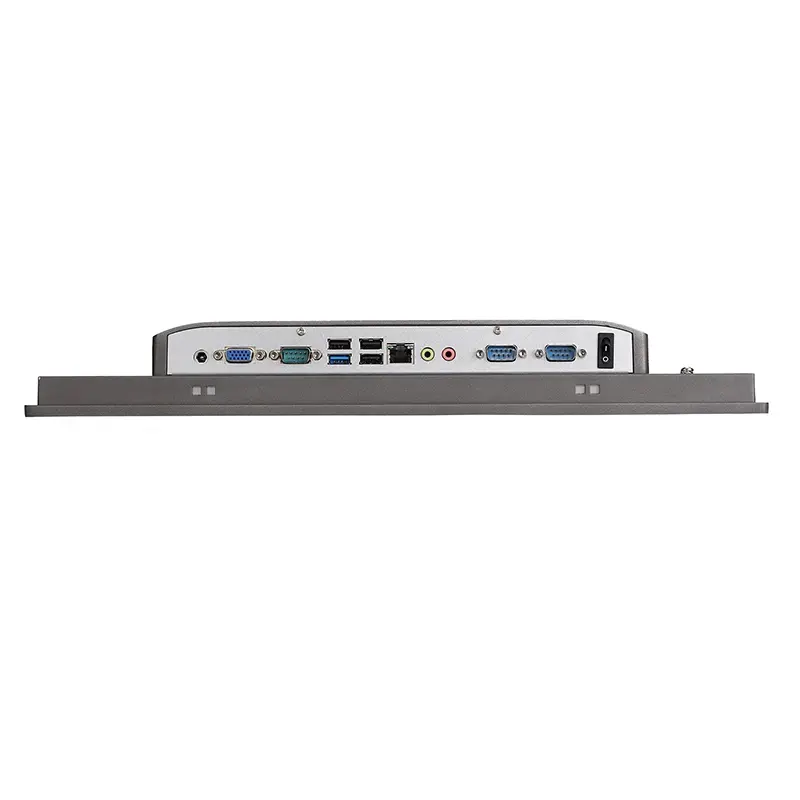

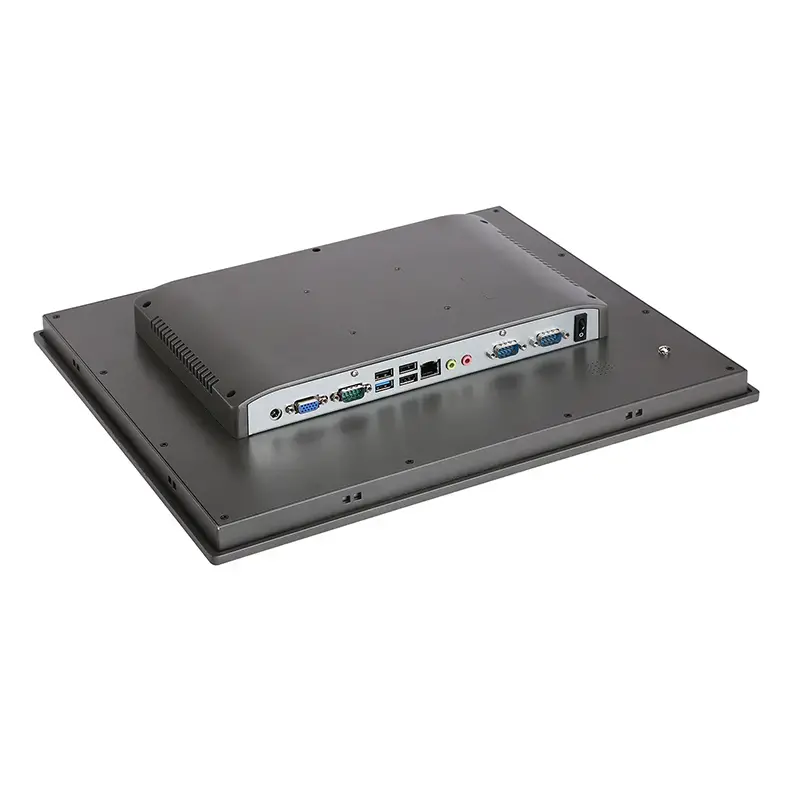

J1800/J1900/3855U Rear Panel	1 x Power switch 3 x COM 1 x Audio 1 x Lan 3 x USB2.0 1 x USB3.0 1 x VGA 1 x DC_in

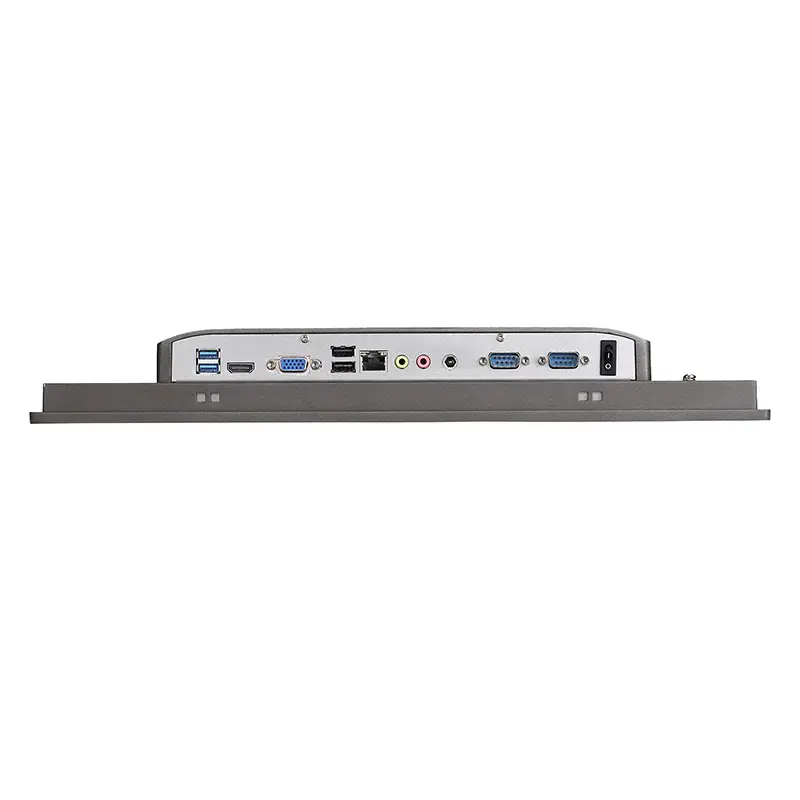

I3/I5/I7 Rear Panel	1 x Power switch 2 x COM 1 x DC_in 1 x Audio 1 x Lan 4 x USB2.0 1 x VGA 1 x HDMI
Software Support
Bios	AMI bios
System Support	Windows 10, linux ubuntu etc
General
Cooling Mode	Fanless/Smart fan
Power Supply	DC100-240V AC/50-60Hz, DC 12V 4A-5A
Packing List	PW22 industrial touch panel pc, power supply, power cord, embedded buckles, warranty card
Environment
Operating Temperature	0 ~ 50°C with SSD 0 ~ 40°C with HDD
Storage Temperature	-20 ~ 60°C
Relative Humidity	10 ~ 95% @ 40°C (non-condensing)
