IP65-PW13 Series

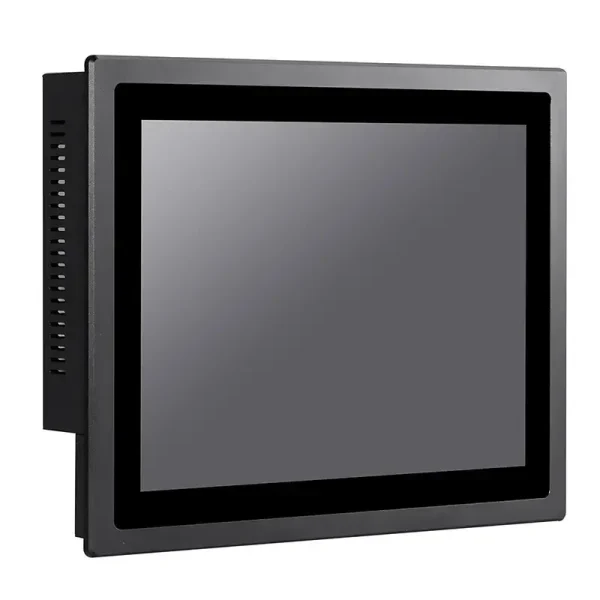

12.1 Inch All in One Touch Panel Industrial PC, Intel Celeron/ I5/ I7, IP65

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective 12 inch led industrial panel computer. It is available to choose the intel celeron or core processor. The compact embedded system can provide high-performance computing. High durability design, front panel protection grade IP65, supports 2 to 3 serial ports, 6 USB ports and 1 gigabit ethernet port to meet various industrial applications.


Key Features


IP65-PW13 Series Industrial grade 12.1 inch LED, with IP65 front panel

IP65-PW13 Series Rich I/O: Power switch, 2-3 x COM, Audio, 5-6 x USB2.0, 0-1 x USB3.0, VGA/HDMI, LAN

IP65-PW13 Series Single SODIMM for up to 8GB DDR3L Memory

IP65-PW13 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

IP65-PW13 Series Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot onboard




Key Functions


IP65-PW13 Series Support diskless boot

IP65-PW13 Series Support automatic boot after power failure

IP65-PW13 Series Support wake on Lan

IP65-PW13 Series Support watchdog for 256-level

IP65-PW13 Series Support 4G network module with sim slot onboard





Specifications




Mechanical

Front Panel Protection IP65 standard
Front Panel Material Aluminum panel and sheet metal
Colour Black
Opening Hole Size 295 x 234mm (L x W)
Size 309 x 248.5 x 59mm
Weight 4Kgs

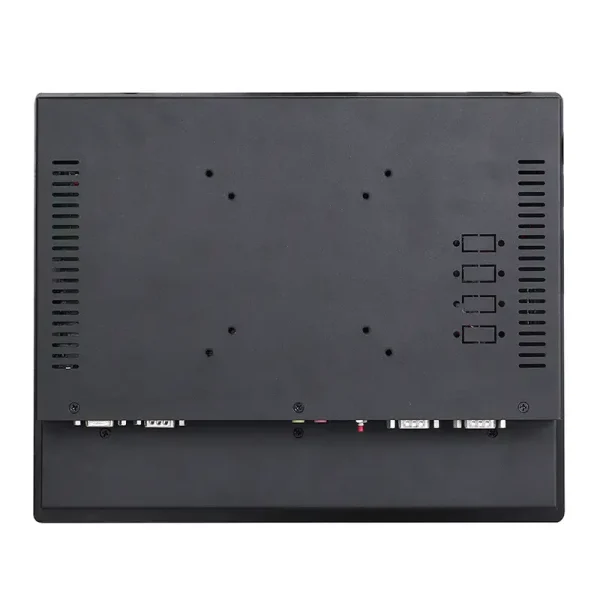

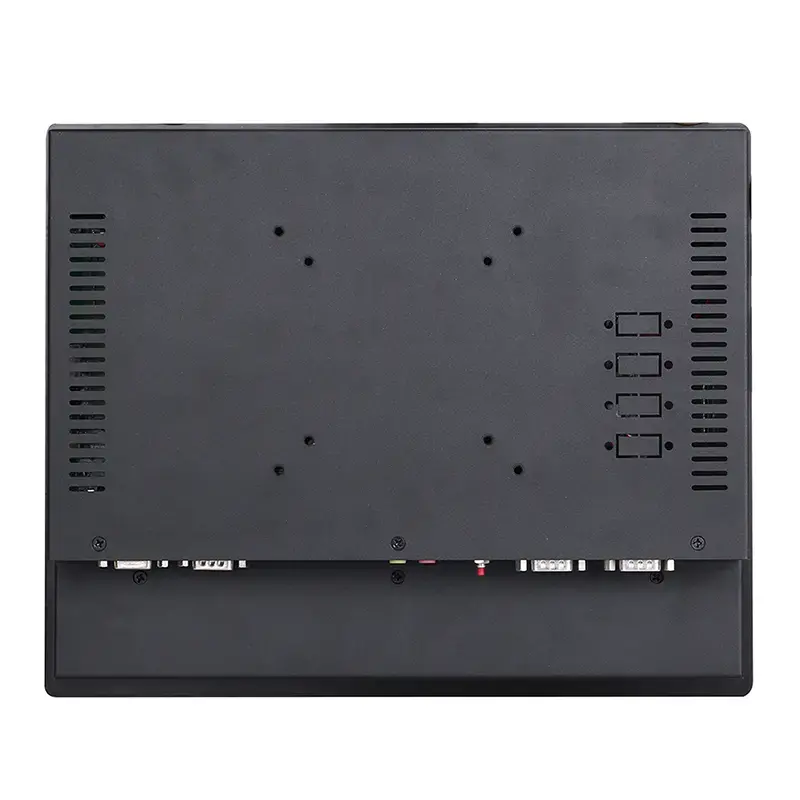

Installation Method Standard VESA screw hole (75 x 75 or 100 x 100mm) for flexible installation, vesa mount for optional
Embedded (recommended)/wall-mounted/desktop/cantilevered etc


LCD Display

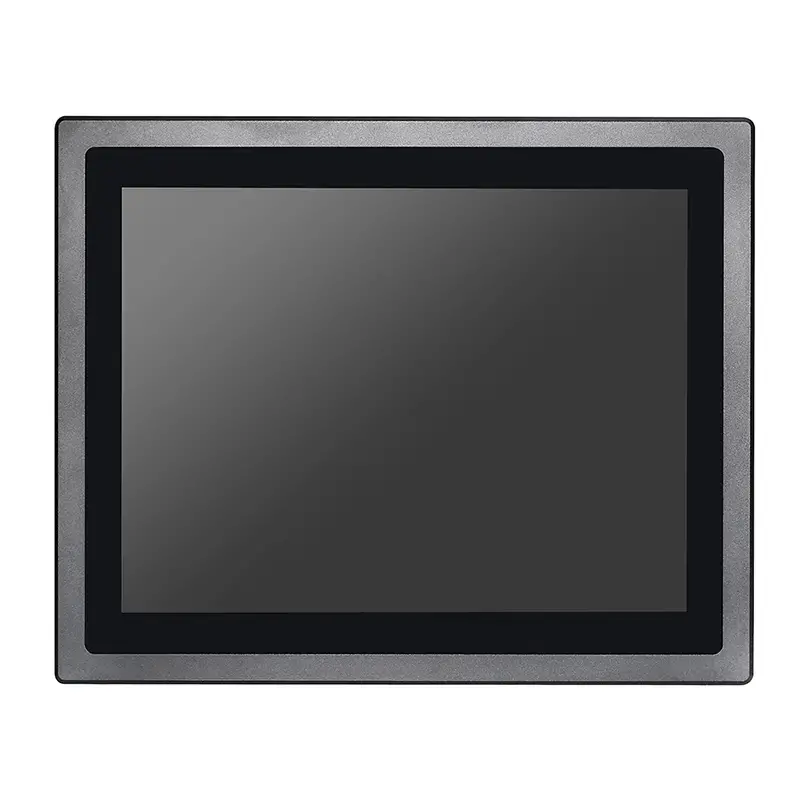

Display Type Industrial grade 12.1 inch LED
Resolution 1024 x 768
Lumens (cd/m2) 300
Contrast 700


Touch Screen

Touch Type 10-point capacitive touch screen
Durability (Number of Touches) >100 million times


Motherboard

CPU Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)
Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz)
Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i7-3537U Processor (4M Cache, up to 3.10 GHz)
4th/6th Gen I5/I7 optional
Chipset Intel SOC
Watchdog Timer 255 levels
Network Card 1 x Realtek 8111E gigabit lan
WiFi and Bluetooth N/A, optional to add
Memory 1 x SO-DIMM DDR3L, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE for WiFi/4G, with sim slot


I/O Interfaces

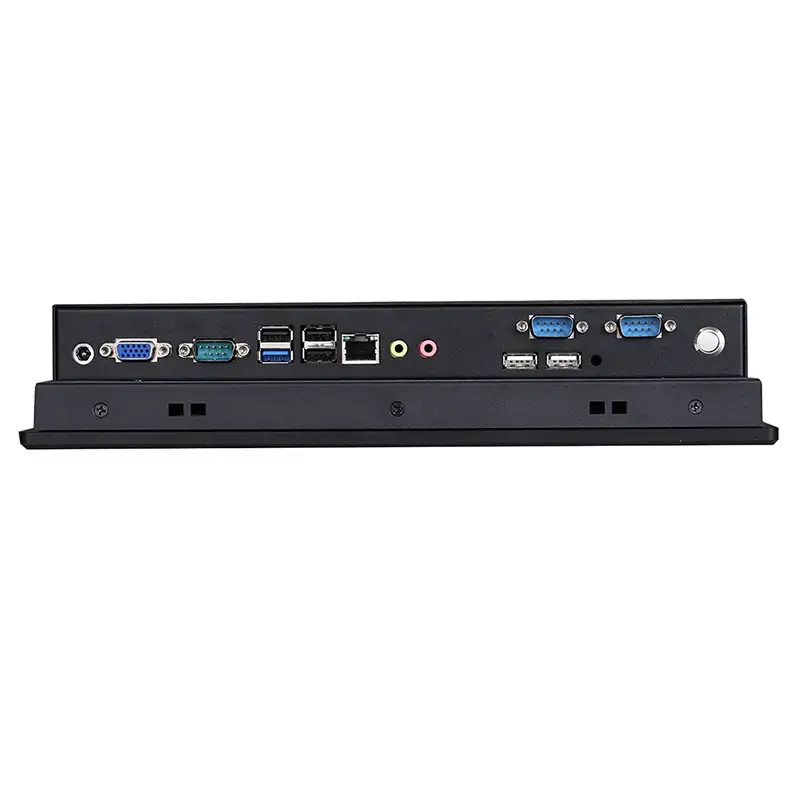

J1800/J1900/3855U

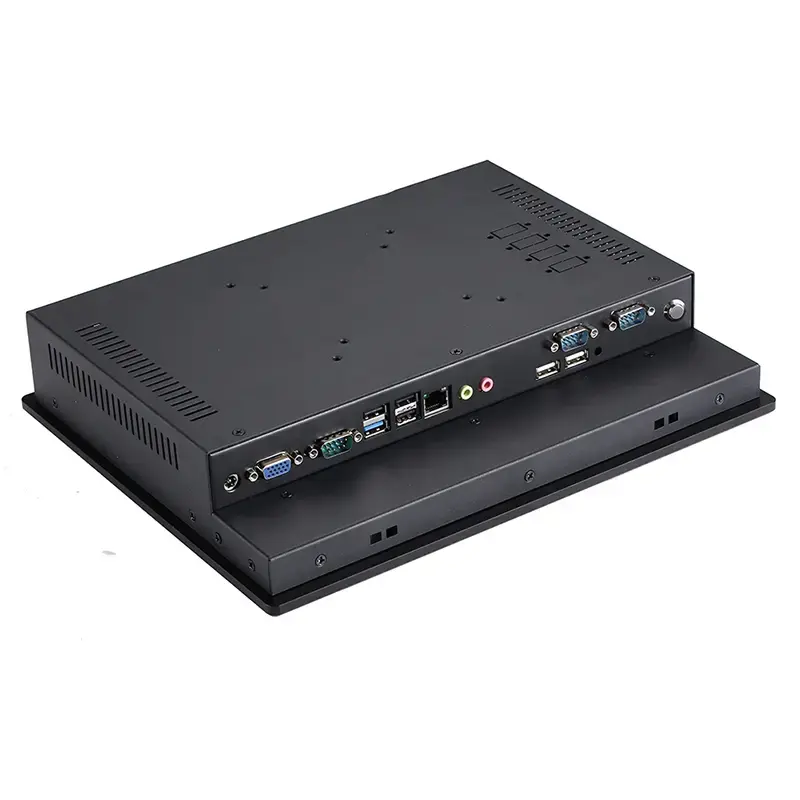

Rear Panel
1 x Power switch
1 x VGA
3 x COM
5 x USB2.0
1 x USB3.0
1 x Lan
1 x Audio
1 x DC_in

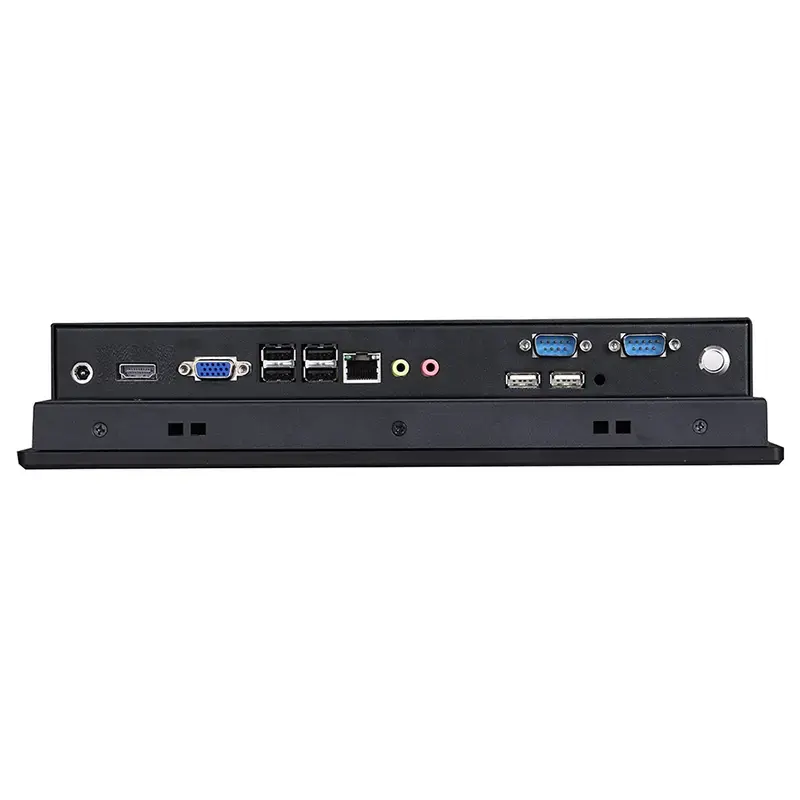

I3/I5/I7
Rear Panel
1 x Power switch
1 x HDMI
1 x VGA
6 x USB2.0
1 x Lan
1 x Audio
2 x COM
1 x DC_in


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless/Smart fan
Power Supply DC100-240V AC/50-60Hz, DC 12V 4A-5A
Packing List PW13 industrial touch panel pc, power supply, power cord, embedded buckles, warranty card


Environment

Operating Temperature -10℃~50℃ surface air flow
Storage Temperature -25℃~70℃
Working Humidity 10 ~ 95% @ 40°C (non-condensing)
Certification IP65-PW13 Series

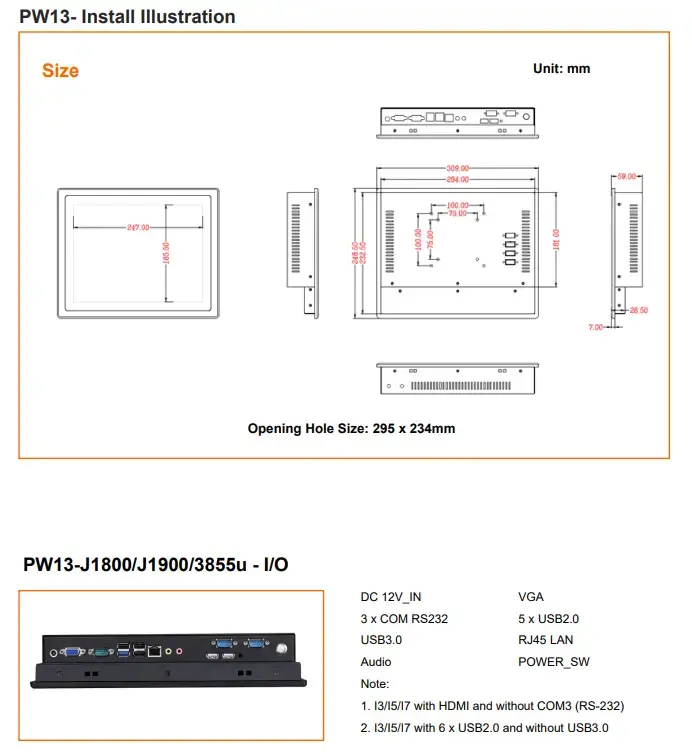

Panel PC PW13 Install



* Ordering Information *




Model



Processor



Cooling System



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



COM



Power

PW13-J1800 Celeron J1800 Fanless Intel® HD Graphics 2.58~2.41 GHz 10 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 2~3 12V/4A
PW13-J1900 Celeron J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz 10 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 2~3 12V/4A
PW13-3855U Celeron 3855U Smart fan Intel® HD Graphics 510 1.60 GHz 15 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 2~3 12V/4A
PW13-3317U I5 3317U Smart fan Intel® HD Graphics 4000 1.70~2.60 GHz 17 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 2~3 12V/5A
PW13-3537U I7 3537U Smart fan Intel® HD Graphics 4000 2.00~3.10 GHz 17 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 2~3 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as embedded (recommended)/wall-mounted/desktop/cantilevered etc

Optional Accessories:

Memory: 2G/4G/8G DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 4A/5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
