DFA-RS03 Series

Network Firewall Appliance with Atom/ Celeron/ Pentium/ I3/ I5/ I7

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.


Key Features


DFA-RS03 Series Intel® Atom®/Celeron®/Pentium®/ Gen 2-8th Core™ i3/i5/i7 BGA Processor and Intel® SOC Chipset

DFA-RS03 Series Rich I/O: RST, Console, 2 x USB2.0/3.0, 6 x LAN, VGA, Power switch, ATX power socket

DFA-RS03 Series Single/Dual SODIMMs

DFA-RS03 Series Rich Storage: mSATA SSD

DFA-RS03 Series Chassis Form: Standard 13-19 inch 1U




Key Functions


DFA-RS03 Series The actual test traffic exceeds 1000m/s





Specifications




Mechanical

Chassis Standard 13-19 inch 1u, full mold production, fine surface treatment, firm structure
Colour Black
Size 310 x 210 x 50mm
Weight 3.5Kgs
Installation Method Desktop type/rack mounting


Motherboard

CPU Intel Atom® Processor D525 (1M Cache, 1.80 GHz)
Intel® Celeron® Processor 1037U (2M Cache, 1.80 GHz)
Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz)
Intel® Celeron® Processor J4125 (4M Cache, up to 2.70 GHz)
Intel® Pentium® Processor 4405U (2M Cache, 2.10 GHz)
Intel® Pentium® Gold Processor 4415U (2M Cache, 2.30 GHz)
Intel® Pentium® Processor B950 (2M Cache, 2.10 GHz)
Intel® Core™ i3-2328M Processor (3M Cache, 2.20 GHz)
Intel® Core™ i3-3110M Processor (3M Cache, 2.40 GHz)
Intel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz)
Intel® Core™ i5-2430M Processor (3M Cache, up to 3.00 GHz)
Intel® Core™ i5-2520M Processor (3M Cache, up to 3.20 GHz)
Intel® Core™ i5-3320M Processor (3M Cache, up to 3.30 GHz)
Intel® Core™ i5-6200U Processor (3M Cache, up to 2.80 GHz)
Intel® Core™ i5-7200U Processor (3M Cache, up to 3.10 GHz)
Intel® Core™ i7-2620M Processor (4M Cache, up to 3.40 GHz)
Intel® Core™ i7-3520M Processor (4M Cache, up to 3.60 GHz)
Intel® Core™ i7-6500U Processor (4M Cache, up to 3.10 GHz)
Intel® Core™ i7-7500U Processor (4M Cache, up to 3.50 GHz )
Intel® Core™ i7-8550U Processor (8M Cache, up to 4.00 GHz)
Chipset Intel SOC
Network Card 6 x Intel 82583V/82574L/I-211 gigabit lan
Intel® AES New Instructions According to CPU
Memory 1 x SO-DIMM DDR3, up to 4GB RAM
1 x SO-DIMM DDR3L, up to 8GB RAM
1 x SO-DIMM DDR4, up to 32GB RAM
2 x SO-DIMM DDR4, up to 64GB RAM
Storage 1 x mSATA


I/O Interfaces

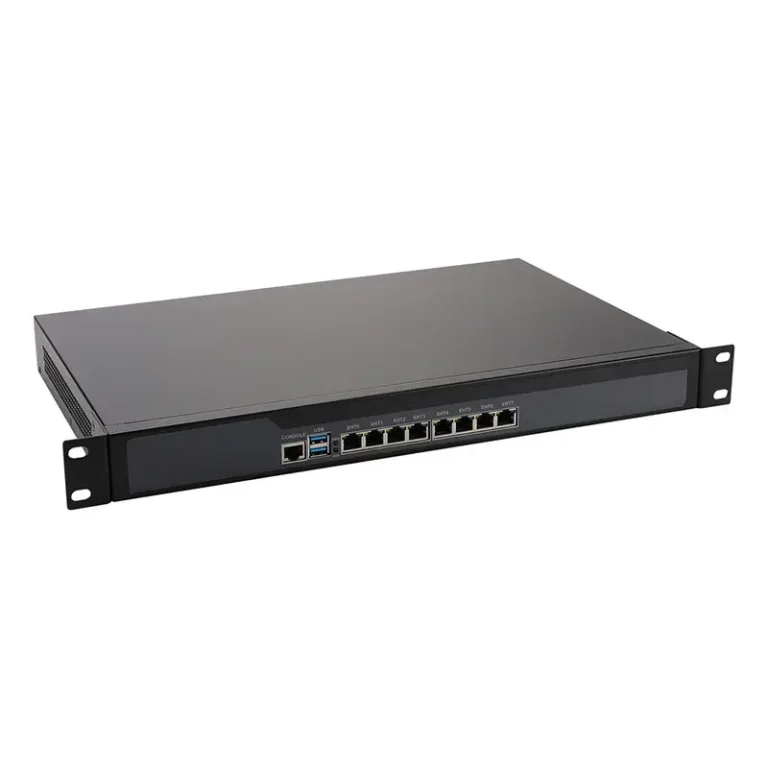

Front Panel 1 x RST
1 x Console
2 x USB2.0
6 x LAN

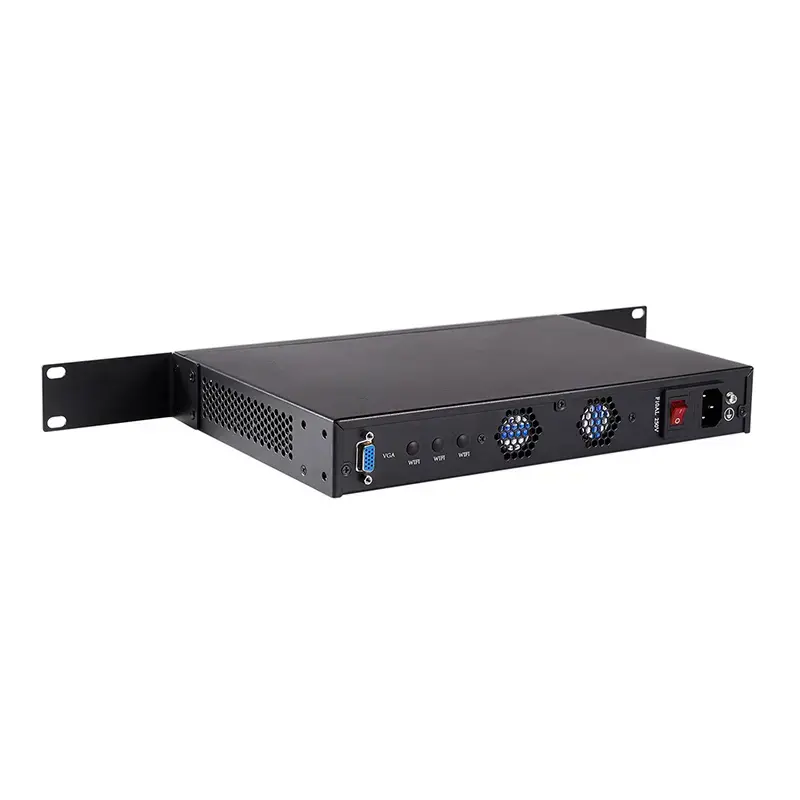

Rear Panel 1 x VGA
1 x Power switch
1 x ATX power socket


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Smart fan
Power Supply 50W 12V 4.2A, 110-240V 50/60Hz
Packing List RS03 firewall appliance, rack ears, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification DFA-RS03 Series



* Ordering Information *




Model



Processor



Intel® AES New Instructions



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

RS03-D525 D525 No Intel® GMA3150 1.80 GHz 13 W VGA 1 x SO-DIMM DDR3 1 x M-SATA 6 2 50W
RS03-1037U 1037U No Intel® HD Graphics 1.80 GHz 17 W VGA 1 x SO-DIMM DDR3L 1 x M-SATA 6 2 50W
RS03-3855U 3855U/3865U/3965U Yes Intel® HD Graphics 510 1.60 GHz 15 W VGA 1 x SO-DIMM DDR4 1 x M-SATA 6 2 50W
RS03-J4125 J4125 Yes Intel® UHD Graphics 600 2.00~2.70 GHz 10 W VGA 1 x SO-DIMM DDR4 1 x M-SATA 6 2 50W
RS03-4405U  4405U Yes Intel® HD Graphics 510 2.10 GHz 15 W VGA 1 x SO-DIMM DDR3L 1 x M-SATA 6 2 50W
RS03-4415U 4415U Yes Intel® HD Graphics 610 2.30 GHz 15 W VGA 1 x SO-DIMM DDR3L 1 x M-SATA 6 2 50W
RS03-B950 B950 No Intel® HD Graphics 2.10 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x M-SATA 6 2 50W
RS03-2328M I3 2328M No Intel® HD Graphics 3000 2.20 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x M-SATA 6 2 50W
RS03-3110M I3 3110M/3120M No Intel® HD Graphics 4000 2.40 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x M-SATA 6 2 50W
RS03-7100U I3 7100U Yes Intel® HD Graphics 620 2.40 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x M-SATA 6 2 50W
RS03-2430M I5 2430M Yes Intel® HD Graphics 3000 2.40~3.00 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x M-SATA 6 2 50W
RS03-2520M I5 2520M Yes Intel® HD Graphics 3000 2.50~3.20 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x M-SATA 6 2 50W
RS03-3320M I5 3320M Yes Intel® HD Graphics 4000 2.60~3.30 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x M-SATA 6 2 50W
RS03-6200U I5 6200U Yes Intel® HD Graphics 520 2.30~2.80 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x M-SATA 6 2 50W
RS03-7200U I5 7200U Yes Intel® HD Graphics 620 2.50~3.10 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x M-SATA 6 2 50W
RS03-2620M I7 2620M/2640M Yes Intel® HD Graphics 3000 2.70~3.40 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x M-SATA 6 2 50W
RS03-3520M I7 3520M Yes Intel® HD Graphics 4000 2.90~3.60 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x M-SATA 6 2 50W
RS03-6500U I7 6500U Yes Intel® HD Graphics 520 2.50~3.10 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x M-SATA 6 2 50W
RS03-7500U I7 7500U Yes Intel® HD Graphics 620 2.70~3.50 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x M-SATA 6 2 50W
RS03- 8550U I7 8550U Yes Intel® UHD Graphics 620 1.80~4.00 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x M-SATA 6 2 50W



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, rack mounting type etc

Optional Accessories:

Memory: 2G/4G DDR3, 2G/4G/8G DDR3L, 4G/8G/16G/32G/64G DDR4 RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc

FEATURED PRODUCTS

industrial panel pc with windows 10
fanless computer intel celeron j1800

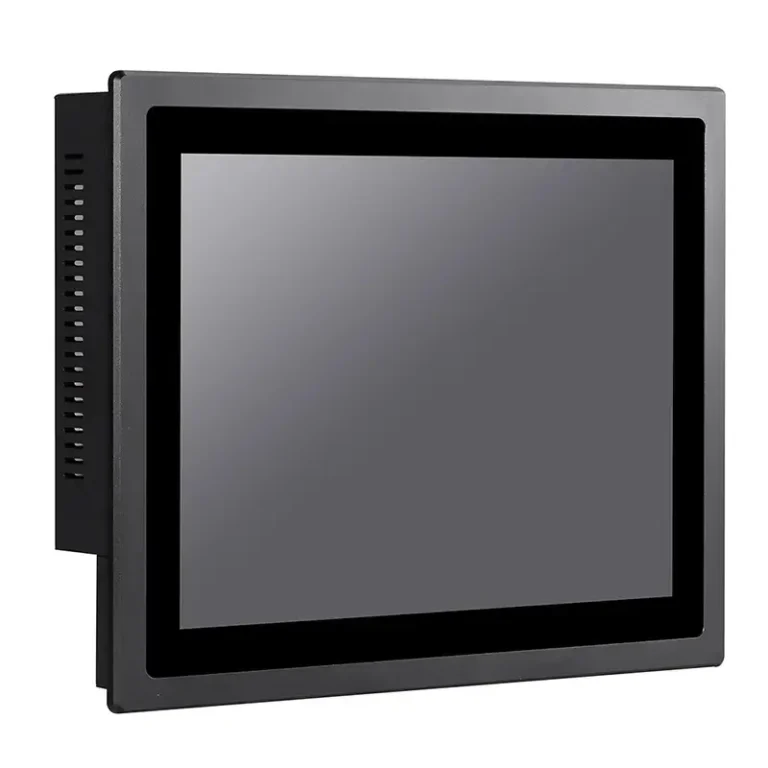

Industrial hmi panel pc with 13.3 inch
