NFA-RS02 Series

1U Network Firewall Appliance, VPN Router Intel Atom D525, 4 x LAN

For product pricing, customization, or other inquiries:

Share to:




It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.

Key Features

NFA-RS02 Series Intel® Atom® D525 BGA Processor and Intel® SOC Chipset

NFA-RS02 Series Rich I/O: RST, Console, 2 x USB2.0, 4 x LAN, VGA, Power switch, ATX power socket

NFA-RS02 Series Single SODIMM for up to 4GB DDR3 Memory

NFA-RS02 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

NFA-RS02 Series Chassis Form: Standard 1U Cabinet Type


Key Functions

NFA-RS02 Series The actual test traffic exceeds 1000m/s

NFA-RS02 Series WAN-LAN Throughput: throughput through 1 gigabit nic from lan to wan forwarding speed is 200mbps to 250mbps





Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 430 x 250 x 50mm
Weight 6Kgs
Installation Method Desktop type/rack mounting


CPU Intel Atom® Processor D525 (1M Cache, 1.80 GHz)
Chipset Intel SOC
Network Card 4 x Intel 82583V/82574L gigabit lan
Intel® AES New Instructions No
Memory 1 x SO-DIMM DDR3, up to 4GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA

I/O Interfaces

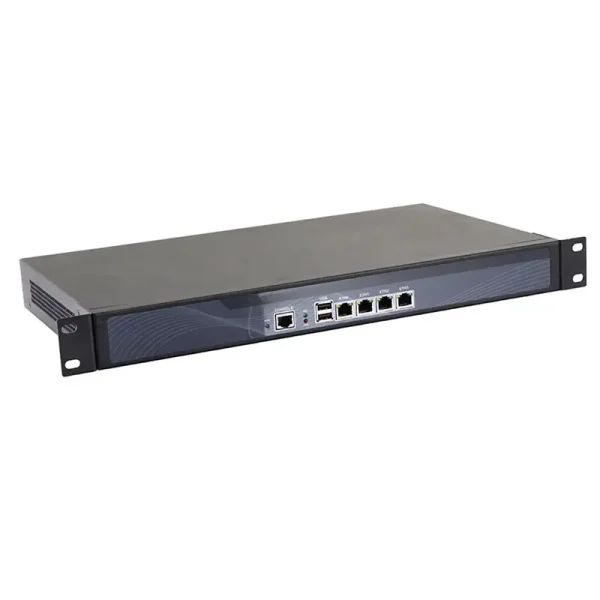

Front Panel 1 x Console
2 x USB2.0
4 x LAN

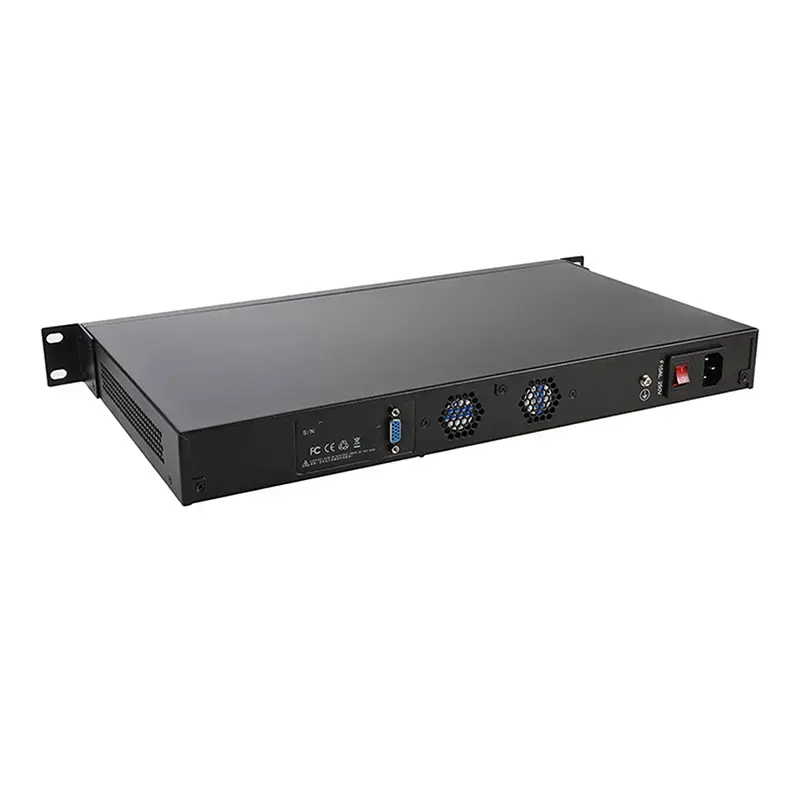

Rear Panel 1 x VGA
1 x Power switch
1 x ATX power socket

Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


Cooling Mode Smart fan
Power Supply 50W 12V 4.2A, 110-240V 50/60Hz
Packing List RS02 firewall appliance, rack ears, power cord, warranty card


Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NFA-RS02 Series



* Ordering Information *























RS02-D525 D525 Intel® GMA3150 1.80 GHz 13 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 4 2 50W


* Supplemental Information *


Installation Method:  Support multiple fixing methods such as desktop type, rack mounting type etc

Optional Accessories:

Memory: 2G/4G DDR3 RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc
