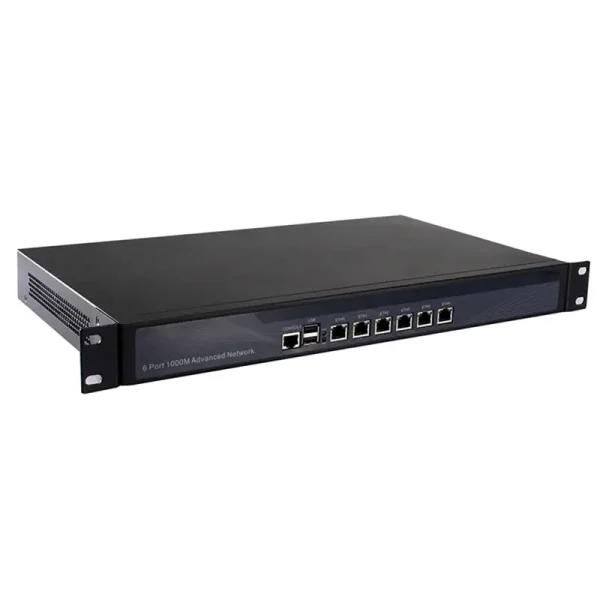

NFA-RS06 Series

1U Network Firewall Appliance Intel 1037U/ 3955U/ J4125, 6 x LAN

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.


Key Features


NFA-RS06 Series Intel® Celeron® BGA Processor and Intel® SOC Chipset

NFA-RS06 Series Rich I/O: RST, Console, 2 x USB2.0, 6 x LAN, VGA, Power switch, ATX power socket

NFA-RS06 Series Single SODIMM Memory

NFA-RS06 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

NFA-RS06 Series Chassis Form: Standard 1U Cabinet Type




Key Functions


NFA-RS06 Series The actual test traffic exceeds 1000m/s

NFA-RS06 Series 1037U/3855U WAN-LAN Throughput: through 1 gigabit nic from lan to wan forwarding speed is 500 to 800Mbps
J4125 WAN-LAN Throughput: through 1 gigabit nic from lan to wan forwarding speed is 1gb





Specifications




Mechanical

Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 430 x 250 x 50mm
Weight 6.5Kgs
Installation Method Desktop type/rack mounting


Motherboard

CPU Intel® Celeron® Processor 1037U (2M Cache, 1.80 GHz)
Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz)
Intel® Celeron® Processor J4125 (4M Cache, up to 2.70 GHz)
Chipset Intel SOC
Network Card 6 x Intel 82583V/82574L/I-211 gigabit lan
Intel® AES New Instructions According to CPU
Memory 1 x SO-DIMM DDR3L, up to 8GB RAM
1 x SO-DIMM DDR4, up to 32GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA


I/O Interfaces

Front Panel 1 x Console
2 x USB2.0/3.0
6 x LAN

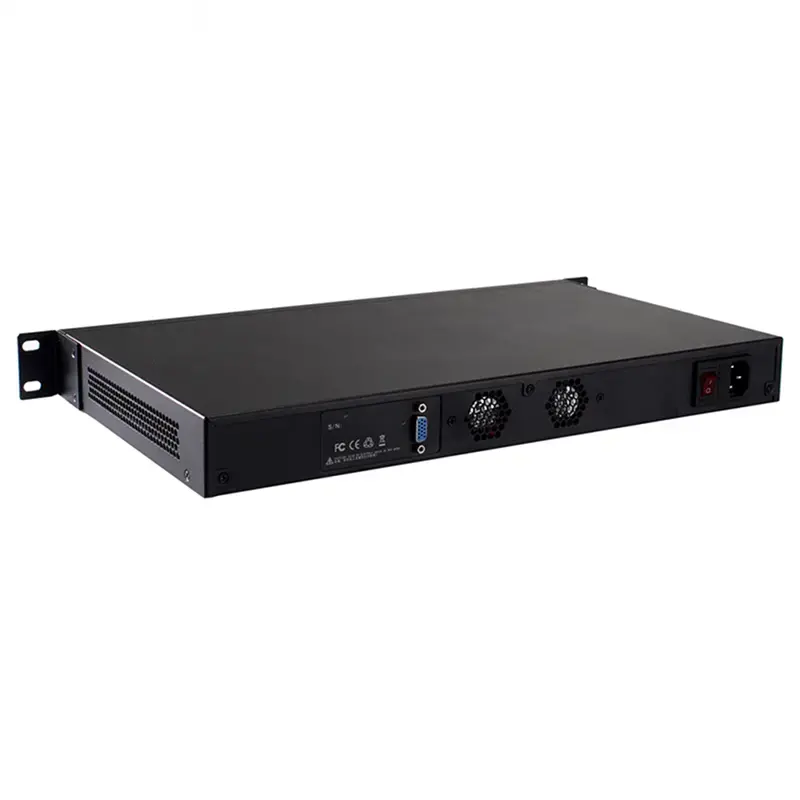

Rear Panel 1 x VGA
1 x Power switch
1 x ATX power socket


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Smart fan
Power Supply 50W 12V 4.2A, 110-240V 50/60Hz
Packing List RS06 firewall appliance, rack ears, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NFA-RS06 Series





* Ordering Information *




Model



Processor



Intel® AES New Instructions



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

RS06-1037U 1037U No Intel® HD Graphics 1.80 GHz 17 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 6 2 50W
RS06-3855U 3855U/3865U/3965U Yes Intel® HD Graphics 510 1.60 GHz 15 W VGA 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 2 50W
RS06-J4125 J4125 Yes Intel® UHD Graphics 600 2.00~2.70 GHz 10 W VGA 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 2 50W



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, rack mounting type etc

Optional Accessories:

Memory: 2G/4G/8G DDR3L RAM type, 4G/8G/16G/32G DDR4 RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc
