FNR-RS36 Series

Firewall Appliance Celeron/ Pentium/ 7-8th Gen I3 I5 I7, 6 x LAN

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance router pc. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


FNR-RS36 Series Intel® Celeron®/Pentium®/7-8th Gen Intel® Core™ i3/i5/i7 BGA Processor and Intel® SOC Chipset

FNR-RS36 Series Rich I/O: RST, 4 x USB3.0, COM, HDMI, 6 x LAN, DC-in

FNR-RS36 Series Dual SODIMMs for up to 32/64GB DDR4 Memory

FNR-RS36 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

FNR-RS36 Series Embedded Expansion: Mini PCIe for WiFi




Key Functions


FNR-RS36 Series Support diskless boot

FNR-RS36 Series Support Restore AC Power Loss

FNR-RS36 Series Support Wake on LAN





Specifications




Mechanical

Material Aluminum alloy
Colour Silver
Size 178 x 126 x 55mm
Weight 1.5Kgs


Motherboard

CPU Intel® Celeron® Processor 3865U (2M Cache, 1.80 GHz)
Intel® Pentium® Gold Processor 4415U (2M Cache, 2.30 GHz)
Intel® Pentium® Gold Processor 4417U (2M Cache, 2.30 GHz)
Intel® Core™ i5-7200U Processor (3M Cache, up to 3.10 GHz)
Intel® Core™ i7-7500U Processor (4M Cache, up to 3.50 GHz )
Intel® Core™ i3-8130U Processor (4M Cache, up to 3.40 GHz)
Intel® Core™ i5-8250U Processor (6M Cache, up to 3.40 GHz)
Intel® Core™ i7-8550U Processor (8M Cache, up to 4.00 GHz)
Chipset Intel SOC
Network Card 6 x Intel I211 gigabit lan
Intel® AES New Instructions Yes
Memory 2 x SO-DIMM DDR4, up to 32/64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot


I/O Interfaces

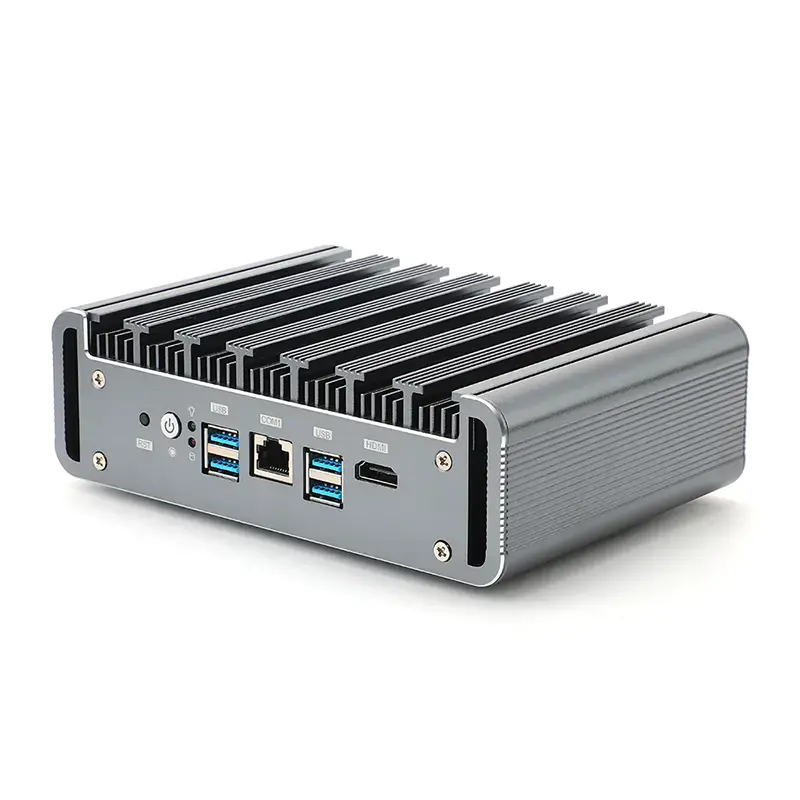

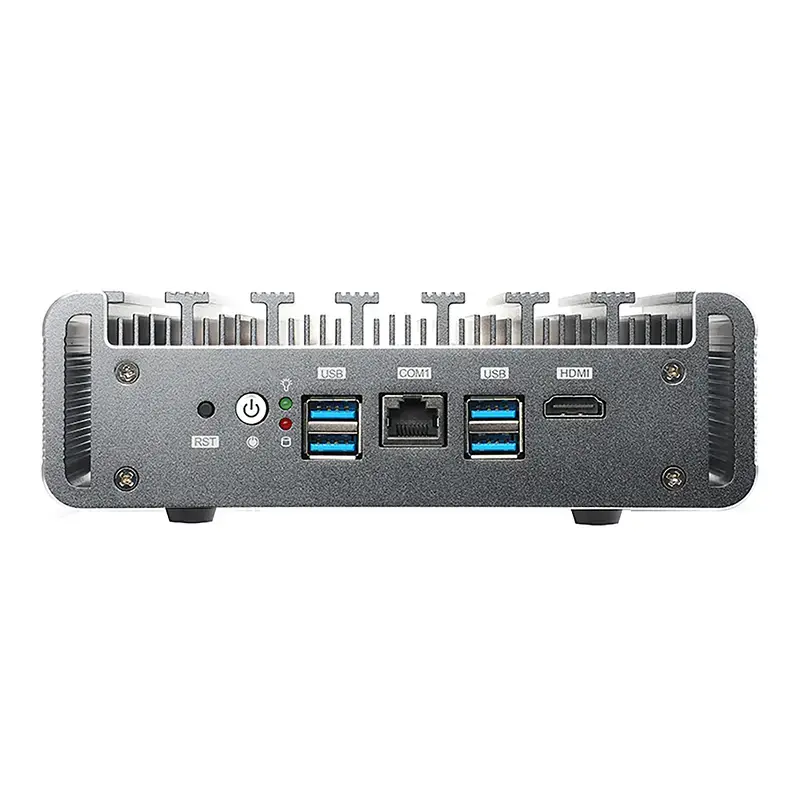

Front Panel 1 x RST
1 x Power button
2 x USB3.0
1 x Console RJ45 COM
2 x USB3.0
1 x HDMI

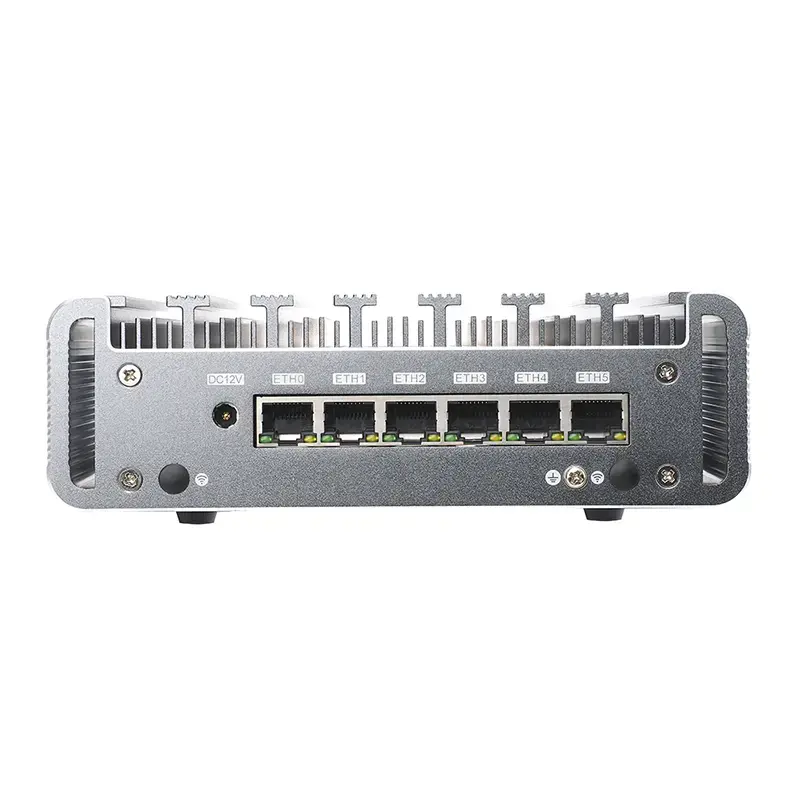

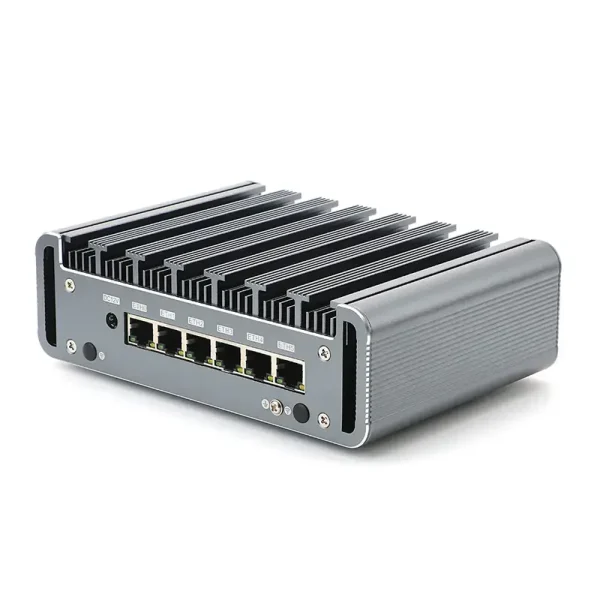

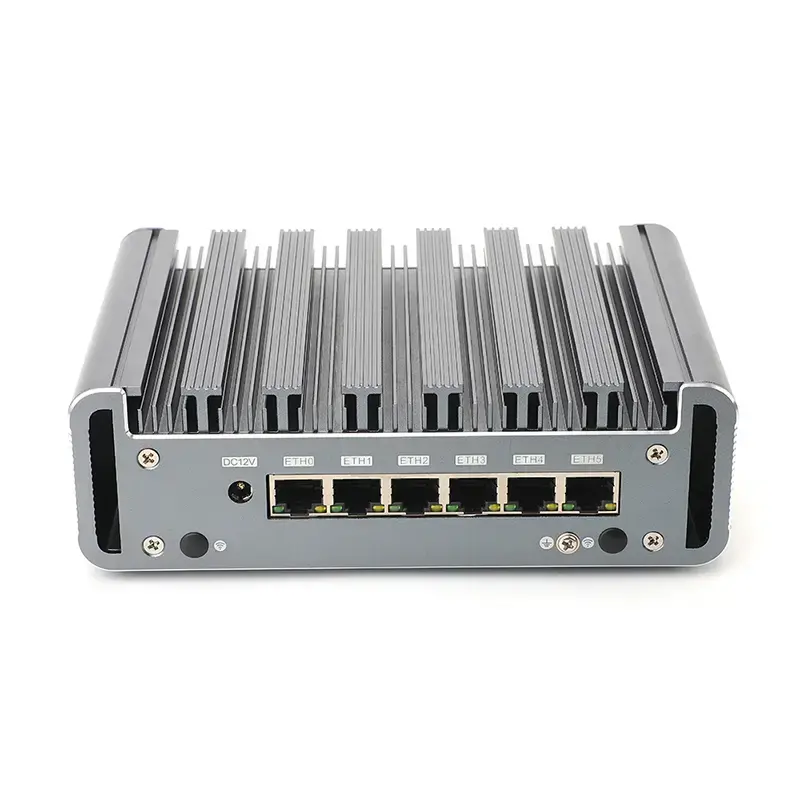

Rear Panel 1 x DC_in
6 x LAN


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 3A-5A/19V5A
Packing List RS36 firewall appliance, power supply, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification FNR-RS36 Series



* Ordering Information *




Model



Processor



Intel® AES New Instructions



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

RS36-3865U 3865U Yes Intel® HD Graphics 610 1.80 GHz 15 W HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 12V/3A
RS36-4415U 4415U Yes Intel® HD Graphics 610 2.30 GHz 15 W HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 12V/3A
RS36-4417U 4417U Yes Intel® HD Graphics 610 2.30 GHz 15 W HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 12V/3A
RS36-7200U I5 7200U Yes Intel® HD Graphics 620 2.50~3.10 GHz 15 W HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 12V/5A
RS36-8130U I3 8130U Yes Intel® UHD Graphics 620 2.20~3.40 GHz 15 W HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 12V/3A
RS36-8250U I5 8250U Yes Intel® UHD Graphics 620 1.60~3.40 GHz 15 W HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 12V/5A
RS36-7500U I7 7500U Yes Intel® HD Graphics 620 2.70~3.50 GHz 15 W HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 12V/5A
RS36- 8550U I7 8550U Yes Intel® UHD Graphics 620 1.80~4.00 GHz 15 W HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 19V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type etc

Optional Accessories:

Memory: 4G/8G/16G/32G/64GB DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A-5A/19V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc




FEATURED PRODUCTS

mini pc core i7 with intel quad core 8565u
mini pc intel i5 7260u
pfsense proxmox network appliance

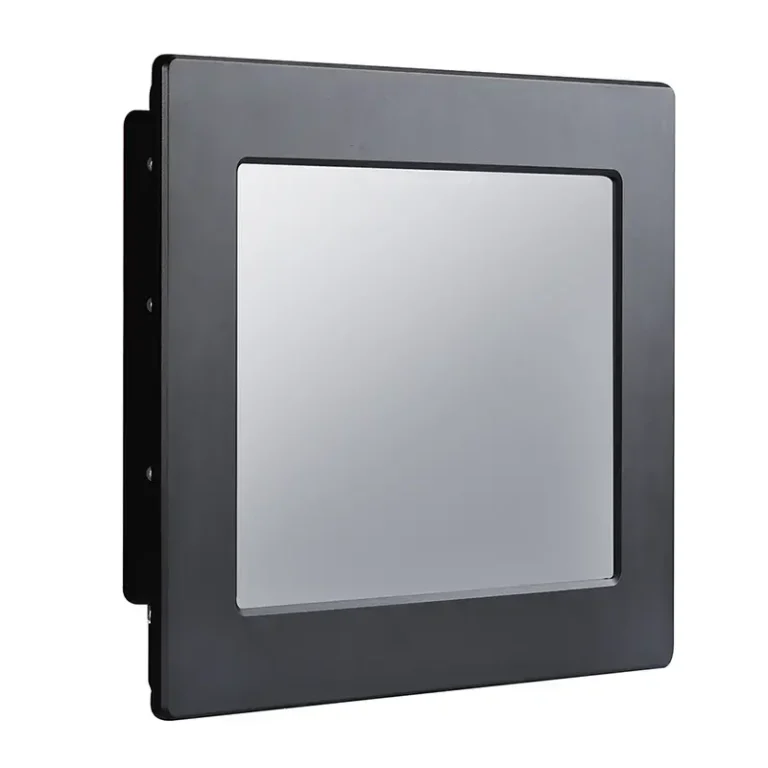

industrial touch screen pc with 10.1 inch
