FNR-RG02 Series

Firewall Appliance Router PC Intel 4405U/ 4415U, 6 x LAN, AES-NI

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance router pc. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


FNR-RG02 Series Intel® Pentium® BGA Processor and Intel® SOC Chipset

FNR-RG02 Series Rich I/O: Power button, RST, VGA, HDMI, 4 x USB3.0, Console, DC, 6 x LAN

FNR-RG02 Series Single SODIMM for up to 32GB DDR4 Memory

FNR-RG02 Series Rich Storage: mSATA SSD

FNR-RG02 Series Embedded Expansion: Mini PCIe




Key Functions


FNR-RG02 Series Support Restore AC Power Loss

FNR-RG02 Series Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 175 x 110 x 37mm
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting
vesa mount as the optional


Motherboard

CPU Intel® Pentium® Processor 4405U (2M Cache, 2.10 GHz)
Intel® Pentium® Gold Processor 4415U (2M Cache, 2.30 GHz)
Chipset Intel SOC
Network Card 6 x Intel I211/I210 gigabit lan
Intel® AES New Instructions Yes
Memory 1 x SO-DIMM DDR4, up to 32GB RAM
Storage 1 x mSATA


I/O Interfaces

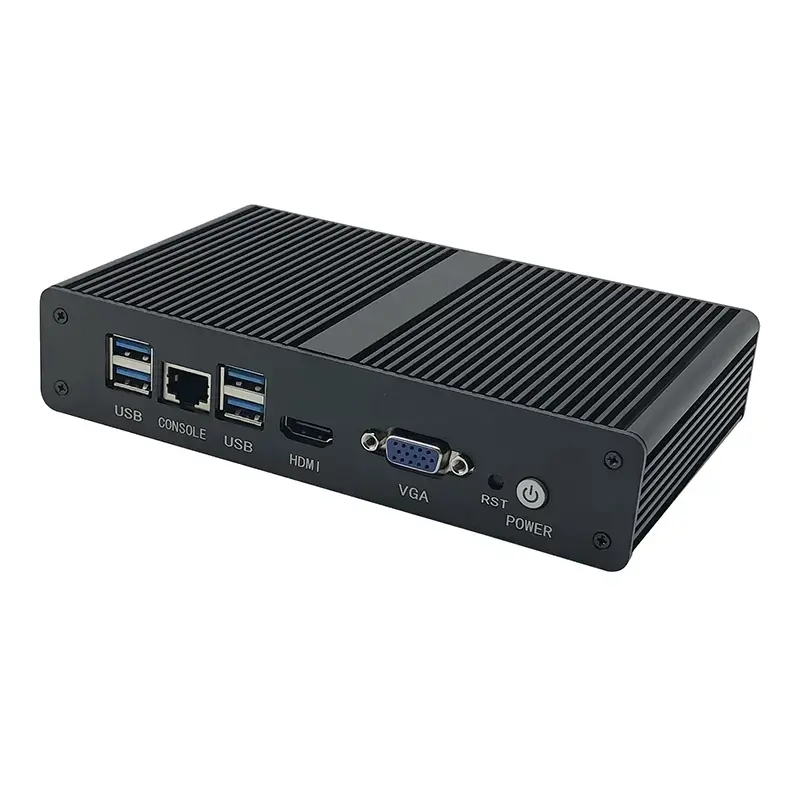

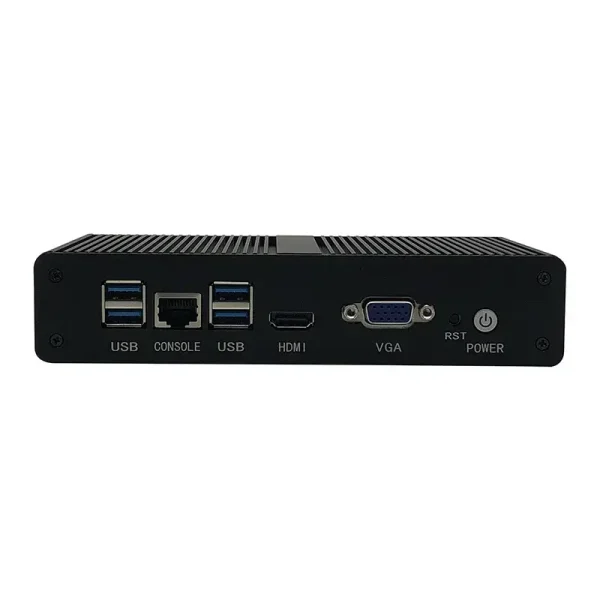

Front Panel 1 x Power button
1 x RST
1 x VGA
1 x HDMI
2 x USB3.0
1 x Console
2 x USB3.0

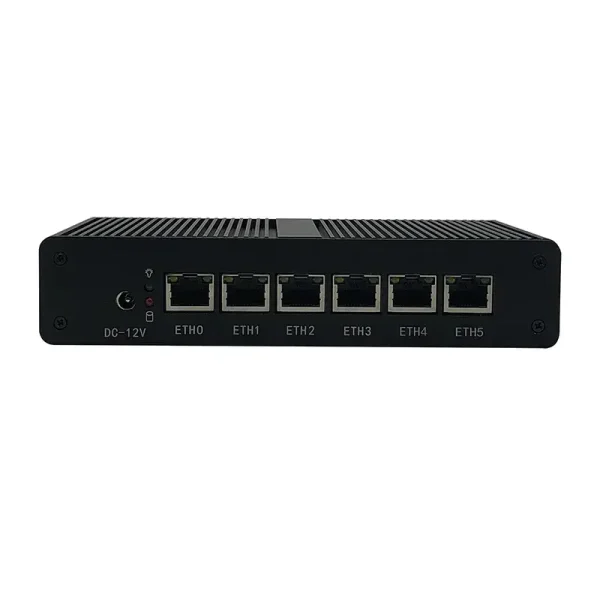

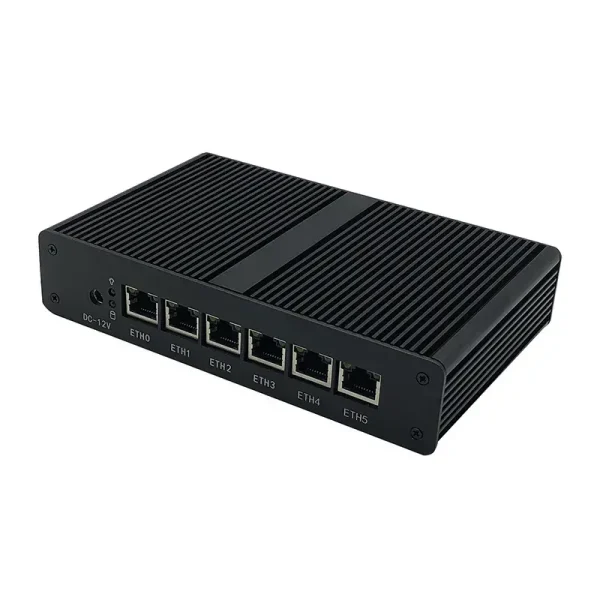

Rear Panel 1 x DC_in
6 x LAN


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 3A
Packing List RG02 firewall appliance, power supply, power cord, warranty card


Environment

Operating Temperature -10~60℃
Storage Temperature -20°C~70°C
Working Humidity 0% ~ 95% relative humidity, non-condensing
Certification FNR-RG02 Series





* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

RG02-4405U Pentium 4405U Intel® HD Graphics 510 2.10 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR4 1 x M-SATA 6 4 12V/3A
RG02-4415U Pentium Gold 4415U Intel® HD Graphics 610 2.30 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR4 1 x M-SATA 6 4 12V/3A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 4G/8G/16G/32 DDR4 RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

Optional 12V 3A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc
