FMC-BM05 Series

Fanless Mini PC with Intel 2955U 3205U, 4th Gen I3 4020Y/ I5 4200Y

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


FMC-BM05 Series Intel® Celeron® & Intel® Core™ i3/ i5 BGA Processor and Intel® SOC Chipset

FMC-BM05 Series Rich I/O: VGA, HDMI, 4*USB 3.0,2* USB 2.0, LAN, SPK, MIC

FMC-BM05 Series Single SODIMM for up to 8GB DDR3L Memory

FMC-BM05 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

FMC-BM05 Series Embedded Expansion: Mini PCIe for WiFi




Key Functions


FMC-BM05 Series Support diskless boot

FMC-BM05 Series Support Restore AC Power Loss

FMC-BM05 Series Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 170 x 120 x 36mm
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Celeron® Processor 2955U (2M Cache, 1.40 GHz)
Intel® Celeron® Processor 3205U/3215U/3755U/3556U/3558U (2M Cache, 1.50 GHz)
Intel® Core™ i3-4020Y Processor (3M Cache, 1.50 GHz)
Intel® Core™ i5-4200Y Processor (3M Cache, up to 1.90 GHz)
Chipset SOC
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE (half size) WiFi slot


I/O Interfaces

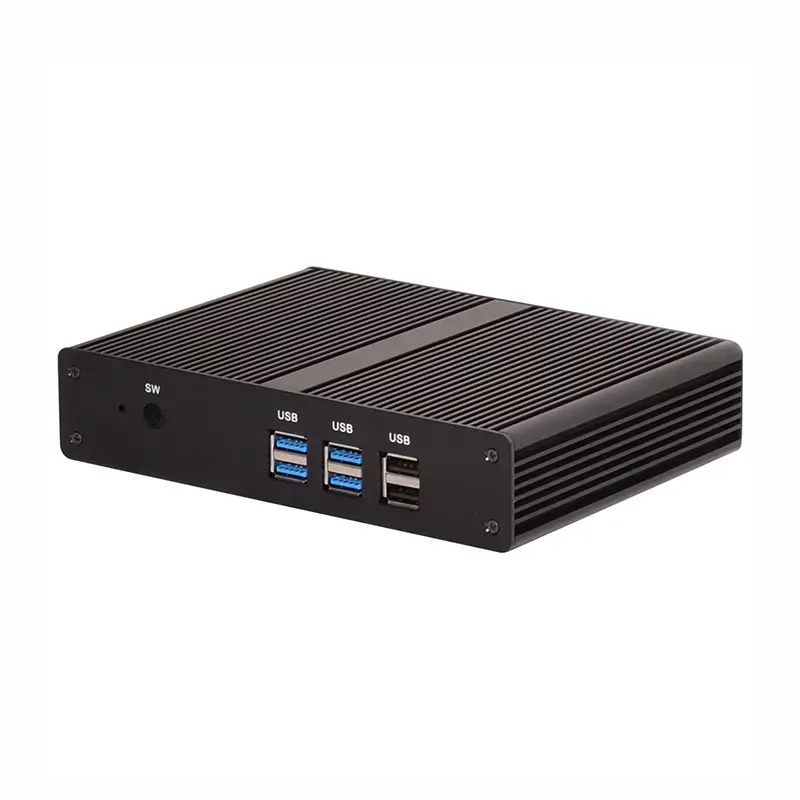

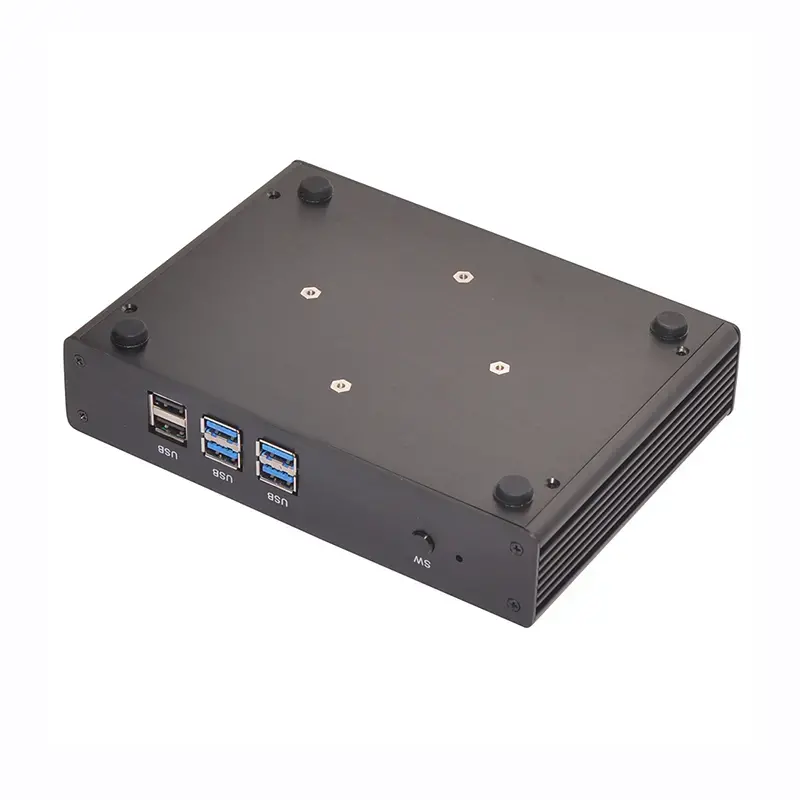

Front Panel 1 x Power button
4 x USB3.0
2 x USB2.0

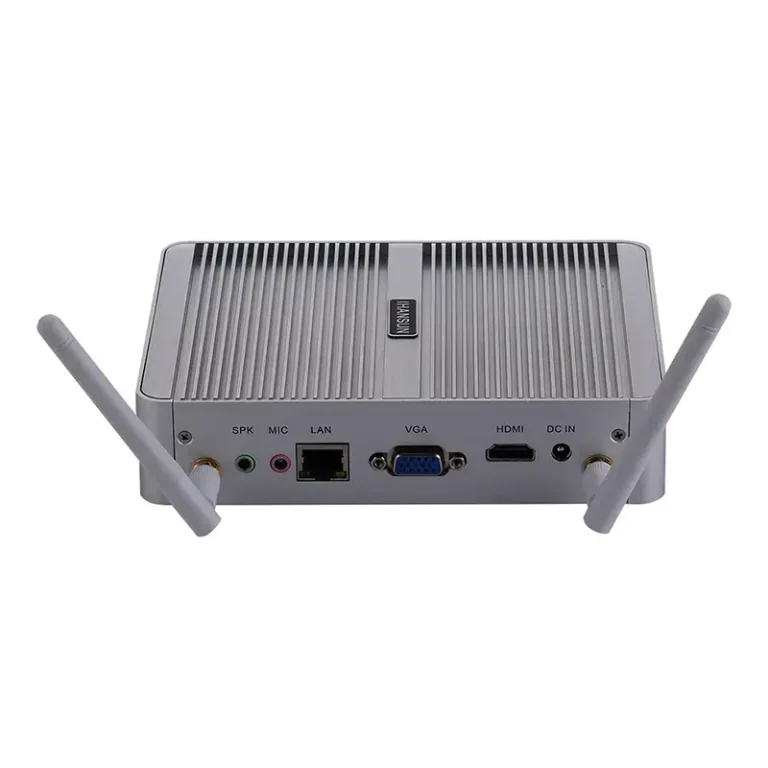

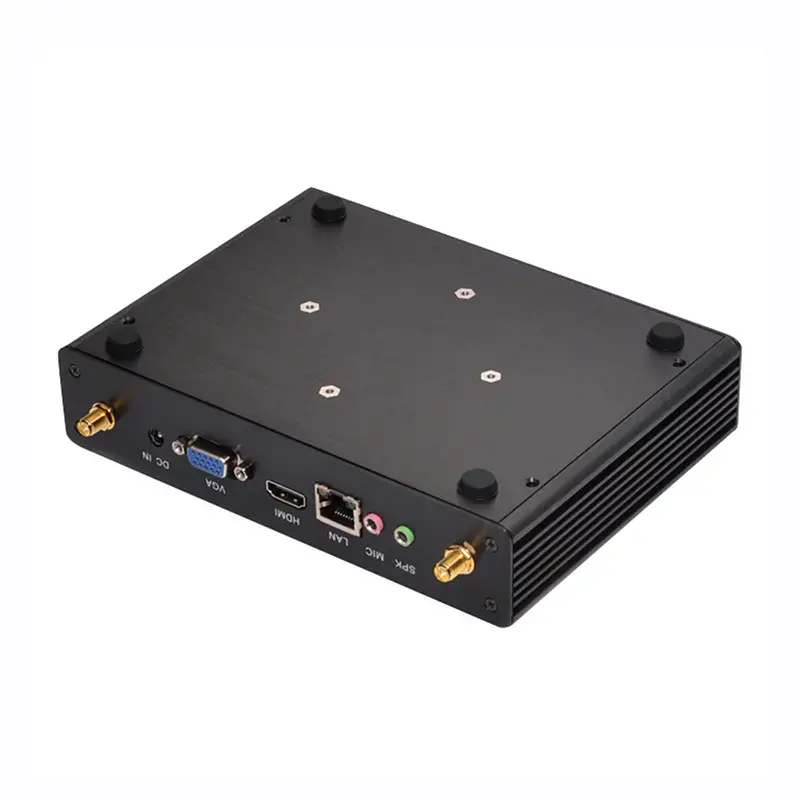

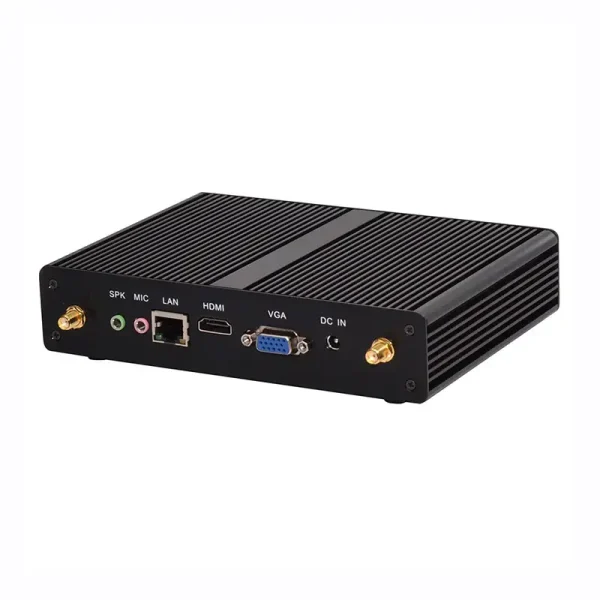

Rear Panel 1 x DC_in
1 x VGA
1 x HDMI
1 x Lan
1 x Audio
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V3A/5A
Packing List BM05 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification FMC-BM05 Series







* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM05-2955U 2955U Intel® HD Graphics 1.40 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 12V/3A
BM15-3205U 3205U Intel® HD Graphics 1.50 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 12V/3A
BM05-4020Y I3 4020Y Intel® HD Graphics 4200 1.50 GHz 11.5 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 12V/3A
BM05-4200Y I5 4200Y Intel® HD Graphics 4200 1.40~1.9 GHz 11.5 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 2G/4G/8G/ DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

500G/1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A/5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
