FNR-RM02 Series

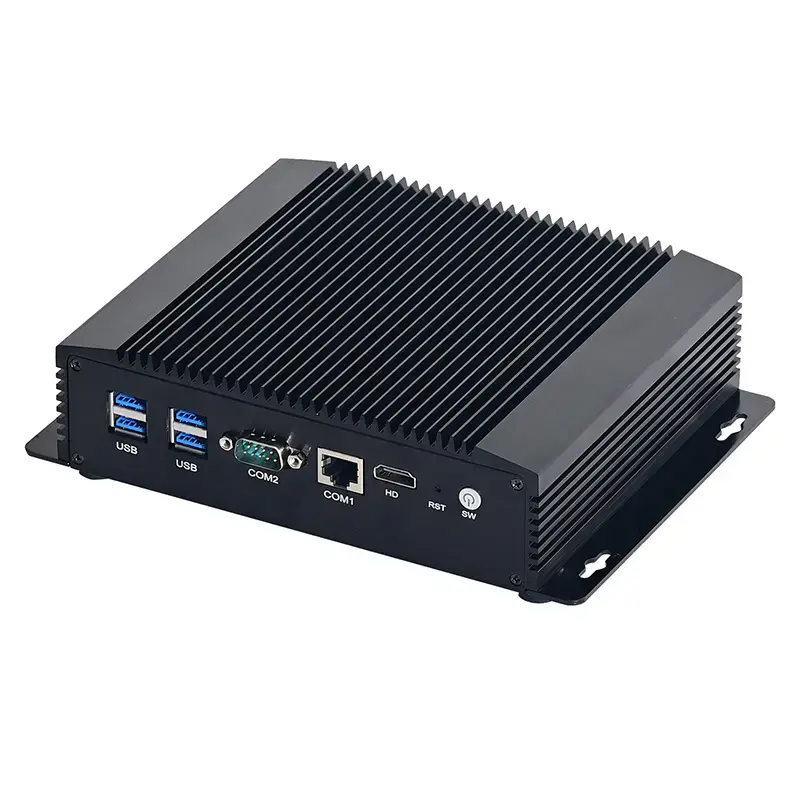

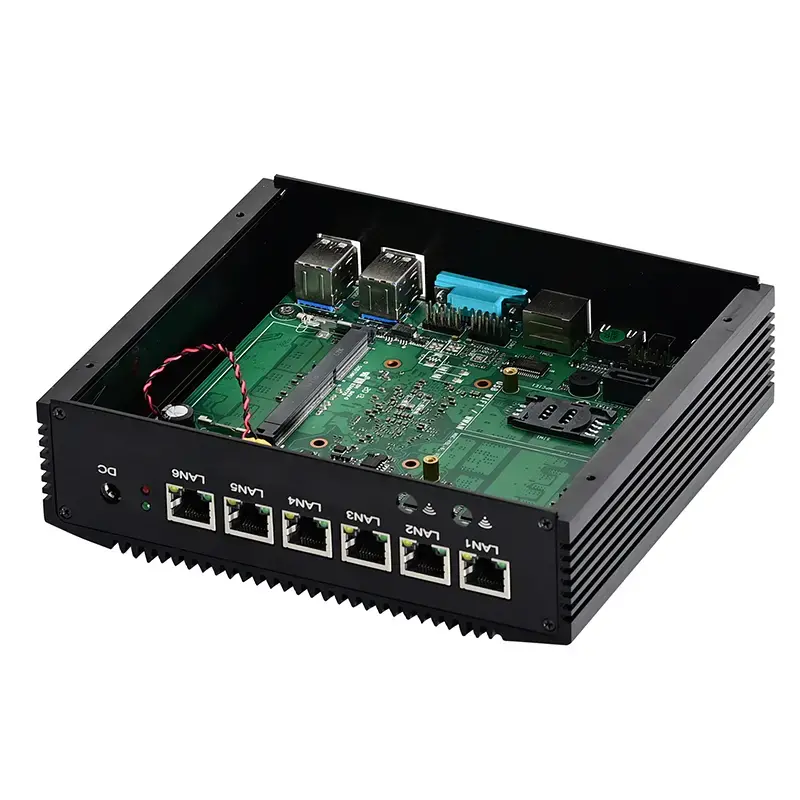

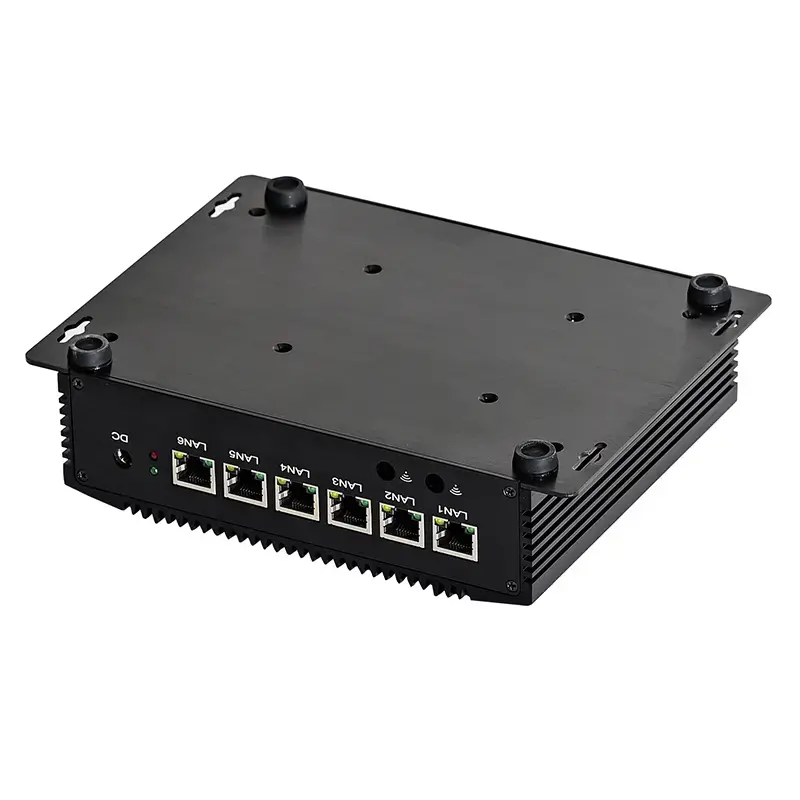

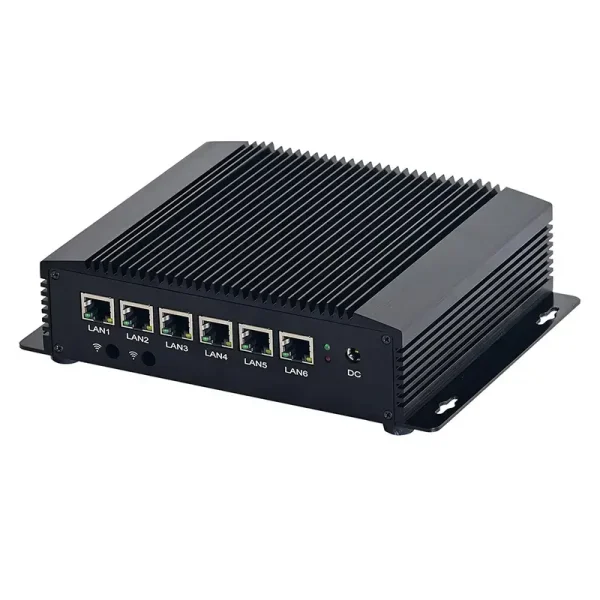

Firewall Appliance Router PC Intel Core I5 8265U, 6 x LAN, AES-NI

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance router pc. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


FNR-RM02 Series Intel® 8th Gen Intel® Core™ i5 BGA Processor and Intel® SOC Chipset

FNR-RM02 Series Rich I/O: HDMI, COM RS232, RJ45 RS232, 4 x USB3.0, 6 x LAN, DC-in

FNR-RM02 Series Single SODIMM for up to 32GB DDR4 Memory

FNR-RM02 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

FNR-RM02 Series Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot




Key Functions


FNR-RM02 Series Support diskless boot

FNR-RM02 Series Support Restore AC Power Loss

FNR-RM02 Series Support Wake on LAN





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 170 x 150 x 45mm
Weight 1.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop


Motherboard

CPU Intel® Core™ i5-8265U Processor (6M Cache, up to 3.90 GHz)
Chipset Intel SOC
Network Card 6 x Intel I211AT gigabit lan
Intel® AES New Instructions Yes
Memory 1 x SO-DIMM DDR4, up to 32GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot, 1 x SIM Slot


I/O Interfaces

Front Panel 1 x Power button
1 x RST
1 x HDMI
1 x Console RJ45 RS232
1 x COM
4 x USB3.0
Rear Panel 1 x DC_in
6 x LAN


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 5A
Packing List RM02 firewall appliance, power supply, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification FNR-RM02 Series





* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

RM02-8265U I5 8265U Intel® UHD Graphics 1.60~3.90 GHz 15 W HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 4 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, wall-mounted, embedded type etc

Optional Accessories:

Memory: 4G/8G/16G/32G DDR4 RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc

FEATURED PRODUCTS

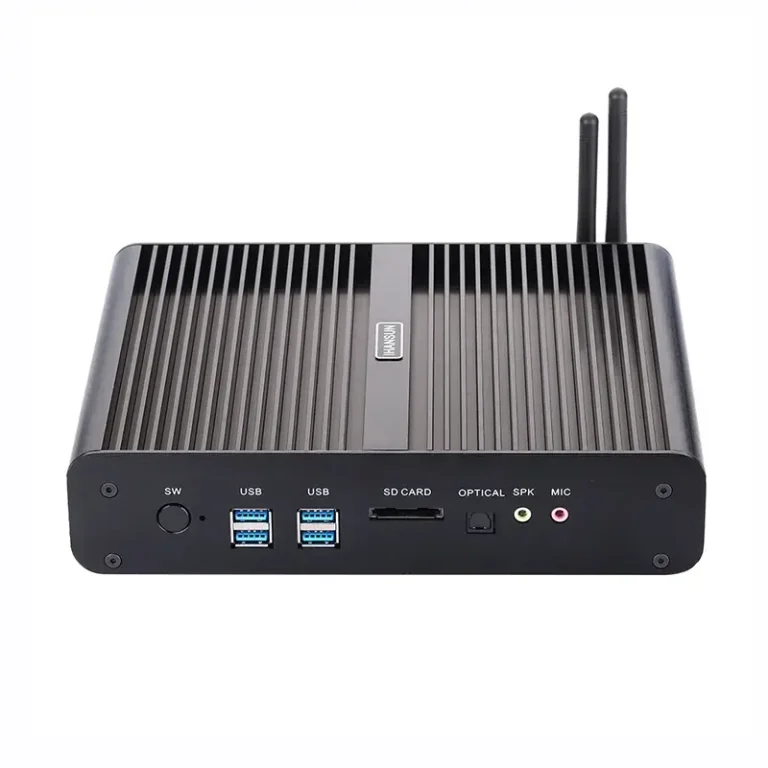

intel nuc 10 mini pc gen 10th
