IP65-PW20 Series

13.3 Inch All in One Touch Panel Industrial PC, Intel Celeron/ I5/ I7, IP65

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective 13.3 inch LCD industrial panel computer. It is available to choose the intel celeron or core processor. The compact embedded system can provide high-performance computing. High durability design, front panel protection grade IP65, aluminum die-casting and sheet metal shell, multiple optional touch screen, supports 2 to 4 serial ports, 4 USB ports and 1 gigabit ethernet port to meet various industrial applications.


Key Features


IP65-PW20 Series Industrial grade 13.3 inch TFT LCD Panel

IP65-PW20 Series Rich I/O: Power switch, 2-3 x COM, Audio, 2-3 x USB2.0, 1-2 x USB3.0, VGA, HDMI

IP65-PW20 Series Single SODIMM for up to 8GB DDR3L Memory

IP65-PW20 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

IP65-PW20 Series Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot onboard




Key Functions


IP65-PW20 Series Support diskless boot

IP65-PW20 Series Support automatic boot after power failure

IP65-PW20 Series Support wake on Lan

IP65-PW20 Series Support watchdog for 256-level

IP65-PW20 Series Support 4G network module with sim slot onboard





Specifications




Mechanical

Front Panel Protection IP65 standard
Material Aluminum alloy panel and aluminum die-cast back shell fully enclosed design
Colour Black
Opening Hole Size 326 x 232mm (L x W)
Size 334.2 x 229.85 x 52.5mm
Weight 3.4Kgs

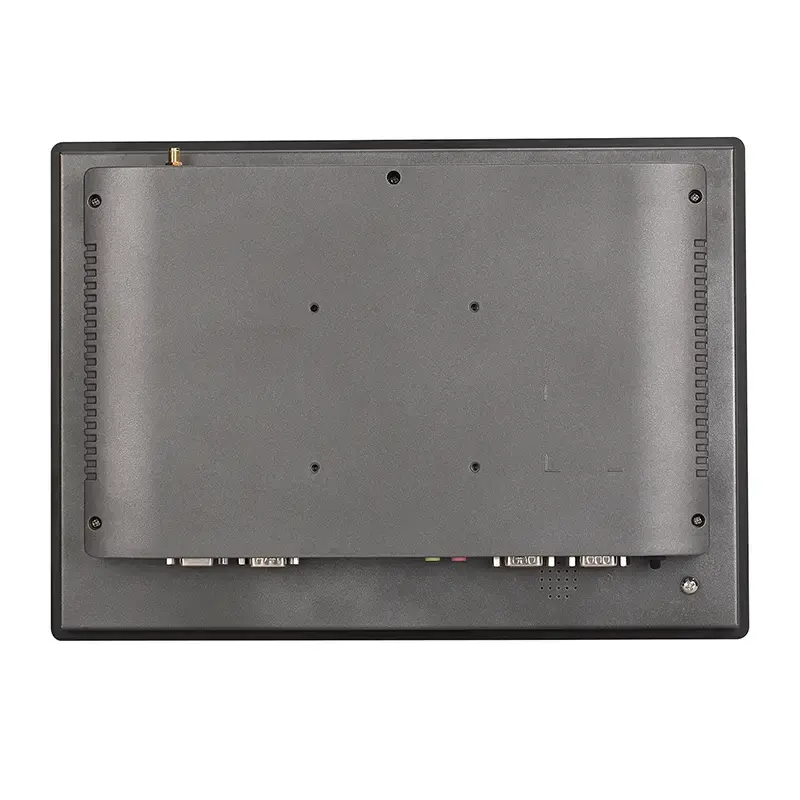

Installation Method Standard VESA screw hole (75 x 75 or 100 x 100mm) for flexible installation, vesa mount for optional
Embedded (recommended)/wall-mounted/desktop/cantilevered etc


LCD Display

Display Type Industrial grade 13.3 inch TFT LCD (LED backlight)
Resolution 1280 x 800
Perspective 70 (left), 70 (right), 45 (up), 55 (down)
Lumens (cd/m2) 330
Contrast 500
Backlight Life 10,000 hours (min.)


Touch Screen

Touch Type Imported 4 wires resistive touch screen
Transmittance 80±5% at 550 nm wavelength
Controller USB interface
Durability (Number of Touches) ≥5 million times


Motherboard

CPU Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)
Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz)
Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i7-3537U Processor (4M Cache, up to 3.10 GHz)
4th/6th Gen I5/I7 optional
Chipset Intel SOC
Watchdog Timer 255 levels
Network Card 1 x Realtek 8111E gigabit lan
WiFi and Bluetooth N/A, optional to add
Memory 1 x SO-DIMM DDR3L, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE for WiFi/4G, with sim slot


I/O Interfaces

J1800/J1900/3855U

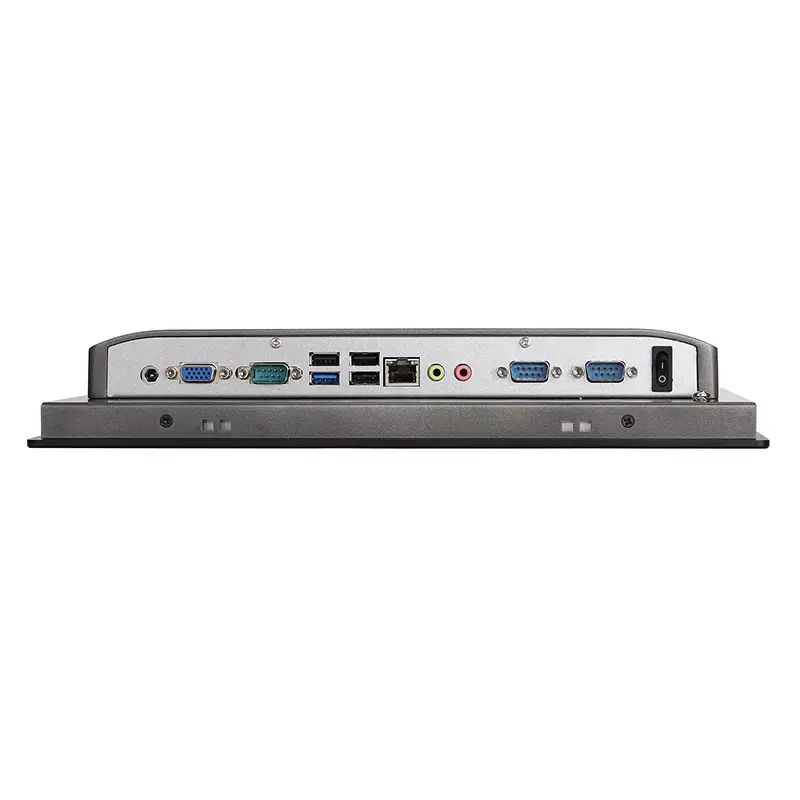

Rear Panel
1 x Power switch
3 x COM
1 x Audio
1 x Lan
3 x USB2.0
1 x USB3.0
1 x VGA
1 x DC_in
I3/I5/I7

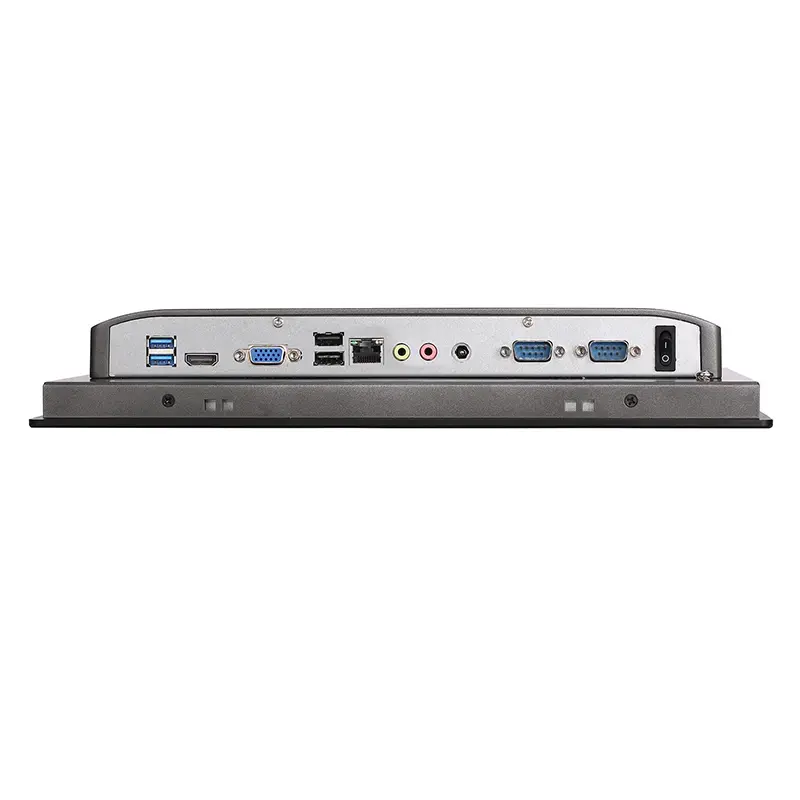

Rear Panel
1 x Power switch
2 x COM
1 x DC_in
1 x Audio
1 x Lan
4 x USB2.0
1 x VGA
1 x HDMI


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless/Smart fan
Power Supply DC100-240V AC/50-60Hz, DC 12V 4A-5A
Packing List PW20 industrial touch panel pc, power supply, power cord, embedded buckles, warranty card


Environment

Operating Temperature 0 ~ 50°C with SSD
0 ~ 40°C with HDD
Storage Temperature -20 ~ 60°C
Relative Humidity 10 ~ 95% @ 40°C (non-condensing)
Certification IP65-PW20 Series

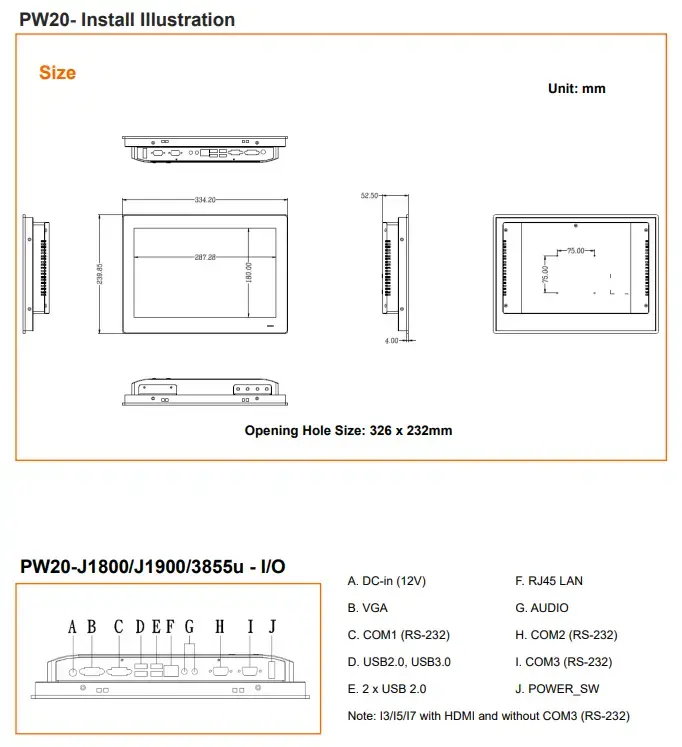

Panel PC PW20 Install



* Ordering Information *




Model



Processor



Cooling System



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



COM



Power

PW20-J1800 Celeron J1800 Fanless Intel® HD Graphics 2.58~2.41 GHz 10 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 3 12V/4A
PW20-J1900 Celeron J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz 10 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 3 12V/4A
PW20-3855U Celeron 3855U Smart fan Intel® HD Graphics 510 1.60 GHz 15 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 3 12V/4A
PW20-3317U I5 3317U Smart fan Intel® HD Graphics 4000 1.70~2.60 GHz 17 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 2 12V/5A
PW20-3537U I7 3537U Smart fan Intel® HD Graphics 4000 2.00~3.10 GHz 17 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 2 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as embedded (recommended)/wall-mounted/desktop/cantilevered etc

Optional Accessories:

Memory: 2G/4G/8G DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 4A/5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
