NFA-RS11 Series

1U Network Firewall Appliance Celeron/ Pentium/ I3/ I5/ I7, 6 LAN

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.


Key Features


NFA-RS11 Series Intel® Celeron®/Pentium®/ Gen 2-8th Core™ i3/i5/i7 BGA Processor and Intel® SOC Chipset

NFA-RS11 Series Console, 2 x USB2.0/3.0, 6 x LAN, VGA, Power switch, ATX power socket

NFA-RS11 Series Single/Dual SODIMMs

NFA-RS11 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

NFA-RS11 Series Chassis Form: Standard 1U Cabinet Type




Key Functions


NFA-RS11 Series The actual test traffic exceeds 1000m/s





Specifications




Mechanical

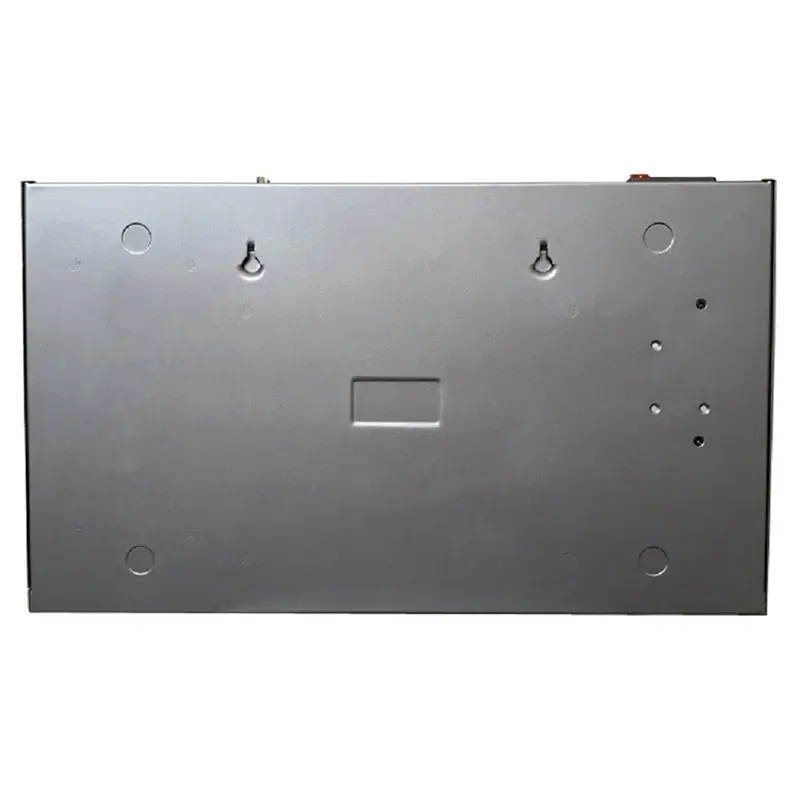

Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 430 x 250 x 50mm
Weight 6.5Kgs
Installation Method Desktop type/rack mounting

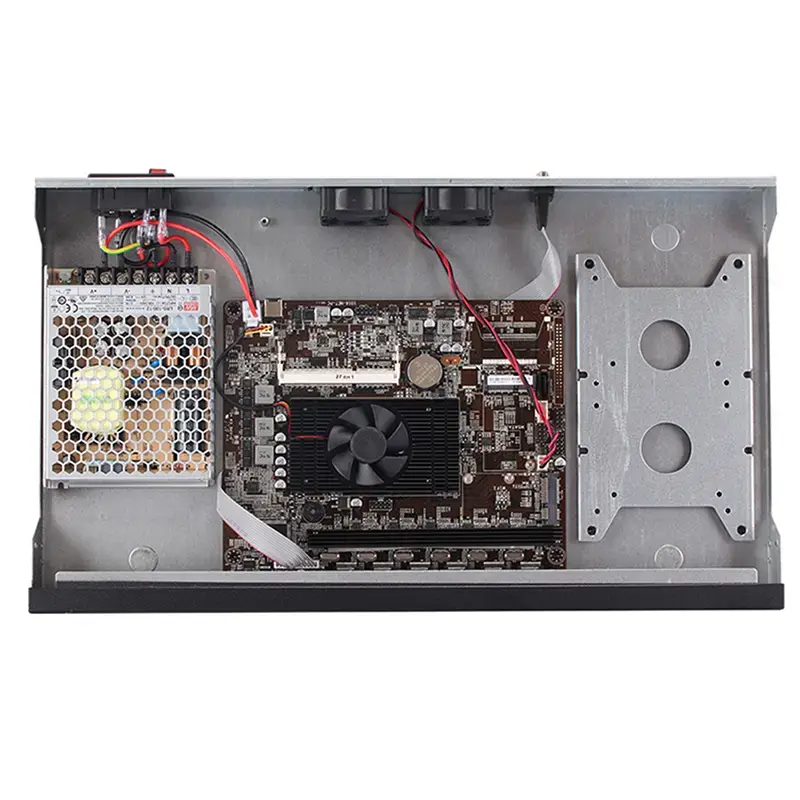

Motherboard

CPU Intel® Pentium® Processor 4405U (2M Cache, 2.10 GHz)
Intel® Pentium® Gold Processor 4415U (2M Cache, 2.30 GHz)
Intel® Pentium® Processor B950 (2M Cache, 2.10 GHz)
Intel® Core™ i3-2328M Processor (3M Cache, 2.20 GHz)
Intel® Core™ i3-2350M Processor (3M Cache, 2.30 GHz)
Intel® Core™ i3-3110M Processor (3M Cache, 2.40 GHz)
Intel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz)
Intel® Core™ i5-2430M Processor (3M Cache, up to 3.00 GHz)
Intel® Core™ i5-2520M Processor (3M Cache, up to 3.20 GHz)
Intel® Core™ i5-3320M Processor (3M Cache, up to 3.30 GHz)
Intel® Core™ i5-3340M Processor (3M Cache, up to 3.40 GHz)
Intel® Core™ i5-6200U Processor (3M Cache, up to 2.80 GHz)
Intel® Core™ i5-7200U Processor (3M Cache, up to 3.10 GHz)
Intel® Core™ i7-2620M Processor (4M Cache, up to 3.40 GHz)
Intel® Core™ i7-3520M Processor (4M Cache, up to 3.60 GHz)
Intel® Core™ i7-6500U Processor (4M Cache, up to 3.10 GHz)
Intel® Core™ i7-7500U Processor (4M Cache, up to 3.50 GHz )
Intel® Core™ i7-8550U Processor (8M Cache, up to 4.00 GHz)
Chipset Intel SOC
Network Card 6 x Intel 82583V/82574L/I-211 gigabit lan
Intel® AES New Instructions According to CPU
Memory 1 x SO-DIMM DDR3, up to 8GB RAM
1 x SO-DIMM DDR3L, up to 8GB RAM
2 x SO-DIMM DDR4, up to 64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA


I/O Interfaces

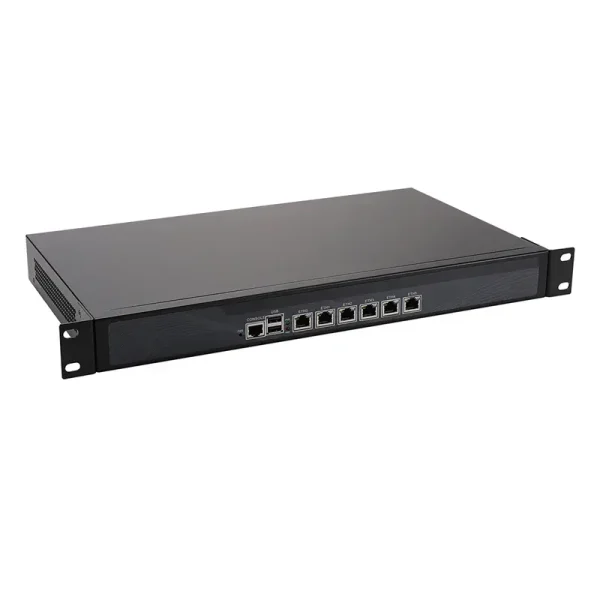

Front Panel 1 x Console
2 x USB2.0/3.0
6 x LAN

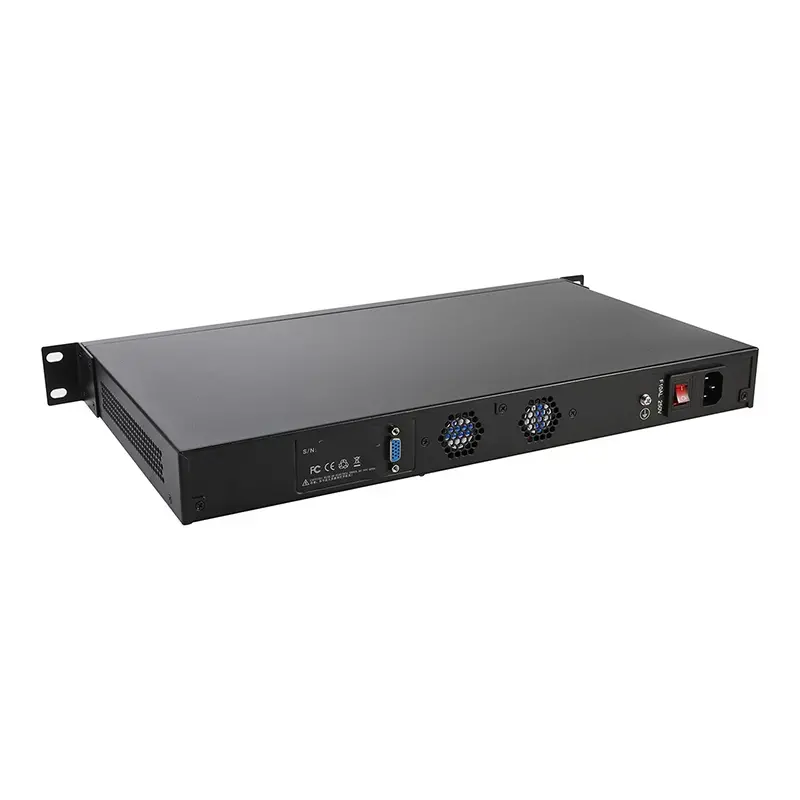

Rear Panel 1 x VGA
1 x Power switch
1 x ATX power socket


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Smart fan
Power Supply 50W 12V 4.2A, 110-240V 50/60Hz
100W 100V-240V 50Hz/60Hz
Packing List RS11 firewall appliance, rack ears, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NFA-RS11 Series





* Ordering Information *




Model



Processor



Intel® AES New Instructions



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

RS11-4405U  4405U Yes Intel® HD Graphics 510 2.10 GHz 15 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 6 2 50W
RS11-4415U 4415U Yes Intel® HD Graphics 610 2.30 GHz 15 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 6 2 50W
RS11-B950 B950 No Intel® HD Graphics 2.10 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 100W
RS11-2328M I3 2328M No Intel® HD Graphics 3000 2.20 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 100W
RS11-2350M I3 2350M No Intel® HD Graphics 3000 2.30 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 100W
RS11-3110M I3 3110M/3120M No Intel® HD Graphics 4000 2.40 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 6 2 100W
RS11-7100U I3 7100U Yes Intel® HD Graphics 620 2.40 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 2 100W
RS11-2430M I5 2430M Yes Intel® HD Graphics 3000 2.40~3.00 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 100W
RS11-2520M I5 2520M Yes Intel® HD Graphics 3000 2.50~3.20 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 6 2 100W
RS11-3320M I5 3320M Yes Intel® HD Graphics 4000 2.60~3.30 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 6 2 100W
RS11-3340M I5 3340M Yes Intel® HD Graphics 4000 2.70~3.40 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 6 2 100W
RS11-6200U I5 6200U Yes Intel® HD Graphics 520 2.30~2.80 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 2 50W
RS11-7200U I5 7200U Yes Intel® HD Graphics 620 2.50~3.10 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 2 50W
RS11-2620M I7 2620M/2640M Yes Intel® HD Graphics 3000 2.70~3.40 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 100W
RS11-3520M I7 3520M Yes Intel® HD Graphics 4000 2.90~3.60 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 6 2 100W
RS11-6500U I7 6500U Yes Intel® HD Graphics 520 2.50~3.10 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 2 50W
RS11-7500U I7 7500U Yes Intel® HD Graphics 620 2.70~3.50 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 2 50W
RS11- 8550U I7 8550U Yes Intel® UHD Graphics 620 1.80~4.00 GHz 15 W VGA 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 6 2 50W



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, rack mounting type etc

Optional Accessories:

Memory: 2G/4G DDR3 RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc
