DFA-RS01 Series

Network Firewall Appliance, VPN Router Intel Atom D525, 4 x LAN

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.


Key Features


DFA-RS01 Series Intel® Atom® D525 BGA Processor and Intel® SOC Chipset

DFA-RS01 Series Rich I/O: RST, Console, 2 x USB2.0, 4 x LAN, VGA, Power switch, ATX power socket

DFA-RS01 Series Single SODIMM for up to 4GB DDR3 Memory

DFA-RS01 Series Rich Storage: mSATA SSD

DFA-RS01 Series Chassis Form: Standard 13-19 inch 1U




Key Functions


DFA-RS01 Series The actual test traffic exceeds 1000m/s

DFA-RS01 Series WAN-LAN Throughput: throughput through 1 gigabit nic from lan to wan forwarding speed is 200mbps to 250mbps





Specifications




Mechanical

Chassis Standard 13-19 inch 1u, full mold production, fine surface treatment, firm structure
Colour Black
Size 29 x 21 x 44cm
Weight 3.5Kgs
Installation Method Desktop type/rack mounting


Motherboard

CPU Intel Atom® Processor D525 (1M Cache, 1.80 GHz)
Chipset Intel SOC
Network Card 4 x Intel 82583V/82574L gigabit lan
Intel® AES New Instructions No
Memory 1 x SO-DIMM DDR3, up to 4GB RAM
Storage 1 x mSATA


I/O Interfaces

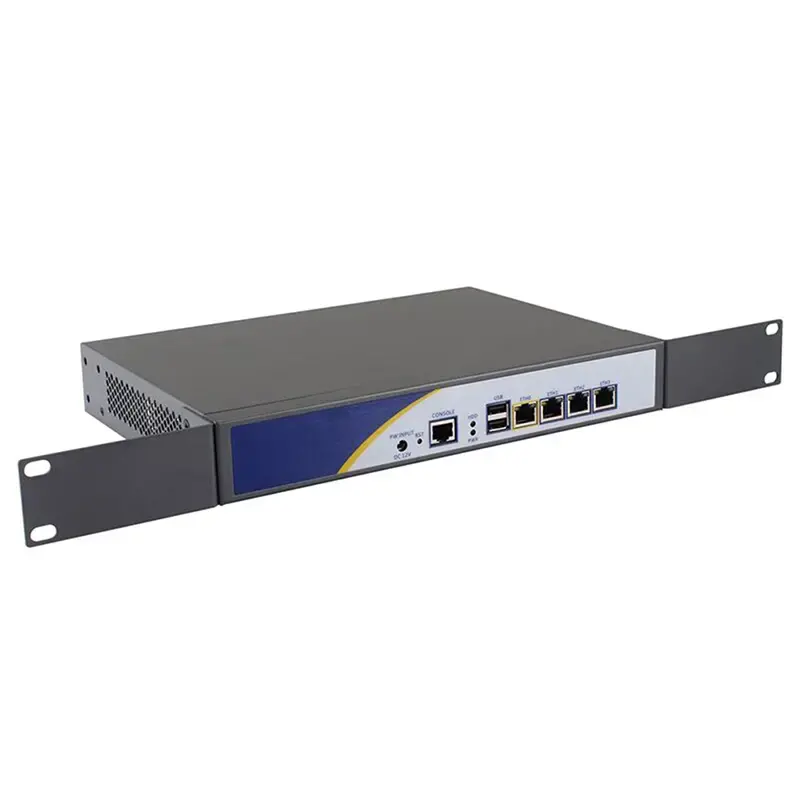

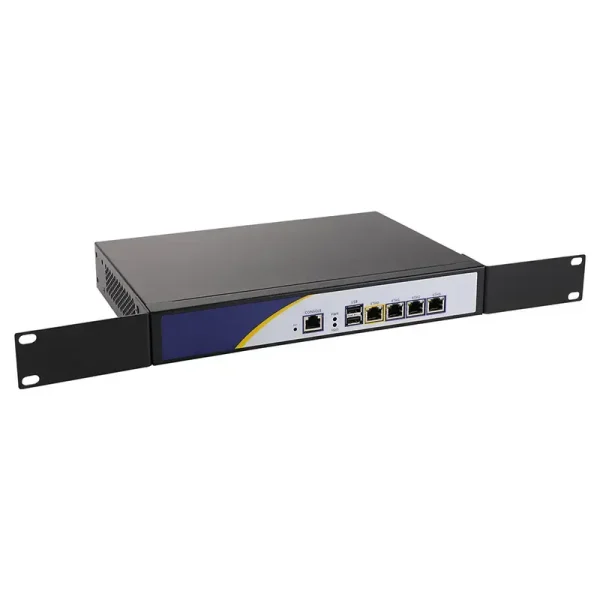

Front Panel 1 x RST
1 x Console
2 x USB2.0
4 x LAN

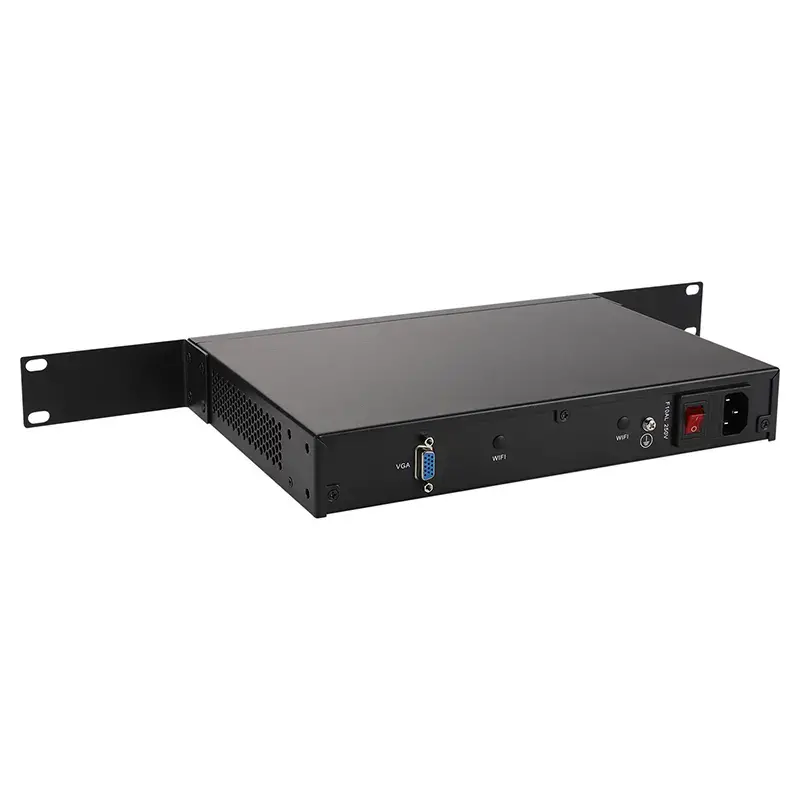

Rear Panel 1 x VGA
1 x Power switch
1 x ATX power socket


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Smart fan
Power Supply 50W 12V 4.2A, 110-240V 50/60Hz
Packing List RS01 firewall appliance, rack ears, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification DFA-RS01 Series





* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

RS01-D525 D525 Intel® GMA3150 1.80 GHz 13 W VGA 1 x SO-DIMM DDR3 1 x M-SATA 4 2 50W



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, rack mounting type etc

Optional Accessories:

Memory: 2G/4G DDR3 RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc
