NFA-RS09 Series

1U Network Firewall Appliance Intel B75, Pentium/ I3/ I5/ I7, 6 LAN

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.


Key Features


NFA-RS09 Series Intel® Pentium®/Core™ I3 I5 I7 BGA Processor and Intel® B75 Chipset with 1 set BYPASS

NFA-RS09 Series Rich I/O: Console, 2 x USB2.0, 6 x LAN, VGA, Power switch, ATX power socket

NFA-RS09 Series Dual SODIMMs DDR3, up to 16GB Memory

NFA-RS09 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

NFA-RS09 Series Chassis Form: Standard 1U Cabinet Type




Key Functions


NFA-RS09 Series The actual test traffic exceeds 1000m/s

NFA-RS09 Series G2020 WAN-LAN Throughput: through 1 gigabit nic from lan to wan forwarding speed is 800Mbps to 1Gbps
I3/I5/I7 WAN-LAN Throughput: through 1 gigabit nic from lan to wan forwarding speed is 1Gbps





Specifications




Mechanical

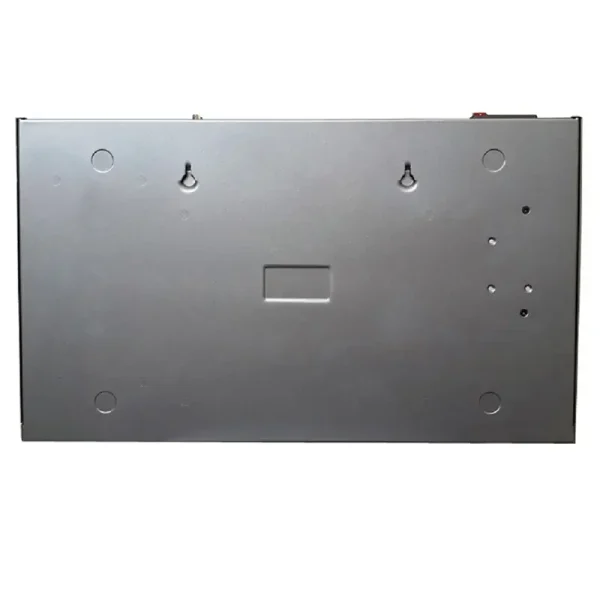

Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 430 x 270 x 50mm
Weight 6.5Kgs
Installation Method Desktop type/rack mounting

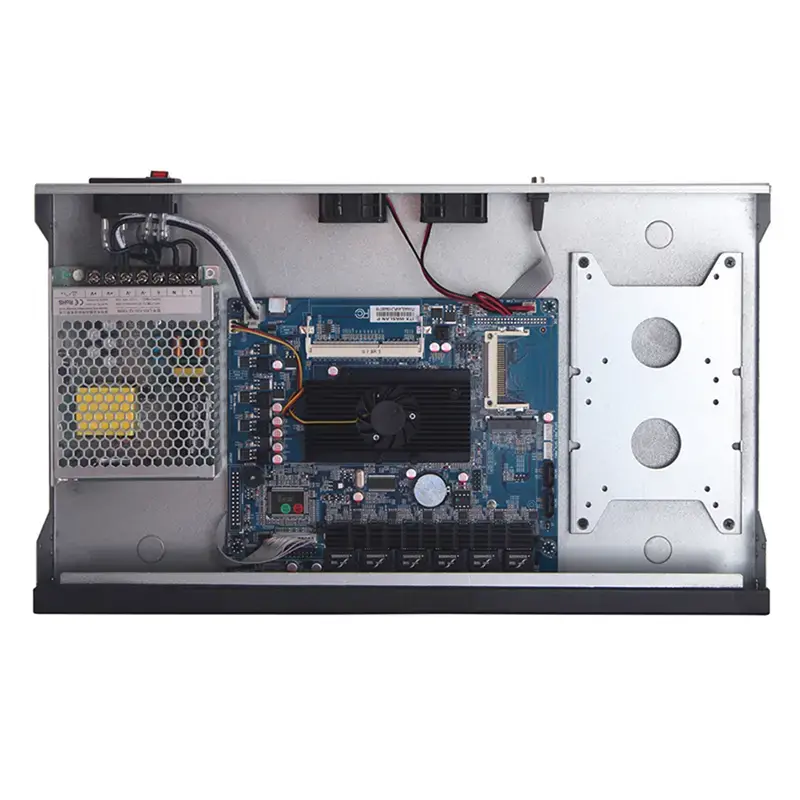

Motherboard

CPU Intel® Pentium® Processor G2020 or its similar replacement CPUs, ship any of them (3M Cache, 2.90 GHz)
Intel® Core™ i3-3220 Processor or its similar replacement CPUs, ship any of them (3M Cache, 3.30 GHz)
Intel® Core™ i5-3470 Processor or its similar replacement CPUs, ship any of them (6M Cache, up to 3.60 GHz)
Intel® Core™ i7-3770 Processor or its similar replacement CPUs, ship any of them (8M Cache, up to 3.90 GHz)
Chipset Intel B75 with 1 set Bypass
Network Card 6 x Intel 82574L gigabit lan
Intel® AES New Instructions According to CPU
Memory 2 x SO-DIMM DDR3 1333/1600, up to 16GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA


I/O Interfaces

Front Panel 1 x Console
2 x USB2.0/3.0
6 x LAN

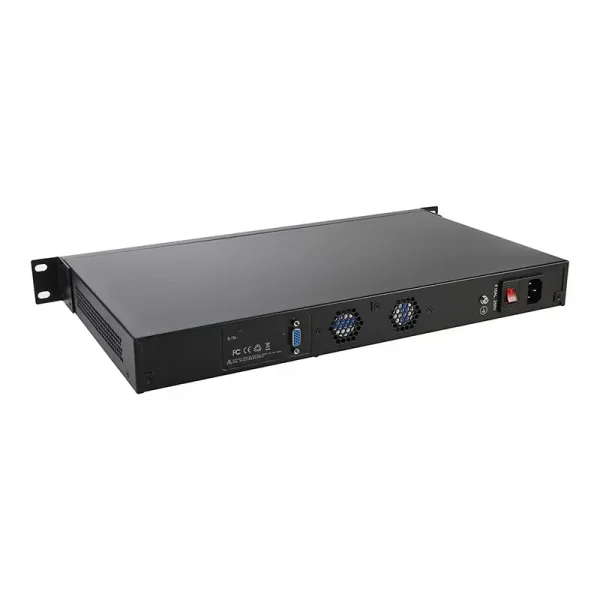

Rear Panel 1 x VGA
1 x Power switch
1 x ATX power socket


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Smart fan
Power Supply 150W 100-240V 50/60Hz
Packing List RS09 firewall appliance, rack ears, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NFA-RS09 Series





* Ordering Information *




Model



Processor



Intel® AES New Instructions



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

RS09-G2020 G2020 No Intel® HD Graphics 2.90 GHz 55 W VGA 2 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 150 W
RS09-3220 I3 3220 No Intel® HD Graphics 2500 3.30 GHz 55 W VGA 2 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 150 W
RS09-3470 I5 3470 Yes Intel® HD Graphics 2500 3.20~3.60 GHz 77 W VGA 2 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 150 W
RS09-3770 I7 3770 Yes Intel® HD Graphics 4000 3.40~3.90 GHz 77 W VGA 2 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 6 2 150 W



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, rack mounting type etc

Optional Accessories:

Memory: 2G/4G/8G/16G DDR3 RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc

FEATURED PRODUCTS

computer firewall with intel atom n2600

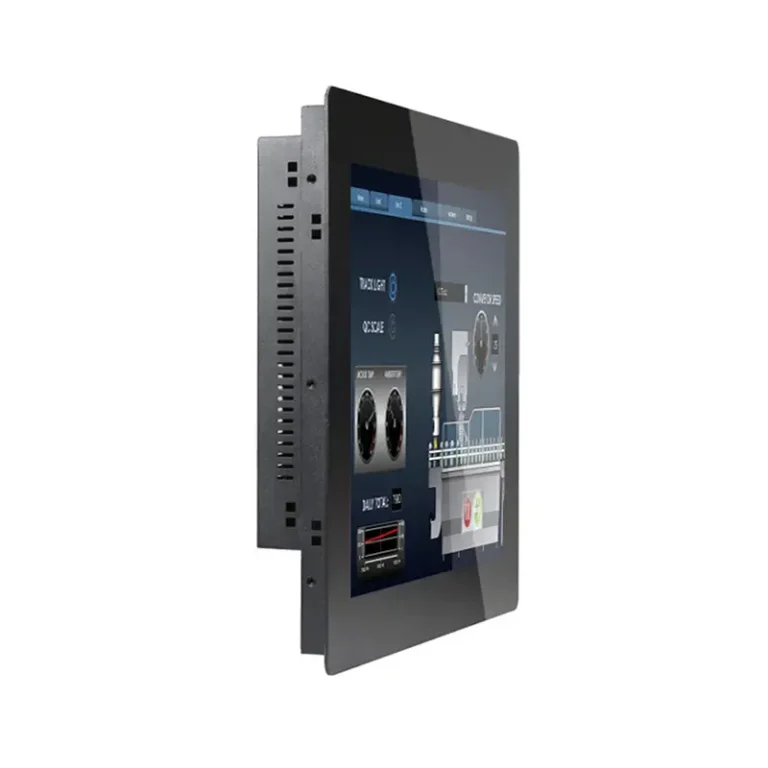

panel pc touch screen computer monitor with 12.1 inch
