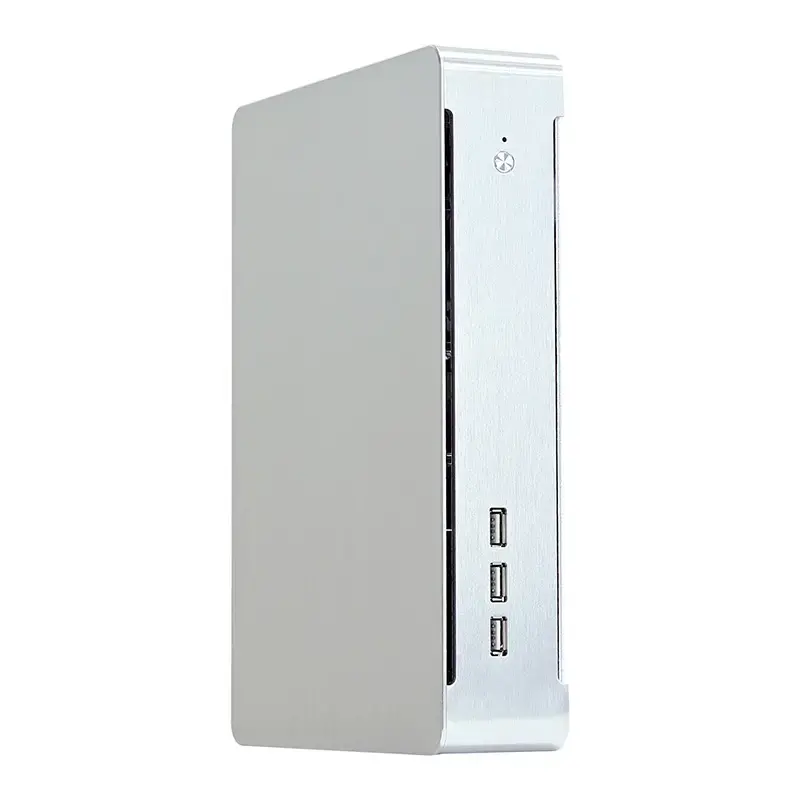

GMC-BM25 Series

Gaming Mini PC with 8th-9th Gen Intel Core I3 I5 I7, GeForce GTX 4G

For product pricing, customization, or other inquiries:

Share to:






Overview


Small body, big energy. It is the stronger and smoother performance gaming mini pc. Master the power of the core, multi-threaded processing and multi-tasking, easy to deal with office design, audio and video, online shopping, games, etc. 4K audio and video, cinema quality. With GeForce GTX 3G/4G graphics. Unlock high-effect picture quality and be on the scene. Picture quality and special effects field of view are indispensable. DDR5 video memory ensures that 1080P picture quality is not turned on. Multi-capture anti-aliasing is still smooth. Feel the immersive and stunning picture quality. Every game is a blockbuster movie.


Key Features


GMC-BM25 Series Intel® 8-9th Gen Intel® Core™ i3/i5/i7 BGA Processor and Intel® H310/HM370 Chipset

GMC-BM25 Series Rich I/O: DVI, DP, HDMI, DC, LAN, 2 x USB 3.0, 5 x USB 2.0, Spk, Mic

GMC-BM25 Series Dual SODIMM for up to 64GB DDR4 Memory

GMC-BM25 Series Rich Storage: M.2 2280 SATA/NVME SSD, 2.5 Inch SSD/HDD

GMC-BM25 Series Embedded Expansion: M.2 PCIe for WiFi




Key Functions


GMC-BM25 Series Support diskless boot

GMC-BM25 Series Support Restore AC Power Loss

GMC-BM25 Series Support 3-channel display out(DP, HDM and DVI) for simultaneous display or synchronous different display

GMC-BM25 Series Support up to 8K output, 4K DP1.4, HDMI2.0 and DVI-D





Specifications




Mechanical

Material Aluminum alloy
Colour Silver
Size 280 x 200 x 65mm
Weight 2.5Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Core™ i3-9100F Processor (6M Cache, up to 4.20 GHz)
Intel® Core™ i5-9400F Processor (9M Cache, up to 4.10 GHz)
Intel® Core™ i7-9700F Processor (12M Cache, up to 4.70 GHz)
Intel® Core™ i7-8750H Processor (9M Cache, up to 4.10 GHz)
Intel® Core™ i7-9750H Processor (12M Cache, up to 4.50 GHz)
Chipset H310/HM370
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x M.2 2280 (SATA/NVME)
Expand 1 x M.2 PCIE WiFi slot


I/O Interfaces

Front Panel 1 x Power button
3 x USB2.0
Rear Panel 1 x Audio
2 x USB2.0
1 x Lan
2 x USB3.0
1 x DC_in
1 x DP
1 x HDMI
1 x DVI
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 19V/9.5A
Packing List BM23 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification GMC-BM25 Series



* Ordering Information *




Model



Processor



Chipset



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM25-9100F I3 9100F H310 GeForce GTX 1650 4G 3.6~4.2 GHz 65 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 1 7 19V/9.5A
BM25-9400F I5 9400F H310 GeForce GTX 1650 4G 2.9~4.1 GHz 65 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 1 7 19V/9.5A
BM25-9700F I7 9700F H310 GeForce GTX 1650 4G 3.0~4.7 GHz 65 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 1 7 19V/9.5A
BM25-8750H I7 8750H HM370 GeForce GTX 1650 4G 2.3~4.1 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 1 7 19V/9.5A
BM25-9750H I7 9750H HM370 GeForce GTX 1650 4G 2.6~4.5 GHz 45 W DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x 2.5 inch/1 x M.2 2280 (SATA/NVME) 1 7 19V/9.5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 4G/8G/16G/32G/64G DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 19V 9.5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
