IEC-IM07 Series

Industrial PC 6-10th Gen I3 I5 I7, SIM 4G, 6 COM RS232 RS422 RS485

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective industrial mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving. Applicable to a wide range of industrial applications: 7 x 24 hours of stable work, strong computing power, and can better meet industrial needs. Not afraid of various harsh environments: dustproof, shockproof, good corrosion resistance, strong anti-interference, wide temperature design. Suitable for industrial automation, medical care, logistics and transportation, electronic education etc.


Key Features


IEC-IM07 Series Intel® Core™ Gen 6-10th I3 I5 I7 BGA Processor and Intel® SOC Chipset

IEC-IM07 Series Rich I/O: 4 x USB3.0, 4 x USB2.0, 2 x LAN, VGA, HDMI, 6 x COM, DC, SW, PS/2

IEC-IM07 Series Single SODIMM for up to 32GB DDR4 Memory

IEC-IM07 Series Rich Storage: mSATA SSD, M.2 2280 SATA/NVME, 2.5 Inch SSD/HDD

IEC-IM07 Series Embedded Expansion: PCIe for WiFi/4G, with SIM Slot




Key Functions


IEC-IM07 Series Support green ultra-low power consumption, 7 x 24 hours

IEC-IM07 Series Support  6 x COM, COM1 COM2 for RS232 RS422 RS485 soft switching under BIOS

IEC-IM07 Series Support watchdog for 256-level

IEC-IM07 Series Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume By Alarm, PxE Lan boot functions

IEC-IM07 Series Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 210 x 155 x 50mm
Weight 2.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop


Motherboard

CPU Intel® Core™ i3-6006U/6157U Processor (3M Cache, 2.00 GHz)
Intel® Core™ i5-7267U Processor (4M Cache, up to 3.50 GHz)
Intel® Core™ i5-8250U Processor (6M Cache, up to 3.40 GHz)
Intel® Core™ i7-6500U Processor (4M Cache, up to 3.10 GHz)
Intel® Core™ i7-8550U Processor (8M Cache, up to 4.00 GHz)
Intel® Core™ i7-10510U Processor (8M Cache, up to 4.90 GHz)
Chipset SOC
Network Card 2 x Intel I211 10/100/1000 gigabit ethernet nics
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR4, up to 32GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME)
Expand 2 x Mini PCIE slot (WiFi/4G), with sim slot onboard


I/O Interfaces

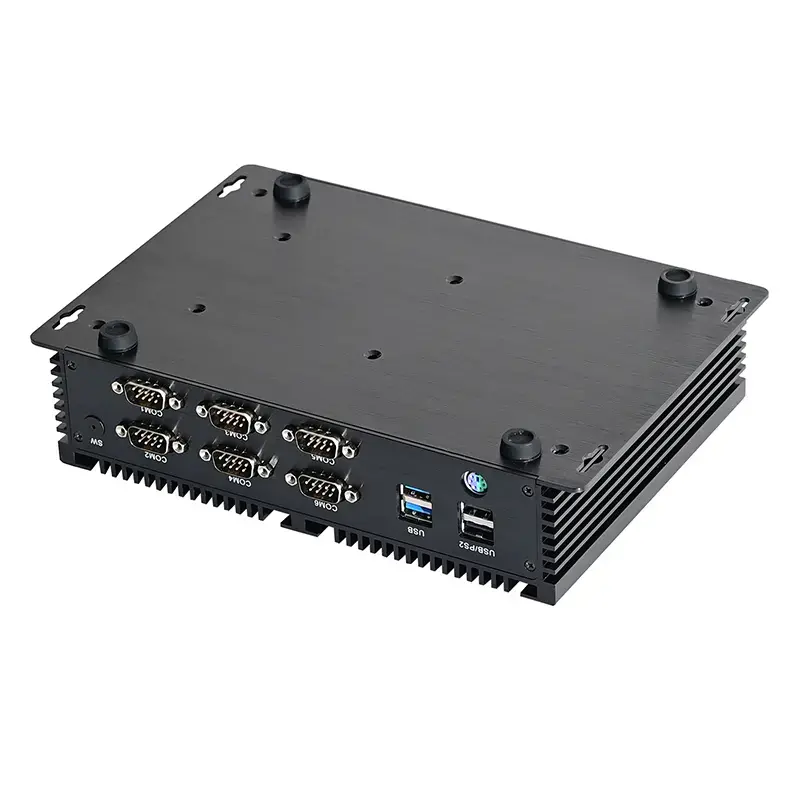

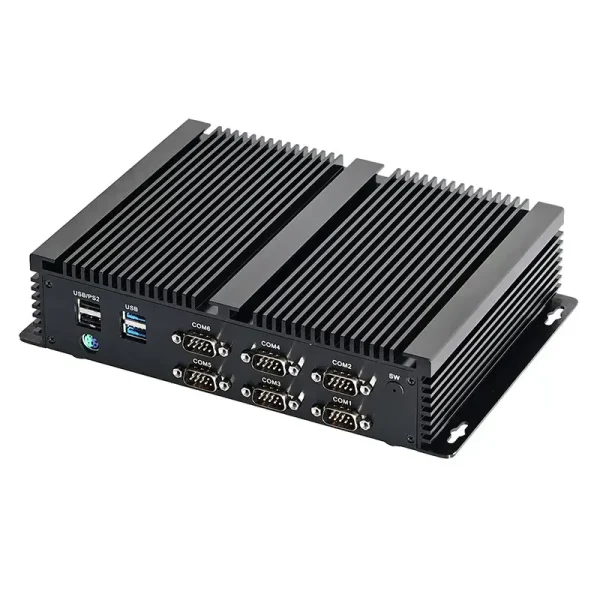

Front Panel 1 x Power button
6 x COM (COM1 COM2 for RS232 RS422 RS485)
2 x USB3.0
2 x USB2.0
1 x PS/2

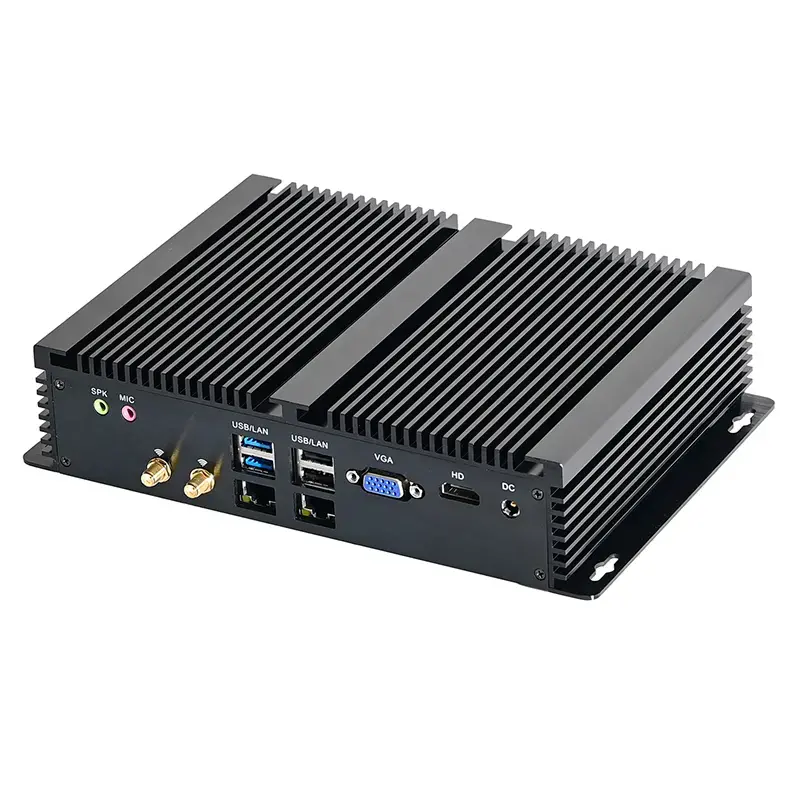

Rear Panel 1 x DC_in
1 x HDMI
1 x VGA
2 x USB2.0
2 x USB3.0
2 x Lan
1 x Audio
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A-5A/ 19V/5A
Packing List IM07 industrial pc, power supply, power cord, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification IEC-IM07 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



COM



Power

IM07-6006U I3 6006U/6157U Intel® HD Graphics 520 2.00 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 8 6 12V/3A
IM07-7267U I5 7267U Intel® Iris® Plus Graphics 650 3.10~3.50 GHz 28 W VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 8 6 12V/5A
IM07-6500U I7 6500U Intel® HD Graphics 520 2.50~3.10 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 8 6 12V/5A
IM07-8250U I5 8250U Intel® UHD Graphics 620 1.60~3.40 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 8 6 12V/5A
IM07-8550U I7 8550U Intel® UHD Graphics 620 1.80~4.00 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 8 6 12V/5A
IM07-10510U I7 10510U Intel® UHD Graphics 1.80~4.90 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 8 6 19V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, wall-mounted, embedded type etc

Optional Accessories:

Memory: 4G/8G/16G/32G DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A/5A-19V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
