IEC-IM05 Series

Industrial PC with 4th Gen Core I5 I7, 2 x LAN, 6 COM, GPIO, SIM 4G

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective industrial mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving. Applicable to a wide range of industrial applications: 7 x 24 hours of stable work, strong computing power, and can better meet industrial needs. Not afraid of various harsh environments: dustproof, shockproof, good corrosion resistance, strong anti-interference, wide temperature design. Suitable for industrial automation, medical care, logistics and transportation, electronic education etc.


Key Features


IEC-IM05 Series Intel® Core™ Gen 4th I5 4200U/I7 4500U BGA Processor and Intel® SOC Chipset

IEC-IM05 Series Rich I/O: 4 x USB3.0, 4 x USB2.0, 2 x LAN, VGA, HDMI, 8 BIT GPIO, 6 x COM, DC, SW

IEC-IM05 Series Single SODIMM for up to 8GB Memory

IEC-IM05 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

IEC-IM05 Series Embedded Expansion: PCIe for WiFi/4G, with SIM Slot




Key Functions


IEC-IM05 Series Support green ultra-low power consumption, 7 x 24 hours

IEC-IM05 Series Support  6 x COM, COM1 COM2 for RS232 RS422 RS485 soft switching under BIOS

IEC-IM05 Series Support 8-bit GPIO for industrial equipment needs

IEC-IM05 Series Support watchdog for 256-level

IEC-IM05 Series Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume By Alarm, PxE Lan boot functions

IEC-IM05 Series Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 230 x 175 x 50mm
Weight 2.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop

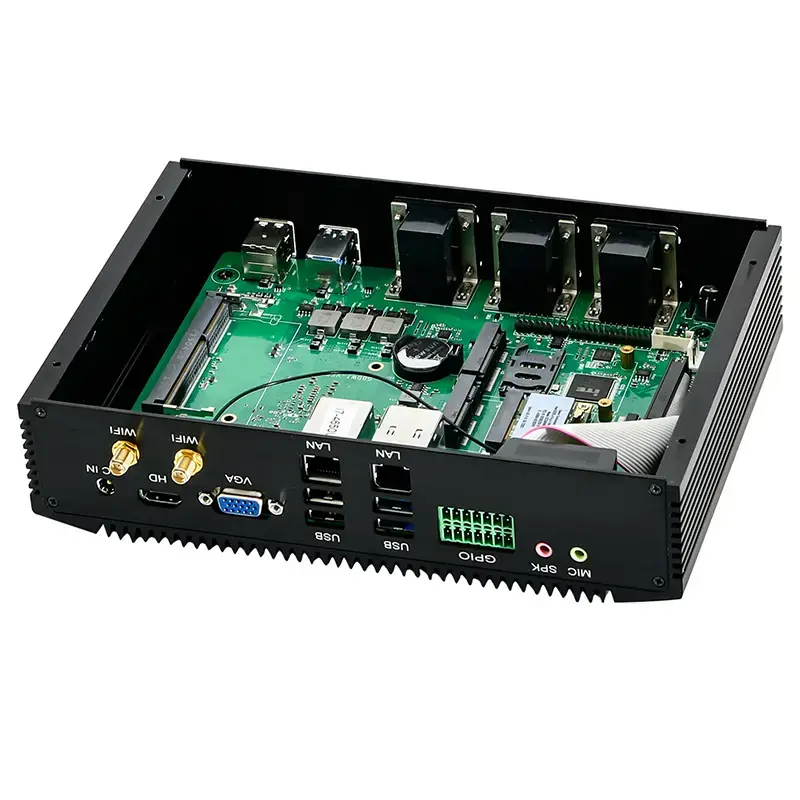

Motherboard

CPU Intel® Core™ i5-4200U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i7-I7 4500U Processor (4M Cache, up to 3.30 GHz)
Chipset SOC
Network Card 2 x Intel I211 10/100/1000 gigabit ethernet nics
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 2 x Mini PCIE slot (WiFi/4G), with sim slot onboard


I/O Interfaces

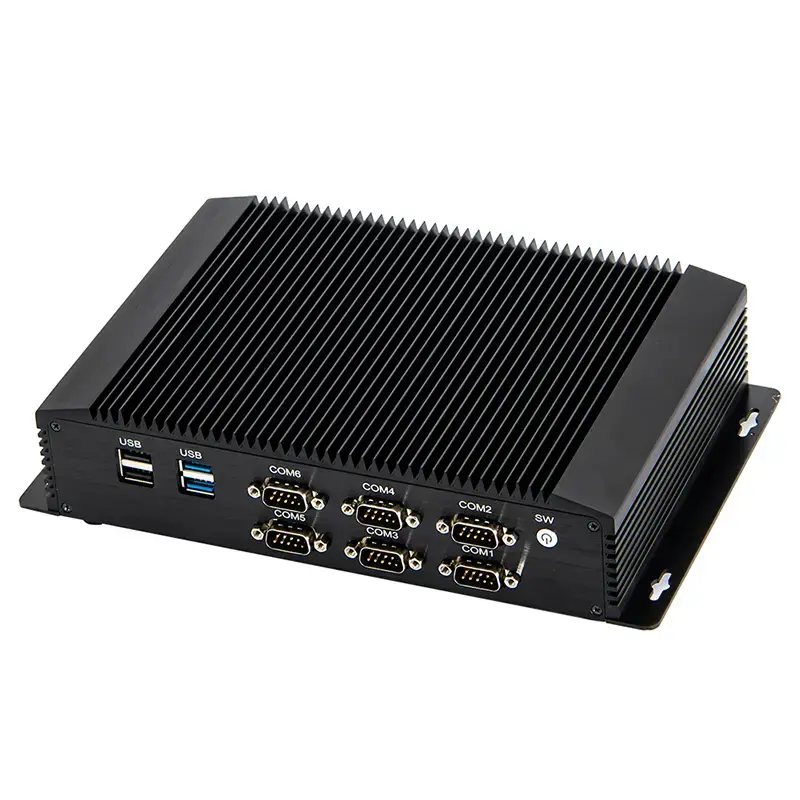

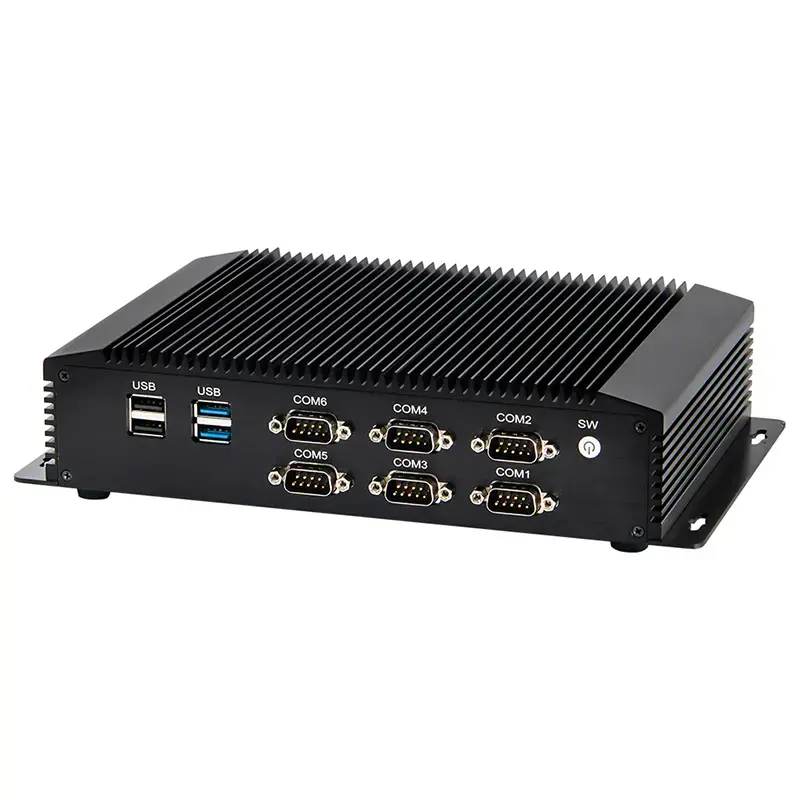

Front Panel 1 x Power button
6 x COM (COM1 COM2 for RS232 RS422 RS485)
2 x USB3.0
2 x USB2.0

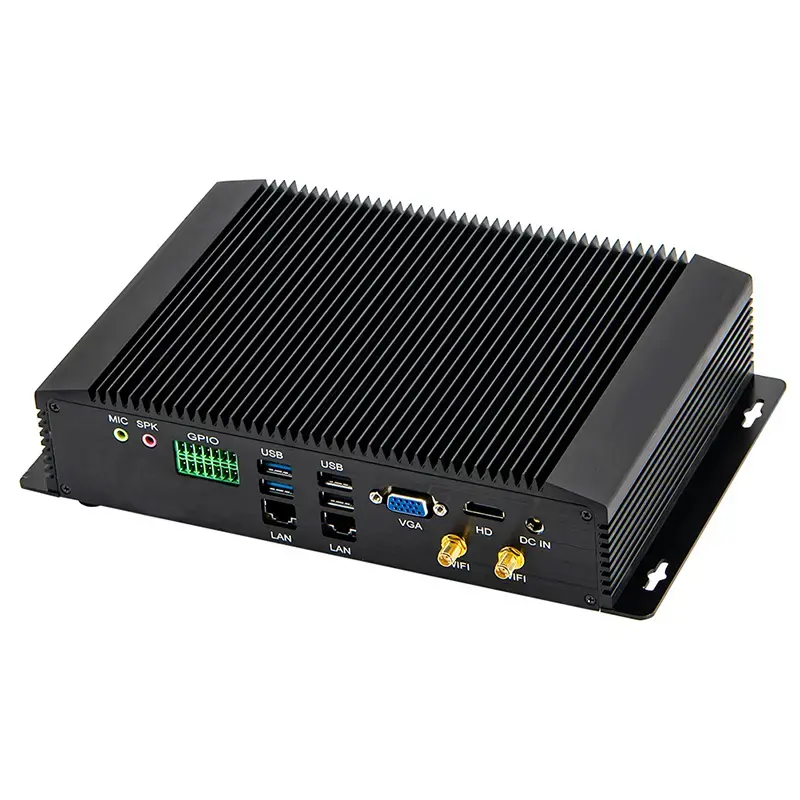

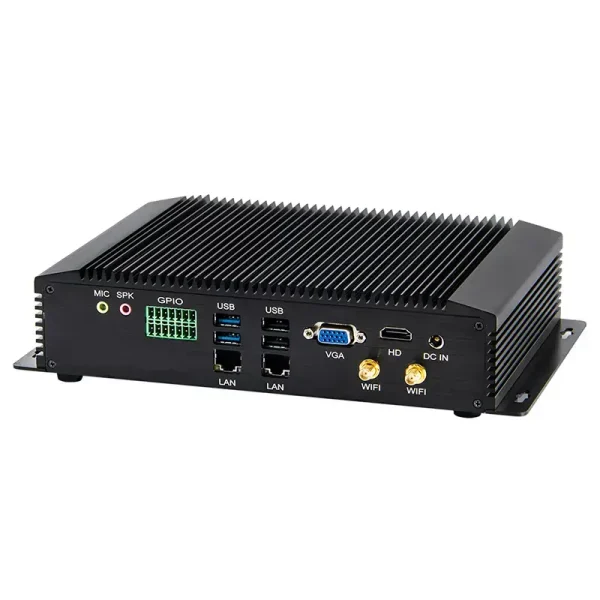

Rear Panel 1 x DC_in
1 x VGA
1 x HDMI
2 x USB3.0
2 x USB2.0
2 x Lan
1 x GPIO
1 x Audio
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V5A
Packing List IM05 industrial pc, power supply, power cord, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification IEC-IM05 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



COM



Power

IM05-4200U I5 4200U Intel® HD Graphics 4400 1.60~2.60 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 8 6 12V/5A
IM05-4500U I7 4500U Intel® HD Graphics 5000 1.7~3.3 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 8 6 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, wall-mounted, embedded type etc

Optional Accessories:

Memory: 2G/4G/8G DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
