NUC-BM27 Series

NUC Mini PC with 10th Gen Intel I5 1035G1/I7 1065G7, HDMI 2.0 4K

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the high-efficiency mini PC. Compact, space-saving, smart silent fan, low power consumption and energy saving. Processing video clips, rendering special effects, modeling and synthesis, etc. more efficient.


Key Features


NUC-BM27 Series Intel® 10th Gen Intel® Core™ i5/i7 BGA Processor and Intel® SOC Chipset

NUC-BM27 Series Rich I/O: 2 x HDMI, 2 x LAN, 4 x USB 3.0, 4 x USB2.0, Optical, SD Card Reader, Spk, Mic

NUC-BM27 Series Dual SODIMM for up to 64GB DDR4 Memory

NUC-BM27 Series Rich Storage: mSATA SSD, M.2 2280 NVME, 2.5 Inch SSD/HDD

NUC-BM27 Series Embedded Expansion: PCIe for WiFi/4G, with SIM Slot




Key Functions


NUC-BM27 Series Support diskless boot

NUC-BM27 Series Support Restore AC Power Loss

NUC-BM27 Series Support dual screen (2 x HDMI) for simultaneous display or synchronous different display, HDMI 2.0 4K 4096 x 2304@60Hz





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 210 x 170 x 45mm
Weight 2Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Core™ i5-1035G1/1035G4 Processor (6M Cache, up to 3.60 GHz)
Intel® Core™ i7-1065G7 Processor (8M Cache, up to 3.90 GHz)
Chipset SOC
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (NVME)
Expand 2 x PCIE slot (half size and full size), with SIM slot


I/O Interfaces

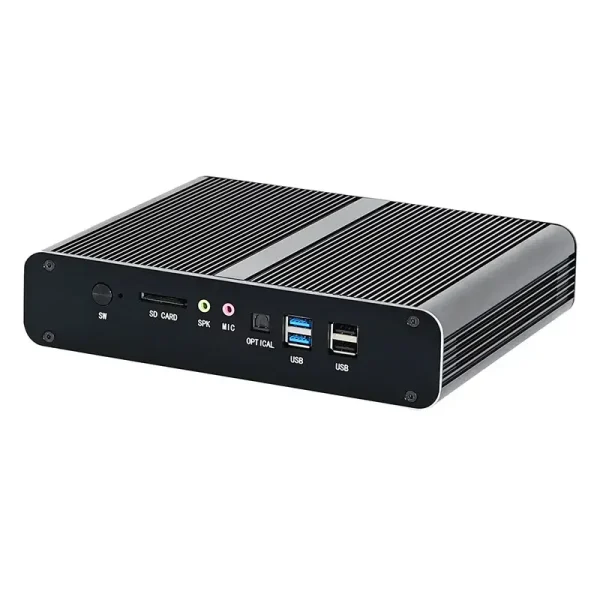

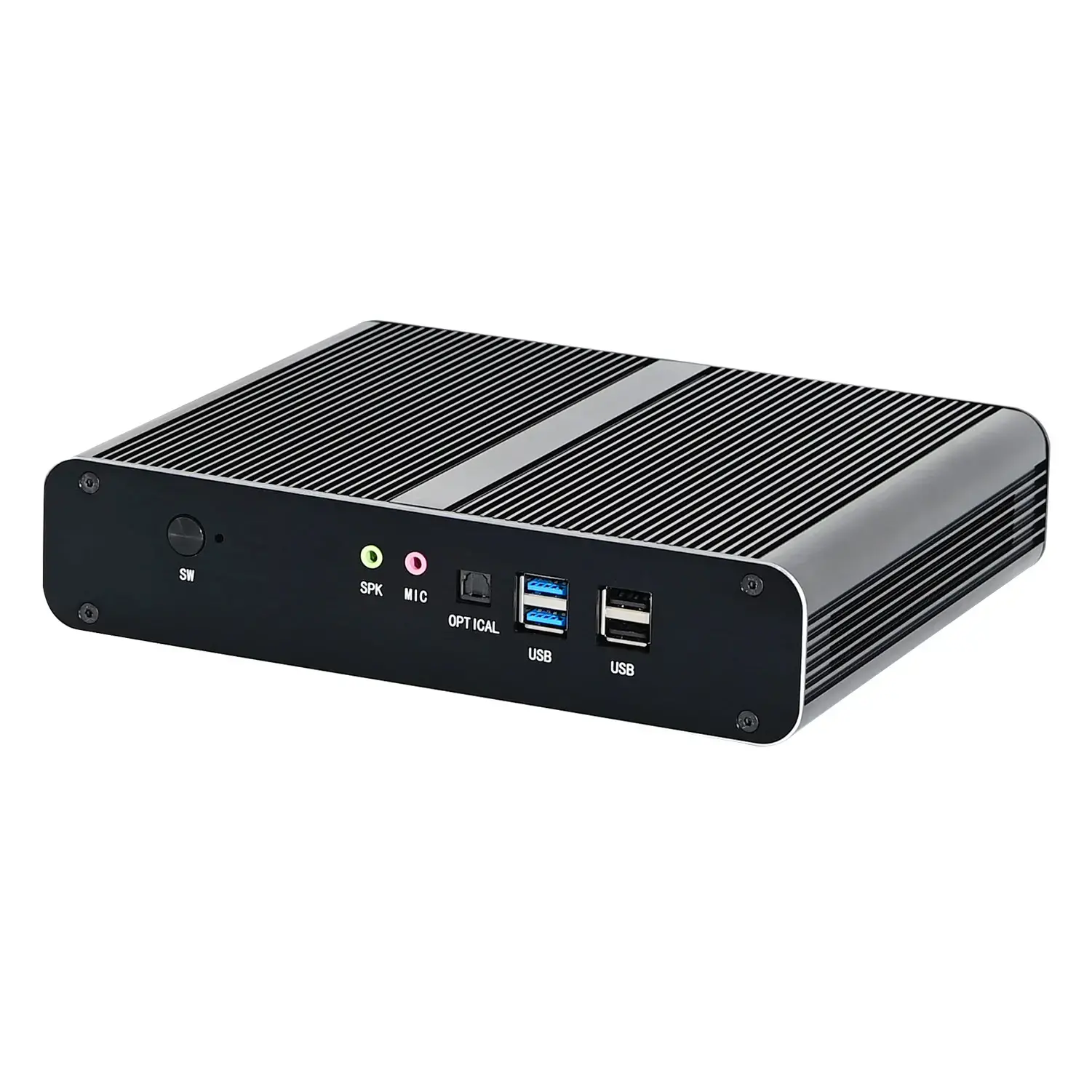

Front Panel 1 x Power button
1 x SD Card (i5-1035G1 N/A)
1 x Audio
1 x Optical
2 x USB3.0
2 x USB2.0

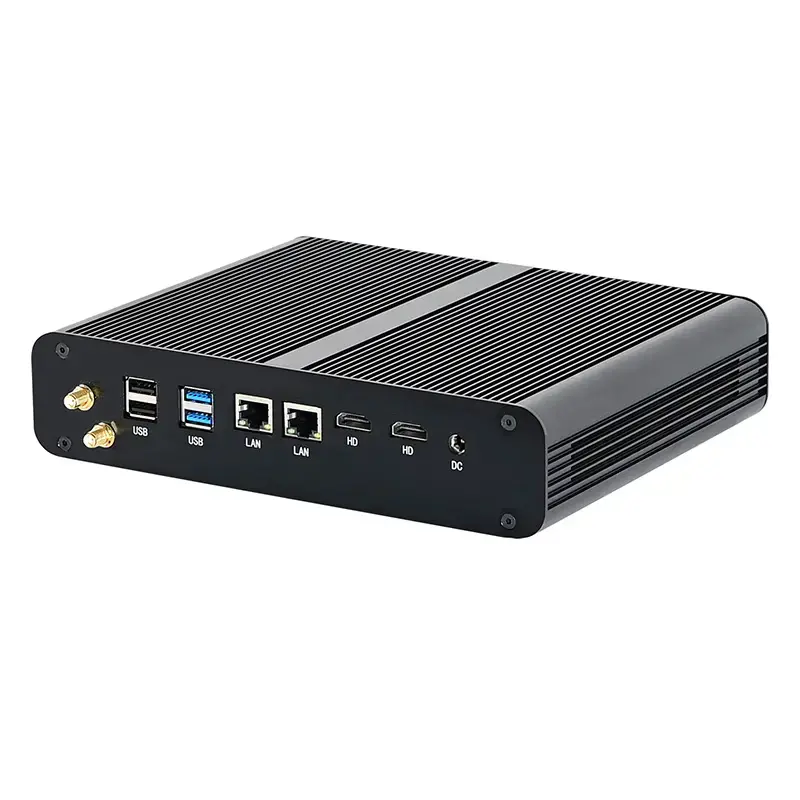

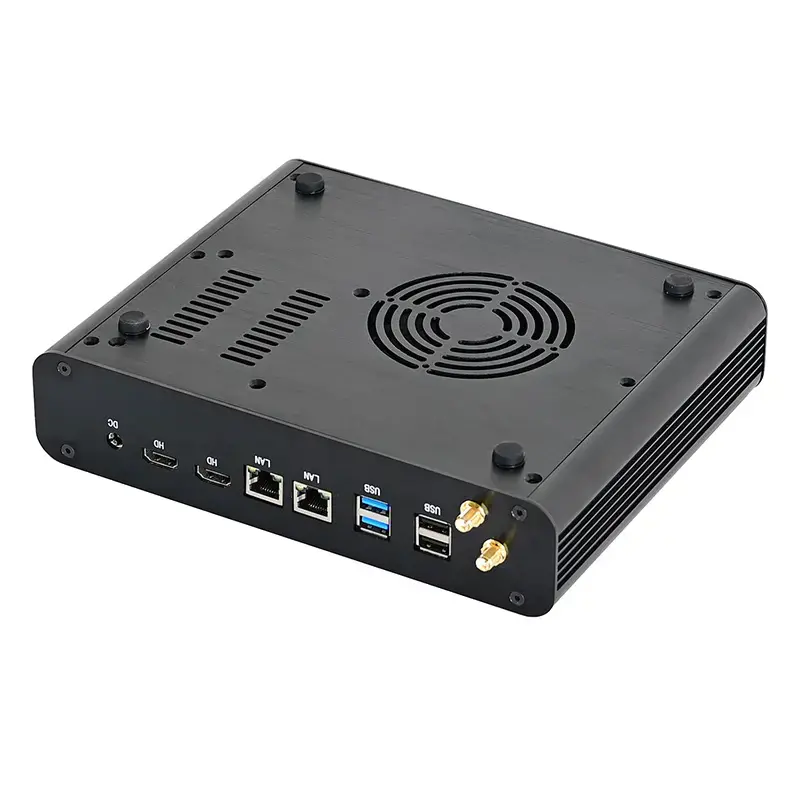

Rear Panel 1 x DC_in
2 x HDMI
2 x Lan
2 x USB3.0
2 x USB2.0
Side Panel 2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A
Packing List BM26 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NUC-BM27 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM27-1035G1 I5 1035G1 Intel® UHD Graphics 1.0~3.6 GHz 15 W  2 x HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (NVME) 2 8 12V/5A
BM27-1065G7 I7 1065G7 Intel® Iris® Plus Graphics 1.3~3.9 GHz 15 W  2 x HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (NVME) 2 8 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 4G/8G/16G/32G/64G DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
