TPC-PW04 Series

17 Inch All in One Touch Panel Industrial PC, Intel Celeron/ I5/ I7, Resistive, 2MM

For product pricing, customization, or other inquiries:

Share to:




It is the cost-effective 17 inch led industrial panel computer. It is available to choose the intel celeron or core processor. The compact embedded system can provide high-performance computing. High durability design, supports 2 to 3 serial ports, 4 USB ports and 1 gigabit ethernet port to meet various industrial applications.

Key Features

TPC-PW04 Series Industrial Grade 17 Inch LED, with 2MM Ultra-Thin

TPC-PW04 Series Rich I/O: DC-IN, VGA, 3 x COM, 4 x USB2.0, LAN, Audio (I3/I5/I7 with VGA and HDMI, 2 x COM)

TPC-PW04 Series Single SODIMM for up to 8GB DDR3L Memory

TPC-PW04 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

TPC-PW04 Series Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot onboard


Key Functions

TPC-PW04 Series Support diskless boot

TPC-PW04 Series Support automatic boot after power failure

TPC-PW04 Series Support wake on Lan

TPC-PW04 Series Support watchdog for 256-level

TPC-PW04 Series Support 4G network module with sim slot onboard

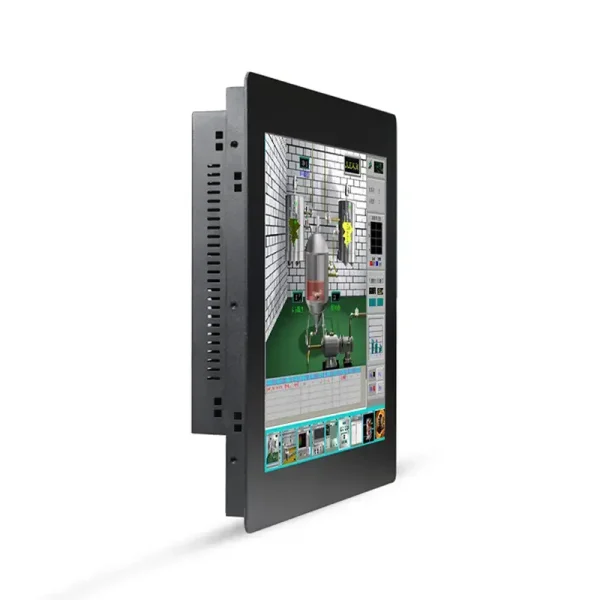

Panel 2mm ultra thin embedded panel
Colour Black
Opening Hole Size 389 x 321mm (L x W)

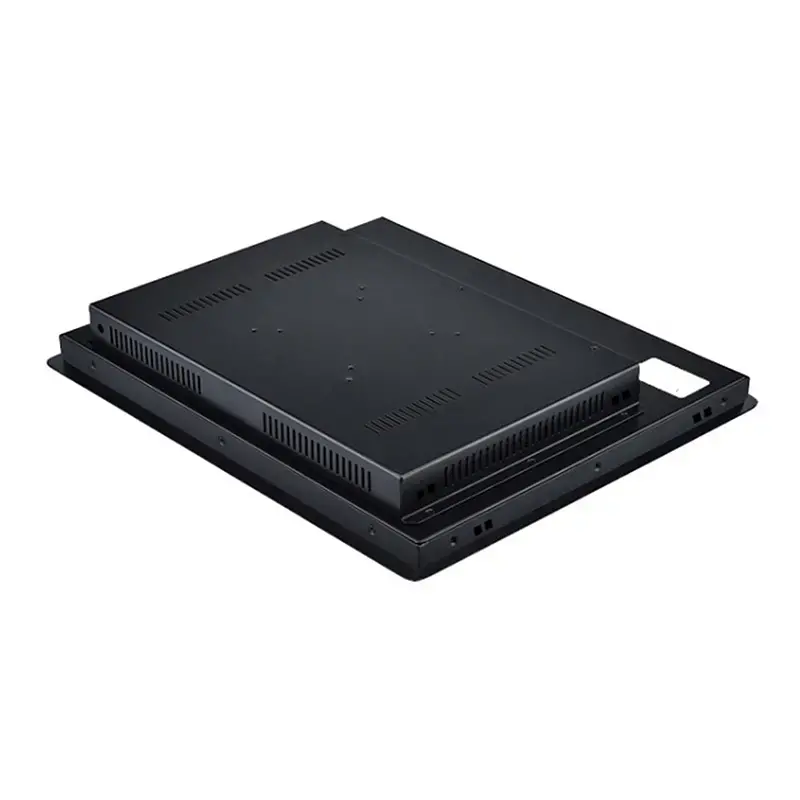

Size 406.5 x 338.5 x 57.7mm
Weight 5.1Kgs

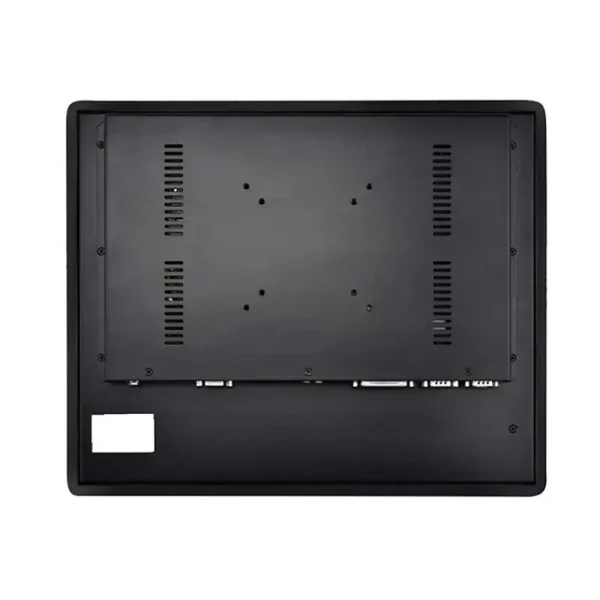

Installation Method Standard VESA screw hole (75 x 75 or 100 x 100mm) for flexible installation, vesa mount for optional
Embedded (recommended)/wall-mounted/desktop/cantilevered etc

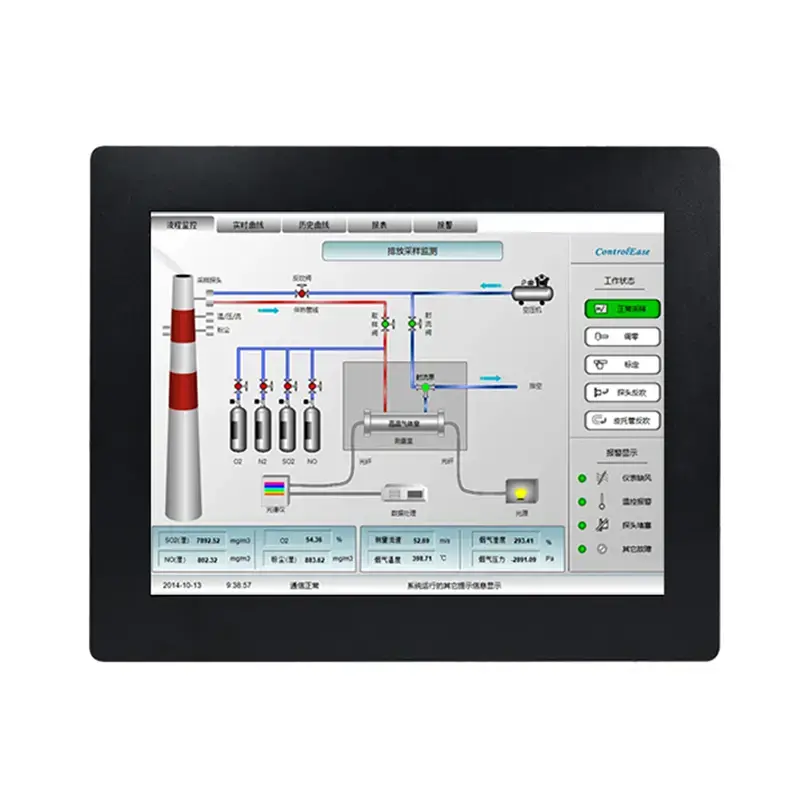

LCD Display

Display Type Industrial grade 17 inch LED
Resolution 1280 x 1024
Lumens (cd/m2) 250
Contrast 1000

Touch Screen

Touch Type Made-in-china 5-wire resistive touch screen
Taiwan imported 5-wire high temperature resistive touch screen
Durability (Number of Touches) > 1 million times


CPU Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)
Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz)
Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i7-3537U Processor (4M Cache, up to 3.10 GHz)
4th/6th Gen I5/I7 optional
Chipset Intel SOC
Watchdog Timer 255 levels
Network Card 1 x Realtek 8111E gigabit lan
WiFi and Bluetooth N/A, optional to add
Memory 1 x SO-DIMM DDR3L, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE for WiFi/4G, with sim slot

I/O Interfaces

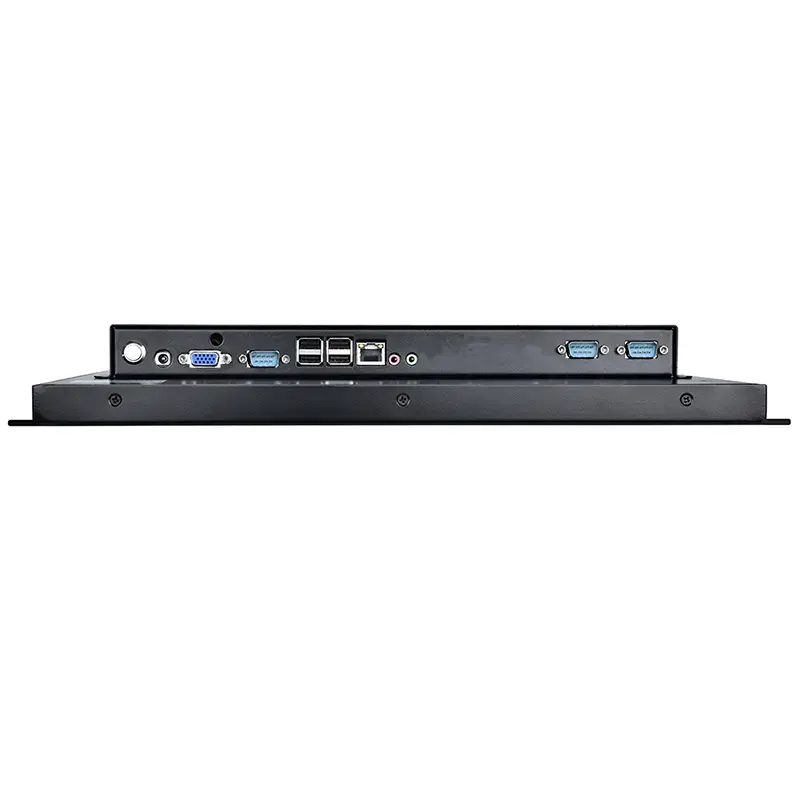

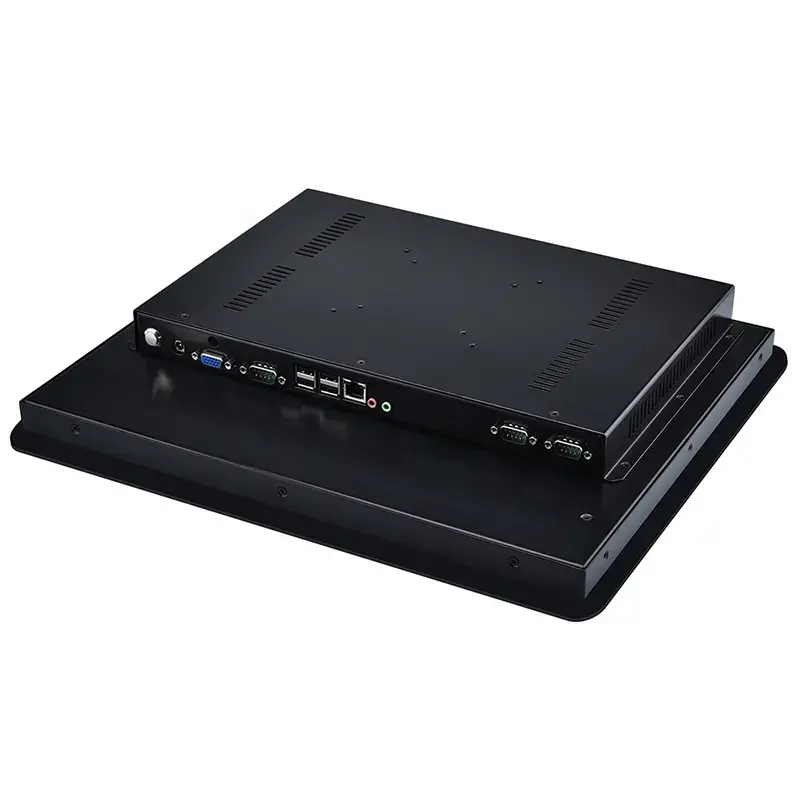

Rear Panel
1 x Power SW
1 x DC_IN
1 x VGA
3 x COM
4 x USB2.0
1 x Lan
1 x Audio

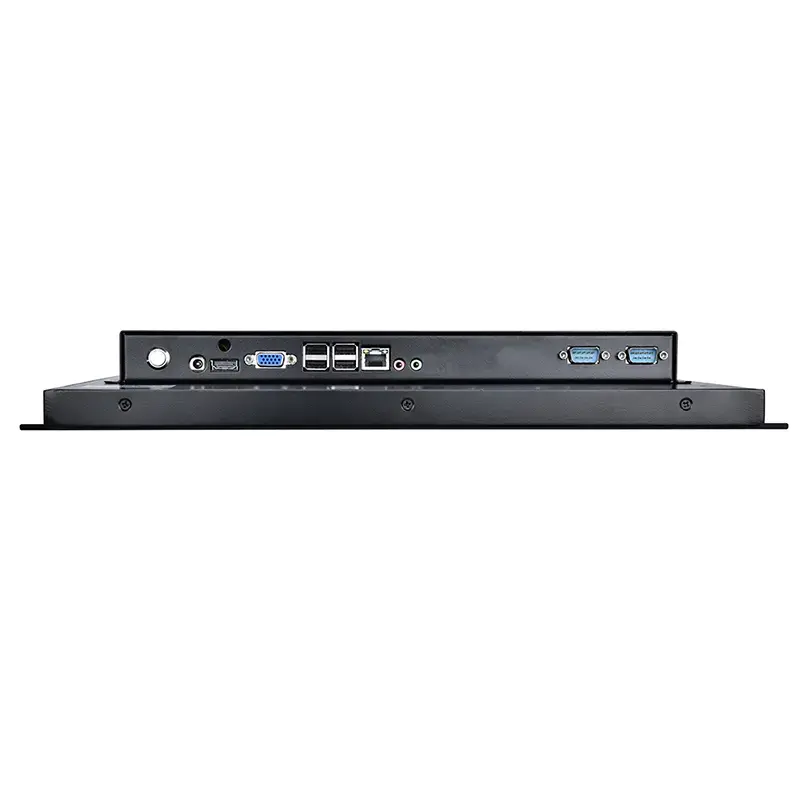

Rear Panel
1 x Power SW
1 x DC_IN
1 x HDMI
1 x VGA
4 x USB2.0
1 x Lan
1 x Audio
2 x COM

Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


Cooling Mode Fanless/Smart fan
Power Supply DC100-240V AC/50-60Hz, DC 12V 4A-5A
Packing List PW04 industrial touch panel pc, power supply, power cord, touch pen, embedded buckles, warranty card


Operating Temperature -10℃~50℃ surface air flow
Storage Temperature -20℃~60℃
Working Humidity 10 ~ 95% @ 40°C (non-condensing)
Certification TPC-PW04 Series



* Ordering Information *






Cooling System





















PW04-J1800 Celeron J1800 Fanless Intel® HD Graphics 2.58~2.41 GHz 10 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 3 12V/4A
PW04-J1900 Celeron J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz 10 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 3 12V/4A
PW04-3855U Celeron 3855U Smart fan Intel® HD Graphics 510 1.60 GHz 15 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 3 12V/4A
PW04-3317U I5 3317U Smart fan Intel® HD Graphics 4000 1.70~2.60 GHz 17 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 2 12V/5A
PW04-3537U I7 3537U Smart fan Intel® HD Graphics 4000 2.00~3.10 GHz 17 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 2 12V/5A


* Supplemental Information *


Installation Method:  Support multiple fixing methods such as embedded (recommended)/wall-mounted/desktop/cantilevered etc

Optional Accessories:

Memory: 2G/4G/8G DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 4A/5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard

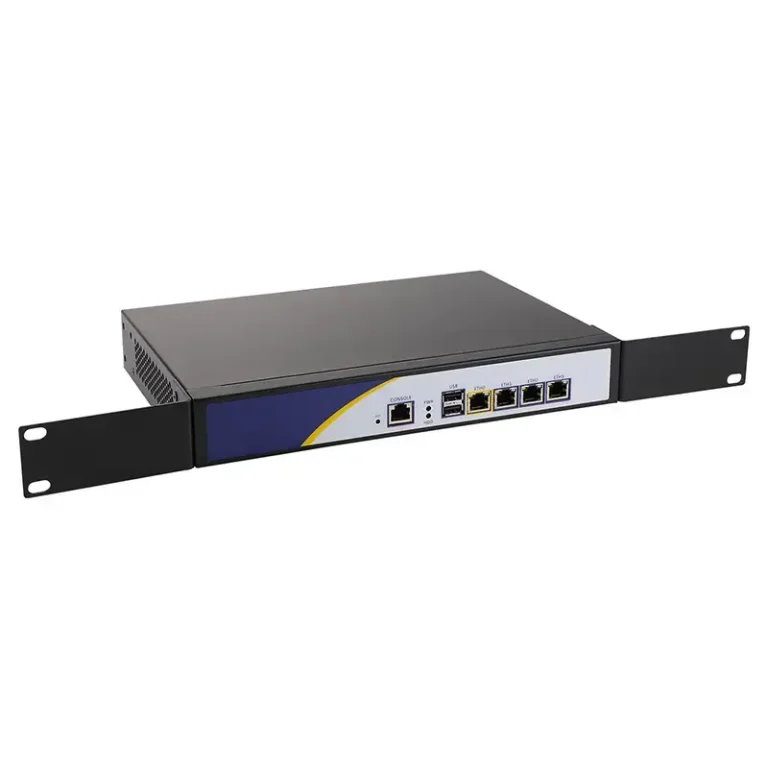

pfsense hardware with intel quad core 8265u
