FMC-BM10 Series

Fanless Mini PC with Intel J1800/ J1900/ N2920/ N3520, 2 x COM

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


FMC-BM10 Series Intel® Celeron® Quad Core J1800/ J1900/ N2920/ N3520 BGA Processor and Intel® BTY SOC Chipset

FMC-BM10 Series Rich I/O: 2* COM, VGA, HDMI, USB 3.0,4* USB 2.0, LAN, SPK, MIC

FMC-BM10 Series Single SODIMM for up to 8GB DDR3L Memory

FMC-BM10 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

FMC-BM10 Series Embedded Expansion: Mini PCIe for WiFi




Key Functions


FMC-BM10 Series Support diskless boot

FMC-BM10 Series Support Restore AC Power Loss

FMC-BM10 Series Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 170 x 120 x 36mm
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting

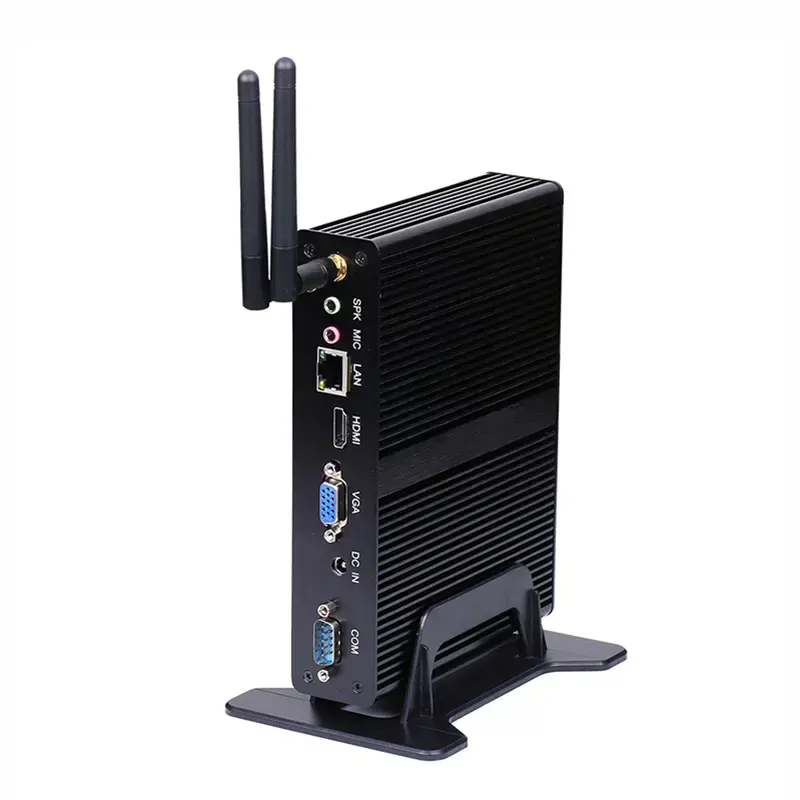

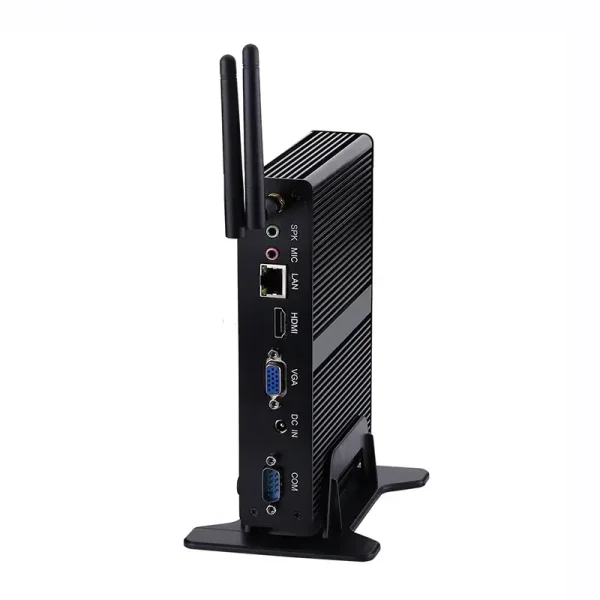

With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)
Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Intel® Celeron® Processor N2920 (2M Cache, up to 2.00 GHz)
Intel® Pentium® Processor N3520 (2M Cache, up to 2.42 GHz)
Chipset SOC
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR3L 1333, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot


I/O Interfaces

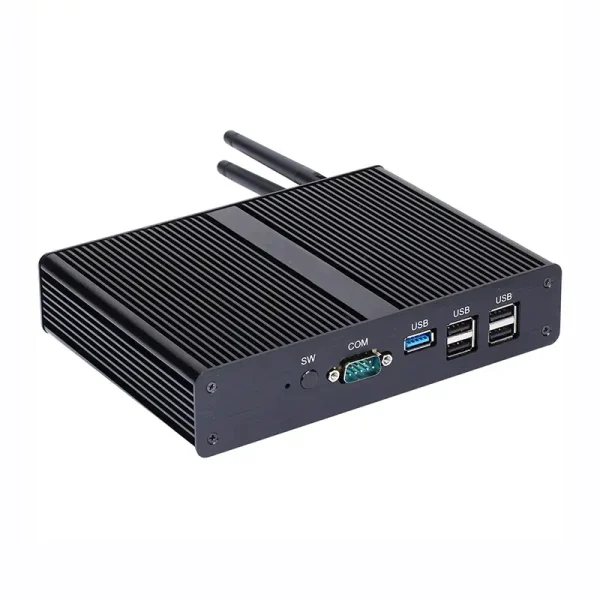

Front Panel 1 x Power button
1 x COM RS232
1 x USB3.0
4 x USB2.0

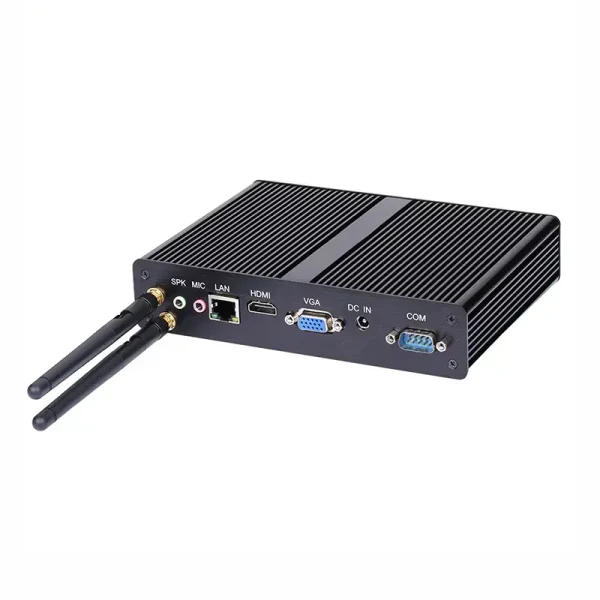

Rear Panel 1 x COM RS232
1 x DC_in
1 x VGA
1 x HDMI
1 x Lan
1 x Audio
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A
Packing List BM11 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification FMC-BM10 Series





* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM10-J1800 Celeron J1800 Intel® HD Graphics 2.41~2.58 GHz 10 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 5 12V/3A
BM10-J1900 Celeron J1900 Intel® HD Graphics 2.0~2.42 GHz 10 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 5 12V/3A
BM10-N2920 Celeron N2920 Intel® HD Graphics 1.86~2.0 GHz 7.5 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 5 12V/3A
BM10-N3520 Pentium N3520 Intel® HD Graphics 2.17~2.42 GHz 7.5 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 5 12V/3A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 2G/4G/8G/ DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

500G/1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A/5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard




FEATURED PRODUCTS

pfsense mini pc with intel n3540
mini gaming computer with intel xeon
mini pc i5 with windows 10

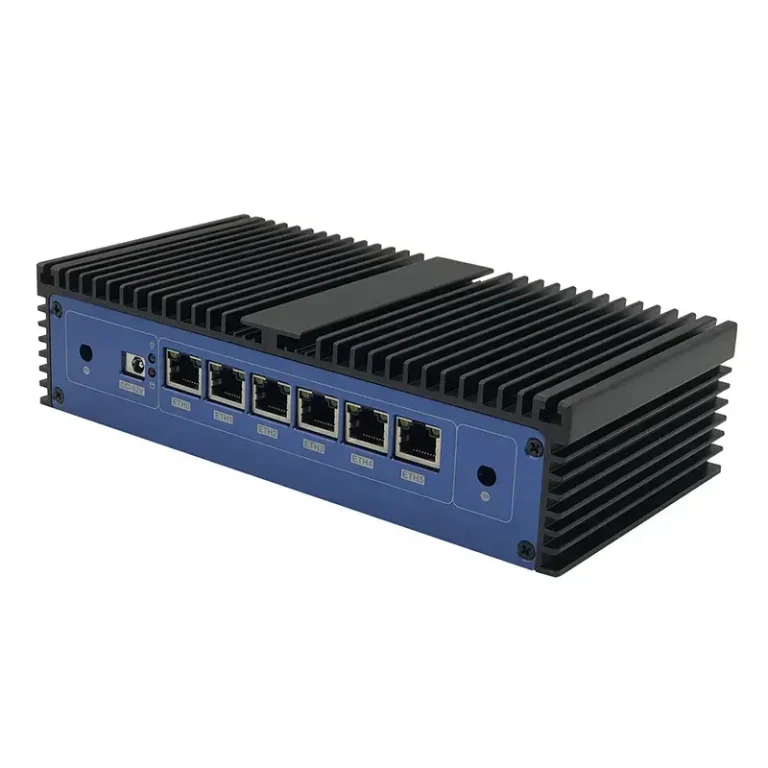

pfsense vmware esxi with 6 x lan
