NFA-RS07 Series

1U Network Firewall Appliance Pentium/ I3/ I5, 8 x LAN, 2 x SFP

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.


Key Features


NFA-RS07 Series Intel® Celeron®/Core™ I3 I5 BGA Processor and Intel® SOC chipset

NFA-RS07 Series Rich I/O: Console, 2 x USB3.0, 8 x LAN, 2 x SFP, VGA, Power switch, ATX power socket

NFA-RS07 Series Single SODIMM DDR4/DDR3, up to 32/8GB Memory

NFA-RS07 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

NFA-RS07 Series Chassis Form: Standard 1U Cabinet Type




Key Functions


NFA-RS07 Series The actual test traffic exceeds 1000m/s

NFA-RS07 Series WAN-LAN Throughput: through 1 gigabit nic/optical port from lan to wan forwarding speed is 800Mbps to 1Gbps





Specifications




Mechanical

Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 430 x 300 x 50mm
Weight 8Kgs
Installation Method Desktop type/rack mounting

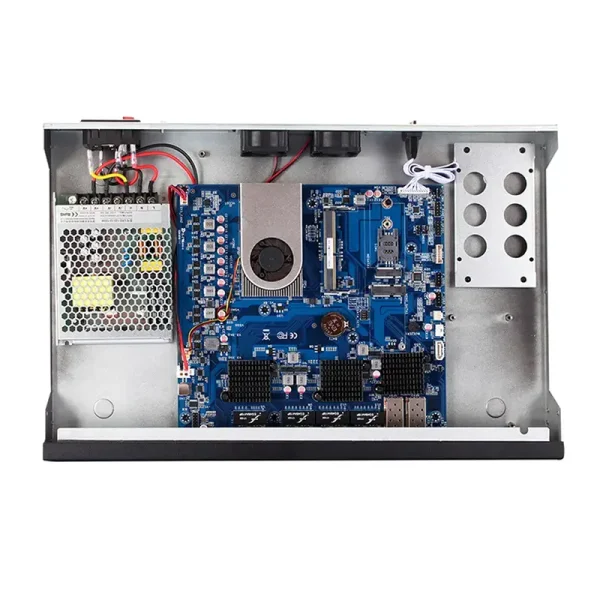

Motherboard

CPU Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz)
Intel® Core™ i3-2350M Processor (3M Cache, 2.30 GHz)
Intel® Core™ i5-2520M Processor (3M Cache, up to 3.20 GHz)
Chipset Intel SOC
Network Card 8 x Intel® I-350 gigabit lan, 2 x SFP ports (model: Intel® I-350)
8 x Intel® I-211 gigabit lan, 2 x SFP ports (model: Intel® I-350)
Intel® AES New Instructions According to CPU
Memory 1 x SO-DIMM DDR4, up to 32GB RAM
1x SO-DIMM DDR3, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA


I/O Interfaces

Front Panel 1 x Console
2 x USB3.0
8 x LAN
2 x SFP

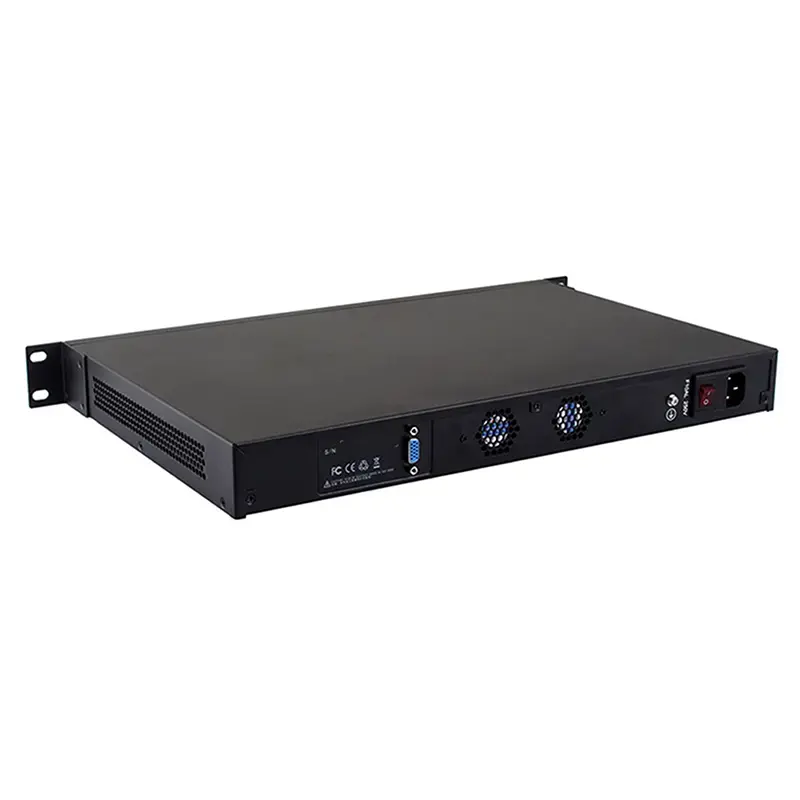

Rear Panel 1 x VGA
1 x Power switch
1 x ATX power socket


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Smart fan
Power Supply 50W 12V 4.2A, 110-240V 50/60Hz
100W 110-240V 50/60Hz
Packing List RS07 firewall appliance, rack ears, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NFA-RS07 Series





* Ordering Information *




Model



Processor



Intel® AES New Instructions



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



SFP



USB



Power

RS07-3855U 3855U Yes Intel® HD Graphics 510 1.60 GHz 15 W VGA 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 8 2 2 50 W
RS07-2350M I3 2350M No Intel® HD Graphics 3000 2.30 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 8 2 2 100 W
RS07-2520M I5 2520M Yes Intel® HD Graphics 3000 2.50~3.20 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 8 2 2 100 W



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, rack mounting type etc

Optional Accessories:

Memory: 4G/8G/16G/32G DDR4 RAM type, 2G/4G/8G DDR3 RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc

FEATURED PRODUCTS

computer industrial with 6 x com rs232
pfsense appliance with intel celeron quad core j1900

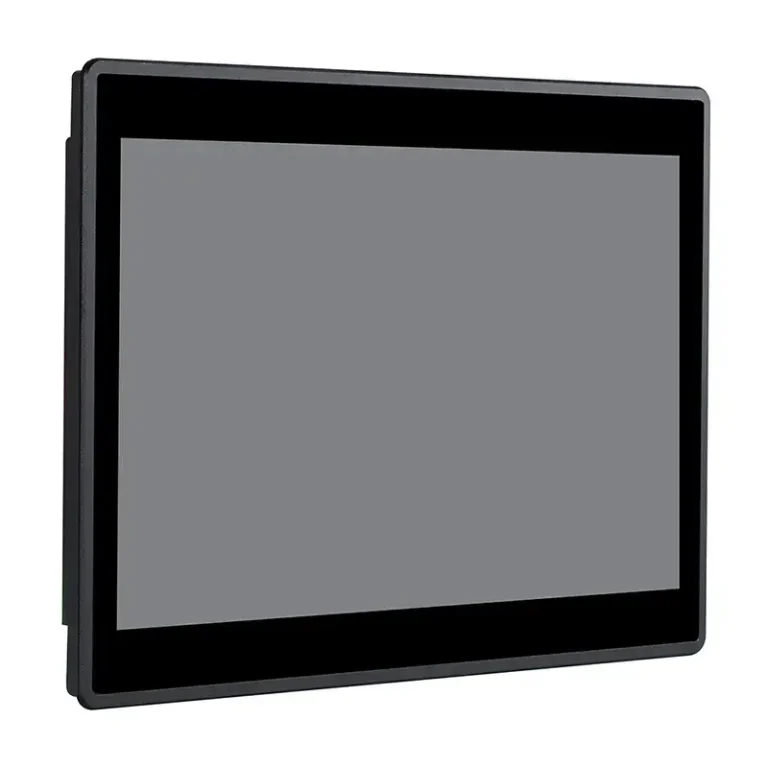

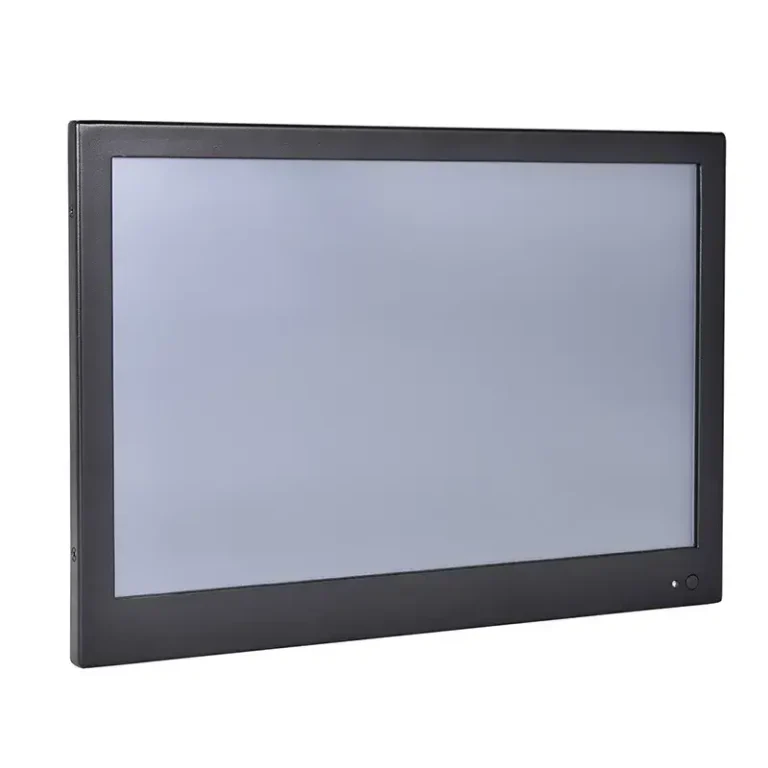

industrial touch screen pc with 10.1 inch
