NUC-BM21 Series

Overview

Small body, big energy. It is the stronger and smoother performance NUC mini pc. Master the power of the core, multi-threaded processing and multi-tasking, easy to deal with office design, audio and video, online shopping, games, etc. 4K audio and video, cinema quality.

Key Features

Intel® 7-10th Gen Intel® Core™ i5/i7 BGA Processor and Intel® HM370 Chipset

Rich I/O: DP, HDMI, 6 x USB 3.0, Type C for USB, LAN, Spk, Mic

Dual SODIMM for up to 32/64GB DDR4 Memory

Rich Storage: M.2 2280 SATA/NVME SSD, M.2 2280 NVME SSD

Embedded Expansion: PCIe for WiFi

Key Functions

Support diskless boot

Support Restore AC Power Loss

Support dual screen (DP and HDMI) for simultaneous display or synchronous different display

Support DP 1.2 4K: 4096×2304@60Hz and HDMI 1.4 4K: 4096×2304@30Hz

Specifications

Mechanical
Material	Aluminum alloy
Colour	Silver
Size	160 x 150 x 57mm
Weight	1.5Kgs

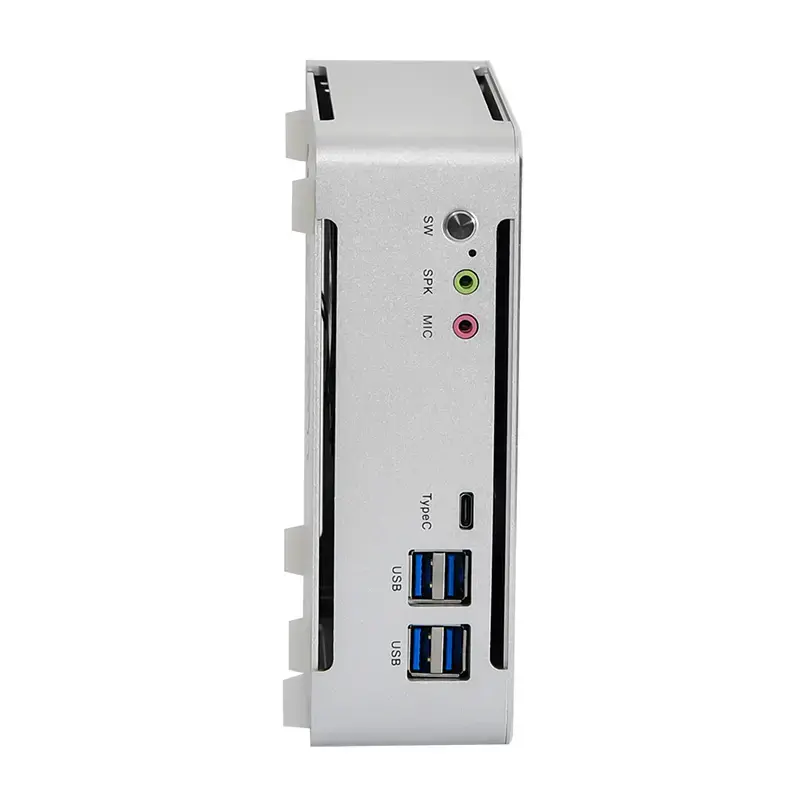

Insallation Method	Desktop type/vesa mounting With holding vertical stand, vesa mount as the optional
Motherboard
CPU	Intel® Core™ i5-7300HQ Processor (6M Cache, up to 3.50 GHz) Intel® Core™ i7-7820HK/7820HQ Processor (8M Cache, up to 3.90 GHz) Intel® Core™ i5-8300H Processor (8M Cache, up to 4.00 GHz) Intel® Core™ i7-8750H Processor (9M Cache, up to 4.10 GHz) Intel® Core™ i9-9880H Processor (16M Cache, up to 4.80 GHz) Intel® Core™ i7-10870H Processor (16M Cache, up to 5.00 GHz)
Chipset	HM370
Network Card	1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth	With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory	2 x SODIMM DDR4, up to 32GB/64GB RAM
Storage	1 x M.2 2280 (SATA/NVME), 1 x M.2 2280 (NVME)
Expand	1 x M.2 PCIE WiFi slot
I/O Interfaces

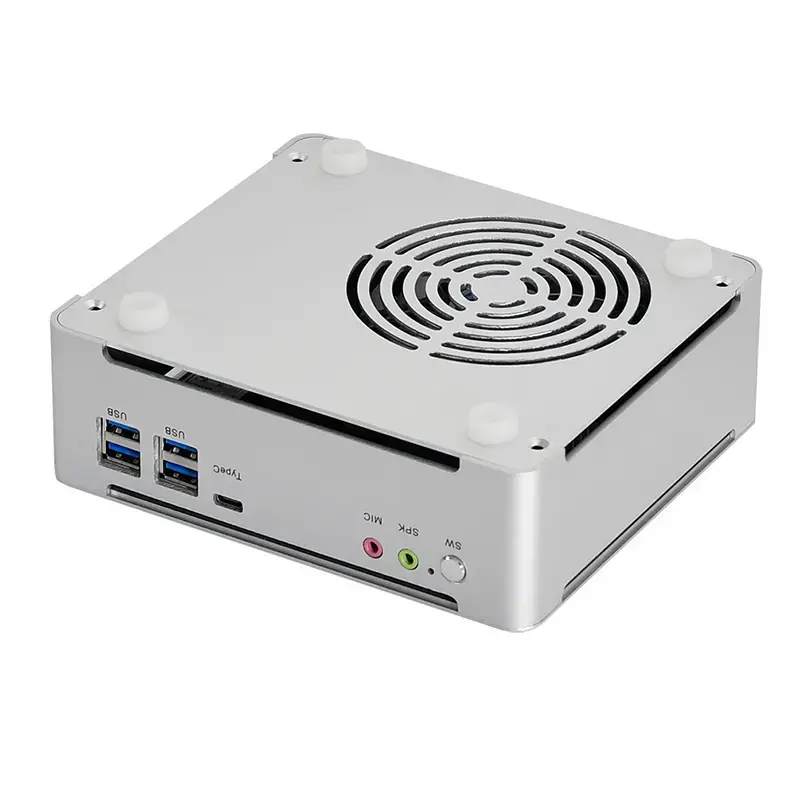

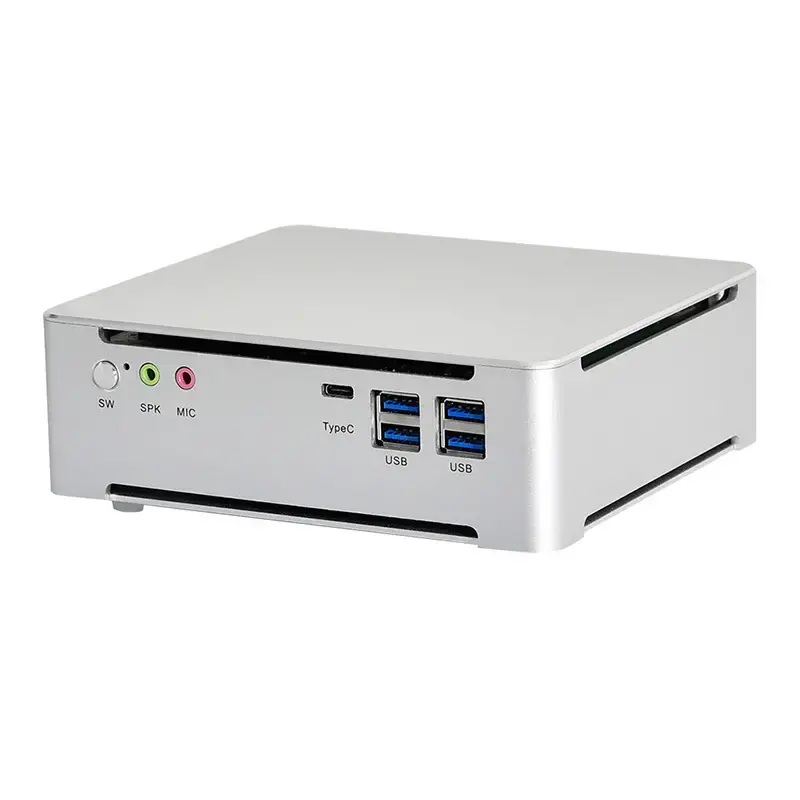

Front Panel	1 x Power button 1 x Audio 1 x Type C 4 x USB3.0

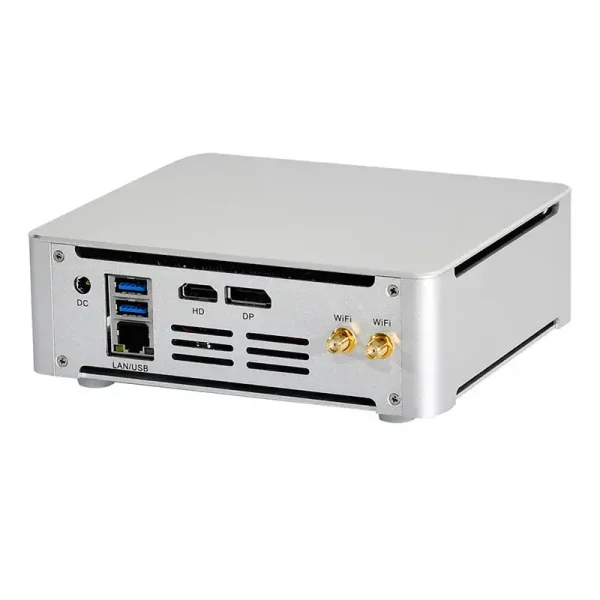

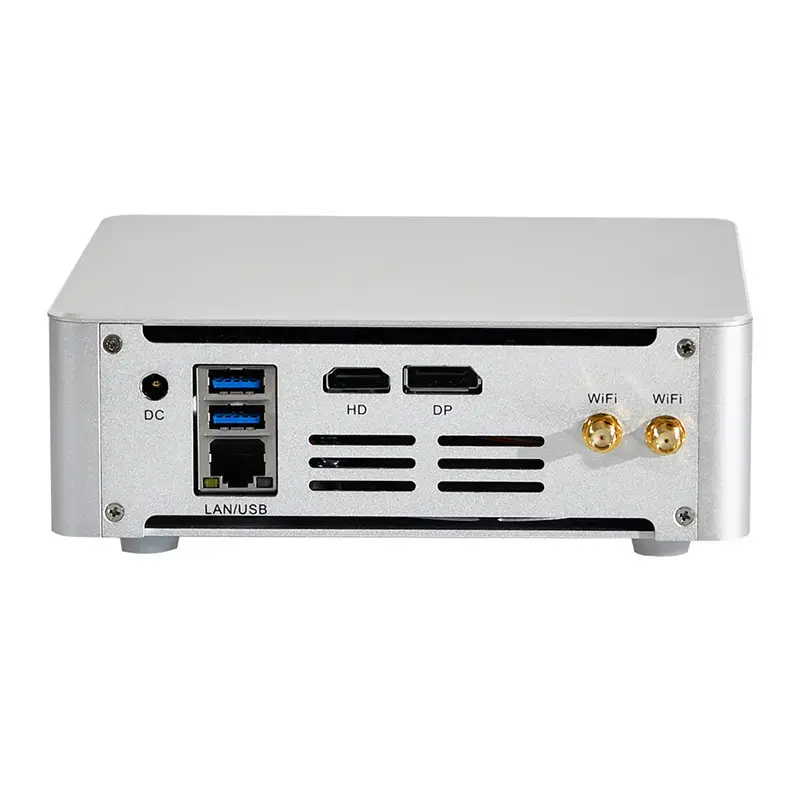

Rear Panel	1 x DC_in 2 x USB3.0 1 x Lan 1 x HDMI 1 x DP 2 x WiFi antennas
Software Support
Bios	AMI bios
System Support	Windows 10, linux ubuntu etc
General

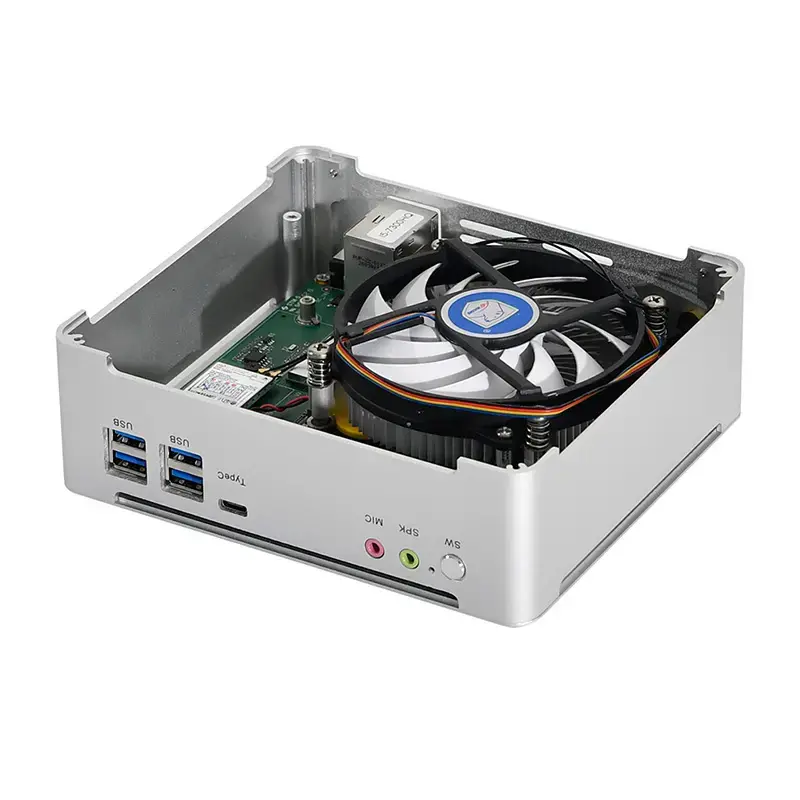

Cooling Mode	Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply	DC100-240V AC/50-60Hz, DC 12V/7A-10A
Packing List	BM21 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card
Environment
Operating Temperature	0°C~70°C Centigrade (32°F~140°F)
Storage Temperature	-20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity	10%~90% (non-condensing)
