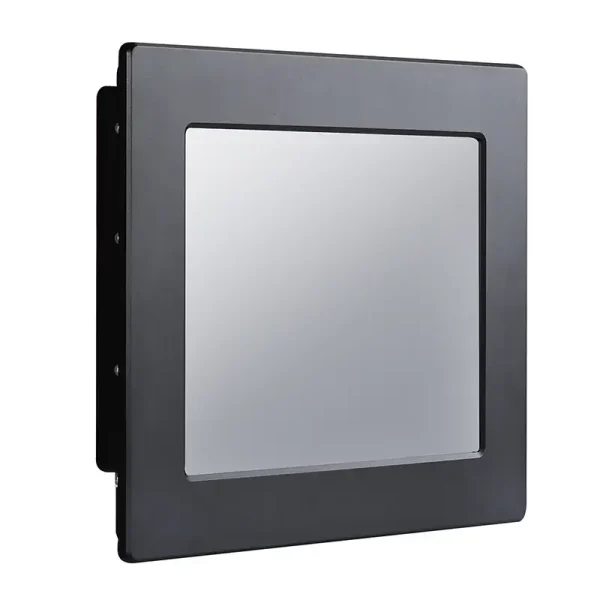

IP68-PW17 Series

10.4 Inch All in One Touch Panel Industrial PC, Intel Celeron J1900, Full IP68 Waterproof

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the high grade 10.4 inch led fully waterproof IP68 grade industrial panel computer. The compact embedded system can provide high-performance computing.


Key Features


IP68-PW17 Series Industrial grade 10.4 inch LED, fully IP68 protection

IP68-PW17 Series Rich I/O: 2 x COM RS232, RS485, 2 x LAN, 3 x USB2.0

IP68-PW17 Series 4GB/8GB DDR3L Memory

IP68-PW17 Series 128G SSD installed

IP68-PW17 Series Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot onboard




Key Functions


IP68-PW17 Series Support diskless boot

IP68-PW17 Series Support automatic boot after power failure

IP68-PW17 Series Support wake on Lan

IP68-PW17 Series Support watchdog for 256-level

IP68-PW17 Series Support 4G network module with sim slot onboard





Specifications




Mechanical

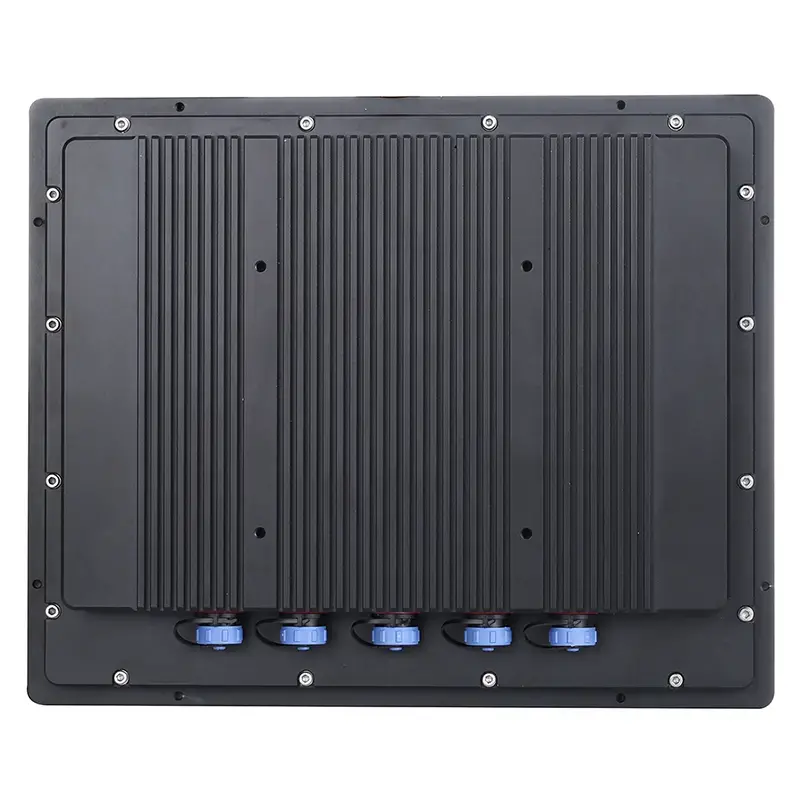

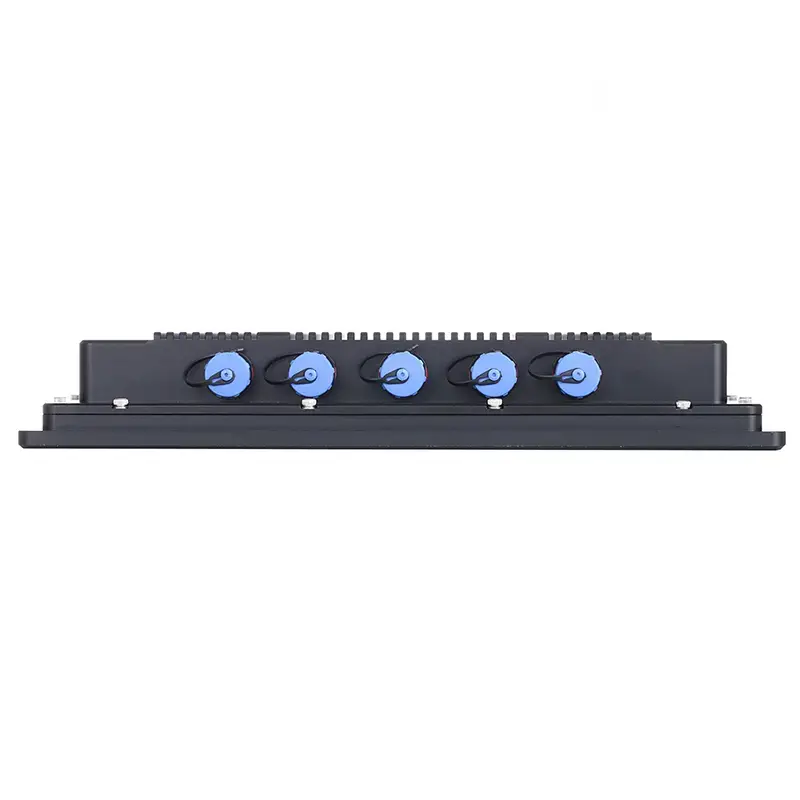

Waterproof Level Fully IP68, full interface waterproof aviation head connector
Material Aluminum alloy
Colour Black
Opening Hole Size 274 x 221mm (L x W)
Size 288 x 235 x 44mm
Weight 3.5Kgs
Installation Method Standard VESA screw hole (75 x 75 or 100 x 100mm) for flexible installation, vesa mount for optional
Embedded (recommended)/wall-mounted/desktop/cantilevered etc

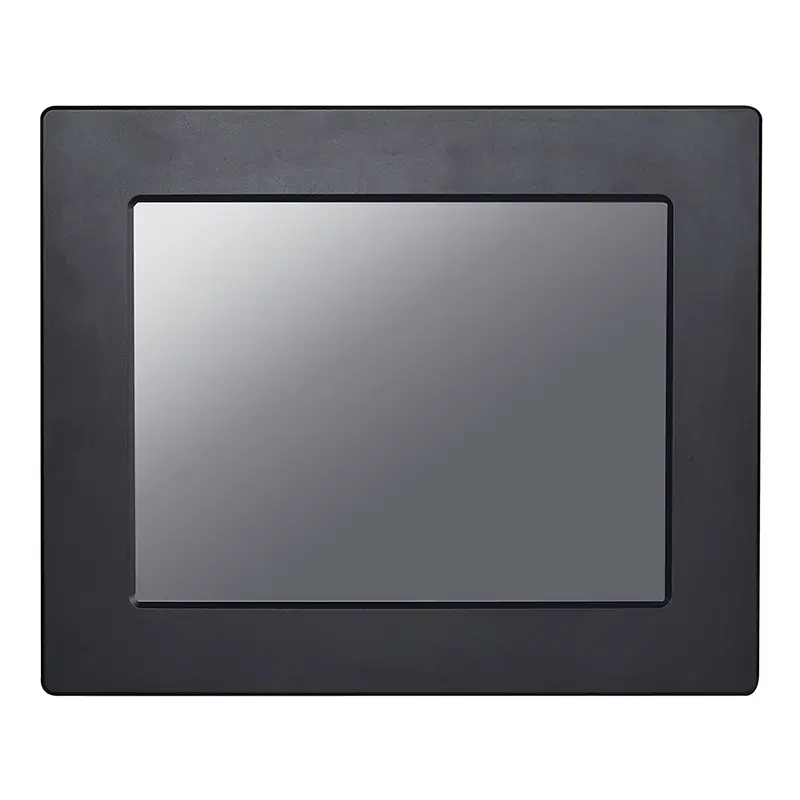

LCD Display

Display Type Industrial grade 10.4 inch LED
Resolution 1024 x 768
Lumens (cd/m2) 350
Contrast 900


Touch Screen

Touch Type Original imported resistive touch screen
Durability (Number of Touches) >35 million times


Motherboard

CPU Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipset Intel SOC
Watchdog Timer 255 levels
Network Card 2 x Realtek 8111E gigabit lan
WiFi and Bluetooth N/A, optional to add
Memory 4GB/8GB RAM
Storage 128G SSD
Expand 1 x Mini PCIE for WiFi/4G, with sim slot


I/O Interfaces

Rear Panel 2 x COM RS232
1 x RS485
2 x Lan
3 x USB2.0


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

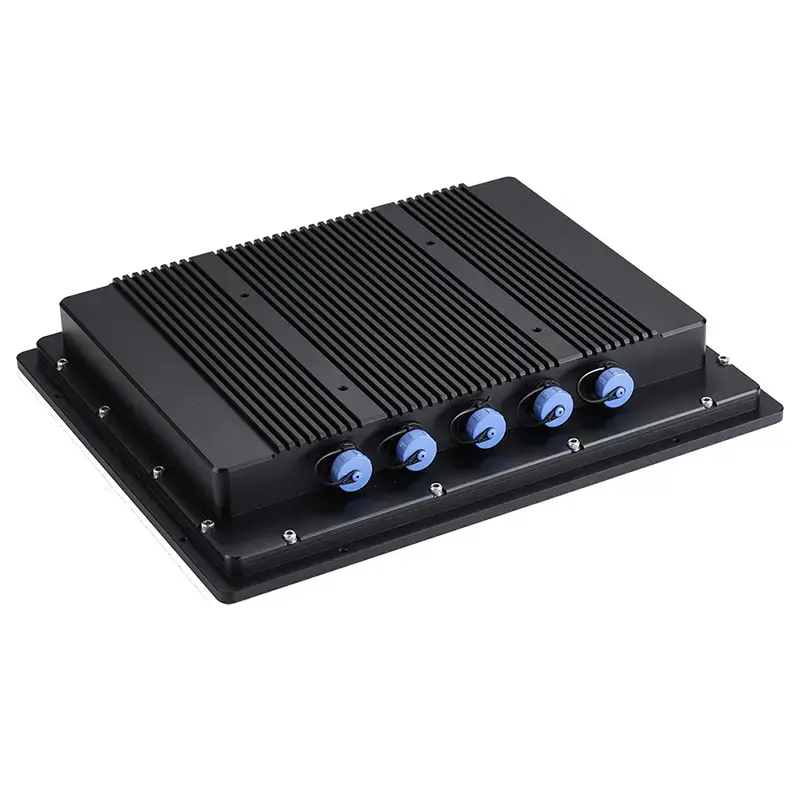

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 4A for testing
Packing List PW17 industrial touch panel pc, testing power supply, testing power cord, touch pen, aviation heads, warranty card


Environment

Operating Temperature -20℃~60℃ surface air flow
Storage Temperature -30℃~70℃
Working Humidity No request
Certification IP68-PW17 Series

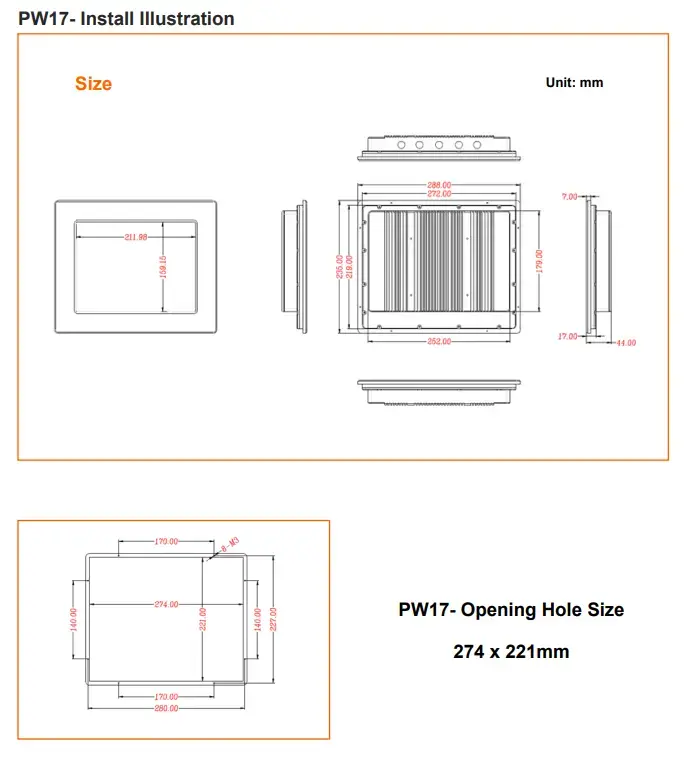

Panel PC PW17 Install



* Ordering Information *




Model



Processor



Cooling System



Graphics



Frequency



TDP



Memory



Storage



LAN



USB



COM



RS485



Power

PW17-J1900-4 Celeron J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz 10 W 4GB 128G SSD 2 3 2 1 12V/4A
PW17-J1900-8 Celeron J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz 10 W 8GB 128G SSD 2 3 2 1 12V/4A
