FMC-BM04 Series

Fanless Mini PC with Intel N3150 N3160 J3160, 2 x Lan, 2 x HDMI

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


FMC-BM04 Series Intel® Celeron® N3150 N3160 J3160 BGA Processor and Intel® SOC Chipset

FMC-BM04 Series Rich I/O: 2*LAN, 2*HDMI, 4*USB 3.0, 2*USB 2.0, MIC, SPK

FMC-BM04 Series Single SODIMM for up to 8GB DDR3L Memory

FMC-BM04 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

FMC-BM04 Series Embedded Expansion: Mini PCIe for WiFi




Key Functions


FMC-BM04 Series Support diskless boot

FMC-BM04 Series Support Restore AC Power Loss

FMC-BM04 Series Support dual screen (2 x HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Silver
Size 160 x 120 x 37mm
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting

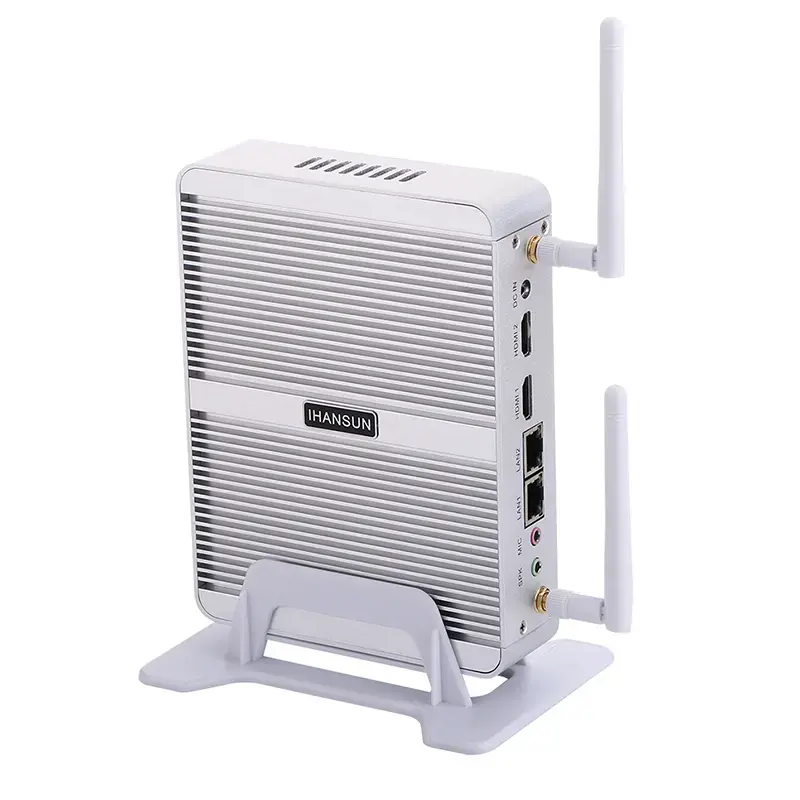

With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Celeron® Processor N3150/N3160/J3160 (2M Cache, up to 2.08 GHz)
Chipset SOC
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR3L 1600, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE (half size) WiFi slot


I/O Interfaces

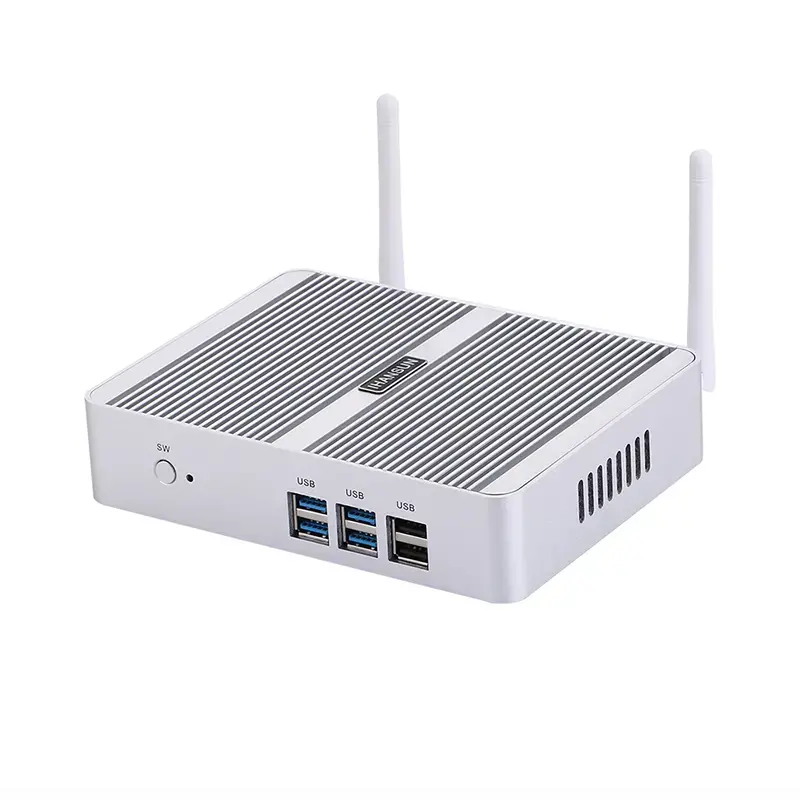

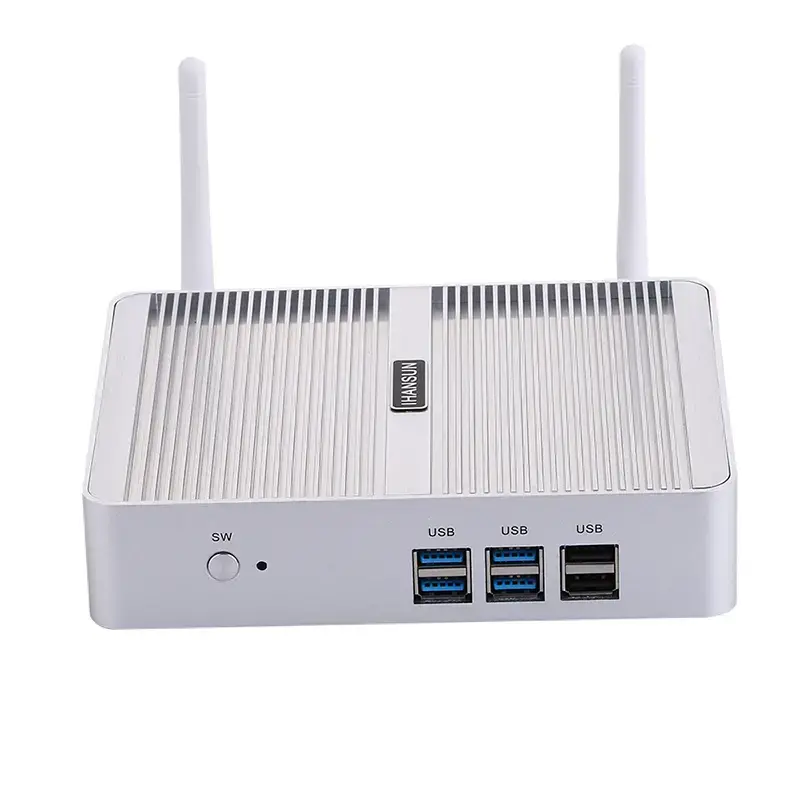

Front Panel 1 x Power button
4 x USB3.0
2 x USB2.0

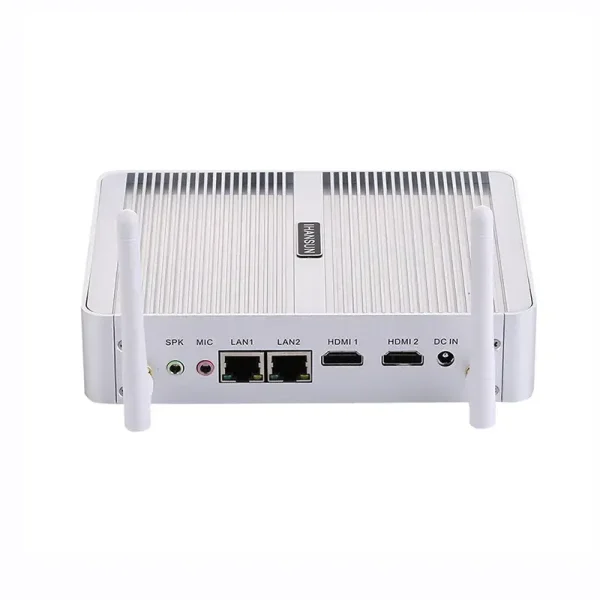

Rear Panel 1 x DC_in
2 x HDMI
2 x Lan
1 x Audio
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A
Packing List BM04 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification FMC-BM04 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM04-N3150 Celeron N3150 Intel® HD Graphics 1.60~2.08 GHz 6 W 2 x HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 6 12V/3A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 2G/4G/8G/ DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

500G/1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
