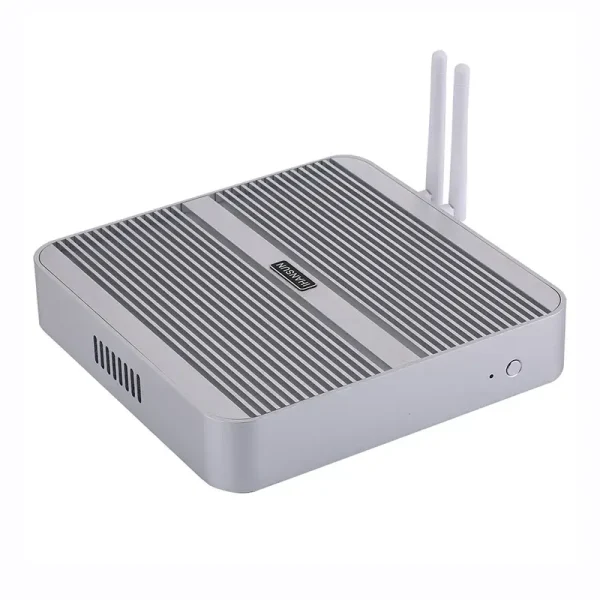

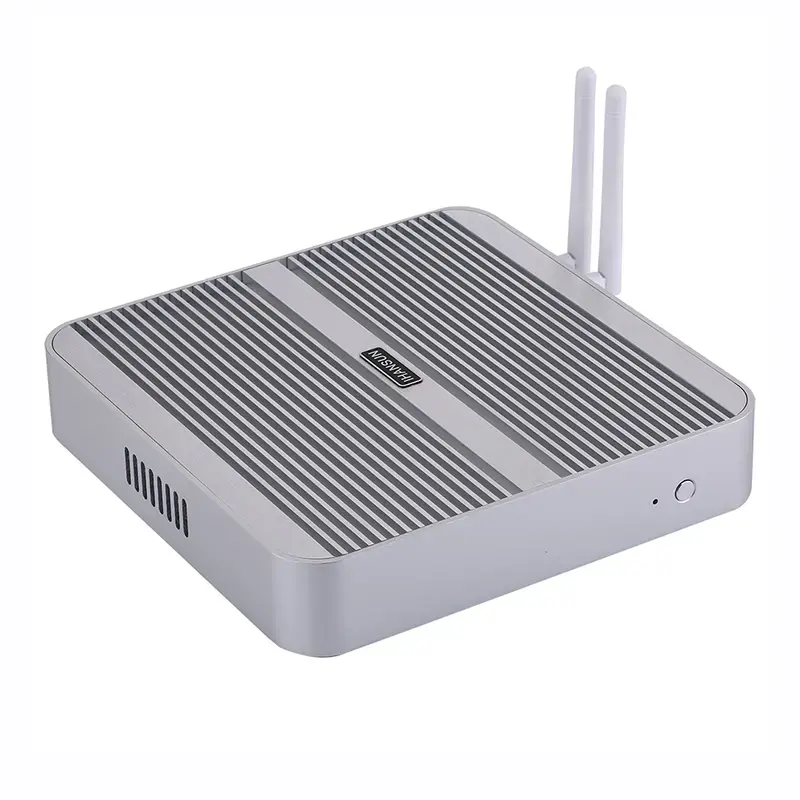

FMC-BM01 Series

Fanless Mini PC with 4th-8th Gen Intel Core I3 I5 I7, VGA, HDMI

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


FMC-BM01 Series Intel® 3-8th Gen Intel® Core™ i3/ i5 BGA Processor and Intel® HM97 Chipset

FMC-BM01 Series Rich I/O: VGA, HDMI, 4*USB 3.0, 2* USB 2.0, LAN, SPK, MIC

FMC-BM01 Series Dual SODIMMs for up to 16GB DDR3L/64GB DDR4 Memory

FMC-BM01 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

FMC-BM01 Series Embedded Expansion: Mini PCIe for WiFi




Key Functions


FMC-BM01 Series Support diskless boot

FMC-BM01 Series Support Restore AC Power Loss

FMC-BM01 Series Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Silver
Size 197 x 197 x 37mm
Weight 2.5Kgs
Insallation Method Desktop type/vesa mounting

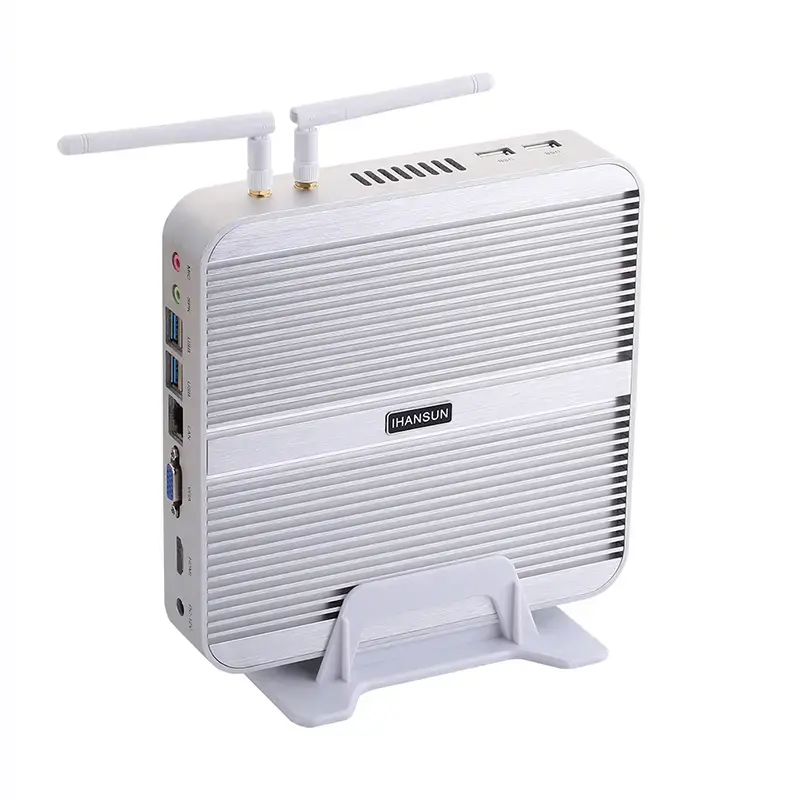

With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Core™ i3-4005U Processor (3M Cache, 1.70 GHz)
Intel® Core™ i3-5005U Processor (3M Cache, 2.00 GHz)
Intel® Core™ i3-6157U Processor (3M Cache, 2.40 GHz)
Intel® Core™ i3-7167U Processor (3M Cache, 2.80 GHz)
Intel® Core™ i3-8145U Processor (4M Cache, up to 3.90 GHz)
Intel® Core™ i5-4200U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i5-5200U Processor (3M Cache, up to 2.70 GHz)
Intel® Core™ i5-7200U Processor (3M Cache, up to 3.10 GHz)
Chipset HM97
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SO-DIMM DDR3L 1333/1600, up to 16GB RAM
2 x SO-DIMM DDR4, up to 64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME)
Expand 1 x Mini PCIE (half size) WiFi slot


I/O Interfaces

Front Panel 1 x Power button

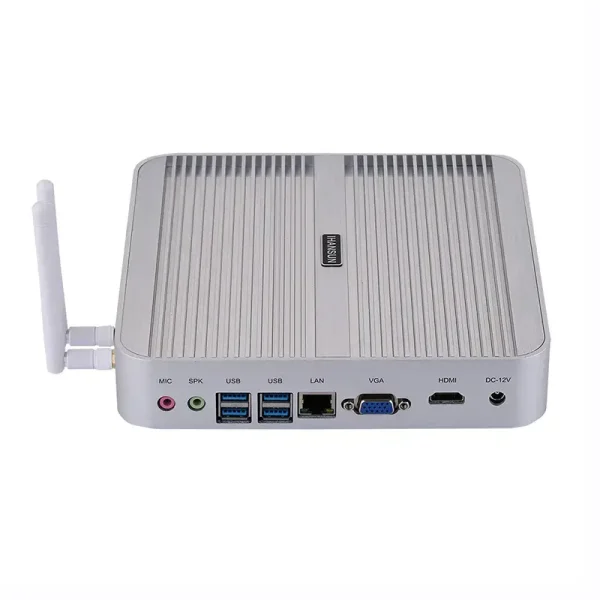

Rear Panel 1 x DC_in
1 x HDMI
1 x VGA
1 x Lan
4 x USB3.0
1 x Audio

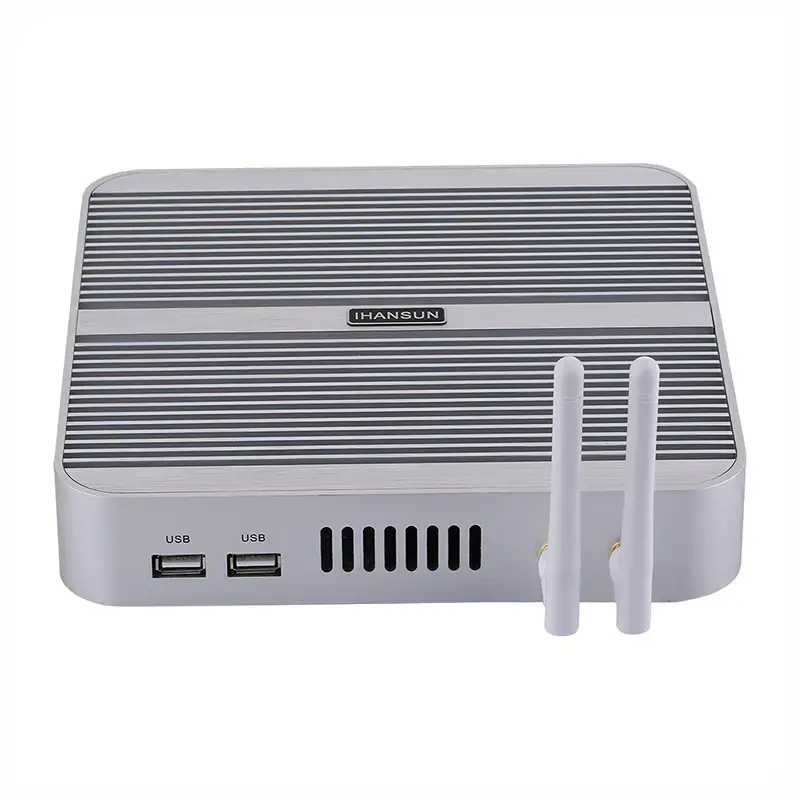

Side Panel 2 x USB2.0
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 3A/5A
Packing List BM01 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification FMC-BM01 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM01-4005U I3 4005U Intel® HD Graphics 4400 1.70 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 12V/3A
BM01-5005U I3 5005U Intel® HD Graphics 5500 2.00 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 12V/3A
BM01-6157U I3 6157U Intel® Iris® Graphics 550 2.40 GHz 28 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 12V/3A
BM01-7167U I3 7167U Intel® Iris® Plus Graphics 650 2.80 GHz 28 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 12V/3A
BM01-8145U I3 8145U Intel® UHD Graphics 2.10~3.90 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 6 12V/3A
BM01-4200U I5 4200U Intel® HD Graphics 4400 1.60~2.60 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 12V/5A
BM01-5200U I5 5200U Intel® HD Graphics 5500 2.20~2.70 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 12V/5A
BM01-7200U I5 7200U Intel® HD Graphics 620 2.50~3.10 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 6 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 2G/4G/8G/ DDR3L RAM type/ 4G/8G/16G/32G/64G DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A/5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
