NFA-RS14 Series

1U Network Firewall Appliance with Intel Pentium/ I3/ I5/ I7, 8 LAN

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.


Key Features


NFA-RS14 Series Intel® Pentium®/ Gen 2-3th Core™ i3/i5/i7 BGA Processor and Intel® SOC Chipset

NFA-RS14 Series Rich I/O: Console, 2 x USB3.0, 8 x LAN, VGA, Power switch, ATX power socket

NFA-RS14 Series Single SODIMM DDR3/DDR3L, up to 8GB Memory

NFA-RS14 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

NFA-RS14 Series Chassis Form: Standard 1U Cabinet Type




Key Functions


NFA-RS14 Series The actual test traffic exceeds 1000m/s





Specifications




Mechanical

Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 430 x 300 x 50mm
Weight 8Kgs
Installation Method Desktop type/rack mounting

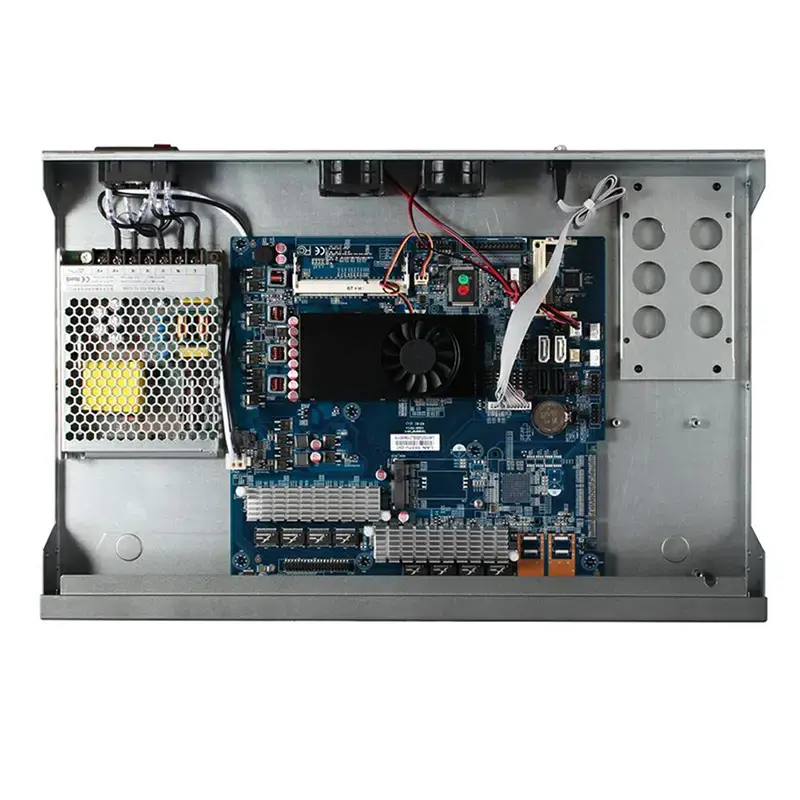

Motherboard

CPU Intel® Pentium® Processor B950 (2M Cache, 2.10 GHz)
Intel® Core™ i3-2328M Processor (3M Cache, 2.20 GHz)
Intel® Core™ i3-2350M Processor (3M Cache, 2.30 GHz)
Intel® Core™ i3-2367M Processor (3M Cache, 1.40 GHz)
Intel® Core™ i3-3110M Processor (3M Cache, 2.40 GHz)
Intel® Core™ i5-2520M Processor (3M Cache, up to 3.20 GHz)
Intel® Core™ i5-2467M Processor (3M Cache, up to 2.30 GHz)
Intel® Core™ i5-3320M Processor (3M Cache, up to 3.30 GHz)
Intel® Core™ i7-2620M Processor (4M Cache, up to 3.40 GHz)
Intel® Core™ i7-3520M Processor (4M Cache, up to 3.60 GHz)
Intel® Core™ i7-3517U Processor (4M Cache, up to 3.00 GHz)
Chipset Intel SOC
Network Card 8 x Intel 82574L/I-211 gigabit lan
Intel® AES New Instructions According to CPU
Memory 1 x SO-DIMM DDR3, up to 8GB RAM
1 x SO-DIMM DDR3L, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA


I/O Interfaces

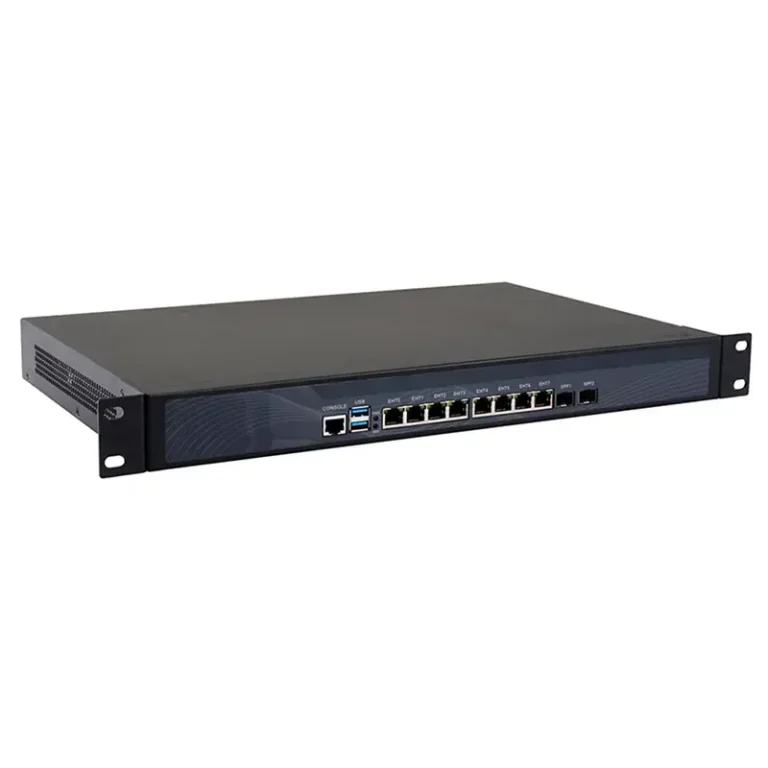

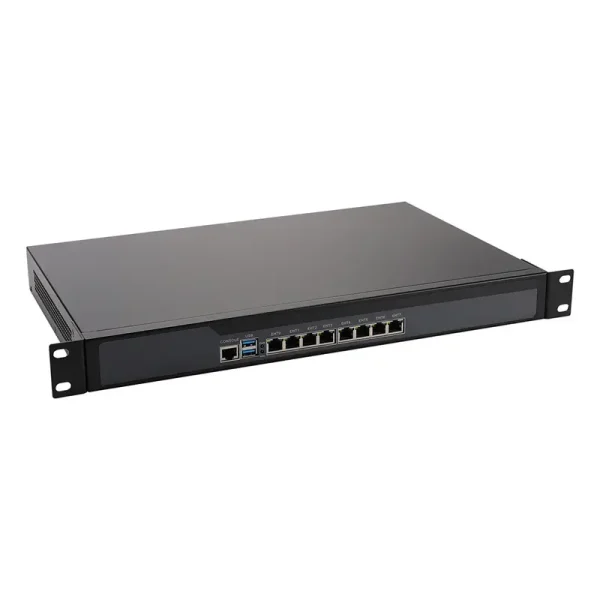

Front Panel 1 x Console
2 x USB3.0
8 x LAN

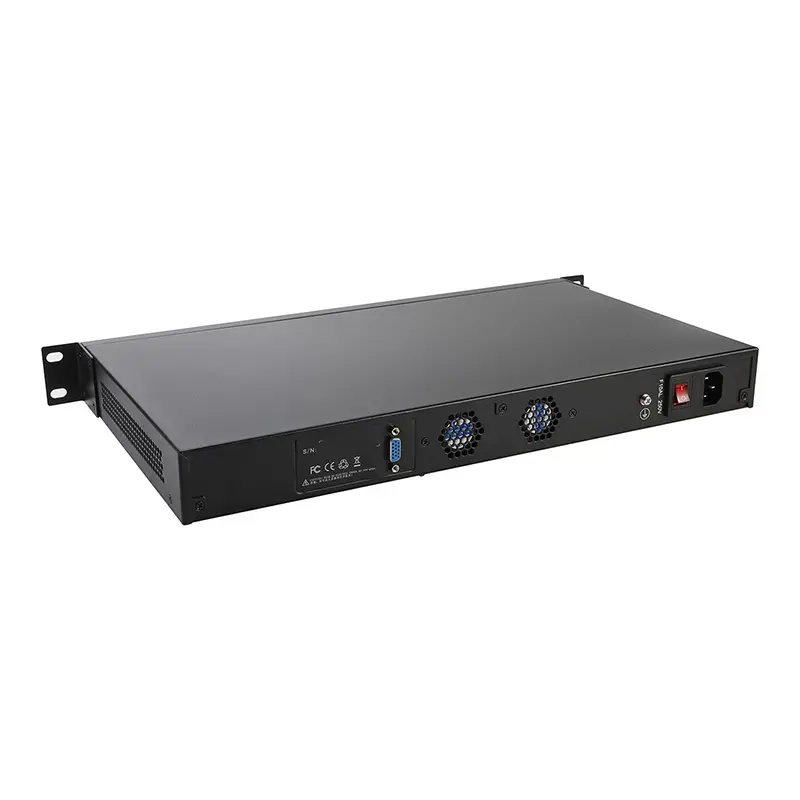

Rear Panel 1 x VGA
1 x Power switch
1 x ATX power socket


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Smart fan
Power Supply 50W 12V 4.2A, 110-240V 50/60Hz
100W 100V-240V 50Hz/60Hz
Packing List RS14 firewall appliance, rack ears, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NFA-RS14 Series





* Ordering Information *




Model



Processor



Intel® AES New Instructions



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

RS14-B950 B950 No Intel® HD Graphics 2.10 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 8 2 100W
RS14-2328M I3 2328M No Intel® HD Graphics 3000 2.20 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 8 2 100W
RS14-2350M I3 2350M No Intel® HD Graphics 3000 2.30 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 8 2 100W
RS14-2367M I3 2367M No Intel® HD Graphics 3000 1.40 GHz 17 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 8 2 50 W
RS14-3110M I3 3110M/3120M No Intel® HD Graphics 4000 2.40 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 8 2 100W
RS14-2520M I5 2520M Yes Intel® HD Graphics 3000 2.50~3.20 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 8 2 100W
RS14-2467M I5 2467M Yes Intel® HD Graphics 3000 1.60~2.30 GHz 17 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 8 2 50 W
RS14-3320M I5 3320M Yes Intel® HD Graphics 4000 2.60~3.30 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 8 2 100W
RS14-2620M I7 2620M/2640M Yes Intel® HD Graphics 3000 2.70~3.40 GHz 35 W VGA 1 x SO-DIMM DDR3 1 x 2.5 inch/1 x M-SATA 8 2 100W
RS14-3520M I7 3520M Yes Intel® HD Graphics 4000 2.90~3.60 GHz 35 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 8 2 100W
RS14-3517U I7 3517U Yes Intel® HD Graphics 4000 1.90~3.00 GHz 17 W VGA 1 x SO-DIMM DDR3/DDR3L 1 x 2.5 inch/1 x M-SATA 8 2 50W



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, rack mounting type etc

Optional Accessories:

Memory: 2G/4G/8G DDR3/DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc
