IEC-IM09 Series

Industrial PC 10th Gen I5 1035G1/ I7 1065G7, SIM 4G, 2 COM, 4K 60Hz

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective industrial embedded mini PC. Compact, space-saving, built-in intelligent cooling fan, stable operation, low power consumption and energy saving. Applicable to a wide range of industrial applications: 7 x 24 hours of stable work, strong computing power, and can better meet industrial needs. Not afraid of various harsh environments: dustproof, shockproof, good corrosion resistance, strong anti-interference, wide temperature design. Suitable for industrial automation, medical care, logistics and transportation, electronic education etc.


Key Features


IEC-IM09 Series Intel® Core™ Gen 10th I5 1035G1/I7 1065G7 BGA  Processor and Intel® SOC Chipset

IEC-IM09 Series Rich I/O: 4 x USB3.0, 4 x USB2.0, 2 x LAN, 2 x HDMI, 2 x COM, Optical, Audio, DC, SW

IEC-IM09 Series Dual SODIMMs for up to 64GB DDR4 Memory

IEC-IM09 Series Rich Storage: mSATA SSD, M.2 2280 NVME, 2.5 Inch  SSD/HDD

IEC-IM09 Series Embedded Expansion: PCIe for WiFi/4G, with SIM Slot




Key Functions


IEC-IM09 Series Support first-class temperature control ensures 24h/7 days without shutting down

IEC-IM09 Series Support 12V green and environmentally friendly, only 15W to 25W power for daily use

IEC-IM09 Series Support Smart silent fan

IEC-IM09 Series Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume By Alarm, PxE Lan boot functions

IEC-IM09 Series Support dual screen (2 x HDMI 4k @60Hz) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 220 x 170 x 55mm
Weight 2.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop


Motherboard

CPU Intel® Core™ i5-1035G1 Processor (6M Cache, up to 3.60 GHz)
Intel® Core™ i7-1065G7 Processor (8M Cache, up to 3.90 GHz)
Chipset SOC
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SO-DIMM DDR4, up to 64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (NVME)
Expand 2 x Mini PCIE slot (WiFi/4G), with sim slot onboard


I/O Interfaces

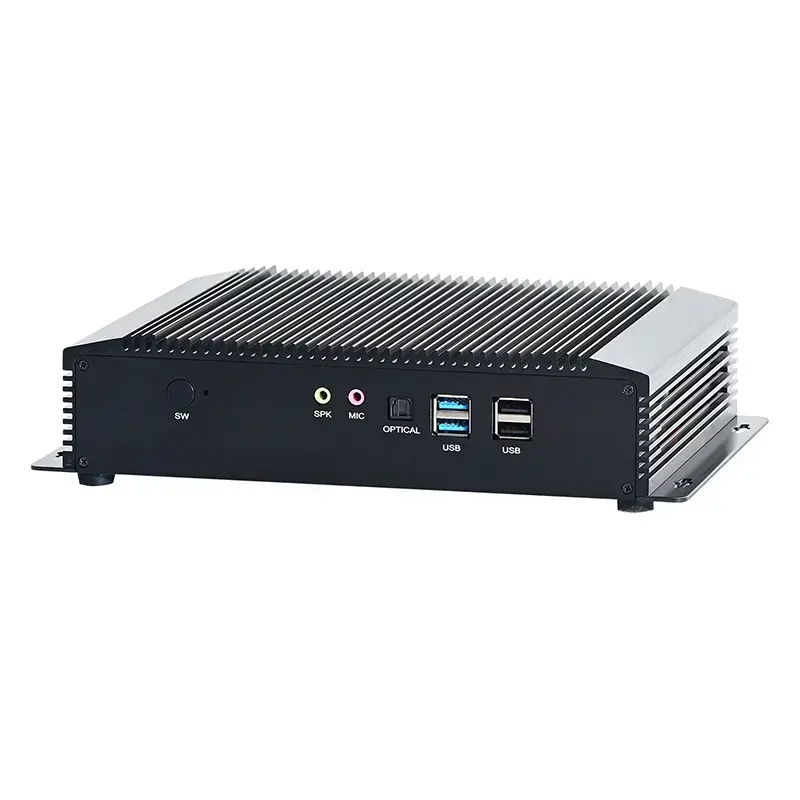

Front Panel 1 x Power button
1 x Audio
1 x Optical
2 x USB3.0
2 x USB2.0

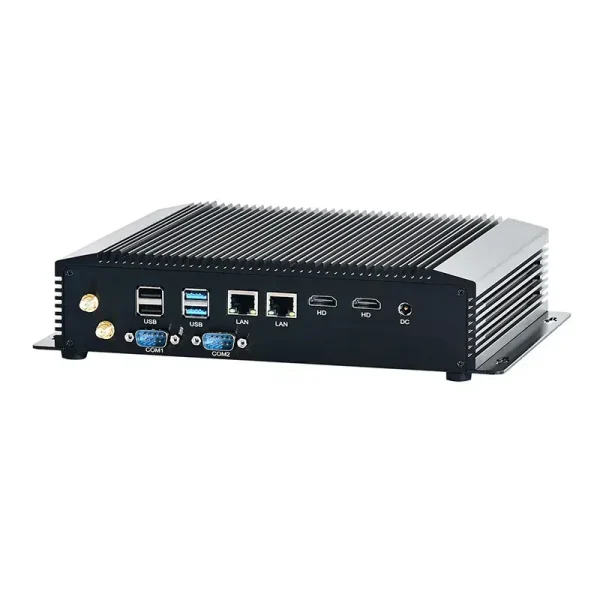

Rear Panel 1 x DC_in
2 x HDMI
2 x Lan
2 x USB3.0
2 x USB2.0
2 x COM RS232
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

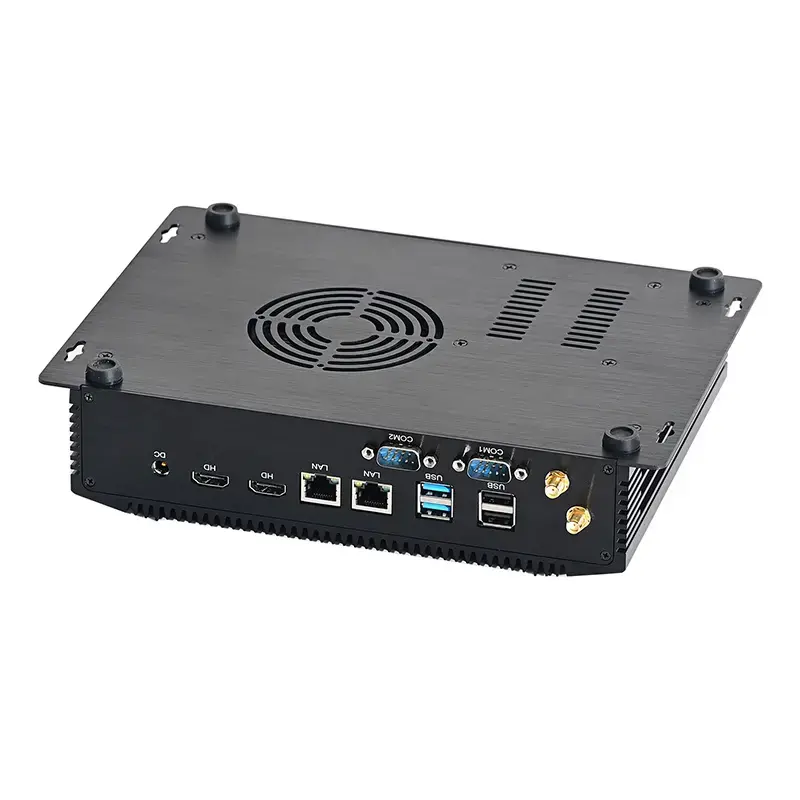

Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 12V/5A
Packing List IM09 industrial pc, power supply, power cord, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification IEC-IM09 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



COM



Power

IM09-1035G1 I5 1035G1 Intel® UHD Graphics 1.0~3.6 GHz 15 W  2 x HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (NVME) 2 8 2 12V/5A
IM09-1065G7 I7 1065G7 Intel® Iris® Plus Graphics 1.3~3.9 GHz 15 W  2 x HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (NVME) 2 8 2 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, wall-mounted, embedded type etc

Optional Accessories:

Memory: 4G/8G/16G/32G/64G DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
