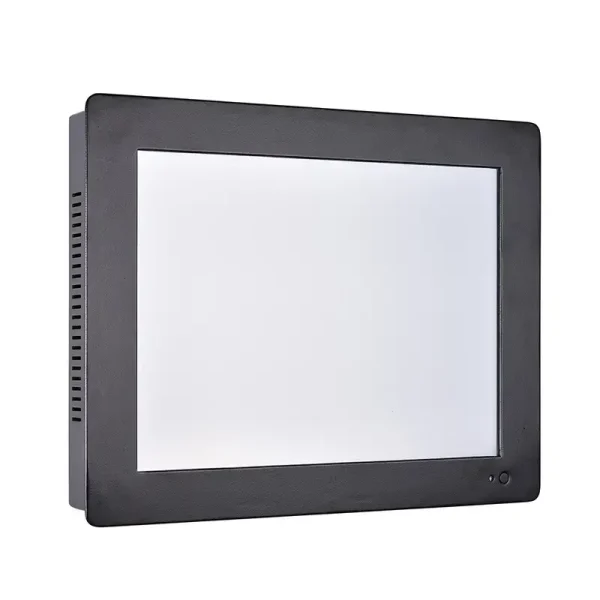

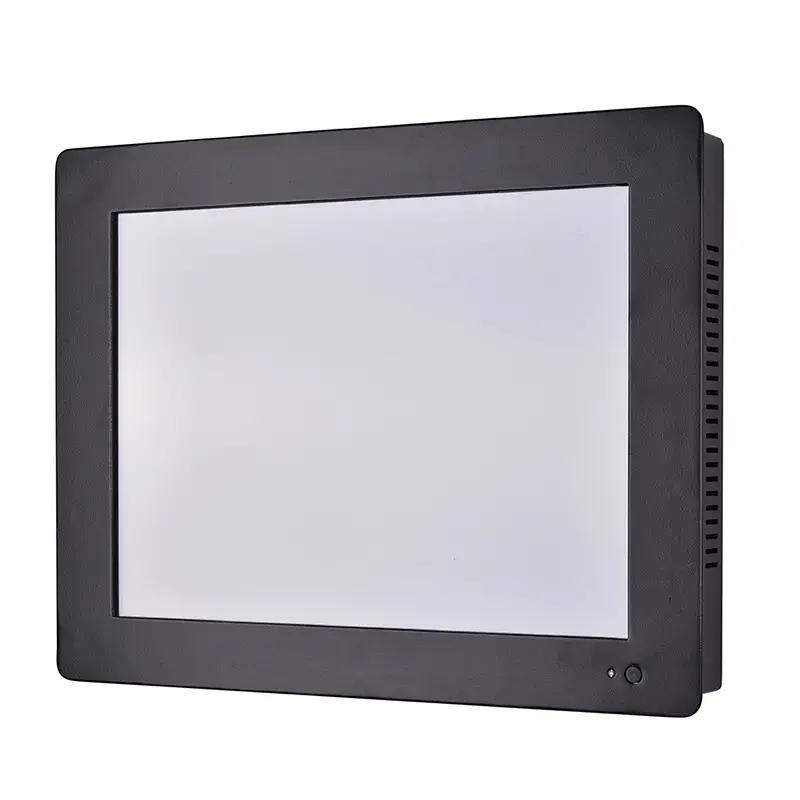

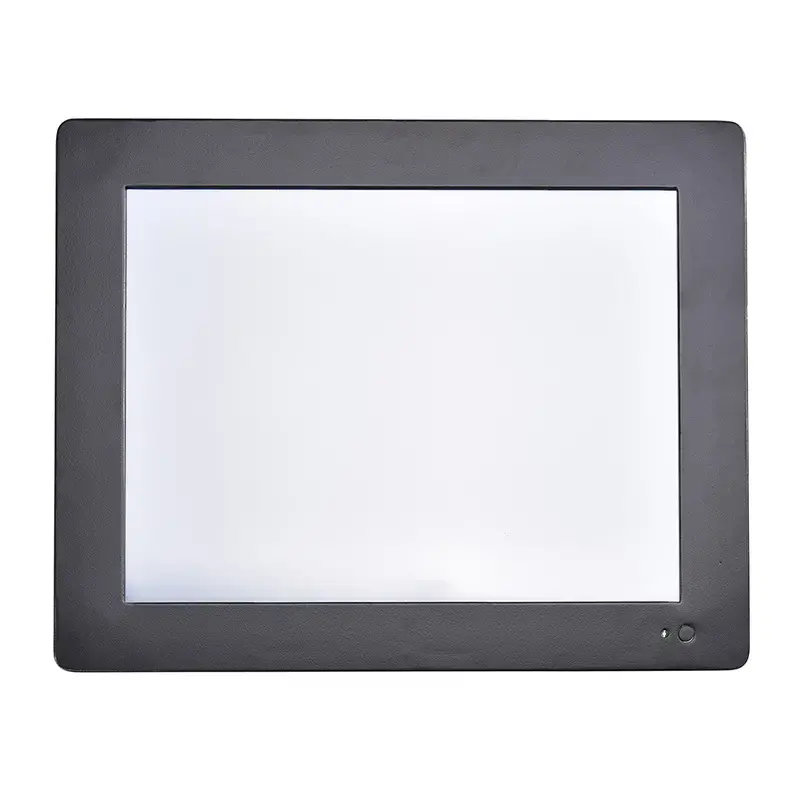

TPC-PW11 Series

12.1 Inch All in One Touch Panel Industrial PC, Intel Celeron/ I5/ I7, 4/5 Wires Resistive

For product pricing, customization, or other inquiries:

Share to:




It is the cost-effective 12.1 inch led industrial panel computer. It is available to choose the intel celeron or core processor. The compact embedded system can provide high-performance computing. High durability design, supports 2 to 3 serial ports, 6 USB ports and 1 gigabit ethernet port to meet various industrial applications.

Key Features

TPC-PW11 Series Industrial grade 12.1 inch LED, 2MM Ultra-Thin Panel

TPC-PW11 Series Rich I/O: DC-IN, VGA, 3 x COM, 6 x USB2.0, LAN, Audio (I3/I5/I7 with VGA and HDMI, 2 x COM)

TPC-PW11 Series Single SODIMM for up to 8GB DDR3L Memory

TPC-PW11 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

TPC-PW11 Series Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot onboard


Key Functions

TPC-PW11 Series Support diskless boot

TPC-PW11 Series Support automatic boot after power failure

TPC-PW11 Series Support wake on Lan

TPC-PW11 Series Support watchdog for 256-level

TPC-PW11 Series Support 4G network module with sim slot onboard





Panel 2mm ultra thin embedded panel
Colour Black
Opening Hole Size 297 x 235.5mm (L x W)
Size 309.1 x 247.5 x 54mm
Weight 4Kgs
Installation Method Standard VESA screw hole (75 x 75 or 100 x 100mm) for flexible installation, vesa mount for optional
Embedded (recommended)/wall-mounted/desktop/cantilevered etc

LCD Display

Display Type Industrial grade 12.1 inch LED
Resolution 1024 x 768
Lumens (cd/m2) 300
Contrast 700

Touch Screen

Touch Type Made-in-china 4-wire resistive touch screen
Taiwan imported 5-wire high temperature resistive touch screen
Durability (Number of Touches) > 1 million times


CPU Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)
Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz)
Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i7-3537U Processor (4M Cache, up to 3.10 GHz)
4th/6th Gen I5/I7 optional
Chipset Intel SOC
Watchdog Timer 255 levels
Network Card 1 x Realtek 8111E gigabit lan
WiFi and Bluetooth N/A, optional to add
Memory 1 x SO-DIMM DDR3L, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE for WiFi/4G, with sim slot

I/O Interfaces

Front Panel 1 x Power switch

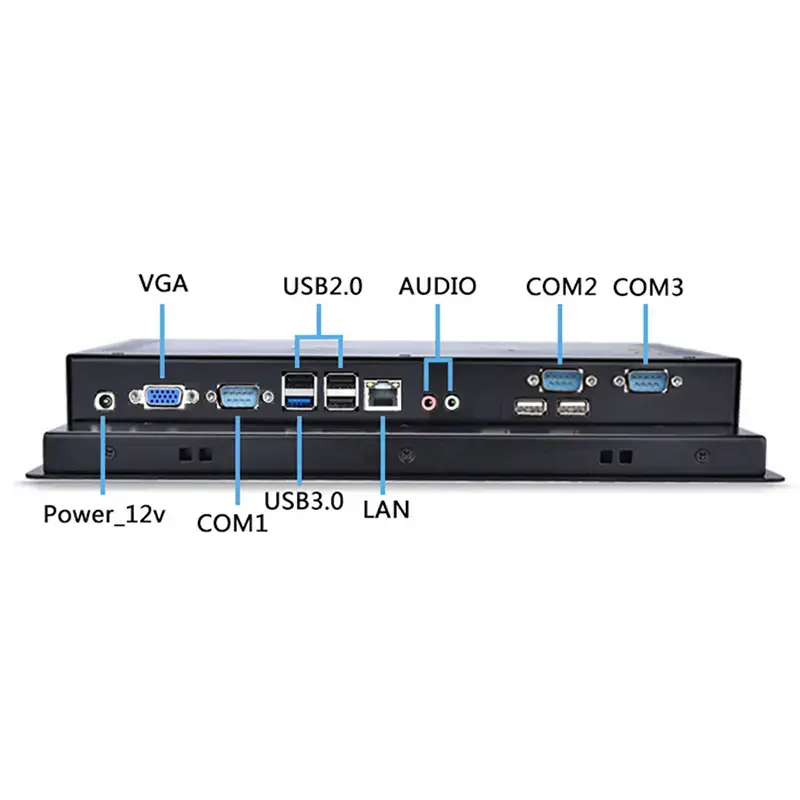

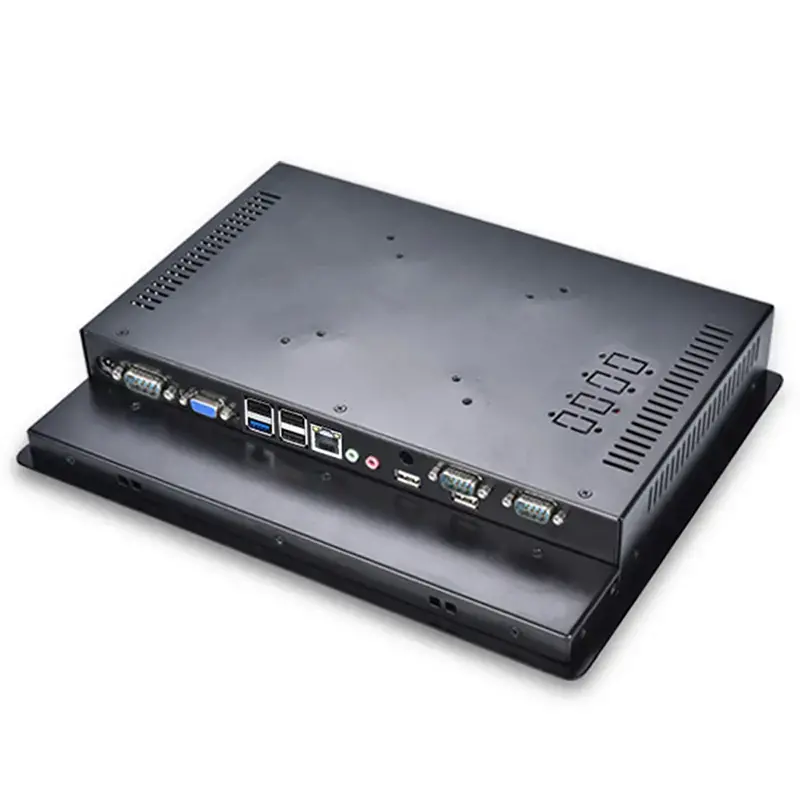

Rear Panel
1 x DC_in
1 x VGA
3 x COM
6 x USB2.0
1 x Lan
1 x Audio
Rear Panel
1 x DC_in
1 x HDMI
1 x VGA
6 x USB2.0
1 x Lan
1 x Audio
2 x COM

Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


Cooling Mode Fanless/Smart fan
Power Supply DC100-240V AC/50-60Hz, DC 12V 4A-5A
Packing List PW11 industrial touch panel pc, power supply, power cord, touch pen, embedded buckles, warranty card


Operating Temperature -10℃~50℃ surface air flow
Storage Temperature -20℃~60℃
Working Humidity 10 ~ 95% @ 40°C (non-condensing)
Certification TPC-PW11 Series

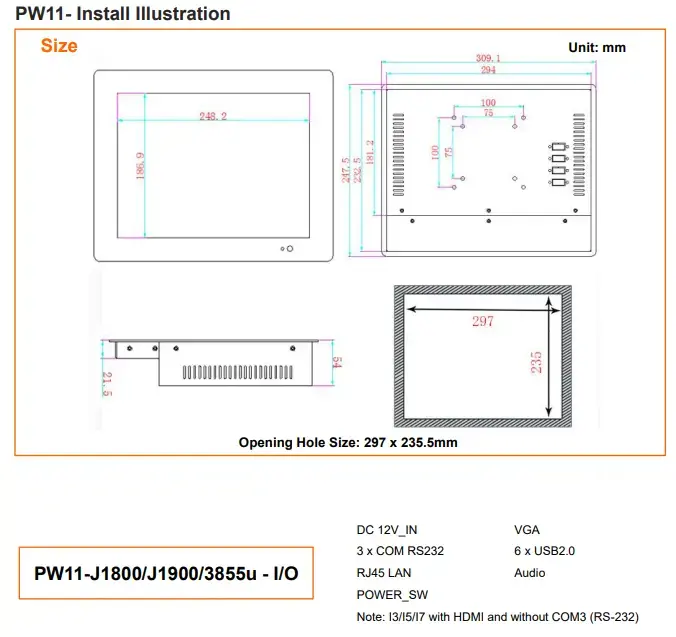

Panel PC PW11 Install


* Ordering Information *






Cooling System





















PW11-J1800 Celeron J1800 Fanless Intel® HD Graphics 2.58~2.41 GHz 10 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 3 12V/4A
PW11-J1900 Celeron J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz 10 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 3 12V/4A
PW11-3855U Celeron 3855U Smart fan Intel® HD Graphics 510 1.60 GHz 15 W VGA 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 3 12V/4A
PW11-3317U I5 3317U Smart fan Intel® HD Graphics 4000 1.70~2.60 GHz 17 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 2 12V/5A
PW11-3537U I7 3537U Smart fan Intel® HD Graphics 4000 2.00~3.10 GHz 17 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 1 4 2 12V/5A


* Supplemental Information *


Installation Method:  Support multiple fixing methods such as embedded (recommended)/wall-mounted/desktop/cantilevered etc

Optional Accessories:

Memory: 2G/4G/8G DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 4A/5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard


embedded box pc with intel j4125
pfsense appliance with intel celeron quad core j1900
intel nuc 10 mini pc gen 10th

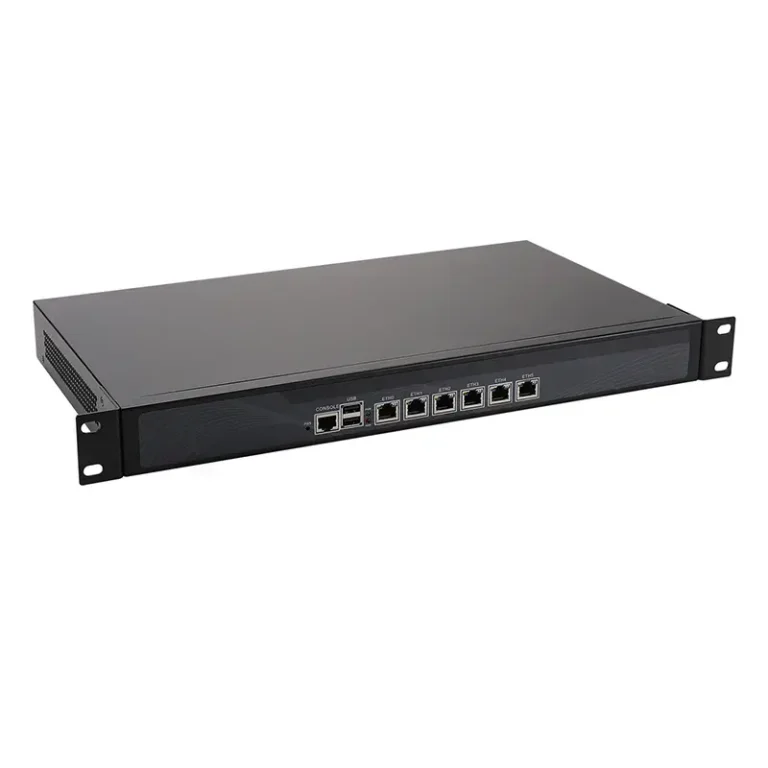

router pc with intel 4405u
