FMC-BM17 Series

Fanless Mini PC with Intel I5 7260U 7267U, 2 x Lan, DP, HDMI, 4G

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the high-efficiency mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving. Processing video clips, rendering special effects, modeling and synthesis, etc. more efficient.


Key Features


FMC-BM17 Series Intel® 7th Gen Intel® Core™ i5 BGA Processor and Intel® SOC Chipset

FMC-BM17 Series Rich I/O: 2 x LAN, DP, HDMI, 4 x USB 3.0, 4 x USB 2.0, Optical, SD Card Reader

FMC-BM17 Series Dual SODIMMs for up to 32GB DDR4 Memory

FMC-BM17 Series Rich Storage: mSATA SSD, M.2 2280 NVME SSD, 2.5 Inch SSD/HDD

FMC-BM17 Series Embedded Expansion: PCIe for WiFi, SIM Slot Optional for Customization




Key Functions


FMC-BM17 Series Support diskless boot

FMC-BM17 Series Support Restore AC Power Loss

FMC-BM17 Series Support dual screen (DP and HDMI) for simultaneous display or synchronous different display

FMC-BM17 Series Support HDMI 1.4 4K: 4096×2304@30Hz, DP 1.2 4K: 4096×2304@60Hz





Specifications




Mechanical

Material Aluminum alloy
Colour Silver
Size 200 x 170 x 45mm
Weight 2.5Kgs
Insallation Method Desktop type/vesa mounting

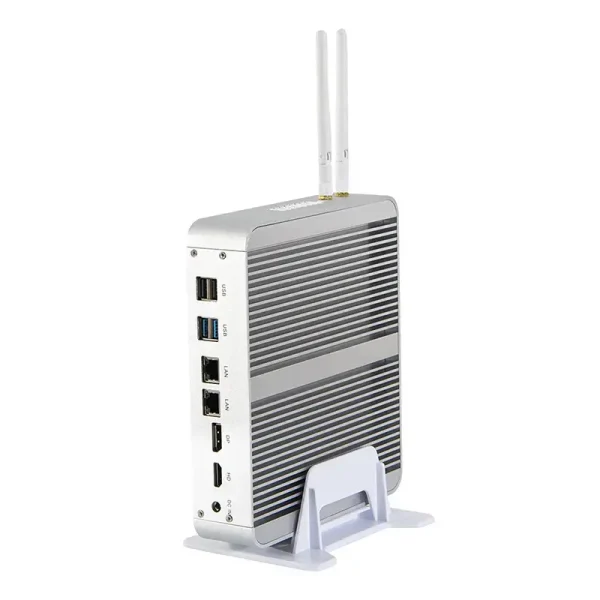

With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Core™ i5-7260U/7267U Processor (4M Cache, up to 3.40 GHz)
Chipset SOC
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 32GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (NVME)
Expand 1 x PCIE WiFi slot
1 x Full size PCIE (SIM slot optional for customization)


I/O Interfaces

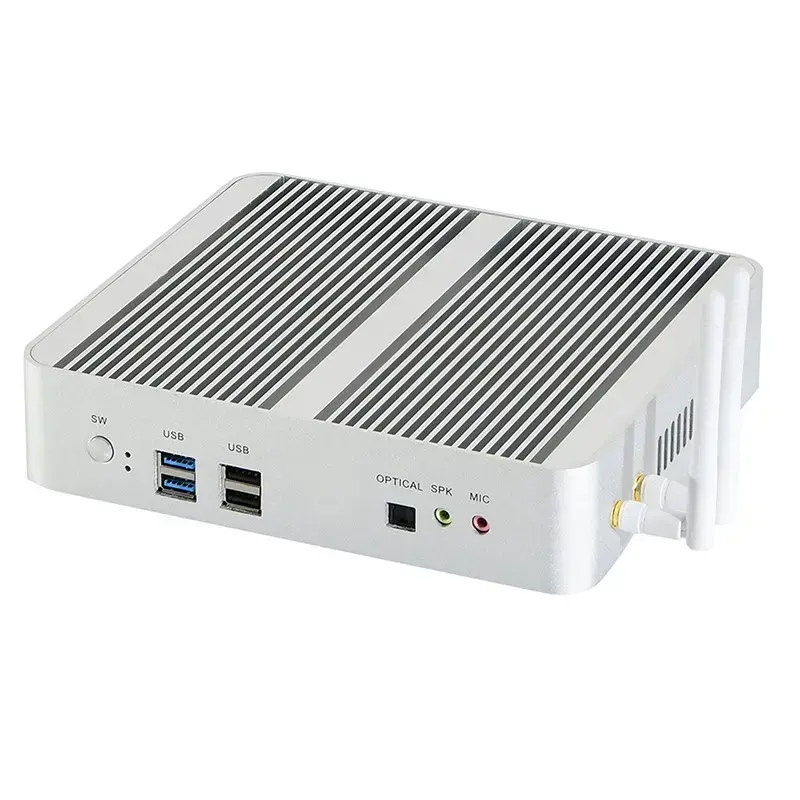

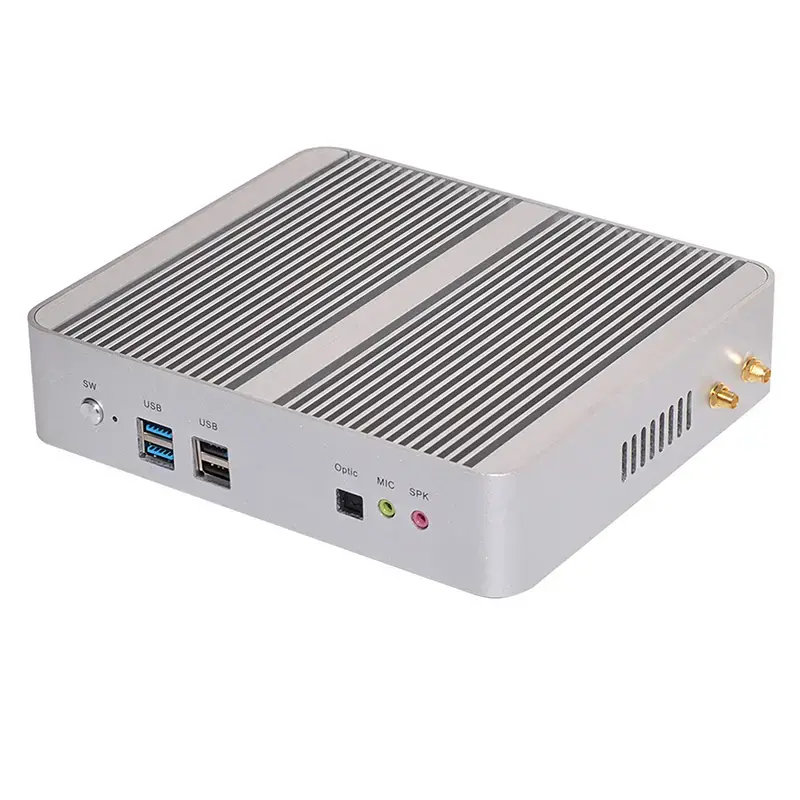

Front Panel 1 x Power button
2 x USB3.0
2 x USB2.0
1 x Optical
1 x Audio

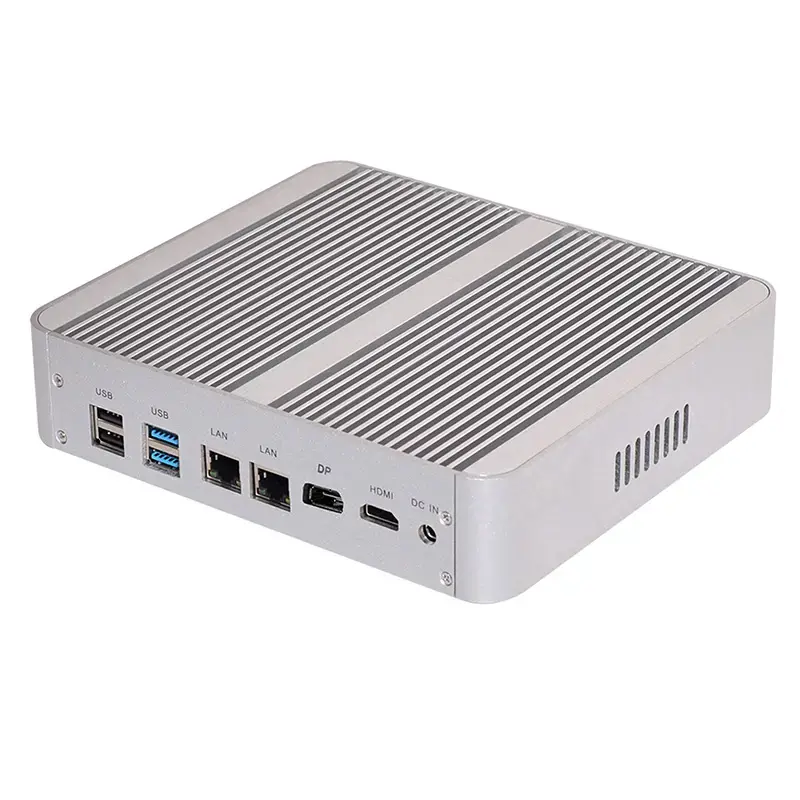

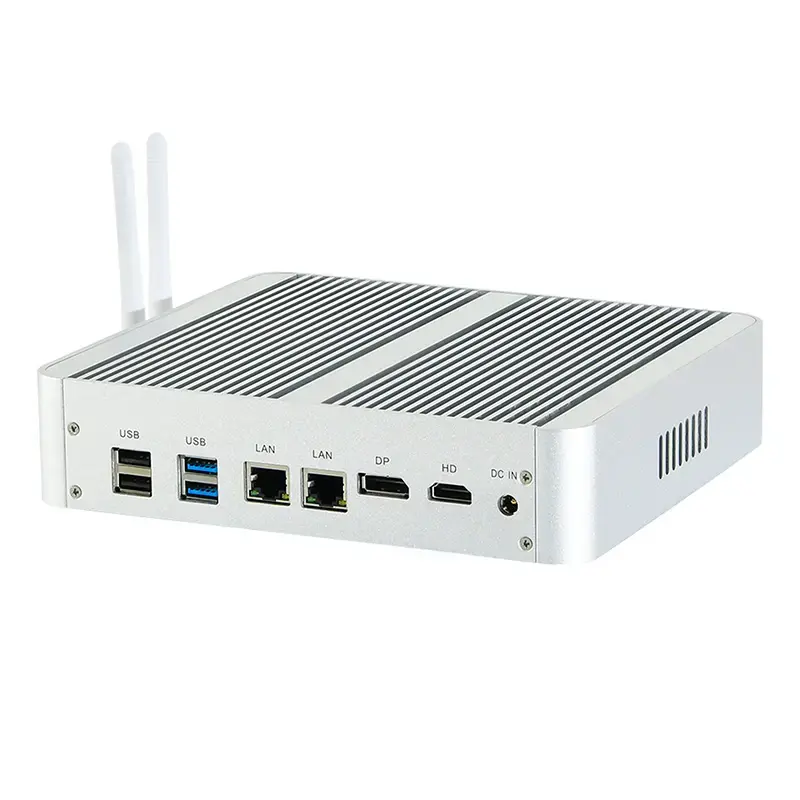

Rear Panel 1 x DC_in
1 x HDMI
1 x DP
2 x Lan
2 x USB3.0
2 x USB2.0
Side Panel 2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 19V/5A
Packing List BM17 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification FMC-BM17 Series





* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM17-7260U I5 7260U Intel® Iris® Plus Graphics 640 2.2~3.4 GHz 15 W DP/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (NVME) 2 8 19V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 4G/8G/16G/32G DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 19V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
