FMC-BM20 Series

Fanless Mini PC with 4th/5th Gen I7, 2 x Lan, 2 x HDMI, SIM, Raid

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


FMC-BM20 Series Intel® 4- 5th Gen Intel® Core™ i7 BGA Processor and Intel® QS77 Chipset

FMC-BM20 Series Rich I/O: 2 x COM, 2 x LAN, 2 x HDMI, 4 x USB 3.0, 4 x USB 2.0, Optical, SD Card Reader, Spk, Mic

FMC-BM20 Series Dual SODIMMs for up to 16GB DDR3L Memory

FMC-BM20 Series Rich Storage: mSATA SSD, M.2 2280 SATA/NVME, 2.5 Inch SSD/HDD

FMC-BM20 Series Embedded Expansion: PCIe for WiFi/4G, SIM Slot Optional for Customization




Key Functions


FMC-BM20 Series Support diskless boot

FMC-BM20 Series Support Restore AC Power Loss

FMC-BM20 Series Support dual screen (2 x HDMI) for simultaneous display or synchronous different display

FMC-BM20 Series Support Raid 0, 1, 10, 5





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 220 x 170 x 45mm
Weight 2.5Kgs

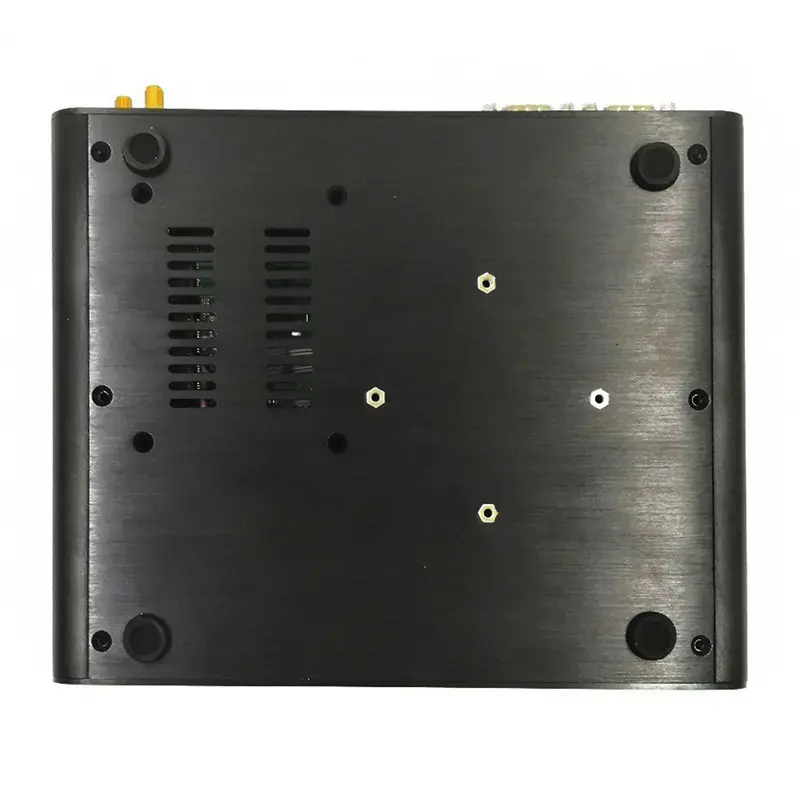

Insallation Method Desktop type/vesa mounting

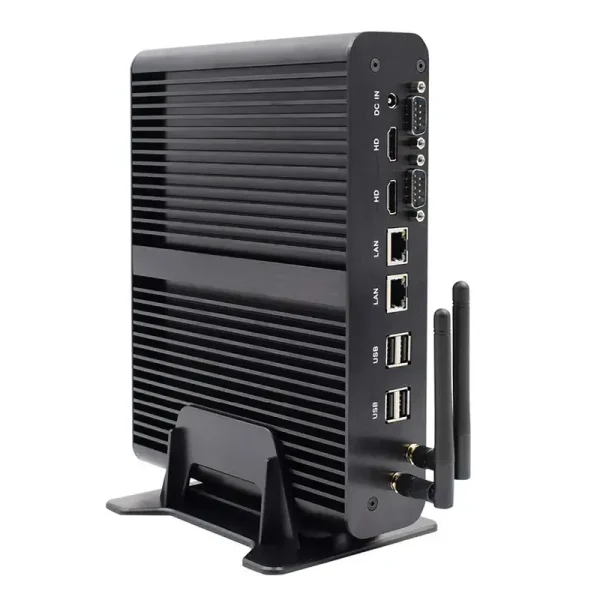

With holding vertical stand, vesa mount as the optional


Motherboard

CPU Intel® Core™ i7-I7 4500U 4650U Processor (4M Cache, up to 3.30 GHz)
Intel® Core™ i7-5500U 5550U Processor (4M Cache, up to 3.00 GHz)
Chipset QS77
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR3L 1333/1600, up to 16GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x Msata
Expand 1 x PCIE WiFi slot
1 x Full size PCIE (SIM slot optional for customization)


I/O Interfaces

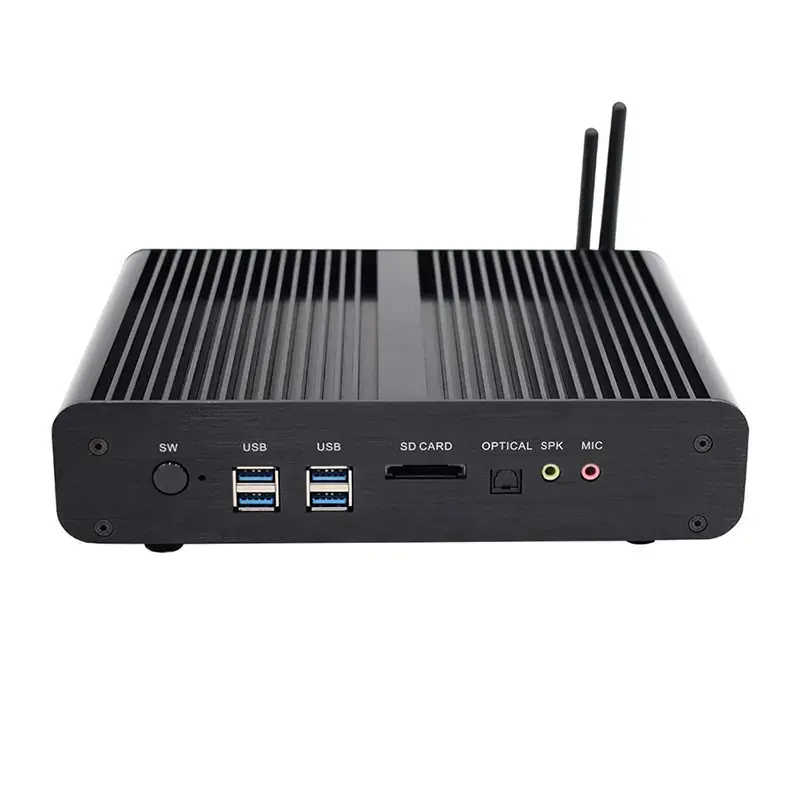

Front Panel 1 x Power button
4 x USB3.0
1 x SD Card Reader
1 x Optical
1 x Audio

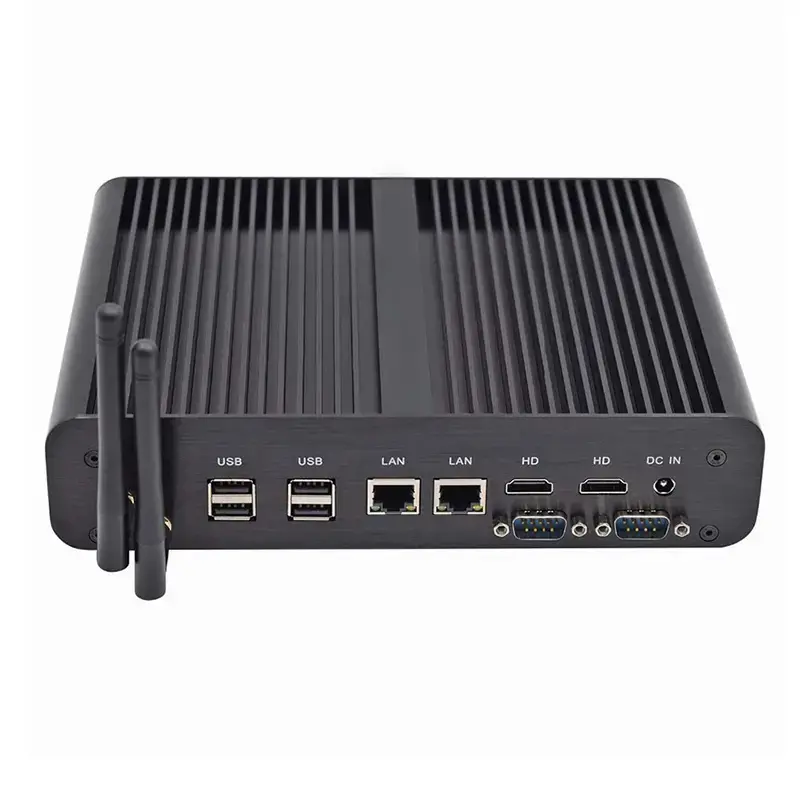

Rear Panel 1 x DC_in
2 x HDMI
2 x Lan
4 x USB2.0
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/5A
Packing List BM20 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification FMC-BM20 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM20-4650U I7 4650U Intel® HD Graphics 5000 1.7~3.3 GHz 15 W 2 x HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 8 12V/5A
BM20-5500U I7 5500U Intel® HD Graphics 5500 2.4~3.0 GHz 15 W 2 x HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 8 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 4G/8G/16G DDR3L RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
