NFA-RS18 Series

1U Network Firewall Appliance, VPN Router Intel J1900, 4 x LAN

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective firewall appliance. Equiped with the high-quality lightning-proof electrostatic motherboard, with the low power consumption and energy saving. The multiple WAN ports can be used for broadband overlay. The product adopts WAN/LAN independent modification mode, which can set multiple WAN broadband overlays, and can use broadband overlays of the same operator.


Key Features


NFA-RS18 Series Intel® Celeron® J1900 BGA Processor and Intel® SOC Chipset

NFA-RS18 Series Rich I/O: RST, Console, 2 x USB2.0, 4 x LAN, VGA, Power switch, ATX power socket

NFA-RS18 Series Single SODIMM for up to 8GB DDR3L Memory

NFA-RS18 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

NFA-RS18 Series Chassis Form: Standard 1U Cabinet Type




Key Functions


NFA-RS18 Series The actual test traffic exceeds 1000m/s

NFA-RS18 Series WAN-LAN Throughput: throughput through 1 gigabit nic from lan to wan forwarding speed is around 500mbps to 800mbps





Specifications




Mechanical

Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 430 x 250 x 50mm
Weight 6Kgs
Installation Method Desktop type/rack mounting


Motherboard

CPU Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipset Intel SOC
Network Card 4 x Intel 82583V/82574L gigabit lan
Intel® AES New Instructions No
Memory 1 x SO-DIMM DDR3L 1333, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA


I/O Interfaces

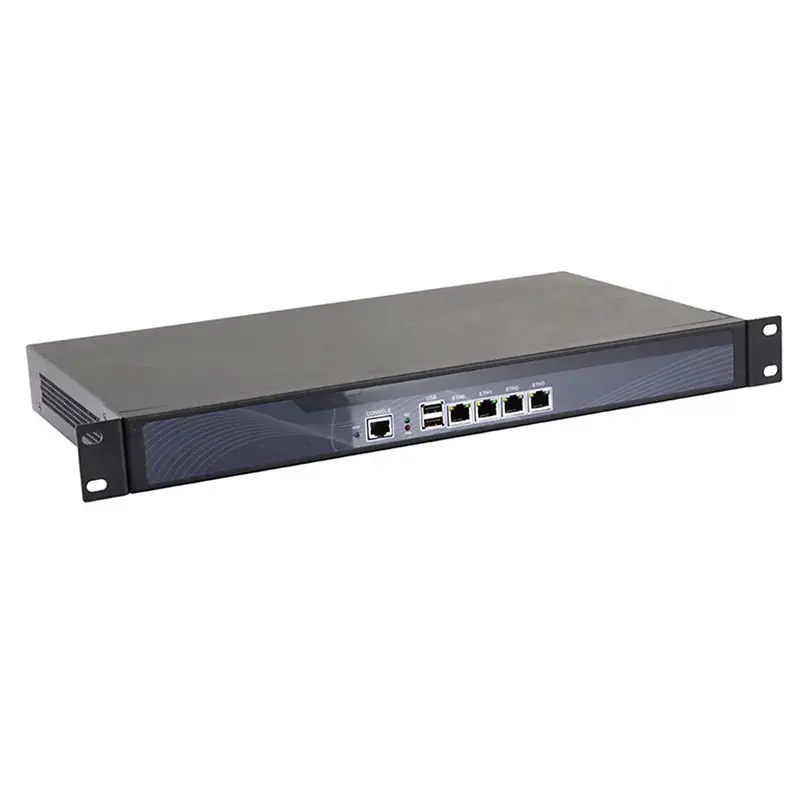

Front Panel 1 x Console
2 x USB2.0
4 x LAN

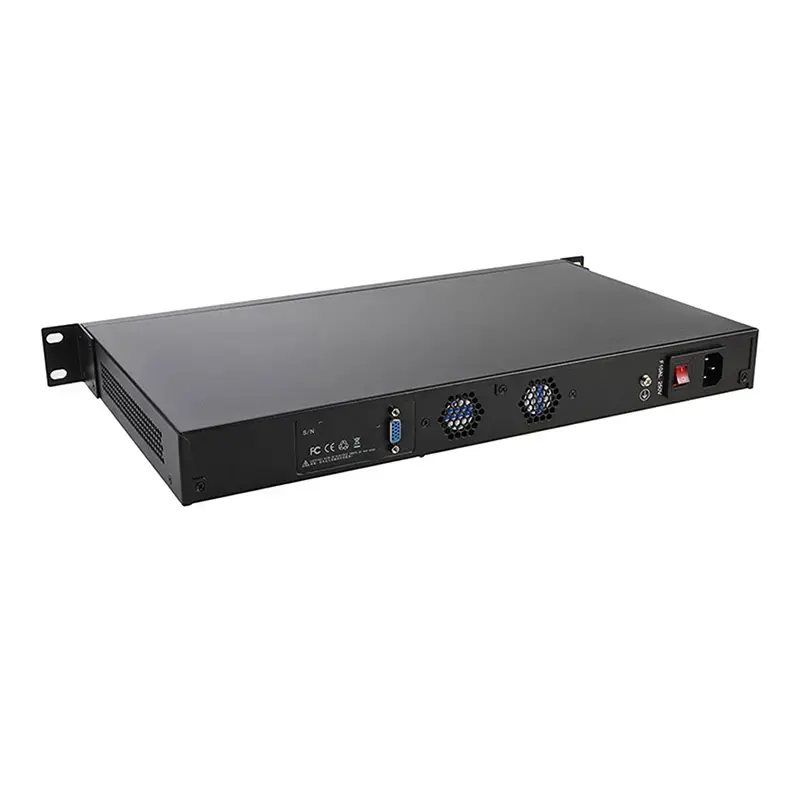

Rear Panel 1 x VGA
1 x Power switch
1 x ATX power socket


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

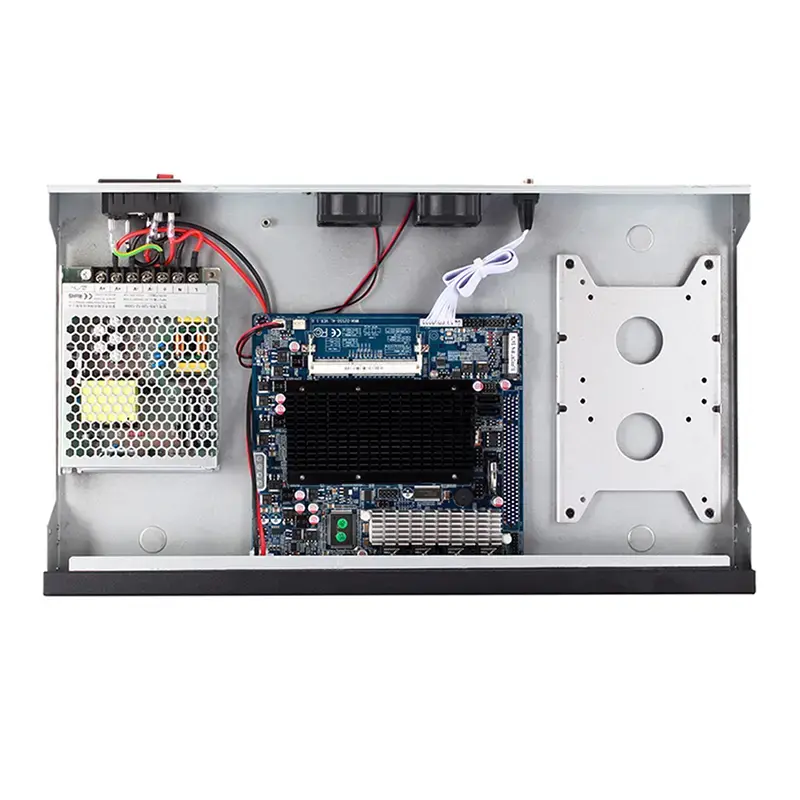

Cooling Mode Fanless motherboard, with 2 reserved fans on chassis
Power Supply 50W 12V 4.2A, 110-240V 50/60Hz
Packing List RS18 firewall appliance, rack ears, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NFA-RS18 Series





* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

RS18-J1900 J1900 Intel® HD Graphics 2.20 ~ 2.42 GHz 10 W VGA 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 4 2 50W



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, rack mounting type etc

Optional Accessories:

Memory: 2G/4G/8G DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc

FEATURED PRODUCTS

industrial touch panel pc with 15 inch
mini pc celeron n3150 n3160 j3160

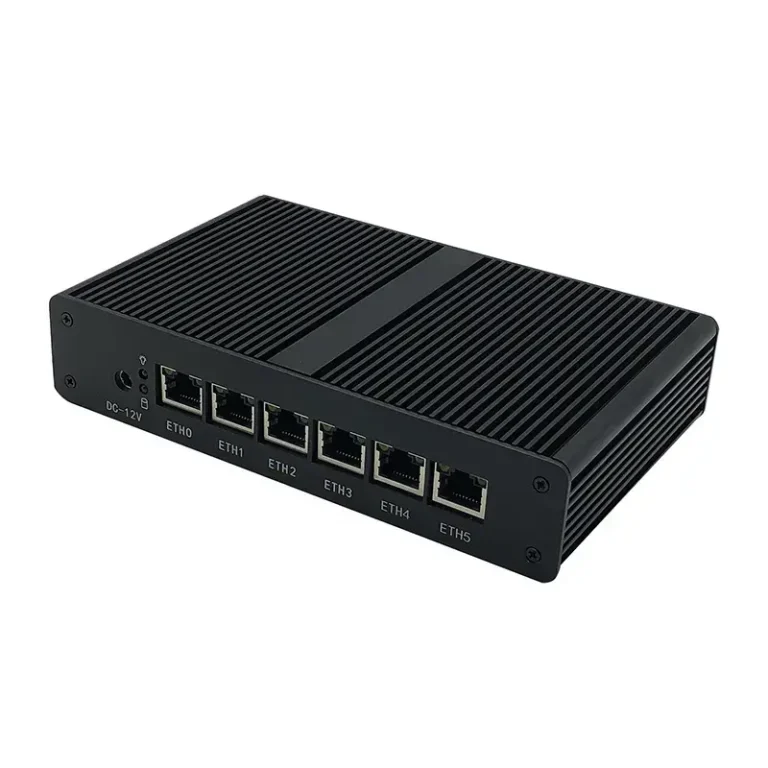

cyber firewall with 6 x lan
