FNR-RS34 Series

Firewall Appliance Router PC Intel N3540/ E3845/ J4125, 4 x LAN

For product pricing, customization, or other inquiries:

Share to:






Overview

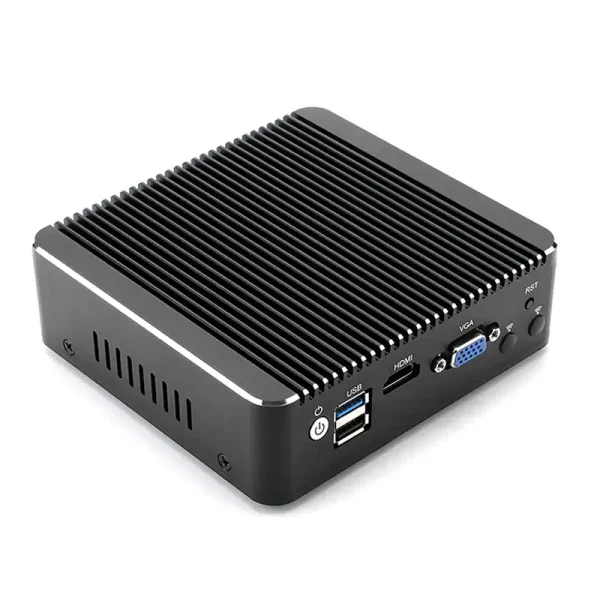

It is the cost-effective firewall appliance router pc. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


FNR-RS34 Series Intel® Pentium®/Atom®/Celeron™ BGA Processor and Intel® SOC Chipset

FNR-RS34 Series Rich I/O: 4 x LAN, DC-in, Power Button, USB3.0, USB2.0, HDMI, VGA, RST

FNR-RS34 Series Single/Dual SODIMMs for up to 8GB DDR3L/DDR4 Memory

FNR-RS34 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

FNR-RS34 Series Embedded Expansion: Mini PCIe for WiFi/4G, with SIM Slot




Key Functions


FNR-RS34 Series Support diskless boot

FNR-RS34 Series Support Restore AC Power Loss

FNR-RS34 Series Support Wake on LAN





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 126 x 134 x 40.6mm
Weight 1.2Kgs
Installation Method Desktop type/vesa mounting
vesa mount as the optional


Motherboard

CPU Intel® Pentium® Processor N3540 (2M Cache, up to 2.66 GHz)
Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)
Intel® Celeron® Processor J4125 (4M Cache, up to 2.70 GHz)
Chipset Intel SOC
Network Card 4 x Intel I211 gigabit lan / 4 x Intel 2.5GbE I225-V b3
Intel® AES New Instructions Yes (N3540 No)
Memory 1 x SO-DIMM DDR3L 1333, up to 8GB RAM
2 x SO-DIMM DDR4, up to 16GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot, 1 x SIM Slot (J4125 No SIM)


I/O Interfaces

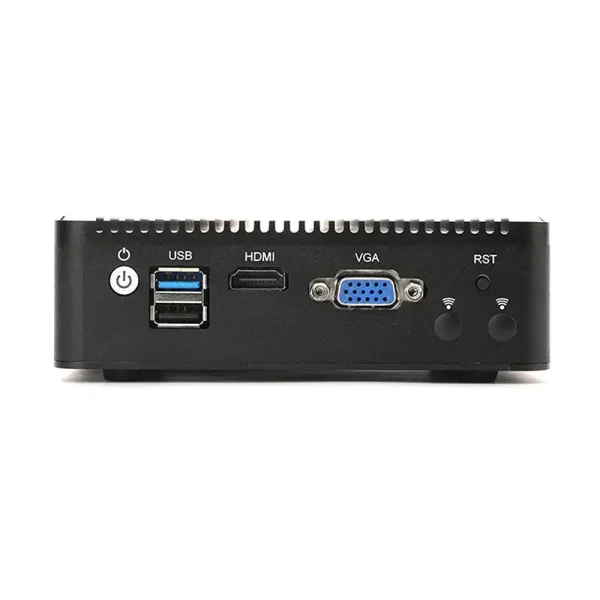

Front Panel 1 x Power button
1 x USB3.0
1 x USB2.0
1 x HDMI
1 x VGA
1 x RST

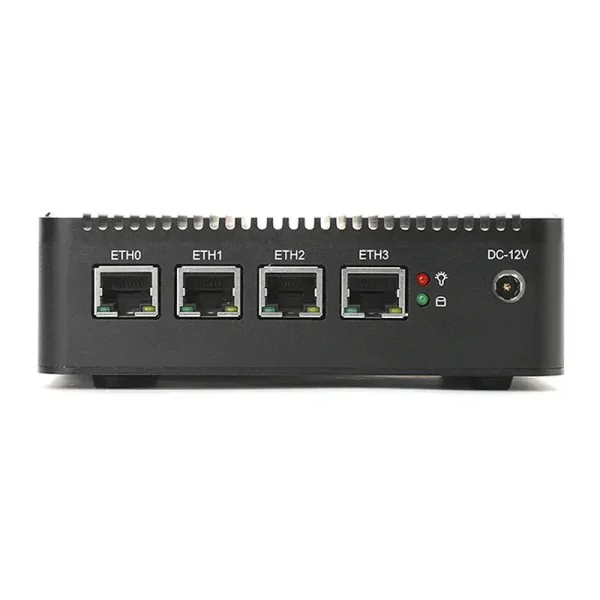

Rear Panel 1 x DC_in
4 x LAN


Software Support

Bios AMI bios
System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 3A
Packing List RS34 firewall appliance, power supply, power cord, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification FNR-RS34 Series





* Ordering Information *


Model Processor Intel® AES New Instructions Graphics Frequency TDP Display Memory Storage LAN USB Power
RS34-N3540 N3540 No Intel® HD Graphics 2.16~2.66 GHz 7.5 W VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 4 x Intel I211 2 12V/3A
RS34-E3845 E3845 Yes Intel® HD Graphics 1.91 GHz 10 W VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 4 x Intel I211 2 12V/3A
RS34f-J4125 J4125 Yes Intel® UHD Graphics 600 2.00~2.70 GHz 10 W VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 4 x Intel I210/I211 2 12V/3A
RS34g-J4125 J4125 Yes Intel® UHD Graphics 600 2.00~2.70 GHz 10 W VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 4 x Intel 2.5GbE I225-V b3 2 12V/3A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mount type etc

Optional Accessories:

Memory: 2G/4G/8G DDR3L, 4G/8G/16G DDR4 RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard etc
