IPC-IM10 Series

Fanless Industrial Computer with Celeron J4125, 2 x COM, 2 x RJ45

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective industrial mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


IPC-IM10 Series Intel® Celeron® 2955U and Core I3 4010Y 4020Y BGA Processor and Intel® SOC Chipset

IPC-IM10 Series Rich I/O: 2 x LAN, 2 x COM (RS232), VGA, HDMI, 4 x USB 3.0, Audio

IPC-IM10 Series Single SODIMM for up to 8GB DDR3L Memory

IPC-IM10 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

IPC-IM10 Series Embedded Expansion: Mini PCIe for WiFi




Key Functions


IPC-IM10 Series Support First-class temperature control ensures 24h/7 days without shutting down

IPC-IM10 Series Support 12V green and environmentally friendly

IPC-IM10 Series Support restore AC power loss/LAN PXE boot/WOL

IPC-IM10 Series Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 170 x 125 x 50mm
Weight 1.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop


Motherboard

CPU Intel® Celeron® Processor J4125 (4M Cache, up to 2.70 GHz)
Chipset SOC
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR4, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot


I/O Interfaces

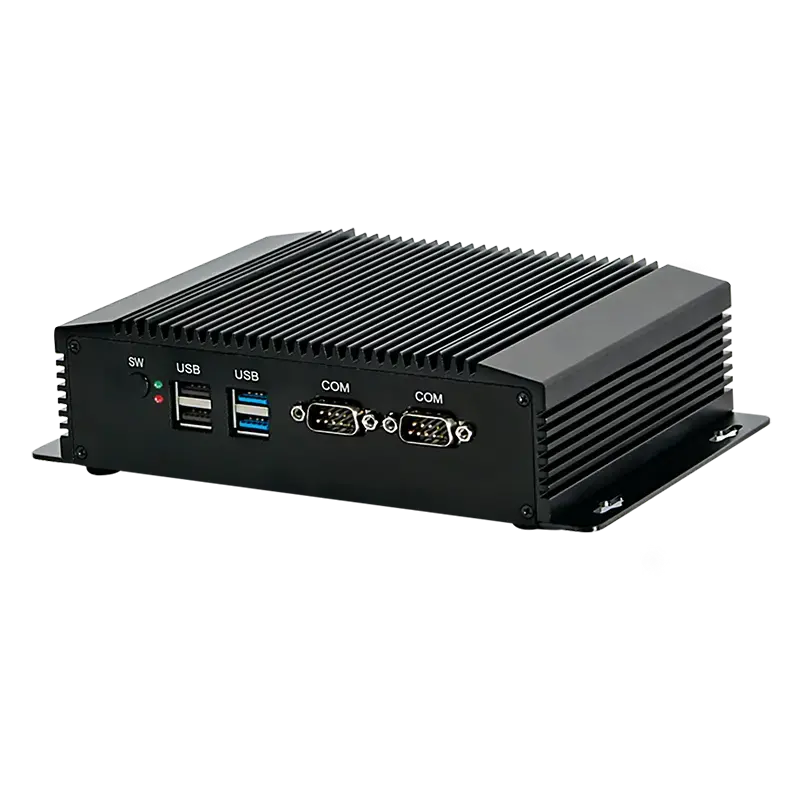

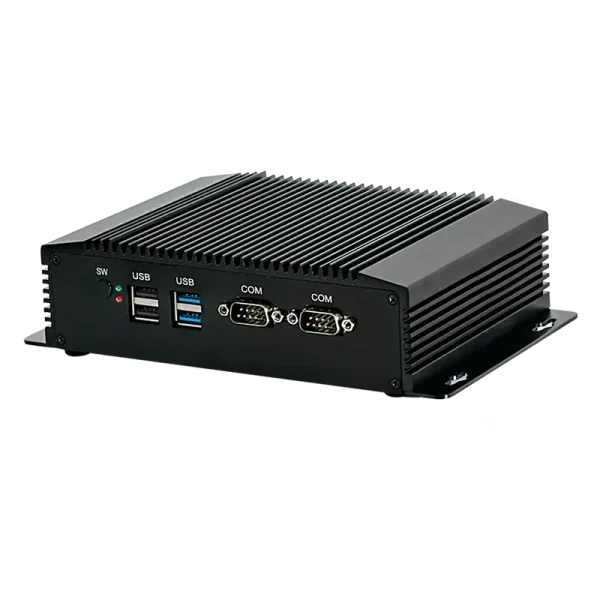

Front Panel 1 x Power button
2 x USB3.0
2 x USB2.0
2 x COM

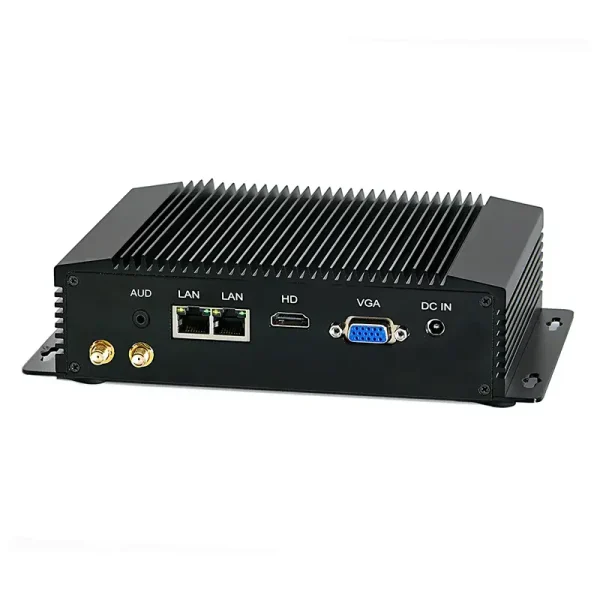

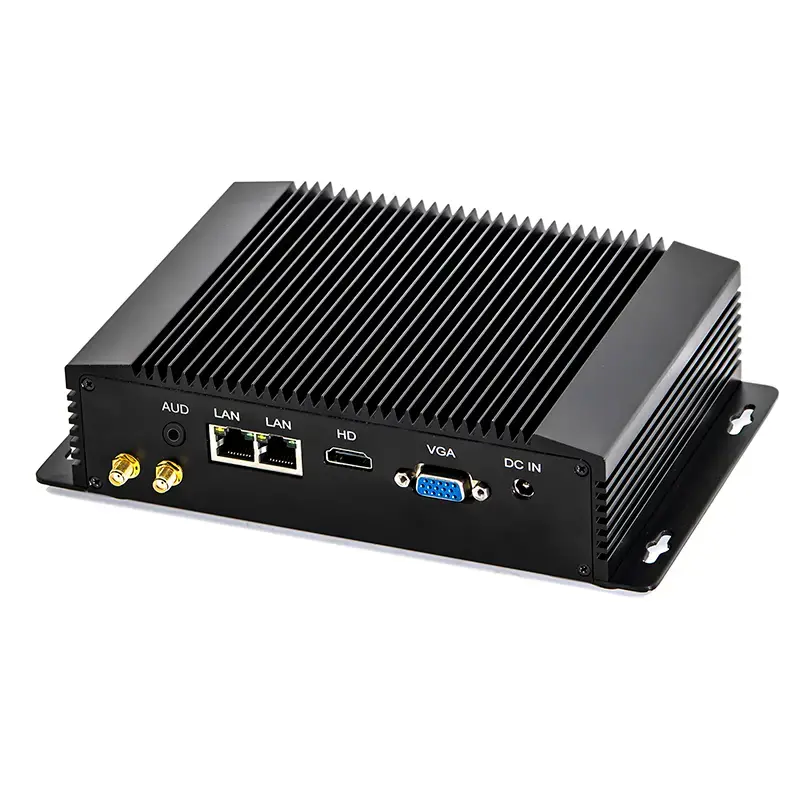

Rear Panel 1 x DC_in
1 x VGA
1 x HDMI
2 x Lan
1 x Audio
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A
Packing List IM10 industrial pc, power supply, power cord, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification IPC-IM10 Series





* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

IM10-J4125 Celeron J4125 Intel® UHD Graphics 600 2.00~2.70 GHz 10 W VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA 2 4 12V/3A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, wall-mounted, embedded type etc

Optional Accessories:

Memory: 4G/8G DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard




FEATURED PRODUCTS

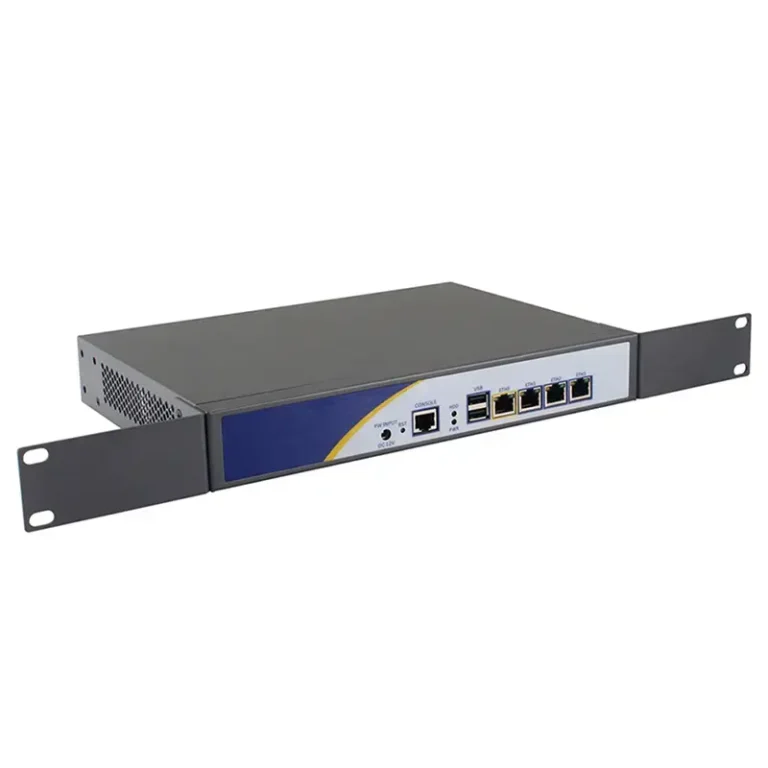

firewall appliance with intel gen 7-8th i3 i5 i7
