NUC-BM19 Series

NUC Mini PC Intel Core I5 6267U/I5 7267U/I7 6650U, VGA, HDMI

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the high-efficiency mini PC. Compact, space-saving, smart silent fan, low power consumption and energy saving. Processing video clips, rendering special effects, modeling and synthesis, etc. more efficient.


Key Features


NUC-BM19 Series Intel® 6-7th Gen Intel® Core™ i5/i7 BGA Processor and Intel® SOC Chipset

NUC-BM19 Series Rich I/O: VGA, HDMI, 4 x USB 3.0, 2 x USB 2.0, LAN, Spk, Mic

NUC-BM19 Series Single SODIMM for up to 8GB DDR3L Memory

NUC-BM19 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

NUC-BM19 Series Embedded Expansion: 2 x PCIe for WiFi




Key Functions


NUC-BM19 Series Support diskless boot

NUC-BM19 Series Support Restore AC Power Loss

NUC-BM19 Series Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display





Specifications




Mechanical

Material Aluminum alloy
Colour Silver
Size 170 x 130 x 48mm
Weight 2.5Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional

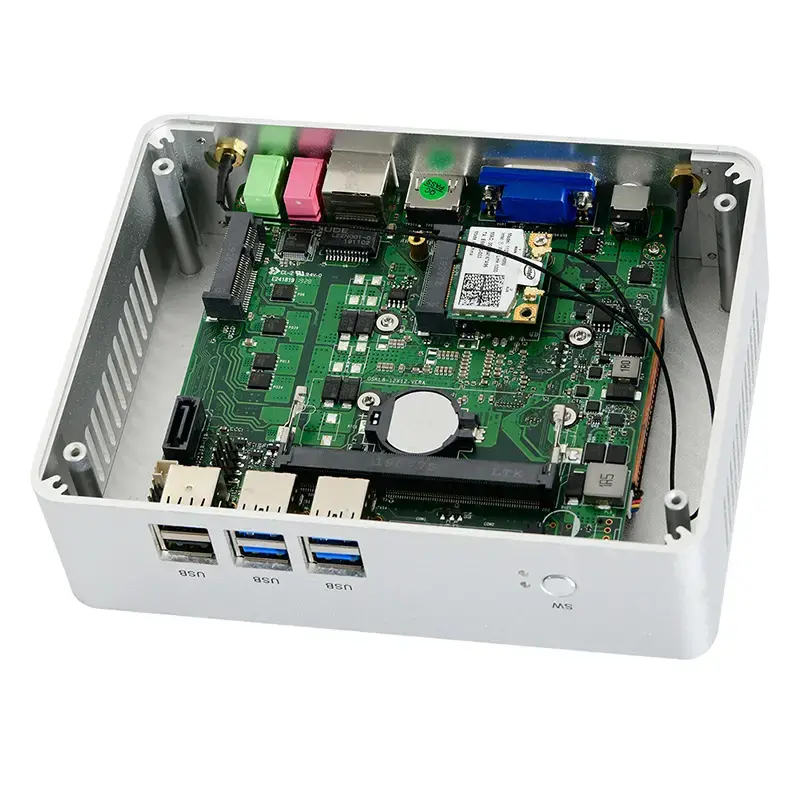

Motherboard

CPU Intel® Core™ i5-6267U Processor (4M Cache, up to 3.30 GHz)
Intel® Core™ i5-7260U/7267U Processor (4M Cache, up to 3.40 GHz)
Intel® Core™ i7-6650U Processor (4M Cache, up to 3.40 GHz)
Chipset SOC
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SODIMM DDR3L-1600, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 2 x PCIE WiFi slot (half size and full size)


I/O Interfaces

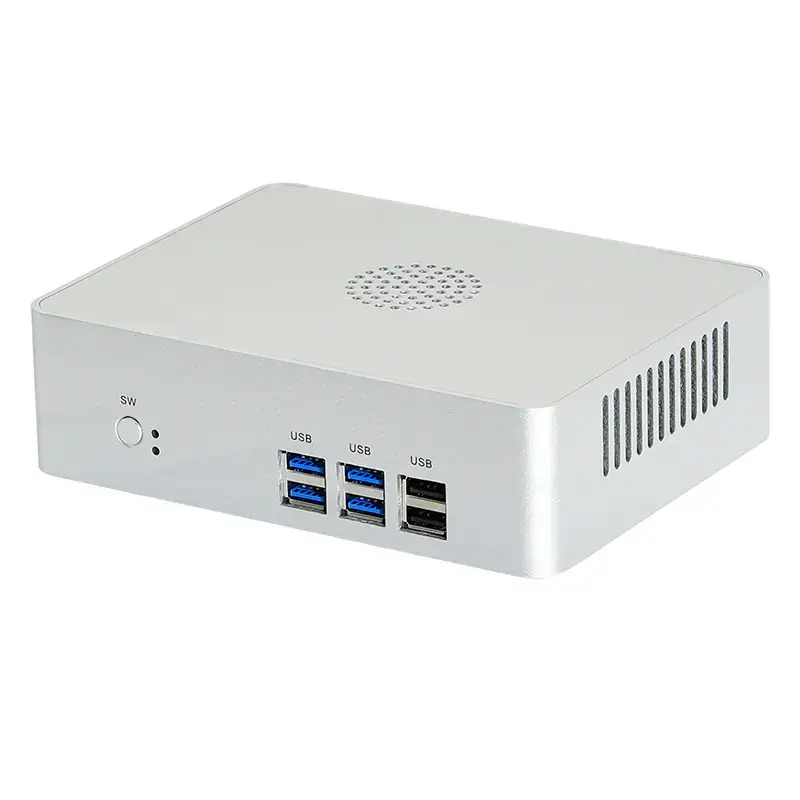

Front Panel 1 x Power button
4 x USB3.0
2 x USB2.0

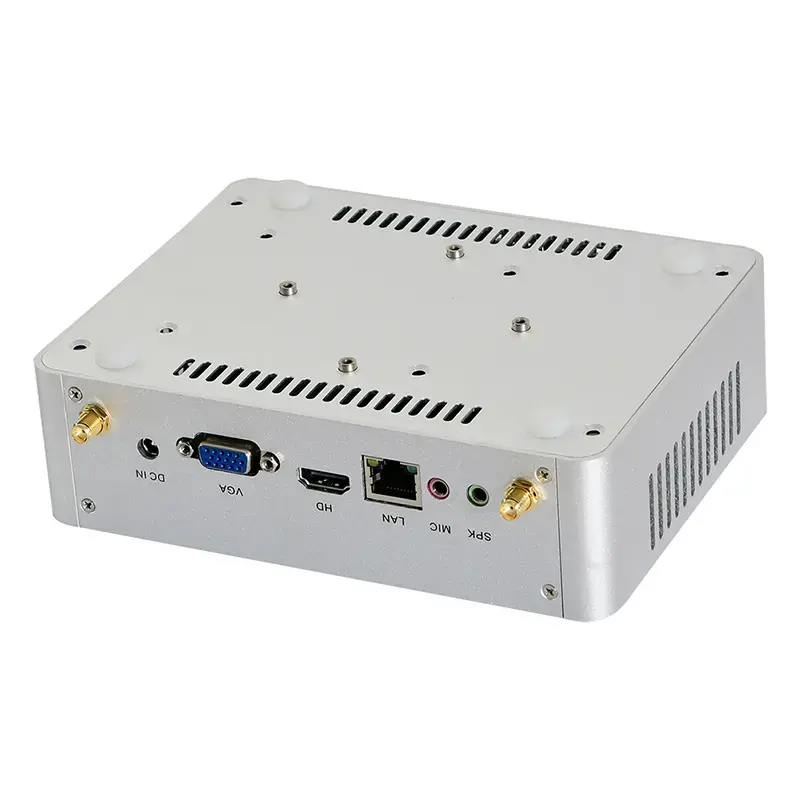

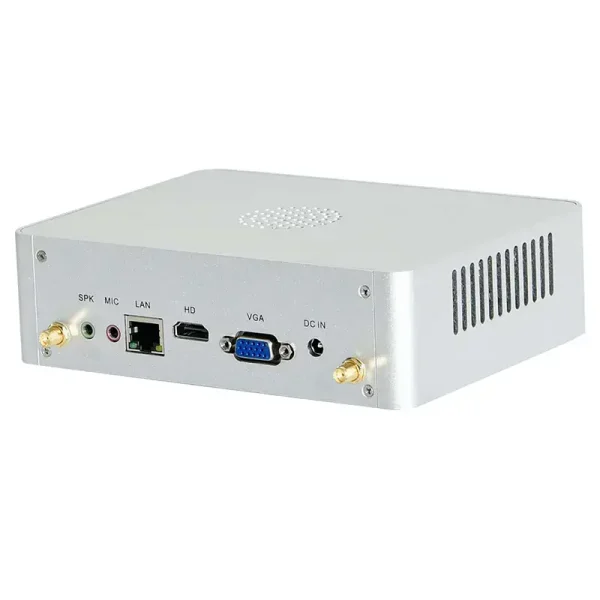

Rear Panel 1 x DC_in
1 x VGA
1 x HDMI
1 x Lan
1 x Audio
2 x WiFi antennas


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 12V/5A
Packing List BM19 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification NUC-BM19 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM19-6267U I5 6267U Intel® Iris® Graphics 550 2.9~3.3 GHz 28 W VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 6 12V/5A
BM19-7267U I5 7267U Intel® Iris® Plus Graphics 650 3.1~3.5 GHz 28 W VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 6 12V/5A
BM19-6650U I7 6650U Intel® Iris® Graphics 540 2.2~3.4 GHz 15 W VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 6 12V/5A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 2G/4G/8G/ DDR3L RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
