IP65-PW16 Series

8 Inch All in One Touch Panel Industrial PC, Intel Celeron J1900, IP65, 12-24V support

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective 8 inch led industrial panel computer.The compact embedded system can provide high-performance computing. High durability design, front panel protection grade IP65, supports 2 to 3 serial ports, 4 USB ports and 2 gigabit ethernet port to meet various industrial applications.


Key Features


IP65-PW16 Series Industrial grade 8 inch LED, with IP65 front panel, support 12V-24V

IP65-PW16 Series Rich I/O: Power switch, 3 x COM, Audio, 3 x USB2.0, 1 x USB3.0, HDMI, 2 x LAN, DC_IN

IP65-PW16 Series Single SODIMM for up to 8GB DDR3L Memory

IP65-PW16 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

IP65-PW16 Series Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot onboard




Key Functions


IP65-PW16 Series Support diskless boot

IP65-PW16 Series Support automatic boot after power failure

IP65-PW16 Series Support wake on Lan

IP65-PW16 Series Support watchdog for 256-level

IP65-PW16 Series Support 4G network module with sim slot onboard





Specifications




Mechanical

Front Panel Protection IP65 standard
Material PET film/sheet metal/aluminum alloy
Colour Gray
Opening Hole Size 208.4 x 166.4mm (L x W)
Size 225.8 x 185.8 x 65mm
Weight 1.1Kgs
Installation Method Standard VESA screw hole (75 x 75 or 100 x 100mm) for flexible installation, vesa mount for optional
Embedded (recommended)/wall-mounted/desktop/cantilevered etc


LCD Display

Display Type Industrial grade 8 inch LED
Resolution 1024 x 768
Lumens (cd/m2) 200
Contrast 500


Touch Screen

Touch Type Original imported resistive touch screen
Durability (Number of Touches) >35 million times


Motherboard

CPU Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipset Intel SOC
Watchdog Timer 255 levels
Network Card 2 x Realtek 8111E gigabit lan
WiFi and Bluetooth N/A, optional to add
Memory 1 x SO-DIMM DDR3L, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE for WiFi/4G, with sim slot

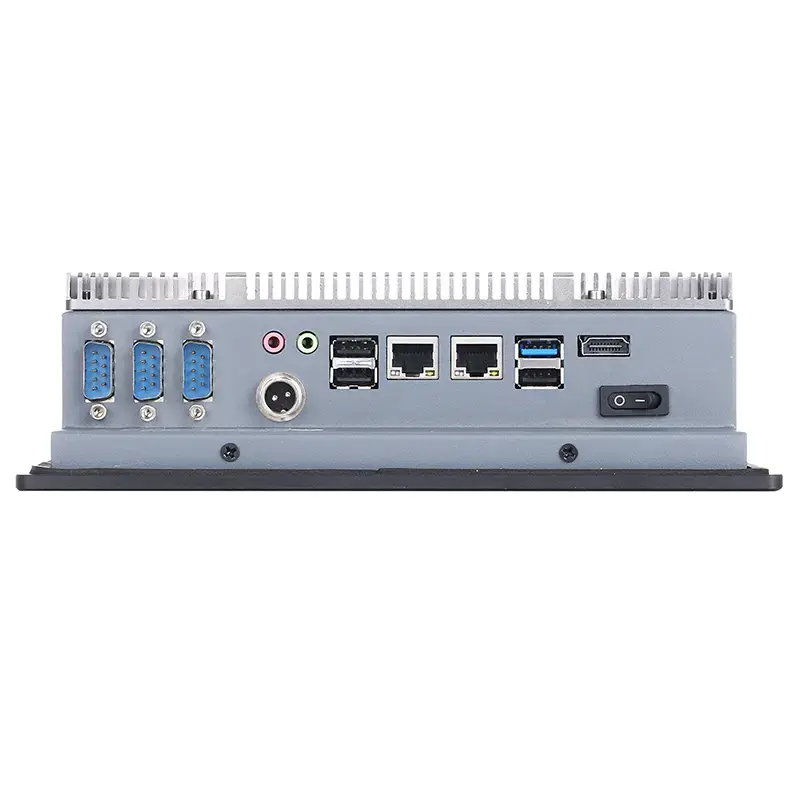

I/O Interfaces

Rear Panel 1 x Power switch
1 x HDMI
1 x USB3.0
3 x USB2.0
2 x Lan
1 x Audio
3 x COM RS232 (1 is optional for RS485/RS422)
1 x DC_in


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, support DC 12V/24V, 12V 4A for testing with aviation head and cable
Packing List PW16 industrial touch panel pc, power supply, power cord, embedded buckles, warranty card


Environment

Operating Temperature -10℃~60℃ surface air flow
Storage Temperature -20℃~70℃
Working Humidity 10 ~ 95% @ 40°C (non-condensing)
Certification IP65-PW16 Series

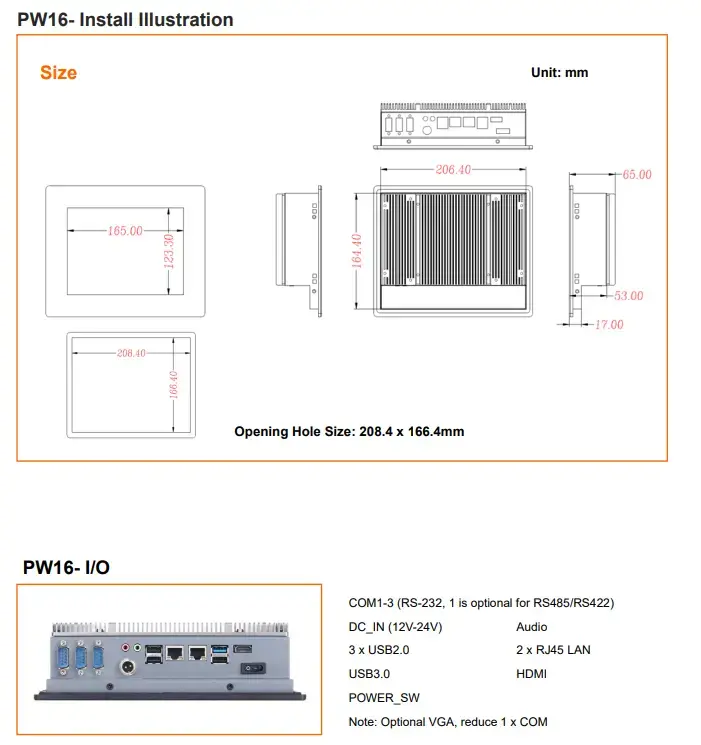

Panel PC PW16 Install



* Ordering Information *




Model



Processor



Cooling System



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



COM



Power

PW16-J1900 Celeron J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz 10 W HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 4 3 12V/4A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as embedded (recommended)/wall-mounted/desktop/cantilevered etc

Optional Accessories:

Memory: 2G/4G/8G DDR3L RAM type

Storage: 32G/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 4A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
