IPC-BM18 Series

Fanless Industrial Computer with J1900/ N2920/ N3520, support 4G

For product pricing, customization, or other inquiries:

Share to:






Overview


It is the cost-effective industrial mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.


Key Features


IPC-BM18 Series Intel® Celeron®/Pentium® J1900/ N2920/ N3520 BGA Processor and Intel® BTY SOC Chipset

IPC-BM18 Series Rich I/O: 2 x LAN, 2 x COM (RS232 RS422 RS485), VGA, HDMI, 2 x USB 3.0, 4 x USB2.0, Mic, Spk, Front Sim Card Slot

IPC-BM18 Series Single SODIMM for up to 8GB DDR3L Memory

IPC-BM18 Series Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD

IPC-BM18 Series Embedded Expansion: Mini PCIe for WiFi




Key Functions


IPC-BM18 Series Support diskless boot/restore AC power loss/wake on lan function

IPC-BM18 Series Support dual screen (VGA and HDMI) for simultaneous display or synchronous different display

IPC-BM18 Series Support 4G module with SIM card slot

IPC-BM18 Series Support soft switching 2 RS232 to RS422 RS485 in BIOS

IPC-BM18 Series Support 256-level watchdog

IPC-BM18 Series Support 8 bit GPIO





Specifications




Mechanical

Material Aluminum alloy
Colour Black
Size 175 x 130 x 36mm
Weight 1.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop


Motherboard

CPU Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Intel® Celeron® Processor N2920 (2M Cache, up to 2.00 GHz)
Intel® Pentium® Processor N3520 (2M Cache, up to 2.42 GHz)
Chipset SOC
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR3L 1333, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot


I/O Interfaces

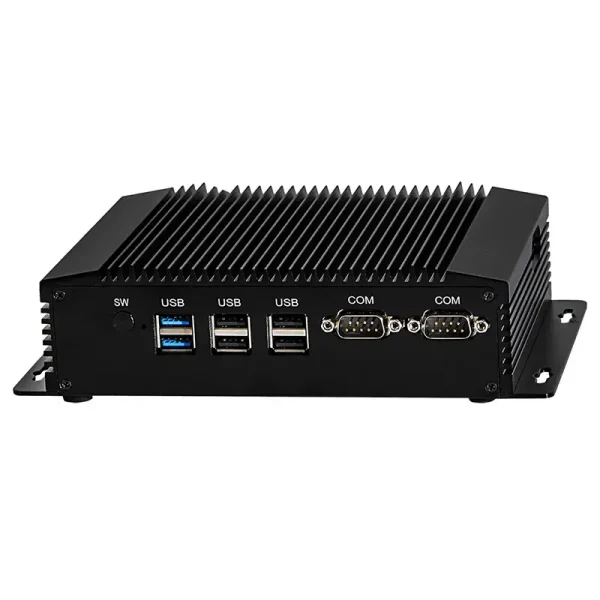

Front Panel 1 x Power button
2 x USB3.0
4 x USB2.0
2 x COM

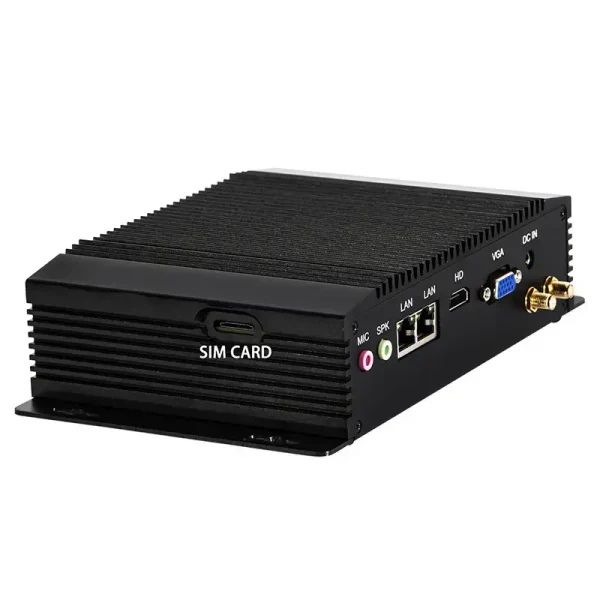

Rear Panel 1 x DC_in
1 x VGA
1 x HDMI
2 x Lan
1 x Audio
2 x WiFi antennas

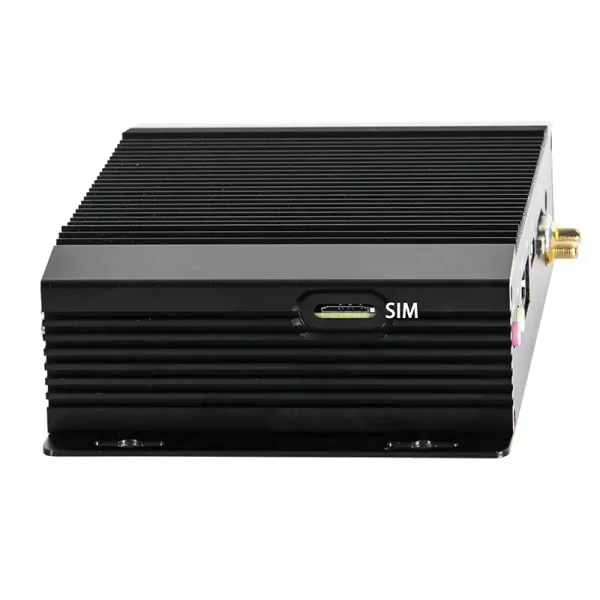

Side Panel 1 x Sim slot


Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A
Packing List BM18 industrial pc, power supply, power cord, wifi antennas, warranty card


Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification IPC-BM18 Series



* Ordering Information *




Model



Processor



Graphics



Frequency



TDP



Display



Memory



Storage



LAN



USB



Power

BM18-J1900 Celeron J1900 Intel® HD Graphics 2.0~2.42 GHz 10 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 6 12V/3A
BM18-N2920 Celeron N2920 Intel® HD Graphics 1.86~2.0 GHz 7.5 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 6 12V/3A
BM18-N3520 Pentium N3520 Intel® HD Graphics 2.17~2.42 GHz 7.5 W VGA/HDMI 1 x SO-DIMM DDR3L  1 x 2.5 inch/1 x M-SATA 2 6 12V/3A



* Supplemental Information *




Installation Method:  Support multiple fixing methods such as desktop type, wall-mounted, embedded type etc

Optional Accessories:

Memory: 2G/4G/8G/ DDR3L RAM type

Storage: 32/64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 3A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
