FMC-BM02 Series

Fanless Mini PC with 5th~7th Gen I7, 2 x Lan, 2 x HDMI, SIM, Raid

For product pricing, customization, or other inquiries:

Share to:

Overview

It is the cost-effective mini PC. Compact, space-saving, fanless design, zero noise disturbance, low power consumption and energy saving.

Key Features

Intel® 4- 7th Gen Intel® Core™ i7 BGA Processor and Intel® QS77 Chipset

Rich I/O: 2*LAN, 2*HDMI, 4*USB 3.0, 4*USB2.0, Optical, SD Card Reader, SPK, MIC

Dual SODIMMs for up to 16GB DDR3L Memory

Rich Storage: mSATA SSD, M.2 2280 SATA/NVME, 2.5 Inch SSD/HDD

Embedded Expansion: Mini PCIe for WiFi, SIM Slot Optional for Customization

Key Functions

Support diskless boot

Support Restore AC Power Loss

Support dual screen (2 x HDMI) for simultaneous display or synchronous different display

Support Raid 0, 1, 10, 5

Specifications

Mechanical
Material	Aluminum alloy
Colour	Black
Size	220 x 170 x 45mm
Weight	2.5Kgs
Insallation Method	Desktop type/vesa mounting With holding vertical stand, vesa mount as the optional
Motherboard
CPU	Intel® Core™ i7-I7 4500U 4650U Processor (4M Cache, up to 3.30 GHz) Intel® Core™ i7-5500U 5550U Processor (4M Cache, up to 3.00 GHz) Intel® Core™ i7-6567U Processor (4M Cache, up to 3.60 GHz) Intel® Core™ i7-7560U/7567U Processor (4M Cache, up to 3.80 GHz)
Chipset	QS77
Network Card	2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth	With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory	2 x SODIMM DDR3L 1333/1600, up to 16GB RAM 2 x SODIMM DDR4, up to 32GB RAM
Storage	1 x 2.5 inch hard disk bay/1 x mSATA 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (NVME)
Expand	1 x Mini PCIE WiFi slot 1 x Full size mini PCIE (SIM slot optional for customization)
I/O Interfaces

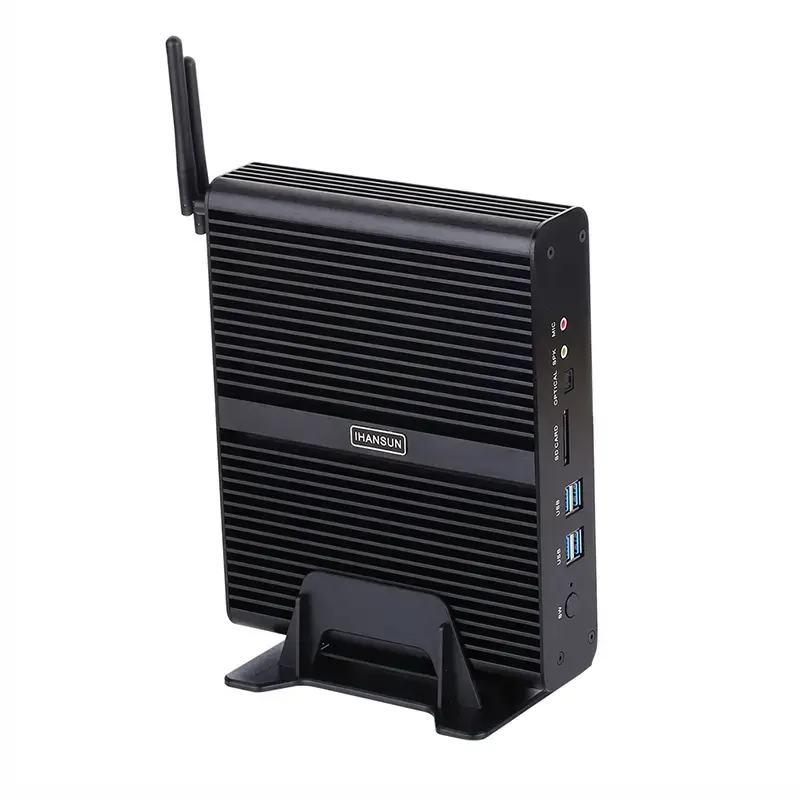

Front Panel	1 x Power button 4 x USB3.0/ 2 x USB3.0+ 2 x USB2.0 1 x SD Card Reader 1 x Optical 1 x Audio

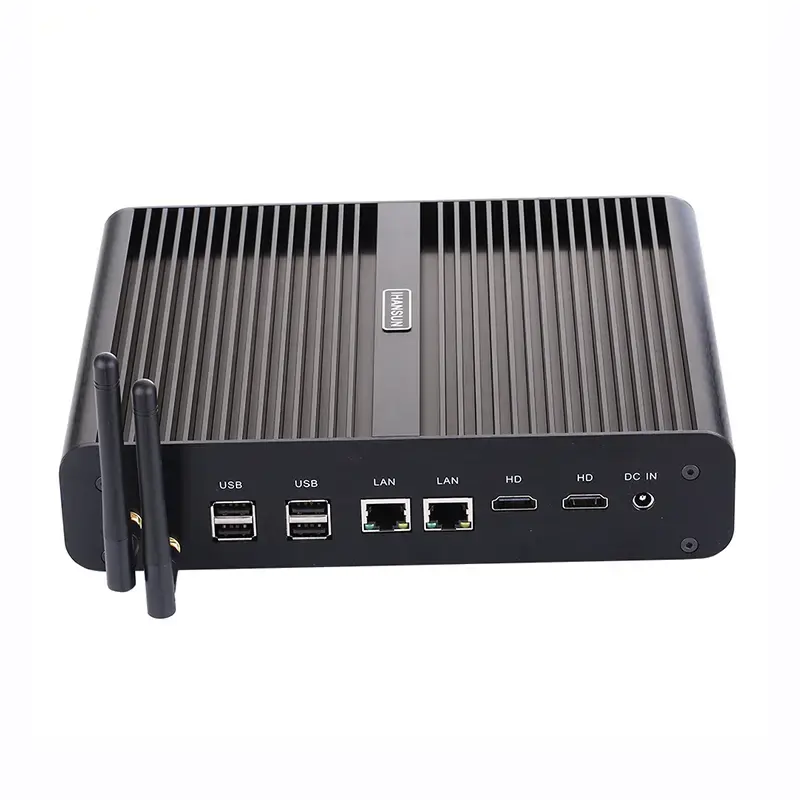

Rear Panel	1 x DC_in 2 x HDMI/ 1 x HDMI+ 1 x DP 2 x Lan 4 x USB2.0/ 2 x USB3.0+ 2 x USB2.0 2 x WiFi antennas
Software Support
Bios	AMI bios
System Support	Windows 10, linux ubuntu etc
General
Cooling Mode	Fanless
Power Supply	DC100-240V AC/50-60Hz, DC 12V/5A-19V/5A
Packing List	BM02 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card
Environment
Operating Temperature	0°C~70°C Centigrade (32°F~140°F)
Storage Temperature	-20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity	10%~90% (non-condensing)
Certification

* Ordering Information *

Model	Processor	Graphics	Frequency	TDP	Display	Memory	Storage	LAN	USB	Power
BM02-4500U	I7 4500U	Intel® HD Graphics 4400	1.8~3.0 GHz	15 W	2 x HDMI	2 x SO-DIMM DDR3L	1 x 2.5 inch/1 x M-SATA	2	8	12V/5A
BM02-5500U	I7 5500U	Intel® HD Graphics 5500	2.4~3.0 GHz	15 W	2 x HDMI	2 x SO-DIMM DDR3L	1 x 2.5 inch/1 x M-SATA	2	8	12V/5A
BM02-6567U	I7 6567U	Intel® Iris® Graphics 550	3.3~3.6 GHz	28 W	DP/HDMI	2 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (NVME)	2	8	12V/5A
BM02-7560U	I7 7560U	Intel® Iris® Plus Graphics 640	2.4~3.8 GHz	15 W	DP/HDMI	2 x SO-DIMM DDR4	1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (NVME)	2	8	19V/5A

* Supplemental Information *

Installation Method: Support multiple fixing methods such as desktop type, vesa mounting type etc

Optional Accessories:

Memory: 2G/4G/8G/ DDR3L RAM type/ 4G/8G/16G/32G DDR4 RAM type

Storage: 64G/128G/256G/512G SSD/1TB solid state drive etc

1TB/2TB/3TB/5TB 2.5 inch hard drive etc

Optional 12V 5A/ 19V 5A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
