IP68-PW18 Series

12.1 Inch All in One Touch Panel Industrial PC, Intel Celeron J1900, Full IP68 Waterproof

For product pricing, customization, or other inquiries:

Share to:




It is the high grade 12.1 inch led fully waterproof IP68 grade industrial panel computer. The compact embedded system can provide high-performance computing.

Key Features

IP68-PW18 Series Industrial grade 12.1 inch LED, fully IP68 protection

IP68-PW18 Series Rich I/O: 2 x COM RS232, RS485, 2 x LAN, 3 x USB2.0

IP68-PW18 Series 4GB/8GB DDR3L Memory

IP68-PW18 Series 128G SSD installed

IP68-PW18 Series Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot onboard


Key Functions

IP68-PW18 Series Support diskless boot

IP68-PW18 Series Support automatic boot after power failure

IP68-PW18 Series Support wake on Lan

IP68-PW18 Series Support watchdog for 256-level

IP68-PW18 Series Support 4G network module with sim slot onboard





Waterproof Level Fully IP68, full interface waterproof aviation head connector
Material Aluminum alloy
Colour Black
Opening Hole Size 312 x 247mm (L x W)
Size 326 x 261 x 46.5mm
Weight 4.5Kgs
Installation Method Standard VESA screw hole (75 x 75 or 100 x 100mm) for flexible installation, vesa mount for optional
Embedded (recommended)/wall-mounted/desktop/cantilevered etc

LCD Display

Display Type Industrial grade 12.1 inch LED
Resolution 1024 x 768
Lumens (cd/m2) 350
Contrast 800

Touch Screen

Touch Type Original imported resistive touch screen
Durability (Number of Touches) >35 million times


CPU Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipset Intel SOC
Watchdog Timer 255 levels
Network Card 2 x Realtek 8111E gigabit lan
WiFi and Bluetooth N/A, optional to add
Memory 4GB/8GB RAM
Storage 128G SSD
Expand 1 x Mini PCIE for WiFi/4G, with sim slot

I/O Interfaces

Rear Panel 2 x COM RS232
1 x RS485
2 x Lan
3 x USB2.0

Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc


Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 4A for testing
Packing List PW18  industrial touch panel pc, testing power supply, testing power cord, touch pen, aviation heads, warranty card


Operating Temperature -20℃~60℃ surface air flow
Storage Temperature -30℃~70℃
Working Humidity No request
Certification IP68-PW18 Series

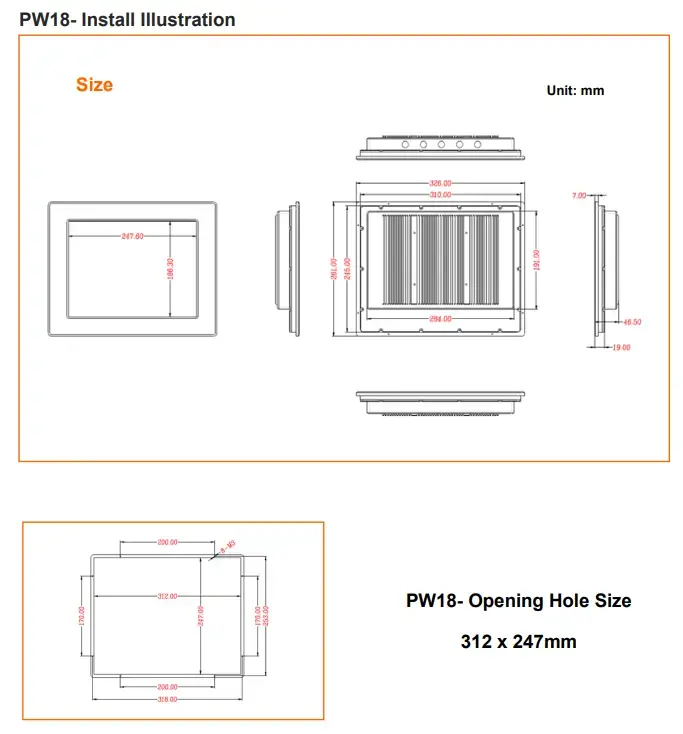

Panel PC PW18 Install


* Ordering Information *






Cooling System





















PW18-J1900-4 Celeron J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz 10 W 4GB 128G SSD 2 3 2 1 12V/4A
PW18-J1900-8 Celeron J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz 10 W 8GB 128G SSD 2 3 2 1 12V/4A


* Supplemental Information *


Installation Method:  Support multiple fixing methods such as embedded (recommended)/wall-mounted/desktop/cantilevered etc

Optional Accessories:

Memory: 4G/8G DDR3L RAM type

Storage: 128G solid state drive

Optional 12V 4A adapter, optional power cords such as national standard, American standard, British standard, European standard, Australian standard
